RM35X0E _53 Suspension _078877 REAR SUSPENSION _0382539 REAR SHOCK ABSORBER(except Wagon) A

REAR SUSPENSION REAR SHOCK ABSORBER(except Wagon) REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed, installed, or replaced during the rear shock absorber assembly removal/installation are shown below.

Necessary Procedure After Parts Removed/Installed/Replaced:

Replacement Part or Procedure	Necessary Procedures	Effects/Inoperative when not Performed	Link
Suspension, tires, etc.	Television camera assembly optical axis (Back camera position setting)	Parking assist monitor system	(201902,202310,_56,_079315,_0385736,RM100000001GNRB,202310,999999,_56,_079315,_0385736,RM100000002G5JM,)

HINT:: ·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.

PROCEDURE

Hide Display 1.REMOVE REAR WHEEL

Click hereGeneral>MAINTENANCE>TIRE AND WHEEL>REMOVAL201902,999999,_V1,_078672,_0387313,RM100000001GWDK,

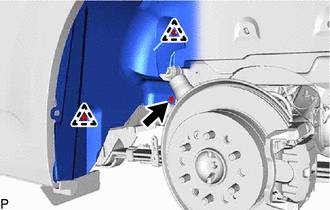

Hide Display 65638A 2.DISCONNECT REAR WHEEL HOUSE LINER (w/ Wheel House Liner)

Remove the 2 clips, grommet and disconnect the rear wheel house liner.

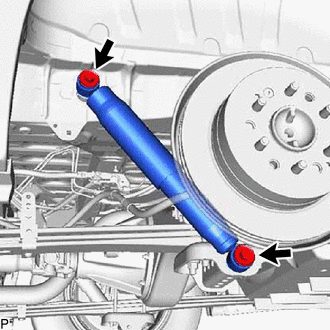

Hide Display 48540 3.REMOVE REAR SHOCK ABSORBER ASSEMBLY

Using a jack and wooden block, support the rear axle housing assembly.

Remove the 2 bolts.

Disconnect the rear shock absorber assembly and 4 rear shock absorber bushes from the spring U bolt seat and vehicle body.

Remove the 4 rear shock absorber bushes from the rear shock absorber assembly.

Remove the 2 rear shock absorber cushion washers.
