SEAT  REAR SEAT ASSEMBLY(for Folding Type)  DISASSEMBLY

73233D 1.REMOVE OUTER LAP BELT ANCHOR COVER (w/ Under Cover)

73330Q 2.REMOVE SPACE UP SEAT REAR SEAT LAP TYPE BELT ASSEMBLY RH (for 2 Point Type Rear Seat Belt)

73390 3.REMOVE REAR SEAT 3 POINT TYPE BELT ASSEMBLY LH (SEAT ANCHOR) (for 3 Point Type Rear Seat Belt)

71324P 4.REMOVE NO. 1 SEAT CUSHION RH (w/ Cushion)

a.

Remove the screw and No. 1 seat cushion RH.

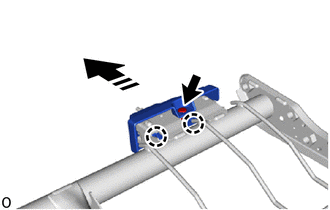

71629G 5.REMOVE REAR SEAT CUSHION HINGE COVER (w/ Under Cover)

a.

0,0 0,0 false

Remove in this Direction

Detach the claw and guide and remove the rear seat cushion hinge cover as shown in the illustration.

71499U 6.REMOVE SEAT CUSHION SPRING DAMPER LH (w/ Under Cover)

a.

Remove the nut.

b.

Detach the guide and remove the seat cushion spring damper LH.

71384C 7.REMOVE REAR SEAT REAR CUSHION SET BRACKET LH (w/ Under Cover)

a.

Remove the 3 nuts and rear seat rear cushion set bracket LH.

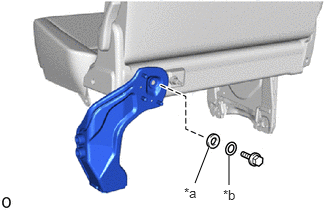

79329B 8.REMOVE REAR SEAT REAR LEG BRACKET LH

a.

2.385,1.927 2.385,1.625 true 2.031,1.906 2.177,1.531 true 1.917,1.927 2.229,2.083 0.313,0.156 10 false *a 2.323,1.948 2.635,2.104 0.313,0.156 10 false *b

*a	Bush
*b	Washer

Remove the bolt, washer, bush and rear seat rear leg bracket LH.

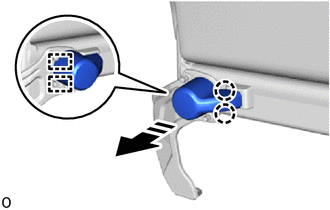

72526L 9.REMOVE RECLINING ADJUSTER RELEASE HANDLE LH

a.

Remove the screw.

b.

Detach the guide and remove the reclining adjuster release handle LH.

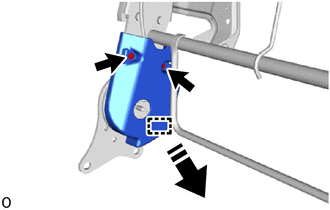

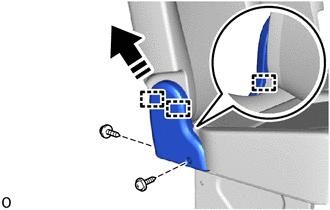

71834S 10.REMOVE REAR SEAT NO. 1 RECLINING COVER LH

a.

0,0 0,0 false

Remove in this Direction

Remove the 2 screws.

b.

Detach the guide and remove the rear seat No. 1 reclining cover LH as shown in the illustration.

73330P 11.REMOVE SPACE UP SEAT REAR SEAT LAP TYPE BELT ASSEMBLY LH (for 2 Point Type Rear Seat Belt)

71834R 12.REMOVE REAR SEAT RECLINING COVER LH

a.

0,0 0,0 false

Remove in this Direction

Remove the 2 screws.

b.

Detach the guide and remove the rear seat reclining cover LH as shown in the illustration.

13.REMOVE REAR SEATBACK ASSEMBLY

a.

Remove the 4 bolts and rear seatback assembly.

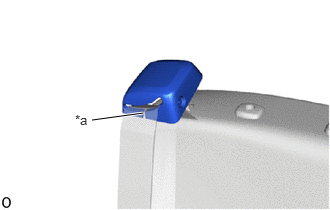

72667D 14.REMOVE REAR SEATBACK UPPER LOCK BEZEL LH (for 3 Point Type Rear Seat Belt)

a.

Remove the screw.

b.

Detach the guide.

c.

0.958,1.25 1.49,1.177 true 0.781,1.167 1.094,1.323 0.313,0.156 10 false *a

*a

Slit

Pass the rear seat 3 point type belt assembly LH through the slit and remove the rear seatback upper lock bezel LH.

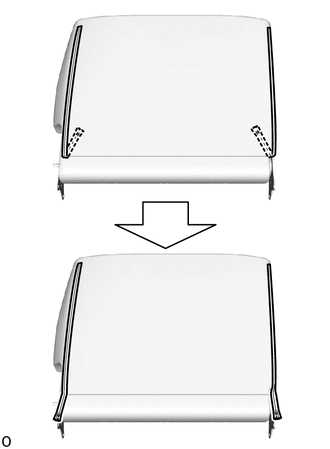

15.REMOVE NO. 3 SEATBACK COVER WITH PAD

a.

Detach the fastening tape.

0,0 0,0 false

Fastening Tape

-

-

b.

Detach the hook.

c.

Pull out the 2 fasteners.

d.

Open the 2 fasteners.

e.

Detach the hook.

f.

0,0 0,0 false

Remove in this Direction

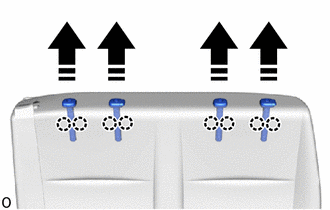

w/ Headrest:

i.

Detach the claw and remove the 4 rear seat headrest support assemblies as shown in the illustration.

g.

Remove the No. 3 seatback cover with pad.

79034A 16.REMOVE NO. 3 SEATBACK COVER SUB-ASSEMBLY LH

a.

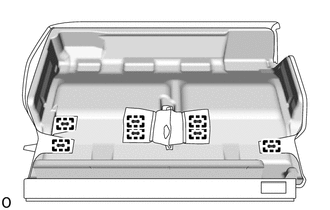

for Type A:

i.

Remove the 4 hog rings and No. 3 seatback cover sub-assembly LH.

b.

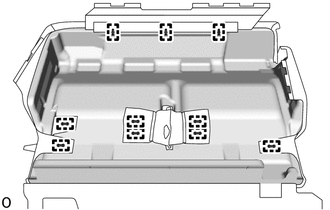

for Type B:

i.

Remove the 12 hog rings and No. 3 seatback cover sub-assembly LH.

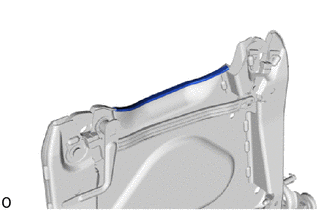

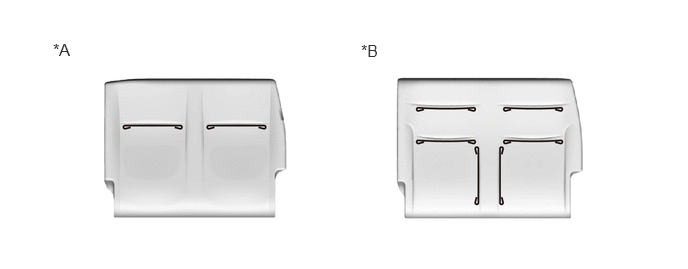

17.REMOVE SEAT COVER WIRE

a.

Remove the seat cover wire.

0.552,0.417 0.885,0.635 0.333,0.219 12 false *A 3.76,0.427 4.167,0.698 0.406,0.271 12 false *B

*A

for Type A

*B

for Type B

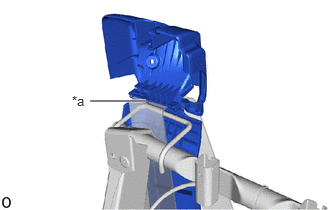

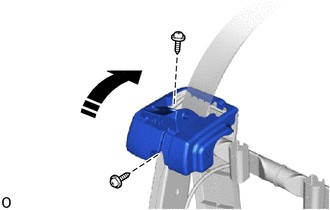

73375 18.REMOVE REAR SEAT SHOULDER BELT COVER LH (for 3 Point Type Rear Seat Belt)

a.

0,0 0,0 false

Open in this Direction

Remove the 2 screws.

b.

Open the rear seat shoulder belt cover LH as shown in the illustration.

c.

0.938,1.052 1.521,1.052 true 0.75,0.969 1.063,1.125 0.313,0.156 10 false *a

*a

Slit

Pass the rear seat 3 point type belt assembly LH through the slit of the rear seat shoulder belt cover LH.

d.

0,0 0,0 false

Remove in this Direction

Remove the screw.

e.

Detach the claw and remove the rear seat shoulder belt cover LH as shown in the illustration.

73390 19.REMOVE REAR SEAT 3 POINT TYPE BELT ASSEMBLY LH (for 3 Point Type Rear Seat Belt)

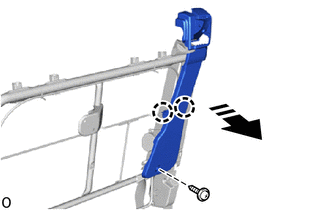

71868T 20.REMOVE REAR SEAT INNER NO. 1 CUSHION SHIELD LH (for 3 Point Type Rear Seat Belt)

a.

0,0 0,0 false

Remove in this Direction

Remove the 2 screws.

b.

Detach the guide and remove the rear seat inner No. 1 cushion shield LH as shown in the illustration.

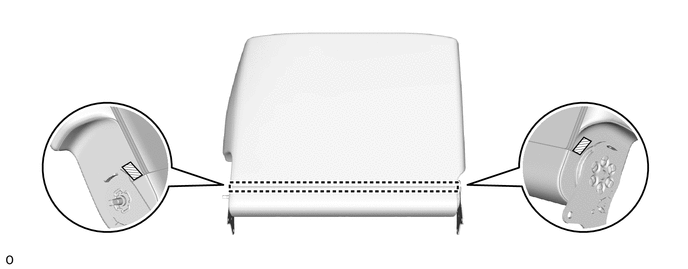

79977J 21.REMOVE SEATBACK FELT (for 3 Point Type Rear Seat Belt)

a.

Remove the seatback felt.

NOTICE:

Do not reuse the removed seatback felt.

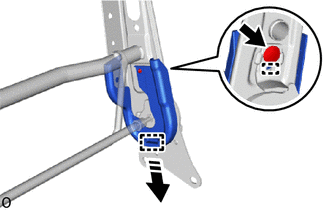

71T76B 22.REMOVE RECLINING ADJUSTER INSIDE COVER LH (for 2 Point Type Rear Seat Belt)

a.

0,0 0,0 false

Remove in this Direction

Remove the clip.

b.

Detach the guide and remove the reclining adjuster inside cover LH as shown in the illustration.

71T75 23.REMOVE RECLINING ADJUSTER INSIDE COVER RH (for 2 Point Type Rear Seat Belt)

79977L 24.REMOVE SPACE UP SEAT SEATBACK FELT (w/ Felt)

a.

Remove the space up seat seatback felt.

NOTICE:

Do not reuse the removed space up seat seatback felt.

79328A 25.REMOVE REAR SEAT FRONT LEG BRACKET LH

a.

w/o Under Cover:

i.

Detach the fastener tape.

0,0 0,0 false

Rear Seat Cushion Spring Clip LH

Fastening Tape

ii.

Detach the hook.

iii.

Using a clip remover, remove the 2 rear seat cushion spring clips LH.

iv.

Detach the hook.

0,0 0,0 false

Seat Cover Fastener LH

-

-

v.

Using a clip remover, remove the 4 seat cover fasteners LH.

b.

w/ Under Cover:

i.

Detach the hook.

0,0 0,0 false

Seat Cover Fastener LH

-

-

ii.

Using a clip remover, remove the 2 seat cover fasteners LH.

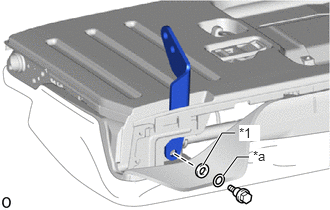

c.

2.115,1.719 2.313,1.385 2.313,1.385 2.448,1.385 true 2.323,1.833 2.469,1.635 2.469,1.635 2.594,1.635 true 2.49,1.302 2.708,1.469 0.219,0.167 10 true *1 2.635,1.542 2.844,1.74 0.208,0.198 10 true *a

*1	Rear Seat Reclining Spacer LH
*a	Washer

Remove the bolt, washer, rear seat reclining spacer and rear seat front leg bracket LH.

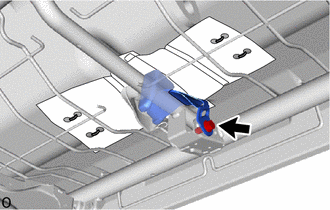

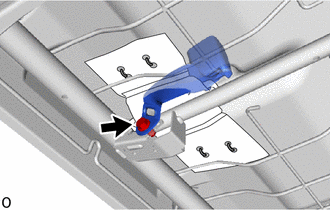

79408C 26.REMOVE REAR SEAT HOOK SUB-ASSEMBLY LH (w/ Under Cover)

a.

Detach the guide.

b.

Remove the screw and rear seat hook sub-assembly LH.

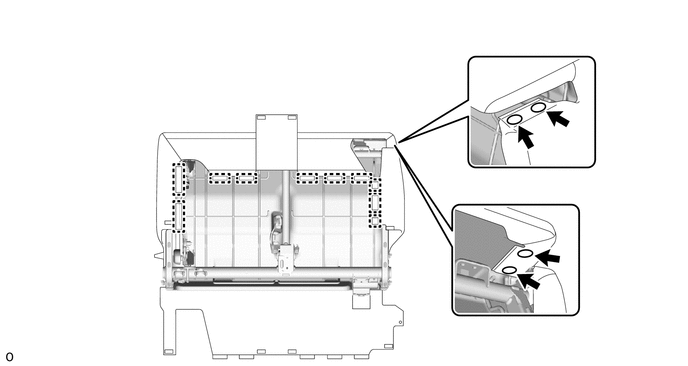

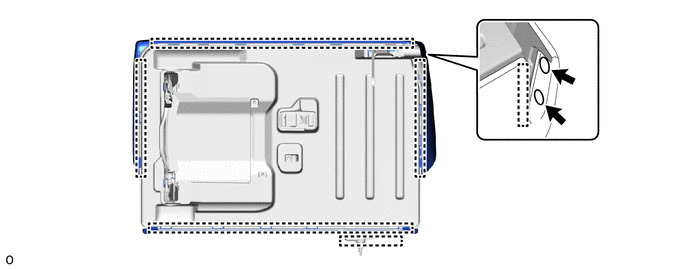

72928E 27.REMOVE REAR SEAT CUSHION UNDER COVER LH (w/ Under Cover)

a.

Detach the fastener tape.

0,0 0,0 false

Fastening Tape

-

-

b.

Remove the 6 screws and rear seat cushion under cover LH.

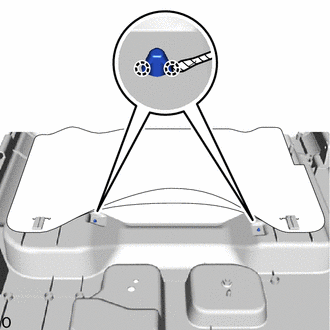

58959K 28.REMOVE REAR SEAT CUSHION UNDER COVER CUSHION LH (w/ Under Cover)

a.

0,0 0,0 false

Protective Tape

Using a thin-bladed screwdriver, detach the claw and remove the 2 rear seat cushion under cover cushions LH.

HINT:

Tape the thin-bladed screwdriver tip before use.

73380Q 29.REMOVE SPACE UP SEAT REAR SEAT BELT ASSEMBLY LH

a.

Remove the bolt and space up seat rear seat belt assembly LH.

73380P 30.REMOVE SPACE UP SEAT REAR SEAT BELT ASSEMBLY RH

a.

Remove the bolt and space up seat rear seat belt assembly RH.

31.REMOVE NO. 4 SEAT CUSHION COVER WITH PAD

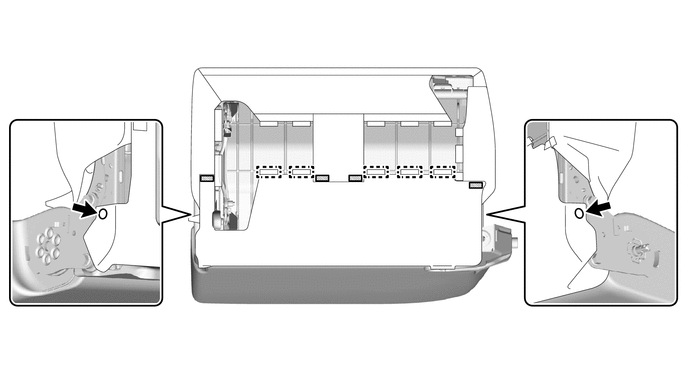

79042A 32.REMOVE NO. 4 SEAT CUSHION COVER SUB-ASSEMBLY LH

a.

w/o Under Cover:

i.

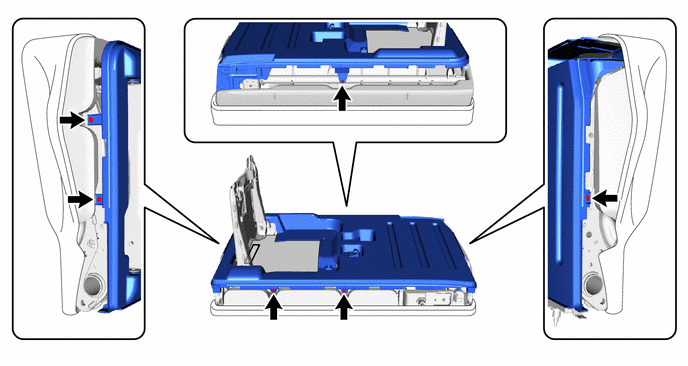

Remove the 10 hog rings.

b.

w/ Under Cover:

i.

Remove the 7 hog rings.

c.

Remove the 10 hog rings and No. 4 seat cushion cover sub-assembly LH.

33.REMOVE SEAT COVER WIRE

a.

Remove the seat cover wire.

79958B 34.REMOVE REAR SEAT REAR BRACKET COVER LH

a.

w/o Under Cover:

i.

0,0 0,0 false

	Seat Under Tray Bracket Cover LH
	Remove in this Direction

Remove the seat under tray bracket cover LH.

ii.

Detach the guide and remove the rear seat rear bracket cover LH as shown in the illustration.

b.

w/ Under Cover:

i.

Remove the seat under tray bracket cover LH.

ii.

0,0 0,0 false

	Seat Under Tray Bracket Cover LH
	Remove in this Direction

Detach the claw and remove the rear seat rear bracket cover LH as shown in the illustration.

72658H 35.REMOVE REAR SEAT LOCK HANDLE KNOB LH (w/ Under Cover)

a.

Remove the rear seat lock handle knob LH.

71647J 36.REMOVE REAR SEAT CUSHION EDGE PROTECTOR LH (w/ Under Cover)

a.

Remove the rear seat cushion edge protector LH.

NOTICE:

Do not reuse the removed rear seat cushion edge protector LH.
