AC60E AUTOMATIC TRANSMISSION / TRANSAXLE  OIL PUMP  INSPECTION

Using a dial indicator, measure the inside diameter of the front oil pump body sub-assembly bushing.

Maximum Inside Diameter:

38.138 mm (1.50 in.)

If the inside diameter is more than the maximum inside diameter, replace the front oil pump body sub-assembly.

Using a dial indicator, measure the inside diameter of the stator shaft assembly bushing.

Maximum Inside Diameter:

22.227 mm (0.875 in.)

If the inside diameter is more than the maximum inside diameter, replace the stator shaft assembly.

Push the front oil pump driven gear to one side of the front oil pump body sub-assembly.

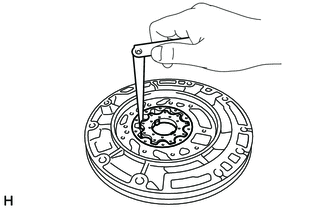

Using a feeler gauge, measure the clearance between the front oil pump driven gear teeth and the front oil pump drive gear teeth.

Standard Tip Clearance:

0.07 to 0.15 mm (0.00276 to 0.00590 in.)

If the tip clearance is more than the standard clearance, check the front oil pump drive gear, front oil pump driven gear and front oil pump body sub-assembly.

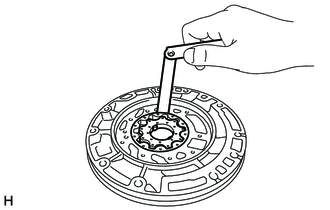

Using a steel straightedge and a feeler gauge, measure the side clearance of both gears.

Standard Side Clearance:

0.03 to 0.05 mm (0.00119 to 0.00196 in.)

If the side clearance is more than the standard thickness, check the front oil pump drive gear, front oil pump driven gear and front oil pump body sub-assembly.

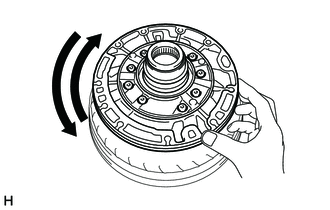

Check that the front oil pump drive gear rotates smoothly.
