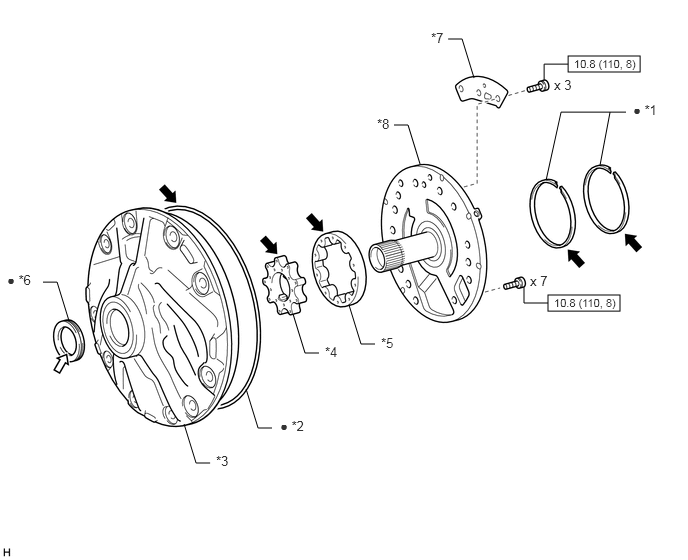

AC60E AUTOMATIC TRANSMISSION / TRANSAXLE  OIL PUMP  COMPONENTS

ILLUSTRATION

5.917,0.583 6.667,0.75 0.75,0.167 5.708,3.073 6.458,3.24 0.75,0.167 5.667,0.833 5.667,0.667 5.667,0.667 5.917,0.667 false 4.667,0.406 4.813,0.406 4.813,0.406 4.938,0.813 false 5.458,2.99 5.458,3.156 5.458,3.156 5.708,3.156 false 5.688,1.875 5.844,1.167 5.844,1.167 6.521,1.167 false 6.354,1.167 6.25,1.719 false 4.104,1.302 4.25,1.302 4.25,1.302 4.375,1.708 false 3.635,3.177 3.76,3.583 3.76,3.583 3.906,3.583 false 3.052,3.271 3.177,3.677 3.177,3.677 3.323,3.677 false 1.917,4.417 2.042,4.823 2.042,4.823 2.188,4.823 false 2.563,4.052 2.688,4.458 2.688,4.458 2.833,4.458 false 0.448,2.938 0.594,2.938 0.594,2.938 0.719,3.344 false 6.594,1.063 6.906,1.219 0.313,0.156 10 false ● *1 2.917,4.354 3.229,4.51 0.313,0.156 10 false ● *2 2.25,4.719 2.563,4.875 0.313,0.156 10 false *3 3.385,3.583 3.698,3.74 0.313,0.156 10 false *4 3.969,3.49 4.281,3.646 0.313,0.156 10 false *5 0.073,2.833 0.385,2.99 0.313,0.156 10 false ● *6 4.49,0.313 4.802,0.469 0.313,0.156 10 false *7 3.927,1.208 4.24,1.365 0.313,0.156 10 false *8 5.979,0.594 6.74,0.76 0.76,0.167 8 false 10.8 (110, 8) 5.771,0.802 6.229,1 0.458,0.198 10 false x 3 5.521,2.844 5.979,3.042 0.458,0.198 10 false x 7 5.771,3.083 6.531,3.25 0.76,0.167 8 false 10.8 (110, 8)

*1	CLUTCH DRUM OIL SEAL RING	*2	FRONT OIL PUMP BODY O-RING
*3	FRONT OIL PUMP BODY SUB-ASSEMBLY	*4	FRONT OIL PUMP DRIVE GEAR
*5	FRONT OIL PUMP DRIVEN GEAR	*6	FRONT OIL PUMP OIL SEAL
*7	FRONT OIL PUMP PLATE	*8	STATOR SHAFT ASSEMBLY
	N*m (kgf*cm, ft.*lbf): Specified torque	●	Non-reusable part
	Toyota Genuine ATF WS		MP grease
