AC60E AUTOMATIC TRANSMISSION / TRANSAXLE  VALVE BODY ASSEMBLY  INSPECTION


PROCEDURE

Hide 1.INSPECT SHIFT SOLENOID VALVE SL1

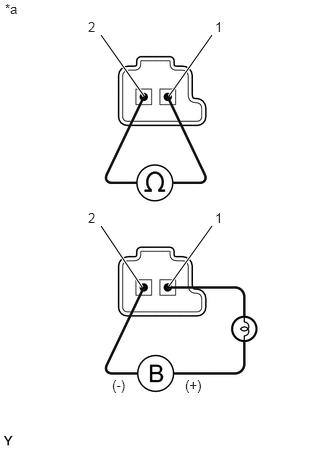

a.
C197715C60
1.76,1.0 2.208,0.365 true 1.5,1.0 1.052,0.365 true 1.76,2.979 2.208,2.354 true 1.479,2.99 1.052,2.354 true 0.052,0.01 0.365,0.208 0.313,0.198 10 *a 2.24,0.198 2.406,0.396 0.167,0.198 10 1 0.917,0.198 1.083,0.396 0.167,0.198 10 2 2.24,2.188 2.406,2.385 0.167,0.198 10 1 0.917,2.188 1.083,2.385 0.167,0.198 10 2 1.927,3.927 2.156,4.125 0.229,0.198 10 (+) 1.167,3.927 1.396,4.125 0.229,0.198 10 (-)
*a Component without harness connected
(Shift Solenoid Valve SL1)


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
1 - 2 20°C (68°F) 5.0 to 5.6 Ω


If the value is not as specified, replace the shift solenoid valve SL1.


b.

Apply 12 V battery voltage to the shift solenoid valve and check that the valve moves and makes an operating noise.

OK:
Measurement Condition Specified Condition
·

Battery positive (+) with a 21 W bulb → Terminal 1

·

Battery negative (-) → Terminal 2


Valve moves and makes an operating noise


If the operation cannot be done as specified, replace the shift solenoid valve SL1.


Hide 2.INSPECT SHIFT SOLENOID VALVE SL2

HINT:

Refer to Inspect Shift Solenoid Valve SL1.


Hide 3.INSPECT SHIFT SOLENOID VALVE SL3

HINT:

Refer to Inspect Shift Solenoid Valve SL1.


Hide 4.INSPECT SHIFT SOLENOID VALVE SL4

HINT:

Refer to Inspect Shift Solenoid Valve SL1.


Hide 5.INSPECT SHIFT SOLENOID VALVE SLU

HINT:

Refer to Inspect Shift Solenoid Valve SL1.


Hide 6.INSPECT SHIFT SOLENOID VALVE SLT

HINT:

Refer to Inspect Shift Solenoid Valve SL1.


Hide 7.INSPECT SHIFT SOLENOID VALVE SL

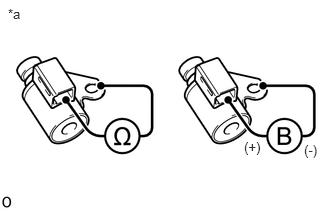

a.
C320237C02
0.083,0.063 0.396,0.26 0.313,0.198 10 false *a 2.542,1.448 3,1.646 0.458,0.198 10 false (+) 3.167,1.479 3.385,1.667 0.219,0.188 10 false (-)
*a Component without harness connected
(Shift Solenoid Valve SL)


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
Shift solenoid valve SL connector terminal - Shift solenoid valve SL body 20°C (68°F) 11 to 15 Ω


If the value is not as specified, replace the shift solenoid valve SL.


b.

Apply 12 V battery voltage to the shift solenoid valve and check that the valve moves and makes an operating noise.

OK:
Measurement Condition Specified Condition
·

Battery positive (+) → Shift solenoid valve SL connector

·

Battery negative (-) → Shift solenoid valve SL body


Valve moves and makes an operating noise



Hide 35200 8.INSPECT ELECTROMAGNETIC OIL PUMP (w/ Stop And Start System)

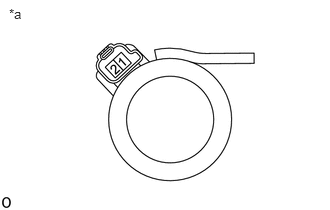

a.
A346338C02
0.094,0.063 0.406,0.26 0.313,0.198 10 false *a
*a Component without harness connected
(Electromagnetic Oil Pump)


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
1 - 2 20°C (68°F) 5.0 to 5.6 Ω


If the value is not as specified, replace the electromagnetic oil pump.
