AC60E AUTOMATIC TRANSMISSION / TRANSAXLE
_0382306
TRANSMISSION WIRE
G
AC60E AUTOMATIC TRANSMISSION / TRANSAXLE TRANSMISSION WIRE INSPECTION
PROCEDURE
82125J
1.INSPECT TRANSMISSION WIRE
1.875,0.885 2.01,0.323
false
2.354,1.823 2.167,0.969
false
1.677,0.854 1.479,0.281
false
1.698,1.854 1.969,1
false
0.063,0.052 0.375,0.25
0.313,0.198
10
false
*a
1.104,0.167 1.531,0.365
0.427,0.198
10
false
OT2-
2.052,0.167 2.458,0.385
0.406,0.219
10
false
OT2+
1.573,1.885 1.885,2.083
0.313,0.198
10
false
OT-
2.271,1.875 2.677,2.094
0.406,0.219
10
false
OT+

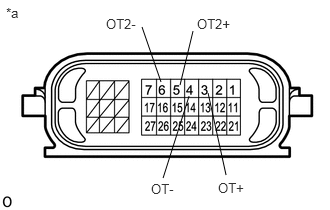

| *a | Component without harness connected (Transmission Wire) |
a.
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Condition Specified Condition 3 (OT+) - 4 (OT-) Always 79 Ω to 156 kΩ 5 (OT2+) - 6 (OT2-) Always 25 Ω to 156 kΩ 3 (OT+) - Body ground Always 10 kΩ or higher 5 (OT2+) - Body ground Always 10 kΩ or higher 4 (OT-) - Body ground Always 10 kΩ or higher 6 (OT2-) - Body ground Always 10 kΩ or higher
- HINT:
-
If the resistance is out of the specified range at any of the ATF temperatures shown in the table below, the driveability of the vehicle may decrease.
- Standard Resistance:
ATF Temperature Specified Condition 10°C (50°F) 5 to 8 kΩ 25°C (77°F) 2.5 to 4.5 kΩ 110°C (230°F) 0.22 to 0.28 kΩ
If the result is not as specified, replace the transmission wire.
