AC60E AUTOMATIC TRANSMISSION / TRANSAXLE  SPEED SENSOR  INSPECTION


PROCEDURE

Hide 89413N 1.INSPECT TRANSMISSION REVOLUTION SENSOR (NT)

a.

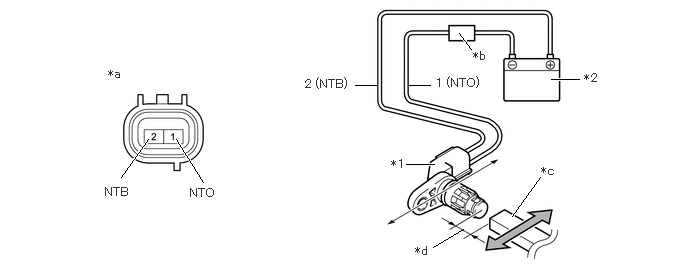

Connect the battery to the transmission revolution sensor (NT) as shown in the illustration.

C297974C08
3.698,0.885 3.927,0.885 false 4.781,0.344 4.906,0.51 true 5.74,0.823 6.031,0.823 true 5.333,2.25 5.625,1.844 true 4.51,2.573 4.823,2.385 false 4.25,0.885 4.479,0.885 false 1.26,1.844 1.542,1.448 true 2.115,1.896 1.833,1.448 true 4.229,1.708 4.521,1.708 true 1.125,0.698 1.438,0.854 0.313,0.156 10 false *a 4.927,0.51 5.24,0.667 0.313,0.156 10 false *b 6.083,0.74 6.396,0.896 0.313,0.156 10 false *2 5.635,1.708 5.948,1.865 0.313,0.156 10 false *c 4.323,2.542 4.635,2.698 0.313,0.156 10 false *d 3.177,0.802 3.885,1.021 0.708,0.219 10 false 2 (NTB) 4.542,0.792 5.25,1.01 0.708,0.219 10 false 1 (NTO) 1.979,1.938 2.688,2.156 0.708,0.219 10 false NTO 1.094,1.927 1.802,2.146 0.708,0.219 10 false NTB 4.073,1.635 4.385,1.792 0.313,0.156 10 false *1
*1 Transmission Revolution Sensor (NT) *2 Battery
*a Component without harness connected
(Transmission Revolution Sensor (NT)) 		*b Ammeter
*c Magnet *d 5 mm (0.197 in.) or less



b.

Wave a magnetic object left and right in front of the transmission revolution sensor (NT) tip (5 mm (0.197 in.) or less) to change the high/low signals while measuring the current.

NOTICE:

Make sure to wave the magnetic object during the inspection. The current will not change without waving the magnetic object as indicated by the arrow in the illustration.



c.

Measure the current according to the value(s) in the table below.

Standard Current:
Tester Connection Condition Specified Condition
1 (NTO) - 2 (NTB) Low signal 4 to 8 mA
High signal 12 to 16 mA


If the result is not as specified, replace the transmission revolution sensor (NT).


Hide 89413R 2.INSPECT TRANSMISSION REVOLUTION SENSOR (SP2)

a.

Connect the battery to the transmission revolution sensor (SP2) as shown in the illustration.

C297974C09
3.698,0.885 3.927,0.885 false 4.76,0.354 4.917,0.531 true 5.74,0.823 6.031,0.823 true 5.333,2.25 5.625,1.844 true 4.51,2.573 4.823,2.385 false 4.26,0.875 4.49,0.875 false 1.26,1.844 1.542,1.448 true 2.115,1.896 1.833,1.448 true 4.156,1.719 4.51,1.719 true 1.104,0.74 1.417,0.896 0.313,0.156 10 false *a 4.948,0.531 5.26,0.688 0.313,0.156 10 false *b 6.083,0.76 6.396,0.917 0.313,0.156 10 false *2 5.635,1.708 5.948,1.865 0.313,0.156 10 false *c 4.323,2.542 4.635,2.698 0.313,0.156 10 false *d 3.083,0.823 3.792,1.042 0.708,0.219 10 false 2 (SP2B) 4.542,0.802 5.25,1.021 0.708,0.219 10 false 1 (SP2O) 1.979,1.938 2.688,2.156 0.708,0.219 10 false SP2O 1.094,1.927 1.802,2.146 0.708,0.219 10 false SP2B 3.99,1.656 4.302,1.813 0.313,0.156 10 false *1
*1 Transmission Revolution Sensor (SP2) *2 Battery
*a Component without harness connected
(Transmission Revolution Sensor (SP2)) 		*b Ammeter
*c Magnet *d 5 mm (0.197 in.) or less



b.

Wave a magnetic object left and right in front of the transmission revolution sensor (SP2) tip (5 mm (0.197 in.) or less) to change the high/low signals while measuring the current.

NOTICE:

Make sure to wave the magnetic object during the inspection. The current will not change without waving the magnetic object as indicated by the arrow in the illustration.



c.

Measure the current according to the value(s) in the table below.

Standard Current:
Tester Connection Condition Specified Condition
1 (SP2O) - 2 (SP2B) Low signal 4 to 8 mA
High signal 12 to 16 mA


If the result is not as specified, replace the transmission revolution sensor (SP2).
