7GR-FKS STARTING  IGNITION SWITCH  INSPECTION

0.833,2.979 1.208,2.979 true 1.031,3.313 1.219,3.313 1.219,3.313 1.354,3.052 true 1.281,2.563 1.469,2.563 1.469,2.563 1.635,2.906 true 1.802,2.896 1.802,2.615 true 2.229,2.552 2.031,2.552 2.031,2.552 1.927,2.896 true 2.26,2.969 2.635,2.969 true 2.469,3.302 2.26,3.302 2.26,3.302 2.083,3.042 true 0.031,2.49 0.344,2.646 0.313,0.156 10 false *a 0.75,0.583 1.063,0.74 0.313,0.156 10 false *b 1.396,0.094 1.708,0.25 0.313,0.156 10 false *c 2.104,0.198 2.417,0.354 0.313,0.156 10 false *d 2.635,0.594 2.948,0.75 0.313,0.156 10 false *e 0.531,2.896 0.99,3.094 0.458,0.198 10 false AM2 0.771,3.229 1.229,3.427 0.458,0.198 10 false IG2 1.01,2.469 1.469,2.667 0.458,0.198 10 false ST2 1.688,2.458 2.146,2.656 0.458,0.198 10 false ST1 2.26,2.469 2.719,2.667 0.458,0.198 10 false ACC 2.521,3.208 2.979,3.406 0.458,0.198 10 false AM1 2.656,2.885 3.115,3.083 0.458,0.198 10 false IG1

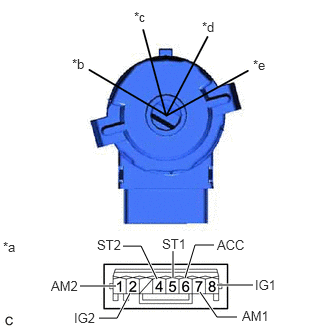

*a	Component without harness connected (Ignition or Starter Switch Assembly)
*b	LOCK
*c	ACC
*d	ON
*e	START

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
Between all terminals	LOCK	10 kΩ or higher
6 (ACC) - 7 (AM1)	ACC	Below 1 Ω
6 (ACC) - 7 (AM1) - 8 (IG1)	ON	Below 1 Ω
1 (AM2) - 2 (IG2)
5 (ST1) - 7 (AM1) - 8 (IG1)	START	Below 1 Ω
1 (AM2) - 2 (IG2) - 4 (ST2)
