7GR-FKS STARTING IGNITION SWITCH REMOVAL

PROCEDURE

Hide Display 45287 1.REMOVE LOWER STEERING COLUMN COVER

Click hereSteering>STEERING COLUMN>STEERING COLUMN ASSEMBLY>REMOVAL201902,201906,_55,_079313,_0388799,RM100000001H42I_01_0047,201906,202005,_55,_079313,_0388799,RM100000001J04B_01_0047,202005,202310,_55,_079313,_0388799,RM100000001MFQ9_01_0047,202310,999999,_55,_079313,_0388799,RM100000002G0WH_01_0047,

Hide Display 84450 2.REMOVE IGNITION OR STARTER SWITCH ASSEMBLY

a.

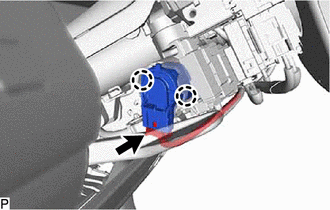

A437484

Disconnect the ignition or starter switch assembly connector.

b.

Detach the 2 claws and remove the ignition or starter switch assembly from the upper steering column bracket assembly.
