RM35X0E _51 Engine / Hybrid System _078720 7GR-FKS ENGINE CONTROL _0381922 CRANKSHAFT POSITION SENSOR A

7GR-FKS ENGINE CONTROL  CRANKSHAFT POSITION SENSOR  INSTALLATION


PROCEDURE

Hide 11401G 1.INSTALL CRANKSHAFT POSITION SENSOR

a.
A527149C01
1.542,1.354 1.542,1.719 false 3.219,1.115 3.292,1.115 3.292,1.115 3.292,1.344 false 1.469,1.729 1.698,2.031 0.229,0.302 10 false *a 3.219,1.365 3.427,1.594 0.208,0.229 10 false *b
*a Groove
*b Crankshaft Position Sensor Tip


Perform this procedure only when reusing the crankshaft position sensor.

i.

Clean the O-ring groove of the crankshaft position sensor.

NOTICE:

Make sure the O-ring groove is free of foreign matter.



ii.

Install a new O-ring to the crankshaft position sensor.

NOTICE:

Set the O-ring on the tip of the crankshaft position sensor and roll it into the O-ring groove with bare hands to install it.



iii.

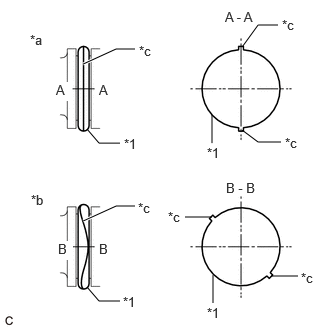

A407852C06
0.906,1.344 1.031,1.49 1.031,1.49 1.25,1.49 false 2.219,3.156 2.219,2.865 false 2.521,0.49 2.688,0.26 2.688,0.26 2.896,0.26 false 2.521,1.354 2.688,1.479 2.688,1.479 2.927,1.479 false 2.823,2.875 3.104,2.875 false 1.927,2.26 2.208,2.26 false 2.208,1.49 2.208,1.198 false 0.906,2.99 1.031,3.135 1.031,3.135 1.25,3.135 false 0.865,0.667 1.208,0.51 1.208,0.51 1.406,0.51 true 0.865,2.302 1.208,2.146 1.208,2.146 1.406,2.146 true 1.292,1.417 1.604,1.573 0.313,0.156 10 false *1 2.938,0.177 3.146,0.385 0.208,0.208 10 false *c 0.313,0.333 0.625,0.49 0.313,0.156 10 false *a 0.323,2 0.635,2.156 0.313,0.156 10 false *b 0.583,0.854 0.74,1.052 0.156,0.198 10 true A 1.031,0.854 1.188,1.052 0.156,0.198 10 true A 1.031,2.51 1.188,2.708 0.156,0.198 10 true B 0.604,2.51 0.76,2.708 0.156,0.198 10 true B 2.156,1.51 2.469,1.667 0.313,0.156 10 false *1 2.156,3.177 2.469,3.333 0.313,0.156 10 false *1 2.344,0.094 2.802,0.292 0.458,0.198 10 false A - A 2.354,1.875 2.813,2.073 0.458,0.198 10 false B - B 3.135,2.813 3.344,3.021 0.208,0.208 10 false *c 2.969,1.406 3.177,1.615 0.208,0.208 10 false *c 1.75,2.177 1.958,2.385 0.208,0.208 10 false *c 1.281,3.063 1.594,3.219 0.313,0.156 10 false *1 1.448,0.448 1.656,0.656 0.208,0.208 10 false *c 1.438,2.083 1.646,2.292 0.208,0.208 10 false *c
*1 O-ring
*a Correct
*b Incorrect
*c Seam


Check if the O-ring is twisted.

HINT:

Check the entire circumference of the seam of the O-ring for twisting.




b.
A527148

Apply a light coat of engine oil to the O-ring of the crankshaft position sensor.


c.

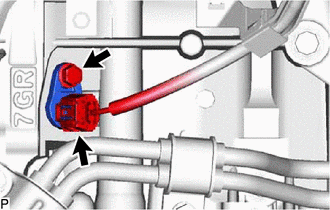

A443222

Install the crankshaft position sensor to the cylinder block sub-assembly with the bolt.

Torque:
10 N*m (102 kgf*cm, 7 ft.*lbf)

NOTICE:
·

If the crankshaft position sensor has been struck or dropped, replace it.

·

Make sure that the O-ring is not cracked or moved out of place when installing the crankshaft position sensor.




d.

Connect the connector to the crankshaft position sensor.
