RM35X0E _51 Engine / Hybrid System _078720 7GR-FKS ENGINE CONTROL _0381919 ACCELERATOR PEDAL A

7GR-FKS ENGINE CONTROL  ACCELERATOR PEDAL  INSTALLATION


PROCEDURE

Hide 78110K 1.INSTALL ACCELERATOR PEDAL SENSOR ASSEMBLY

NOTICE:

This accelerator pedal sensor assembly does not require lubrication.

Do not apply oil or other lubrication to the accelerator pedal sensor assembly.

If applied, the accelerator pedal sensor assembly must be replaced.


a.

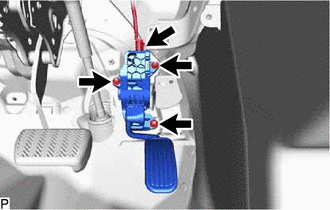

A443207

for LHD:

i.

Install the accelerator pedal sensor assembly with the 3 nuts.

Torque:
7.5 N*m (76 kgf*cm, 66 in.*lbf)

NOTICE:
·

Avoid physical shocks to the accelerator pedal sensor assembly.

·

Do not disassemble the accelerator pedal sensor assembly.




ii.

Connect the connector to the accelerator pedal sensor assembly.



b.

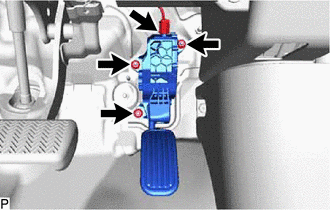

A443208

for RHD:

i.

Install the accelerator pedal sensor assembly with the 3 nuts.

Torque:
7.5 N*m (76 kgf*cm, 66 in.*lbf)

NOTICE:
·

Avoid physical shocks to the accelerator pedal sensor assembly.

·

Do not disassemble the accelerator pedal sensor assembly.




ii.

Connect the connector to the accelerator pedal sensor assembly.
