7GR-FKS ENGINE CONTROL THROTTLE BODY REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during throttle body with motor assembly removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedure not Performed	Link
· Replacement of throttle body with motor assembly · Cleaning the deposits from the throttle body with motor assembly	Inspection after repair	· Poor idle, etc. · Engine start function, etc.	(201902,999999,_51,_078720,_0381907,RM100000001G2VV,)

PROCEDURE

Hide Display 1.DRAIN ENGINE COOLANT

Click hereGeneral>MAINTENANCE>7GR-FKS COOLANT>REPLACEMENT201902,201906,_V1,_078672,_0386705,RM100000001GT6Z_01_0028,201906,202107,_V1,_078672,_0386705,RM100000001J08K_01_0028,202107,999999,_V1,_078672,_0386705,RM0000003TPC183_01_0028,

Hide Display 17705 2.REMOVE AIR CLEANER CAP WITH AIR CLEANER HOSE

Click hereEngine / Hybrid System>7GR-FKS (ENGINE MECHANICAL)>ENGINE ASSEMBLY>REMOVAL201902,201906,_51,_078603,_0381343,RM100000001FZPC_01_0060,201906,202107,_51,_078603,_0381343,RM100000001J10U_01_0060,202107,202310,_51,_078603,_0381343,RM100000001XZUP_01_0060,202310,999999,_51,_078603,_0381343,RM100000002G637_01_0060,

Hide Display 22030 3.REMOVE THROTTLE BODY WITH MOTOR ASSEMBLY

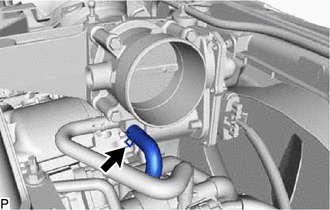

Slide the hose clamp and disconnect the No. 4 water by-pass hose from the throttle body with motor assembly.

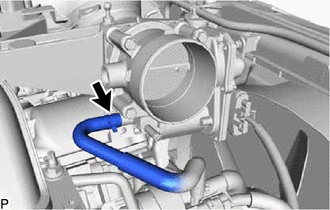

Slide the hose clamp and disconnect the No. 5 water by-pass hose from the throttle body with motor assembly.

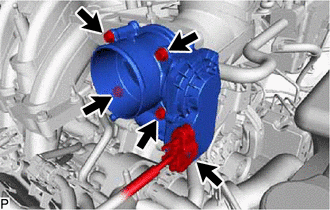

Disconnect the connector from the throttle body with motor assembly.

Remove the 4 bolts, the throttle body with motor assembly and the gasket.

NOTICE:: If the throttle body with motor assembly has been struck or dropped, replace it.
