RM35X0E _51 Engine / Hybrid System _078720 7GR-FKS ENGINE CONTROL _0381914 THROTTLE BODY A

7GR-FKS ENGINE CONTROL THROTTLE BODY INSTALLATION

PROCEDURE

Hide Display 22030 1.INSTALL THROTTLE BODY WITH MOTOR ASSEMBLY

HINT:: Perform "Inspection After Repair" after replacing the throttle body with motor assembly.; Click hereEngine / Hybrid System>7GR-FKS (ENGINE CONTROL)>SFI SYSTEM>INITIALIZATION201902,999999,_51,_078720,_0381907,RM100000001G2VV,

0.583,2.115 0.917,2.115 true 1.49,1.427 1.823,1.427 true 0.365,2.042 0.625,2.271 0.26,0.229 10 true *a 1.271,1.365 1.531,1.573 0.26,0.208 10 true *b

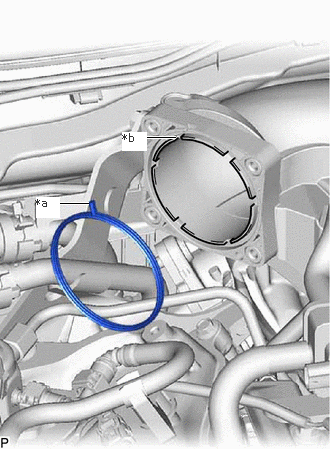

*a	Protrusion
*b	Groove

Install a new gasket to the intake air surge tank assembly with the protrusion of the gasket oriented as shown in the illustration.

Connect the No. 5 water by-pass hose to the throttle body with motor assembly and slide the clip to secure the hose.

Connect the No. 4 water by-pass hose to the throttle body with motor assembly and slide the clip to secure the hose.

Install the throttle body with motor assembly to the intake air surge tank assembly with the 4 bolts.

Torque:: 10 N*m (102 kgf*cm, 7 ft.*lbf)

NOTICE:: If the throttle body with motor assembly has been struck or dropped, replace it.

Connect the throttle body with motor assembly connector.

Hide Display 17705 2.INSTALL AIR CLEANER CAP WITH AIR CLEANER HOSE

Click hereEngine / Hybrid System>7GR-FKS (ENGINE MECHANICAL)>ENGINE ASSEMBLY>INSTALLATION201902,201906,_51,_078603,_0381343,RM100000001FZPD_02_0001,201906,202107,_51,_078603,_0381343,RM100000001J10V_02_0001,202107,202310,_51,_078603,_0381343,RM100000001XZUR_02_0001,202310,999999,_51,_078603,_0381343,RM100000002G639_02_0001,

Hide Display 3.ADD ENGINE COOLANT

Click hereGeneral>MAINTENANCE>7GR-FKS COOLANT>REPLACEMENT201902,201906,_V1,_078672,_0386705,RM100000001GT6Z_01_0030,201906,202107,_V1,_078672,_0386705,RM100000001J08K_01_0030,202107,999999,_V1,_078672,_0386705,RM0000003TPC183_01_0030,

Hide Display 4.INSPECT FOR COOLANT LEAK

Click hereGeneral>MAINTENANCE>7GR-FKS COOLANT>REPLACEMENT201902,201906,_V1,_078672,_0386705,RM100000001GT6Z_01_0003,201906,202107,_V1,_078672,_0386705,RM100000001J08K_01_0003,202107,999999,_V1,_078672,_0386705,RM0000003TPC183_01_0003,

Hide Display 5.PERFORM INITIALIZATION

NOTICE:: ·

Be sure to perform this procedure after removing and reinstalling the throttle body with motor assembly or any throttle body with motor assembly components.

·

Perform the following procedure after replacing the throttle body with motor assembly or any throttle body with motor assembly components. The following procedure should also be performed if the throttle body with motor assembly is cleaned.

Connect the GTS to the DLC3.

Turn the ignition switch to ON.

Turn the GTS on.

Clear the DTCs.

Powertrain > Engine > Clear DTCs: 50002 372

Perform "Inspection After Repair".

Click hereEngine / Hybrid System>7GR-FKS (ENGINE CONTROL)>SFI SYSTEM>INITIALIZATION201902,999999,_51,_078720,_0381907,RM100000001G2VV,

Start the engine and check that the MIL is not illuminated. After the engine is warmed up, check that the idle speed is within the specified range with the A/C switch off.

Standard Idle Speed:: 550 to 700 rpm

NOTICE:: ·

Be sure to perform this step with all accessories off.

·

Make sure that the shift lever is in P or N.

Enter the following menus: Powertrain / Engine / Data List / Throttle Position Sensor No.1 Voltage %.

Powertrain > Engine > Data List

Tester Display
Throttle Position Sensor No.1 Voltage %

50003 372 216

Fully depress the accelerator pedal and check that the value is 60% or higher.

Perform a road test and confirm that there are no abnormalities.
