7GR-FKS ENGINE CONTROL  CAMSHAFT OIL CONTROL VALVE(for Intake Side of Bank 2)  INSPECTION


PROCEDURE

Hide 1.INSPECT CAMSHAFT TIMING GEAR BOLT

a.

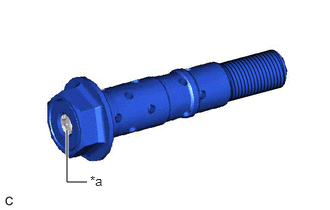

A371646C01
0.906,1.896 0.698,1.896 0.698,1.896 0.698,1.354 true 0.938,1.802 1.25,2 0.313,0.198 10 false *a
*a Plunger


Check the stroke of the plunger in the center of the camshaft timing gear bolt.

Standard Stroke:

4.5 mm (0.177 in.) or more


HINT:

When pressing the plunger, there may be a stepped feeling. This is not a malfunction.


If the result is not as specified, replace the camshaft timing gear bolt.
