7GR-FKS ENGINE CONTROL  CAMSHAFT OIL CONTROL VALVE(for Intake Side of Bank 1)  REMOVAL


CAUTION / NOTICE / HINT

NOTICE:

If one of the camshaft timing gear bolts is already removed, do not remove any other camshaft timing gear bolts.


PROCEDURE

Hide 15370 1.REMOVE CAMSHAFT TIMING OIL CONTROL SOLENOID ASSEMBLY (for Intake Side of Bank 1)

Click hereEngine / Hybrid System>7GR-FKS (ENGINE CONTROL)>CAMSHAFT OIL CONTROL SOLENOID>REMOVAL

Hide 2.SET NO. 1 CYLINDER TO TDC/COMPRESSION

a.
A443179
1.073,0.531 1.458,0.531 1.458,0.531 2.188,1.396 true 2.469,1.458 2.469,1.854 2.469,1.854 2.844,1.854 true 2.906,1.771 3.219,1.969 0.313,0.198 10 true *a 0.844,0.448 1.104,0.677 0.26,0.229 10 true *b
*a "0" Timing Mark
*b Timing Mark (Cutout)


Turn the crankshaft clockwise to align the timing mark (cutout) on the crankshaft pulley assembly with the "0" timing mark on the timing chain cover assembly.


b.

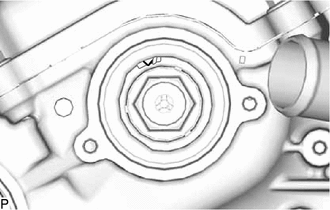

A443180
1.531,0.656 1.531,0.198 1.531,0.198 1.969,0.198 true 1.948,0.104 2.219,0.313 0.271,0.208 10 true *a
*a Protrusion


Check that the protrusion on the inside of the camshaft timing gear assembly is at the top.

HINT:

If the protrusion is not at the top, rotate the crankshaft clockwise 360° and align the timing marks again.



Hide 3.REMOVE CAMSHAFT TIMING GEAR BOLT

a.
A443181N01
1.896,1.781 2.479,1.781 true 2.125,1.76 2.125,1.49 true 2.531,1.698 2.948,1.906 0.417,0.208 10 true SST

Using SST, hold the crankshaft pulley assembly.

SST
09213-54015  (91651-60855)
09330-00021


b.

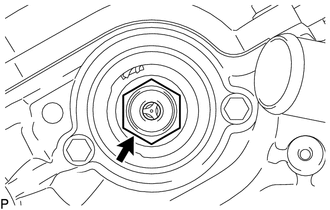

A357326

Remove the camshaft timing gear bolt.

NOTICE:
·

If the camshaft timing gear bolt has been struck or dropped, replace it.

·

Do not turn the crankshaft pulley after removing the camshaft timing gear bolt.
