PARKING BRAKE  PARKING BRAKE LEVER  COMPONENTS

ILLUSTRATION

2.813,3.021 2.979,3.021 2.979,3.021 3.521,2.51 false 0.063,0.052 0.375,0.25 0.313,0.198 10 false *A 2.583,2.938 2.896,3.135 0.313,0.198 10 false *1

*A	except Separate Seat Type	-	-

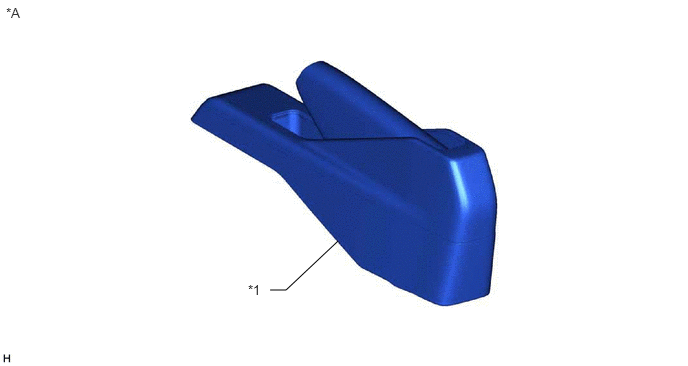

*1	PARKING BRAKE HOLE COVER SUB-ASSEMBLY	-	-

ILLUSTRATION

0.688,3.917 1.667,4.135 0.979,0.219 0.656,3.885 1.698,4.167 1.042,0.281 1.854,0.51 2.552,0.729 0.698,0.219 1.167,3.917 1.167,3.167 false 2.563,0.625 2.729,0.625 2.729,0.625 3.094,1 false 0.948,2.573 1.115,2.573 1.115,2.573 1.479,2.948 false 4.719,3.948 5.167,3.667 5.167,3.667 5.333,3.667 false 4.813,1.26 5.229,0.74 5.229,0.74 5.396,0.74 false 5.708,4.76 5.979,5.156 5.979,5.156 6.146,5.156 false 0.729,3.938 2.125,4.365 1.396,0.427 8 false 6.0 (61, 53 in.*lbf) 1.906,0.531 2.906,0.885 1,0.354 8 false 20 (204, 15) 0.729,2.469 1.021,2.729 0.292,0.26 10 false *1 5.479,0.646 5.781,0.938 0.302,0.292 10 false *2 5.438,3.573 5.698,3.802 0.26,0.229 10 false *3 0.677,4.188 0.938,4.573 0.26,0.385 10 false *4 6.26,5.052 6.521,5.281 0.26,0.229 10 false ● 3.281,0.99 3.573,1.25 0.292,0.26 10 false x 3

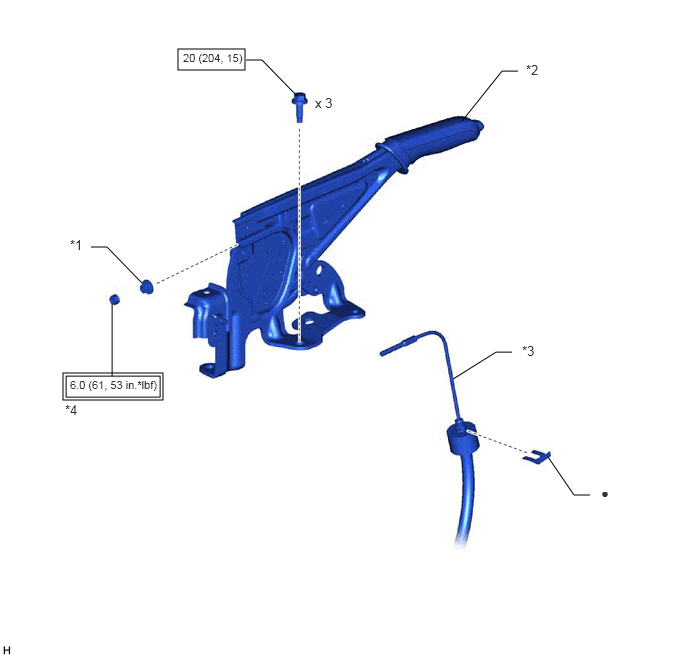

*1	NO. 1 WIRE ADJUSTING NUT	*2	PARKING BRAKE LEVER SUB-ASSEMBLY
*3	NO. 1 PARKING BRAKE CABLE ASSEMBLY	*4	LOCK NUT
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)		N*m (kgf*cm, ft.*lbf): Specified torque
●	Non-reusable part	-	-

ILLUSTRATION

4.885,2.635 6.479,3.99 1.594,1.354 1.531,3.719 3.063,4.51 1.531,0.792 2.323,1.229 2.771,0.656 2.771,0.656 2.938,0.656 false 5.646,3.49 5.844,3.813 5.844,3.813 6.01,3.813 false 1.427,2.854 1.594,2.854 1.594,2.854 2,3.458 false 1.188,2.75 1.5,2.99 0.313,0.24 10 false *3 3.042,0.573 3.313,0.823 0.271,0.25 10 false *2 6.115,3.719 6.427,3.958 0.313,0.24 10 false *1 4.906,2.656 5.219,2.896 0.313,0.24 10 false *A 1.646,3.781 1.958,4.021 0.313,0.24 10 false *A

*A	except Separate Seat Type	-	-

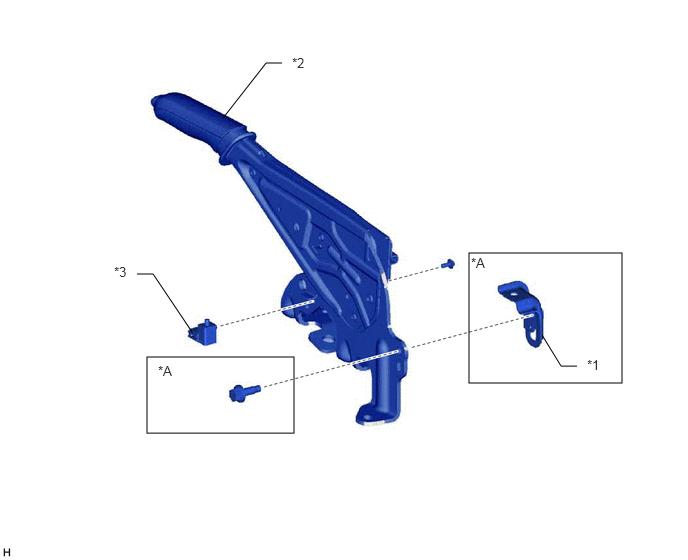

*1	NO. 3 CONSOLE BOX MOUNTING BRACKET	*2	PARKING BRAKE LEVER SUB-ASSEMBLY
*3	PARKING BRAKE SWITCH ASSEMBLY	-	-
