BRAKE (REAR)  REAR DISC BRAKE PAD  COMPONENTS

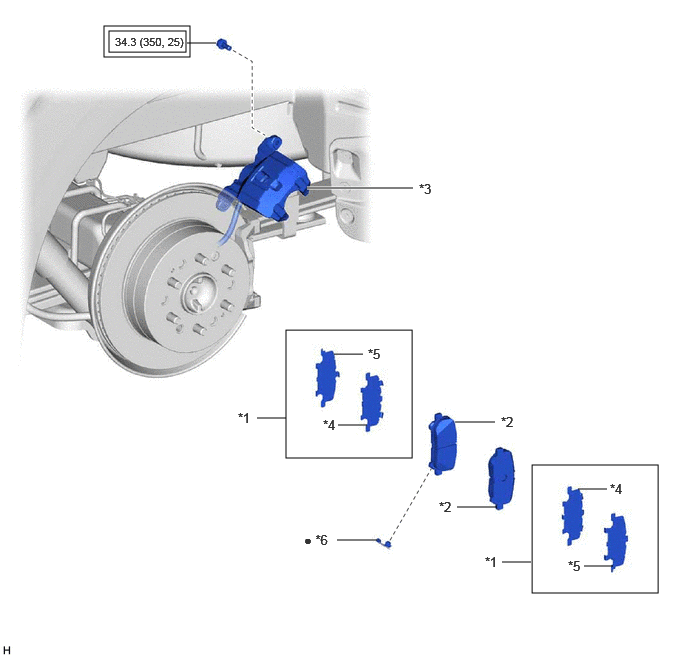

ILLUSTRATION

2.979,3.438 4.292,4.771 1.313,1.333 5.542,4.844 6.854,6.177 1.313,1.333 1.135,0.323 1.938,0.542 0.802,0.219 1.083,0.271 1.979,0.594 0.896,0.323 4.76,5.281 5.177,5.281 false 4.74,4.396 5.156,4.396 false 3.521,4.427 3.823,4.427 false 3.479,3.688 3.781,3.688 false 6.021,5.094 6.323,5.094 false 6.083,5.896 6.385,5.896 false 3.51,5.625 3.927,5.625 false 3.198,1.958 4.302,1.958 true 1.948,0.448 2.25,0.448 false 2.677,4.354 2.979,4.354 false 5.229,5.854 5.531,5.854 false 1.198,0.365 2.917,0.521 1.719,0.156 8 false 34.3 (350, 25) 2.479,4.271 2.792,4.469 0.313,0.198 10 false *1 5.052,5.771 5.365,5.969 0.313,0.198 10 false *1 5.219,4.313 5.531,4.51 0.313,0.198 10 false *2 4.573,5.198 4.885,5.396 0.313,0.198 10 false *2 4.365,1.885 4.677,2.083 0.313,0.198 10 false *3 3.167,5.542 3.479,5.74 0.313,0.198 10 false ● *6 6.354,5.01 6.667,5.208 0.313,0.198 10 false *4 3.365,4.344 3.677,4.542 0.313,0.198 10 false *4 3.833,3.604 4.146,3.802 0.313,0.198 10 false *5 5.917,5.813 6.229,6.01 0.313,0.198 10 false *5

*1	REAR DISC BRAKE ANTI-SQUEAL SHIM KIT	*2	REAR DISC BRAKE PAD
*3	REAR DISC BRAKE CYLINDER ASSEMBLY	*4	REAR NO. 1 DISC BRAKE ANTI-SQUEAL SHIM
*5	REAR NO. 2 DISC BRAKE ANTI-SQUEAL SHIM	*6	REAR DISC BRAKE PAD WEAR INDICATOR PLATE
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)	●	Non-reusable part
