BRAKE (REAR)  REAR BRAKE(for Rear Disc Brake)  DISASSEMBLY

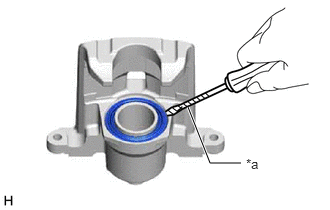

1.958,1.115 2.188,1.698 2.188,1.698 2.51,1.698 true 2.563,1.625 2.875,1.781 0.313,0.156 10 false *a

*a	Protective Tape

Using a screwdriver with its tip wrapped with protective tape, remove the cylinder boot from the rear disc brake cylinder.

NOTICE:

Do not damage the inner surface or cylinder boot groove of the rear disc brake cylinder.

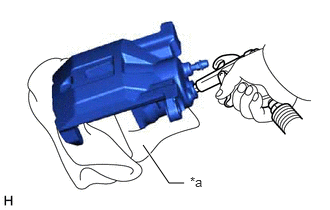

1.917,1.906 1.76,1.906 1.76,1.906 1.49,1.51 true 1.979,1.813 2.292,2.01 0.313,0.198 10 false *a

*a

Cloth

Place a piece of cloth between the rear disc brake piston and rear disc brake cylinder.

Apply compressed air to remove the rear disc brake piston from the rear disc brake cylinder.

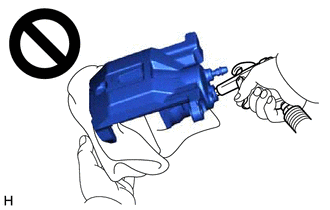

CAUTION:

·

Do not hold the rear disc brake cylinder with any part of your hand between the rear disc brake cylinder and rear disc brake piston.

·

Do not place any part of your hand in front of the rear disc brake piston when using compressed air as a severe injury may result.

NOTICE:

Do not allow any brake fluid to spatter.

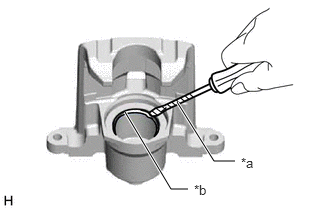

1.844,1.063 2.229,1.677 2.229,1.677 2.448,1.677 true 1.302,1.167 1.781,1.969 1.781,1.969 1.958,1.969 true 2.51,1.615 2.823,1.771 0.313,0.156 10 false *a 2.021,1.896 2.333,2.052 0.313,0.156 10 false *b

*a	Protective Tape
*b	Piston Seal

Using a screwdriver with its tip wrapped with protective tape, remove the piston seal from the rear disc brake cylinder.

NOTICE:

·

Do not damage the inner surface or piston seal groove of the rear disc brake cylinder.

·

Do not allow the nut to rotate. If the nut is accidentally allowed to rotate, return it to its original position.
