BRAKE SYSTEM (OTHER) VACUUM RESERVOIR(for LHD) INSPECTION
PROCEDURE
44730

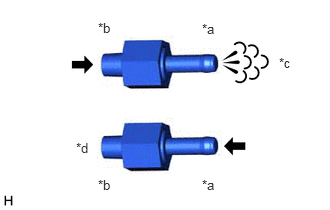

1.INSPECT BRAKE VACUUM CHECK VALVE ASSEMBLY
a.
2.104,0.219 2.417,0.417
0.313,0.198
10
false
*a
2.104,1.844 2.417,2.042
0.313,0.198
10
false
*a
1.021,0.208 1.333,0.406
0.313,0.198
10
false
*b
1.021,1.844 1.333,2.042
0.313,0.198
10
false
*b
2.906,0.573 3.219,0.771
0.313,0.198
10
false
*c
0.792,1.458 1.104,1.656
0.313,0.198
10
false
*d
| *a | Engine Side |
| *b | Vacuum Reservoir Assembly Side |
| *c | Ventilation |
| *d | No Ventilation |
Check that air flows from the vacuum reservoir assembly side to the engine side.
b.
Check that air does not flow from the engine side to the vacuum reservoir assembly side.
If necessary, replace the check valve sub-assembly.
