BRAKE SYSTEM (OTHER)  VACUUM WARNING SWITCH(for RHD)  REMOVAL

11209 1.REMOVE V-BANK COVER SUB-ASSEMBLY (for 7GR-FKS)

12601B 2.REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY (for 1GD-FTV)

3.REMOVE AIR CLEANER CAP SUB-ASSEMBLY (for 7GR-FKS)

a.

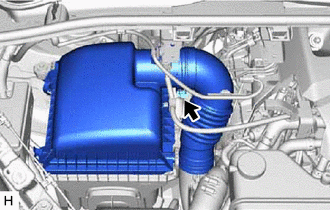

Disconnect the air cleaner cap sub-assembly

Click hereGeneral>MAINTENANCE>7GR-FKS AIR CLEANER FILTER ELEMENT>REMOVAL201902,999999,_V1,_078672,_0385731,RM100000001GNOB_01_0001,

b.

Loosen the hose clamp and remove the air cleaner cap sub-assembly

17705 4.REMOVE AIR CLEANER CAP SUB-ASSEMBLY (for 1GD-FTV)

a.

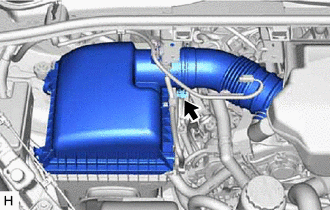

Disconnect the air cleaner cap sub-assembly

Click hereGeneral>MAINTENANCE>1GD-FTV AIR CLEANER FILTER ELEMENT>REMOVAL201902,999999,_V1,_078672,_0385732,RM100000001GNOE_02_0004,

b.

Loosen the hose clamp and remove the air cleaner cap sub-assembly

83390 5.REMOVE VACUUM WARNING SWITCH ASSEMBLY

a.

0,0 0,0 false

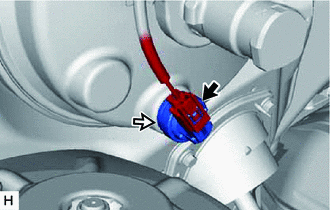

	Connector
	Vacuum Warning Switch Assembly

Disconnect the connector from the vacuum warning switch assembly.

b.

Remove the vacuum warning switch assembly from the brake booster assembly.

89420K 6.REMOVE GROMMET
