BRAKE SYSTEM (OTHER)  BRAKE BOOSTER(for LHD)  REASSEMBLY


PROCEDURE

Hide 83390 1.INSTALL VACUUM WARNING SWITCH ASSEMBLY

a.

Install a new grommet to the brake booster assembly.


b.
C410917C01
1.76,0.156 1.938,0.313 0.177,0.156 10 true *a
*a 30°
V100136

Up

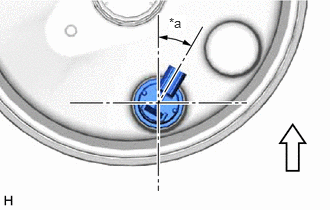

Install the vacuum warning switch assembly to the brake booster assembly as shown in the illustration.


Hide 47264 2.INSTALL MASTER CYLINDER PUSH ROD CLEVIS

a.

Temporarily install the clevis lock nut and brake master cylinder push rod clevis to the brake booster assembly.

NOTICE:

Fully tighten the clevis lock nut when adjusting the brake pedal height.
