BRAKE SYSTEM (OTHER)  BRAKE MASTER CYLINDER(for LHD)  REASSEMBLY


PROCEDURE

Hide 47255 1.INSTALL MASTER CYLINDER RESERVOIR GROMMET

a.

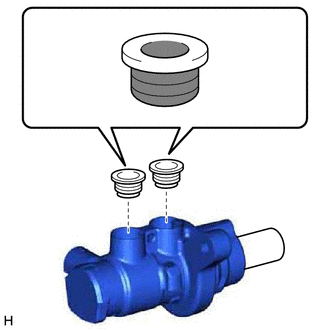

C410891C01
0,0 0,0 false
V100144

Lithium soap base glycol grease


Apply a light layer of lithium soap base glycol grease to the entire circumference of 2 new master cylinder reservoir grommets.


b.

Install the 2 master cylinder reservoir grommets to the brake master cylinder body.


Hide 2.INSTALL BRAKE FLUID RESERVOIR

a.

Secure the brake master cylinder body in a vise.

NOTICE:

Place aluminum plates on the vise to prevent damage to the brake master cylinder body.



b.

Install the brake fluid reservoir to the brake master cylinder body.


c.
C410889

Using a 5 mm pin punch and a hammer, tap in the brake master cylinder ring pin to secure the brake fluid reservoir.


d.

Remove the brake master cylinder sub-assembly from the vise.
