BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS  RELAY  ON-VEHICLE INSPECTION

2.01,0.583 1.813,0.302 false 2.323,0.583 2.323,0.271 false 2.615,0.594 2.823,0.292 false 2.521,1.125 2.927,1.125 false 2.51,1.604 2.906,1.604 false 0.323,1.417 0.479,1.615 0.156,0.198 10 1 1.719,0.083 1.875,0.281 0.156,0.198 10 1 1.313,1.406 1.469,1.604 0.156,0.198 10 2 0.323,0.875 0.479,1.073 0.156,0.198 10 3 2.865,0.135 3.021,0.333 0.156,0.198 10 2 2.979,1.531 3.135,1.729 0.156,0.198 10 3 0.938,0.406 1.094,0.604 0.156,0.198 10 4 2.292,0.063 2.448,0.26 0.156,0.198 10 4 1.313,0.875 1.469,1.073 0.156,0.198 10 5 2.99,1.031 3.146,1.229 0.156,0.198 10 5

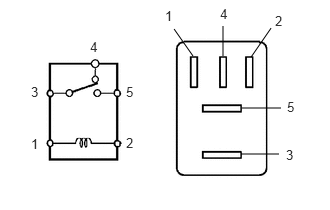

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
3 - 4	Battery positive (+) voltage not applied to terminal 1 and battery negative (-) voltage applied to terminal 2	Below 1 Ω
	Battery positive (+) voltage applied to terminal 1 and battery negative (-) voltage to terminal 2	10 kΩ or higher
3 - 5	Battery positive (+) voltage not applied to terminal 1 and battery negative (-) voltage applied to terminal 2	10 kΩ or higher
	Battery positive (+) voltage applied to terminal 1 and battery negative (-) voltage to terminal 2	Below 1 Ω

If the result is not as specified, replace the stop light control relay (STOP/CDS FAN Relay).
