BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS  FRONT SPEED SENSOR  INSTALLATION


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH and LH sides.

·

The procedure listed below is for the LH side.

·

The front speed sensor rotor is a component of the front axle hub sub-assembly. If the front speed sensor rotor is malfunctioning, replace the front axle hub sub-assembly.



PROCEDURE

Hide 89543 1.INSTALL FRONT SPEED SENSOR LH

NOTICE:

Do not twist the front speed sensor wire harness when installing it.


a.

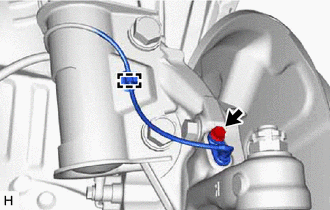

C410837

Install the front speed sensor LH to the front axle assembly LH with the bolt.

Torque:
8.5 N*m (87 kgf*cm, 75 in.*lbf)

NOTICE:
·

Keep the tip of the front speed sensor and installation hole free of foreign matter.

·

Firmly insert the front speed sensor body into the steering knuckle before tightening the bolt.

·

After installing the front speed sensor to the steering knuckle, make sure that there is no clearance between the front speed sensor stay and steering knuckle. Also make sure that no foreign matter is stuck between the parts.




b.

Engage the clamp to connect the front speed sensor LH to the front shock absorber assembly.


c.

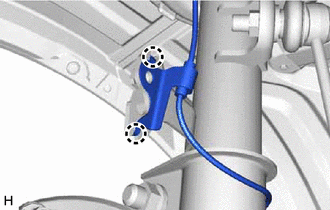

C412605

Engage the 2 claws to connect the sensor clamp.


d.

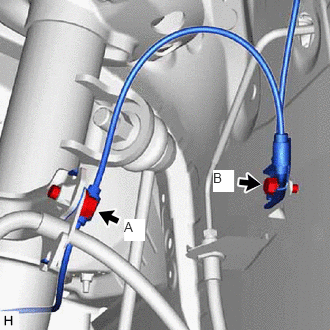

C410836N01
1.292,2.281 1.51,2.51 0.219,0.229 10 true A 2.219,1.771 2.438,2 0.219,0.229 10 true B

Connect the front speed sensor LH to the front shock absorber assembly with the bolt.

Torque:
Bolt (A) : 25 N*m (255 kgf*cm, 18 ft.*lbf)

NOTICE:
·

When installing the clamp, do not twist the wire harness.

·

Make sure the clamp rotation stopper touches the installation position.




e.

Connect the front speed sensor LH to the vehicle body with the bolt.

Torque:
Bolt (B) : 13.5 N*m (138 kgf*cm, 10 ft.*lbf)

NOTICE:
·

When installing the clamp, do not twist the wire harness.

·

Make sure the clamp rotation stopper touches the installation position.




f.

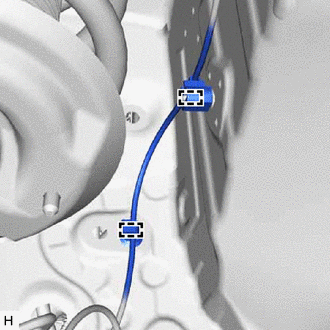

C410835

Attach the 2 clamps to connect the front speed sensor LH to the vehicle body.


g.

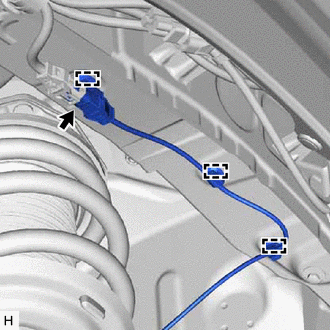

C410834

Connect the connector.


h.

Attach the 3 clamps to install the front speed sensor LH to the vehicle body.

NOTICE:
·

When attaching the clamps, do not twist the wire harness.

·

Securely connect the connector.
