MAINTENANCE REAR DISC BRAKE PAD REMOVAL

CAUTION / NOTICE / HINT

NOTICE:: ·

Immediately after installing the brake pads, the braking performance may be reduced. Always perform a road test in a safe place while paying attention to the surroundings.

·

After replacing the rear disc brake pads, the brake pedal may feel soft due to clearance between the rear disc brake pads and rear disc. Depress the brake pedal several times until the brake pedal feels firm.

·

After replacing the rear disc brake pads, always perform a road test to check the braking performance and check for vibrations.

HINT:: ·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.

PROCEDURE

Hide Display 1.REMOVE REAR WHEEL

Click hereGeneral>MAINTENANCE>TIRE AND WHEEL>REMOVAL201902,999999,_V1,_078672,_0387313,RM100000001GWDK,

Hide Display 04466 2.REMOVE REAR DISC BRAKE PAD

CAUTION:: ·

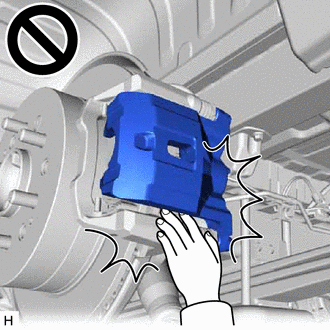

Be careful not to get pinched by the rear disc brake cylinder assembly or other parts when removing the rear disc brake pads.

·

After lifting up the rear disc brake cylinder assembly, secure it in place before performing any work on it.

·

The rear disc brake cylinder assembly could fall, pinching hands or fingers and causing injury.

2.417,1.042 2.729,1.24 0.313,0.198 10 false *b 2.427,2.406 2.74,2.604 0.313,0.198 10 false *a

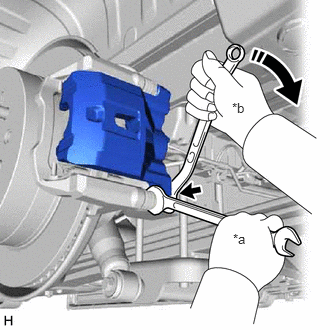

*a	Hold
*b	Turn

Hold the rear No. 1 disc brake cylinder slide pin and remove the bolt.

Pull the rear disc brake cylinder assembly upward.

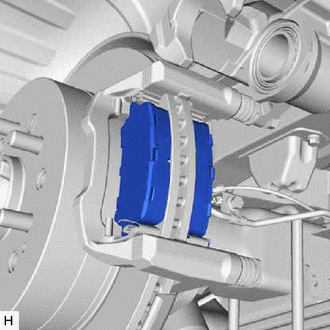

Remove the 2 rear disc brake pads from the rear disc brake cylinder mounting.

Hide Display 04946 3.REMOVE REAR DISC BRAKE ANTI-SQUEAL SHIM KIT

0.49,0.563 1.083,0.563 false 0.99,0.885 1.583,0.885 false 0.625,1.854 1.219,1.854 false 1.24,2.156 1.833,2.156 false 1.833,2.552 2.427,2.552 false 2.365,2.854 2.958,2.854 false 1.667,2.479 1.979,2.677 0.313,0.198 10 false *1 1.656,0.813 1.969,1.01 0.313,0.198 10 false *1 1.146,0.5 1.458,0.698 0.313,0.198 10 false *2 2.198,2.771 2.51,2.969 0.313,0.198 10 false *2 0.438,1.771 0.75,1.969 0.313,0.198 10 false *3 1.052,2.073 1.365,2.271 0.313,0.198 10 false *4

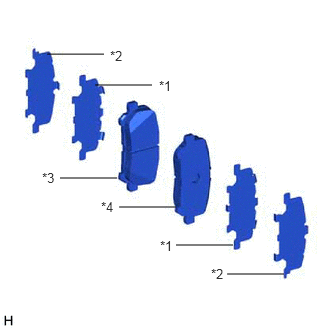

*1	Rear No. 1 Disc Brake Anti-squeal Shim
*2	Rear No. 2 Disc Brake Anti-squeal Shim
*3	Rear Disc Brake Pad (Inner)
*4	Rear Disc Brake Pad (Outer)

Remove the rear No. 1 disc brake anti-squeal shim and rear No. 2 disc brake anti-squeal shim from each rear disc brake pad.

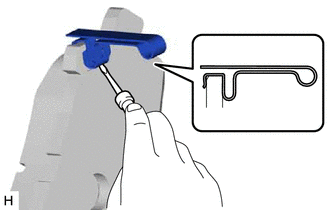

Using a screwdriver, remove the rear disc brake pad wear indicator plate from rear disc brake pad (Inner).
