7GR-FKS ENGINE MECHANICAL  FRONT CRANKSHAFT OIL SEAL  INSTALLATION

11301C 1.INSTALL FRONT CRANKSHAFT OIL SEAL

a.

1.313,1.094 2.406,1.844 2.406,1.844 2.583,1.844 true 2.625,1.75 2.938,1.948 0.313,0.198 10 false SST

Apply MP grease to the lip of a new front crankshaft oil seal.

b.

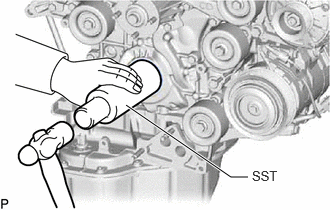

Using SST and a hammer, tap in the front crankshaft oil seal until its surface is flush with the timing chain cover edge.

SST

09226-10010

NOTICE:

·

Keep the lip free from foreign matter.

·

Do not tap the oil seal at an angle.

13471 2.INSTALL CRANKSHAFT PULLEY

15609 3.INSTALL OIL FILTER BRACKET SUB-ASSEMBLY

16268 4.CONNECT NO. 1 WATER BY-PASS PIPE

a.

Connect the No. 1 water by-pass pipe with the 3 bolts and nut.

Torque:

10 N*m (102 kgf*cm, 7 ft.*lbf)

b.

Connect the 2 water by-pass hoses to the oil cooler assembly, and slide the 2 clips to secure it.

88704 5.CONNECT SUCTION HOSE SUB-ASSEMBLY (w/ Air Conditioning System)

88703 6.CONNECT DISCHARGE HOSE SUB-ASSEMBLY (w/ Air Conditioning System)

16711 7.INSTALL FAN SHROUD

8.CHARGE AIR CONDITIONING SYSTEM WITH REFRIGERANT (w/ Air Conditioning System)

9. WARM UP ENGINE (w/ Air Conditioning System)

10.INSPECT FOR REFRIGERANT GAS LEAK (w/ Air Conditioning System)
