7GR-FKS LUBRICATION ENGINE OIL COOLER REMOVAL

PROCEDURE

Hide Display 51405A 1.REMOVE NO. 1 ENGINE UNDER COVER SUB-ASSEMBLY

Hide Display 2.DRAIN ENGINE COOLANT

Hide Display 3.DRAIN ENGINE OIL

Hide Display 4.DISCONNECT WATER BY-PASS HOSE

Slide the 2 clips and disconnect the 2 water by-pass hoses from the oil cooler assembly.

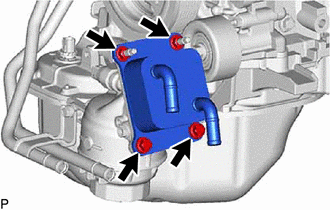

Hide Display 15710 5.REMOVE OIL COOLER ASSEMBLY

Remove the 2 bolts, 2 nuts and oil cooler assembly.

Remove the 2 gaskets.
