RM35X0E _51 Engine / Hybrid System _078604 7GR-FKS LUBRICATION _0381351 OIL PUMP A

7GR-FKS LUBRICATION  OIL PUMP  REASSEMBLY


PROCEDURE

Hide 1.INSTALL OIL PUMP RELIEF VALVE

a.

Coat the oil pump relief valve with engine oil and insert the oil pump relief valve and relief valve spring into the valve hole.


b.

Install the relief valve plug.

Torque:
49 N*m (500 kgf*cm, 36 ft.*lbf)


Hide 2.INSTALL OIL PUMP COVER

a.

Apply fresh engine oil to the drive and driven rotors.


b.

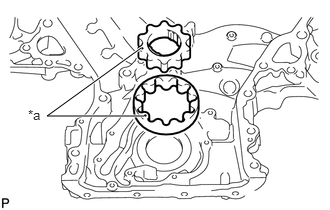

A223654C15
1.5,1.208 0.49,1.208 0.49,1.208 1.469,0.5 true 0.292,1.115 0.49,1.323 0.198,0.208 10 false *a
*a Mark


Place the drive and driven rotors into the timing chain cover assembly with the marks facing the oil pump cover side.


c.

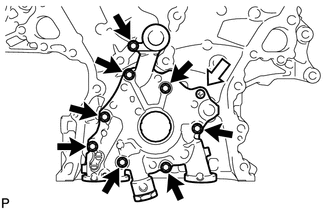

A225445C05
0,0 0,0 false
V100135

Bolt
V100136

Screw


Install the oil pump cover with the 8 bolts and screw.

Torque:
9.1 N*m (92 kgf*cm, 81 in.*lbf)
