7GR-FKS LUBRICATION  OIL LEVEL SENSOR  INSPECTION

1.688,0.927 1.99,0.229 1.99,0.229 2.229,0.229 true 1.781,2.115 1.99,2.115 1.99,2.115 2.104,2.448 true 1.333,2.969 1.479,3.26 1.479,3.26 1.698,3.26 true 0.063,0.031 0.292,0.25 0.229,0.219 10 false *a 1.594,2.01 1.802,2.219 0.208,0.208 10 false *b 0.854,1.885 1.052,2.104 0.198,0.219 10 false *c 2.375,1.885 2.583,2.083 0.208,0.198 10 false *d 2.281,0.135 2.438,0.333 0.156,0.198 10 false 1 1.729,3.156 1.938,3.365 0.208,0.208 10 false *b

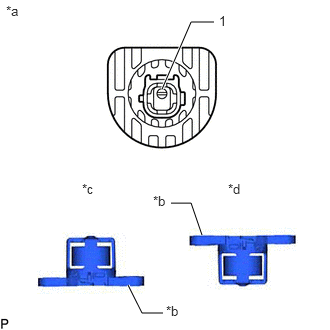

*a	Component without harness connected (Engine Oil Level Sensor)
*b	Engine Oil Level Sensor Body
*c	ON
*d	OFF

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
1 - Engine oil level sensor body	ON	Below 1 Ω
	OFF	10 kΩ or higher

If the result is not as specified, replace the engine oil level sensor.
