7GR-FKS LUBRICATION  OIL PRESSURE SWITCH  INSTALLATION


PROCEDURE

Hide 83530 1.INSTALL ENGINE OIL PRESSURE SWITCH ASSEMBLY

a.

Apply adhesive to 2 or 3 threads of the engine oil pressure switch assembly.

Adhesive:

Toyota Genuine Adhesive 1344, Three Bond 1344 or equivalent


NOTICE:

Do not apply adhesive to the oil inlet port of the engine oil pressure switch assembly.



b.

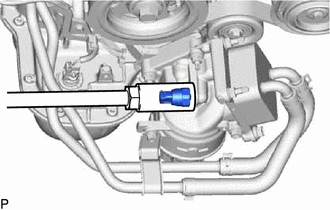

A436672

Using a 24 mm deep socket wrench, install the engine oil pressure switch assembly.

Torque:
15 N*m (153 kgf*cm, 11 ft.*lbf)

NOTICE:

Do not start the engine within 1 hour of installation.



c.

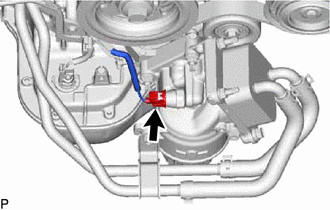

A436671

Connect the engine oil pressure switch connector.
