RM35X0E _58 Vehicle Interior _078601 SEAT _0381335 REAR SEAT ASSEMBLY(for Commuter, 2-Passenger Seat with 3-Point Type Seat Belt) A

SEAT  REAR SEAT ASSEMBLY(for Commuter, 2-Passenger Seat with 3-Point Type Seat Belt)  REASSEMBLY


CAUTION / NOTICE / HINT

CAUTION:
·

Wear protective gloves. Sharp areas on the parts may injure your hands.

·

There is risk of injury.



HINT:
·

Use the same procedure for RHD and LHD vehicles.

·

The procedure listed below is for LHD vehicles.

·

The procedure listed below is a representative example.

·

Use the same procedure for all rows, unless otherwise specified.



PROCEDURE

Hide 79290C 1.INSTALL NO. 1 SEATBACK SPRING ASSEMBLY LH

a.

w/ Seatback Board:

i.

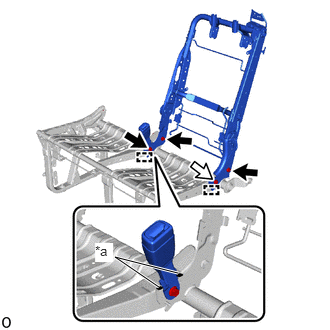

B536999C02
1.656,2.99 1.198,2.677 1.198,2.677 1.854,2.844 true 0.99,2.531 1.177,2.729 0.188,0.198 10 true *a
*a Protruding Part
V100135

Bolt A
V100136

Bolt B


Attach the guide.


ii.

Temporarily install the No. 1 seatback spring assembly LH and rear seat inner belt assembly with the 4 bolts.

NOTICE:

Do not allow the rear seat inner belt assembly to overlap the protruding part.



iii.

Tighten the 3 bolts A.

Torque:
42 N*m (428 kgf*cm, 31 ft.*lbf)


iv.

Remove the bolt B.



b.

w/o Seatback Board:

i.

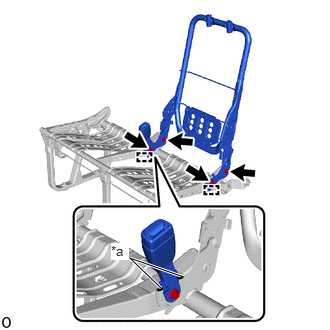

B537000C01
1.677,3 1.354,2.688 1.354,2.688 1.885,2.875 true 1.156,2.531 1.344,2.708 0.188,0.177 10 true *a
*a Protruding Part


Attach the guide.


ii.

Temporarily install the No. 1 seatback spring assembly LH and rear seat inner belt assembly with the 4 bolts.


iii.

Tighten the 4 bolts.

Torque:
42 N*m (428 kgf*cm, 31 ft.*lbf)

NOTICE:

Do not allow the rear seat inner belt assembly to overlap the protruding part.




Hide 79280B 2.INSTALL NO. 1 SEATBACK SPRING ASSEMBLY RH

a.

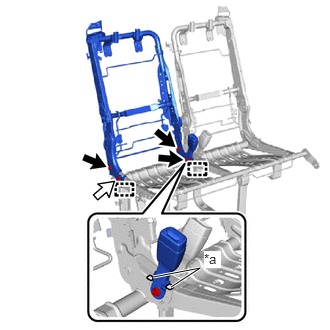

B539089C02
1.594,2.885 2.083,2.792 2.083,2.792 1.781,2.99 true 2.125,2.615 2.302,2.792 0.177,0.177 10 true *a
*a Protruding Part
V100135

Bolt A
V100136

Bolt B


Attach the guide.


b.

Temporarily install the No. 1 seatback spring assembly RH and rear seat inner belt assembly with the 4 bolts.

NOTICE:

Do not allow the rear seat inner belt assembly to overlap the protruding part.



c.

Tighten the 3 bolts A.

Torque:
42 N*m (428 kgf*cm, 31 ft.*lbf)


d.

Remove the bolt B.


e.
B540031C02
0,0 0,0 false
V100155

Fastening Tape

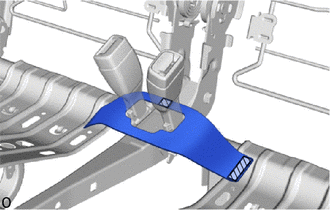

Attach the fastening tape.


f.
B540035C02
0,0 0,0 false
V100155

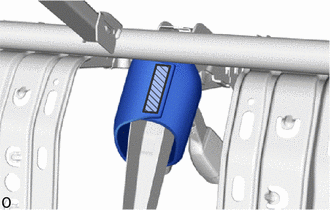

Fastening Tape


Attach the fastening tape and install the rear seat cushion cover.


Hide 72345Q 3.INSTALL NO. 1 SEAT STAND FRAME CAP LH

a.
B536993

Install the No. 1 seat stand frame cap LH.

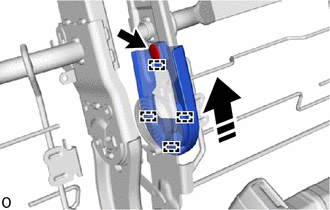

Hide 71T75 4.INSTALL RECLINING ADJUSTER INSIDE COVER RH (w/ Seatback Board)

a.
B537478C02
0,0 0,0 false
V113147

Install in this Direction

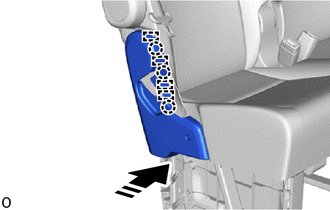

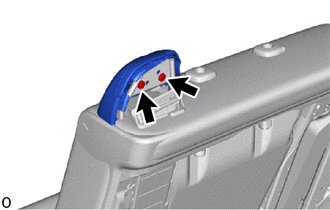

Attach the guide and install the reclining adjuster inside cover RH as shown in the illustration.


b.

Install the clip.


Hide 71T76B 5.INSTALL RECLINING ADJUSTER INSIDE COVER LH (w/ Seatback Board)

HINT:

Use the same procedure described for the reclining adjuster inside cover RH.


Hide 71873Y 6.INSTALL REAR SEAT LOWER CUSHION SHIELD

a.

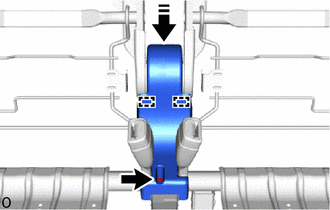

B536992C01
0,0 0,0 false
V113147

Install in this Direction


Attach the guide.


b.

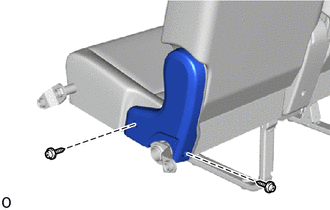

Install the rear seat lower cushion shield with the screw as shown in the illustration.


Hide 71874X 7.INSTALL REAR SEAT LOWER CUSHION SHIELD LH

a.

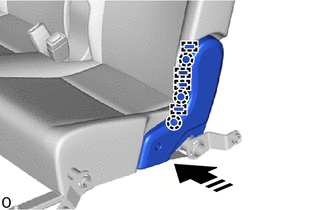

Attach the claw.

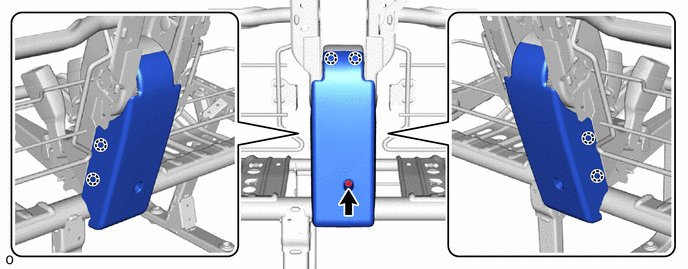

B536990


b.

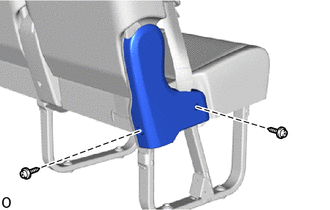

Install the rear seat lower cushion shield LH with the screw.

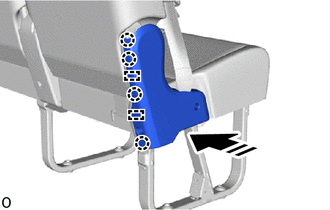

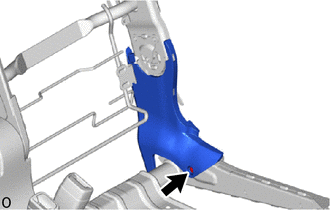

Hide 72552P 8.INSTALL LH SEAT RECLINING HINGE COVER LH

a.

w/ Seatback Board:

i.
B536986

Install the LH seat reclining hinge cover LH with the screw.



b.

w/o Seatback Board:

i.
B536987

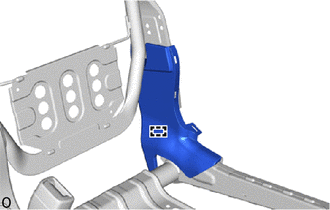

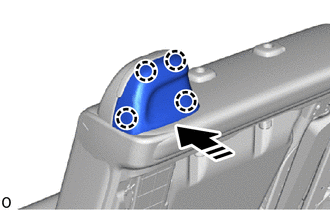

Attach the guide and install the LH seat reclining hinge cover LH.

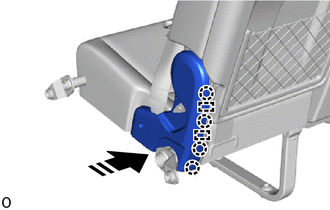

Hide 72551S 9.INSTALL LH SEAT RECLINING HINGE COVER RH

a.

w/ Seatback Board:

i.
B536988

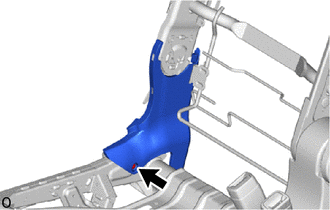

Install the LH seat reclining hinge cover RH with the screw.



b.

w/o Seatback Board:

i.

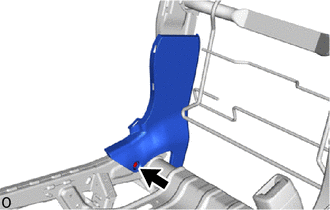

B536989

Install the LH seat reclining hinge cover RH with the screw.

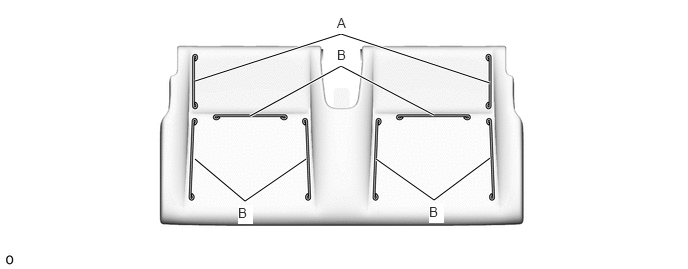

Hide 10.INSTALL SEAT COVER WIRE

a.

Install the seat cover wire.

B536985N01
3.917,1.656 4.521,2.083 4.521,2.083 5.104,1.646 true 2.031,1.656 2.552,2.094 2.552,2.094 3.188,1.656 true 2.604,1.208 3.552,0.688 3.552,0.688 4.521,1.198 true 2.031,0.844 3.552,0.354 3.552,0.354 5.104,0.865 true 3.51,0.156 3.667,0.354 0.156,0.198 10 true A 3.51,0.49 3.667,0.688 0.156,0.198 10 true B 2.479,2.135 2.635,2.333 0.156,0.198 10 true B 4.469,2.125 4.625,2.323 0.156,0.198 10 true B

HINT:
·

Wire 1000 mm (3.28 ft.) or longer and shaped wire are available as supplied parts.

·

For wire 1000 mm (3.28 ft.) or less in length, cut or shape 1000 mm (3.28 ft.) wire into the dimensions shown in the illustration.



Dimensions:
A 120 mm (4.72 in.)
B 210 mm (8.27 in.)


HINT:
B376752

The dimensions shown in the illustration are the length.



Hide 79012A 11.INSTALL NO. 1 SEAT CUSHION COVER SUB-ASSEMBLY LH

HINT:

When installing a No. 1 seat cushion cover sub-assembly LH, refer to the Precaution section in order to prevent wrinkles from forming.

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Separate Seat Type)>PRECAUTION


a.

Set the No. 1 seat cushion cover sub-asembly LH on the No. 1 seat cushion pad LH.


b.

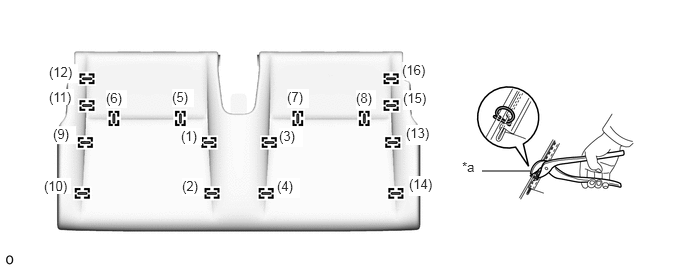

Using hog ring pliers, install 16 new hog rings in the order shown in the illustration.

B536984C02

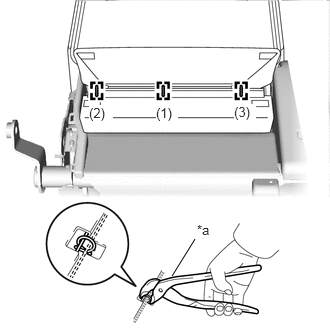

5.021,1.781 5.521,1.781 false 4.813,1.656 5.125,1.813 0.313,0.156 10 false *a 1.792,0.927 2.021,1.115 0.229,0.188 10 true (5) 2.906,1.333 3.156,1.531 0.25,0.198 10 true (3) 1.896,1.854 2.115,2.042 0.219,0.188 10 true (2) 1.104,0.938 1.323,1.125 0.219,0.188 10 true (6) 1.885,1.333 2.104,1.51 0.219,0.177 10 true (1) 2.885,1.854 3.125,2.063 0.24,0.208 10 true (4) 2.99,0.927 3.219,1.125 0.229,0.198 10 true (7) 3.708,0.938 3.917,1.135 0.208,0.198 10 true (8) 0.458,1.854 0.74,2.021 0.281,0.167 10 true (10) 0.552,1.313 0.792,1.5 0.24,0.188 10 true (9) 0.51,0.927 0.771,1.094 0.26,0.167 10 true (11) 0.51,0.667 0.813,0.865 0.302,0.198 10 true (12) 4.188,0.646 4.479,0.833 0.292,0.188 10 true (16) 4.229,1.302 4.51,1.51 0.281,0.208 10 true (13) 4.26,1.833 4.563,2.042 0.302,0.208 10 true (14) 4.198,0.938 4.51,1.146 0.313,0.208 10 true (15)
*a Hog Ring Pliers - -


NOTICE:
·

Be careful not to damage the No. 1 seat cushion cover sub-assembly LH.

·

Be sure to securely install the hog rings as shown in the illustration while preventing wrinkles from forming on the No. 1 seat cushion cover sub-assembly LH.




c.

Attach the fastening tape.

B536982C02

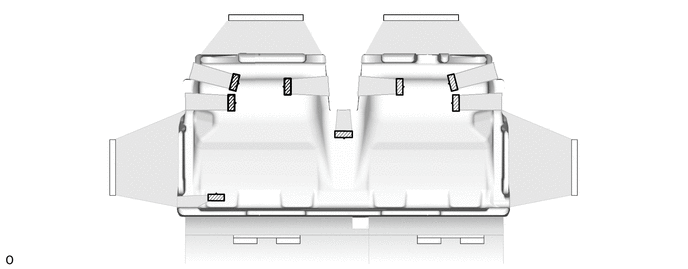

0,0 0,0 false
V100155

Fastening Tape - -

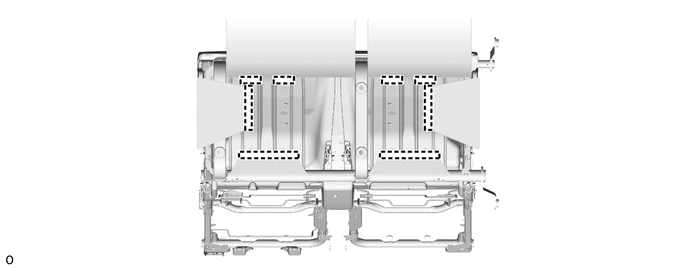

Hide 12.INSTALL REAR SEAT CUSHION COVER WITH PAD

a.

Attach the hook and install the rear seat cushion cover with pad as shown in th eillustration.

B536981


b.

Attach the fastening tape.

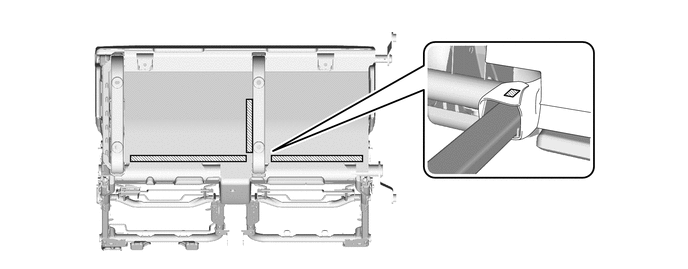

B539378C01
0,0 0,0 false
V100155

Fastening Tape - -



Hide 73343 13.INSTALL REAR SEAT SHOULDER BELT GUIDE RH

HINT:

Use the same procedure for the other side.


a.
B536979

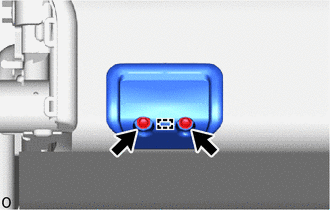

Attach the guide and install the rear seat shoulder belt guide RH.


b.

Install the 2 screws.

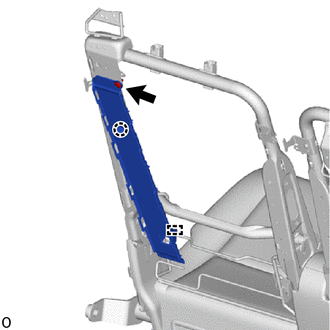

Hide 73C75 14.INSTALL REAR NO. 4 SEAT SHOULDER BELT COVER LH (w/ Seatback Board)

a.
B536978

Attach the guide and claw and install the rear No. 4 seat shoulder belt cover LH.


b.

Install the clip.


Hide 73C73G 15.INSTALL REAR NO. 4 SEAT SHOULDER BELT COVER RH

HINT:

Use the same procedure described for the LH side.


Hide 73350 17.INSTALL REAR CENTER SEAT LAP TYPE BELT ASSEMBLY

HINT:

Use the same procedure described for the LH side.

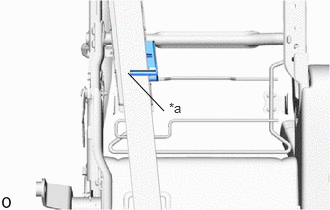

Hide 73C75A 18.INSTALL REAR SEAT SHOULDER BELT HOLE COVER LH (w/ Seatback Board)

a.
B536977C02
1.333,0.76 1.708,1.156 false 1.76,1.042 2.073,1.198 0.313,0.156 10 false *a
*a Slit


Pass the rear seat outer 3 point type belt assembly LH through the slit.


b.

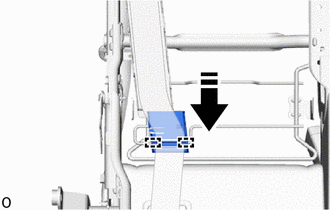

B536976C01
0,0 0,0 false
V113147

Install in this Direction


Attach the guide as shown in the illustration.

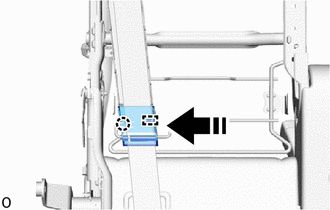

c.
B536974C01
0,0 0,0 false
V113147

Install in this Direction


Attach the guide and claw and install the rear seat shoulder belt hole cover LH as shown in the illustration.


Hide 73C73H 19.INSTALL REAR SEAT SHOULDER BELT HOLE COVER RH

HINT:

Use the same procedure described for the LH side.


Hide 73375Z 20.INSTALL REAR NO. 3 SEAT SHOULDER BELT COVER LH (w/ Seatback Board)

a.
B536972C01
0,0 0,0 false
V113147

Install in this Direction

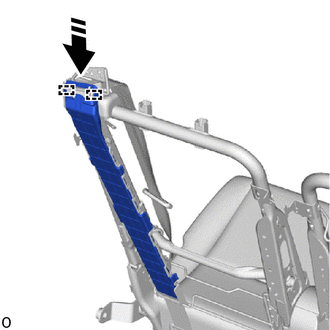

Attach the guide as shown in the illustration.


b.

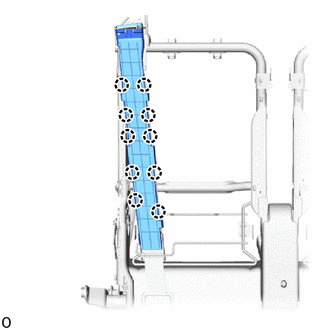

B536970

Attach the claw and install the rear No. 3 seat shoulder belt cover LH.


Hide 73C73F 21.INSTALL REAR NO. 3 SEAT SHOULDER BELT COVER RH

HINT:

Use the same procedure described for the LH side.


Hide 79185A 22.INSTALL NO. 1 SEATBACK PAD LH

a.

w/ Seatback Board:

i.

Pass the rear seat outer 3 point type belt assembly LH through the hole of the No. 1 seatback pad LH.


ii.
B539379

Attach the guide and install the No. 1 seatback pad LH.



b.

w/o Seatback Board:

i.

Install the No. 1 seatback pad LH.



Hide 79175F 23.INSTALL NO. 1 SEATBACK PAD RH

a.

Pass the rear center seat lap type belt assembly through the hole of the No. 1 seatback pad RH.


b.
B536744

Attach the guide and install the No. 1 seatback pad RH.


Hide 24.INSTALL SEAT COVER WIRE (for LH Side)

a.

Install the seat cover wire.

HINT:
·

Wire 1000 mm (3.28 ft.) or longer and shaped wire are available as supplied parts.

·

For wire 1000 mm (3.28 ft.) or less in length, cut or shape 1000 mm (3.28 ft.) wire into the dimensions shown in the illustration.



B543318C01

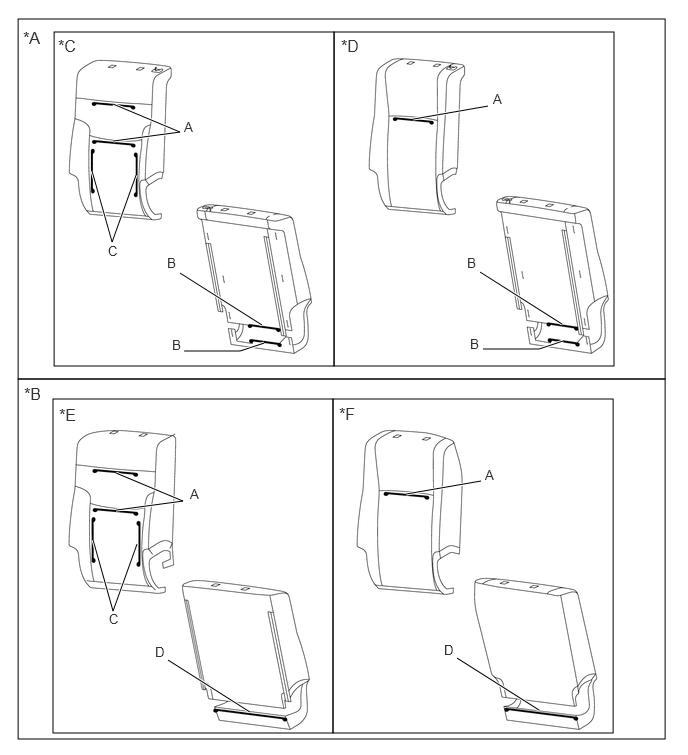

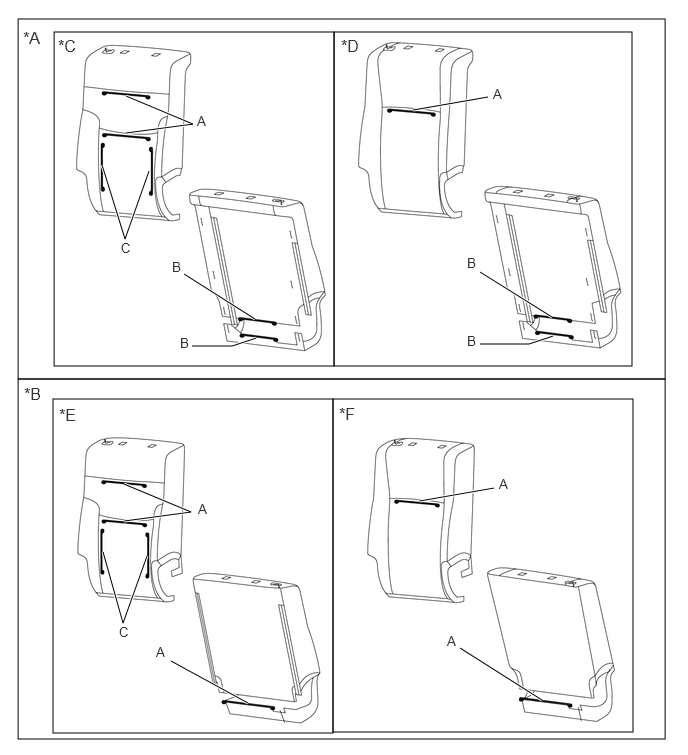

0.188,0.198 6.927,3.948 6.74,3.75 0.188,3.948 6.927,7.698 6.74,3.75 0.552,4.156 3.469,7.635 2.917,3.479 3.469,4.156 6.385,7.635 2.917,3.479 3.479,0.333 6.396,3.813 2.917,3.479 0.563,0.333 3.479,3.813 2.917,3.479 4.302,1.24 5.083,1.104 true 5,2.833 5.854,3.375 true 5.031,3.635 5.615,3.635 5.615,3.635 5.865,3.552 true 1.917,3.656 2.5,3.656 2.5,3.656 2.75,3.573 true 1.875,2.844 2.729,3.385 true 1.208,5.313 1.906,5.219 1.906,5.219 1.208,4.927 true 0.958,1.781 1.167,2.521 1.167,2.521 1.417,1.823 true 0.969,5.625 1.177,6.365 1.177,6.365 1.427,5.667 true 1.75,6.875 2.604,7.417 true 4.76,6.854 5.615,7.396 true 4.229,5.146 5.01,5.01 true 1.177,1.469 1.875,1.375 1.875,1.375 1.177,1.083 true 0.24,0.292 0.552,0.448 0.313,0.156 12 false *A 0.25,4 0.563,4.156 0.313,0.156 12 false *B 0.604,0.375 0.917,0.531 0.313,0.156 12 false *C 3.552,0.375 3.865,0.531 0.313,0.156 12 false *D 0.615,4.219 0.927,4.375 0.313,0.156 12 false *E 3.531,4.208 3.844,4.365 0.313,0.156 12 false *F 1.135,6.365 1.323,6.531 0.188,0.167 10 false C 1.615,6.708 1.802,6.875 0.188,0.167 10 false D 1.979,5.063 2.167,5.229 0.188,0.167 10 false A 4.625,6.688 4.802,6.875 0.177,0.188 10 false D 5.052,4.865 5.229,5.052 0.177,0.188 10 false A 4.896,3.5 5.073,3.688 0.177,0.188 10 false B 4.865,2.656 5.042,2.844 0.177,0.188 10 false B 5.135,0.948 5.313,1.135 0.177,0.188 10 false A 1.917,1.24 2.094,1.427 0.177,0.188 10 false A 1.125,2.531 1.302,2.719 0.177,0.188 10 false C 1.74,2.656 1.917,2.844 0.177,0.188 10 false B 1.792,3.51 1.969,3.698 0.177,0.188 10 false B
*A w/ Seatback Board *B w/o Seatback Board
*C for Type A *D for Type B
*E w/ Seatback Fastener *F w/o Seatback Fastener


Dimensions:
A 210 mm (8.27 in.) B 160 mm (6.29 in.)
C 260 mm (10.2 in.) D 320 mm (1.05 ft.)


HINT:
B376752

The dimensions shown in the illustration are the length.



Hide 25.INSTALL SEAT COVER WIRE (for RH Side)

a.

Install the seat cover wire.

HINT:
·

Wire 1000 mm (3.28 ft.) or longer and shaped wire are available as supplied parts.

·

For wire 1000 mm (3.28 ft.) or less in length, cut or shape 1000 mm (3.28 ft.) wire into the dimensions shown in the illustration.



B543319C02
0.188,0.198 6.927,3.948 6.74,3.75 0.188,3.948 6.927,7.698 6.74,3.75 0.552,4.156 3.469,7.635 2.917,3.479 3.469,4.156 6.594,7.625 3.125,3.469 3.479,0.333 6.583,3.813 3.104,3.479 0.563,0.333 3.479,3.813 2.917,3.479 4.302,1.146 5.083,1.01 true 5,2.833 5.75,3.302 true 5,3.583 5.51,3.583 5.51,3.583 5.76,3.5 true 2,3.604 2.417,3.604 2.417,3.604 2.667,3.521 true 1.917,2.854 2.656,3.323 true 1.292,5.427 1.99,5.333 1.99,5.333 1.292,5.042 true 1.063,1.719 1.302,2.49 1.302,2.49 1.552,1.781 true 1.073,5.75 1.281,6.49 1.281,6.49 1.531,5.792 true 1.781,6.885 2.583,7.323 true 4.792,6.75 5.646,7.292 true 4.365,5.219 5.146,5.083 true 1.313,1.385 2.01,1.292 2.01,1.292 1.313,1 true 0.24,0.292 0.552,0.448 0.313,0.156 12 false *A 0.25,4 0.563,4.156 0.313,0.156 12 false *B 0.604,0.375 0.917,0.531 0.313,0.156 12 false *C 3.552,0.375 3.865,0.531 0.313,0.156 12 false *D 0.615,4.219 0.927,4.375 0.313,0.156 12 false *E 3.531,4.208 3.844,4.365 0.313,0.156 12 false *F 1.24,6.5 1.427,6.667 0.188,0.167 10 false C 1.625,6.708 1.823,6.875 0.198,0.167 10 false A 2.063,5.219 2.25,5.385 0.188,0.167 10 false A 4.656,6.594 4.833,6.781 0.177,0.188 10 false A 5.198,4.958 5.375,5.146 0.177,0.188 10 false A 4.865,3.469 5.042,3.656 0.177,0.188 10 false B 4.865,2.656 5.042,2.844 0.177,0.188 10 false B 5.135,0.896 5.313,1.083 0.177,0.188 10 false A 2.052,1.177 2.229,1.365 0.177,0.188 10 false A 1.26,2.5 1.438,2.688 0.177,0.188 10 false C 1.792,2.698 1.969,2.885 0.177,0.188 10 false B 1.875,3.49 2.052,3.677 0.177,0.188 10 false B
*A w/ Seatback Board *B w/o Seatback Board
*C for Type A *D for Type B
*E w/ Seatback Fastener *F w/o Seatback Fastener


Dimensions:
A 210 mm (8.27 in.) B 160 mm (6.29 in.)
C 260 mm (10.2 in.) - -


HINT:
B376752

The dimensions shown in the illustration are the length.



Hide 79014B 26.INSTALL NO. 1 SEATBACK COVER SUB-ASSEMBLY LH (w/ Seatback Board)

HINT:

When installing a No. 1 seatback cover sub-assembly LH, refer to the Precaution section in order to prevent wrinkles from forming.

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Separate Seat Type)>PRECAUTION


a.

Pass the rear seat outer 3 point type belt assembly LH through the hole of the No. 1 seatback cover sub-assembly LH.


b.
B536742

Attach the guide.


c.

for Type A:

i.
B540438C01
0.781,4.094 1.427,4.094 false 0.615,3.958 0.927,4.115 0.313,0.156 10 false *a 1.344,0.729 1.542,0.917 0.198,0.188 10 true (1) 1.896,0.729 2.104,0.927 0.208,0.198 10 true (2) 1.344,1.302 1.552,1.469 0.208,0.167 10 true (3) 1.885,1.302 2.083,1.5 0.198,0.198 10 true (4) 2.396,1.583 2.604,1.792 0.208,0.208 10 true (7) 2.406,2.042 2.625,2.229 0.219,0.188 10 true (8) 0.823,1.583 1.042,1.781 0.219,0.198 10 true (5) 0.813,2.042 1.021,2.229 0.208,0.188 10 true (6)
*a Hog Ring Pliers

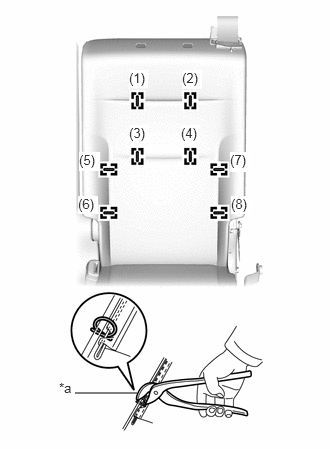

Using hog ring pliers, install the 8 new hog rings in the order indicated in the illustration.

NOTICE:
·

Be careful not to damage the No. 1 seatback cover sub-assembly LH.

·

Be sure to securely install the hog rings as shown in the illustration while preventing wrinkles from forming on the No. 1 seatback cover sub-assembly LH.





d.

for Type B:

i.
B540439C01
0.74,4.146 1.427,4.135 false 0.563,4.021 0.875,4.177 0.313,0.156 10 false *a 1.344,0.99 1.563,1.167 0.219,0.177 10 true (1) 1.906,0.979 2.125,1.146 0.219,0.167 10 true (2)
*a Hog Ring Pliers

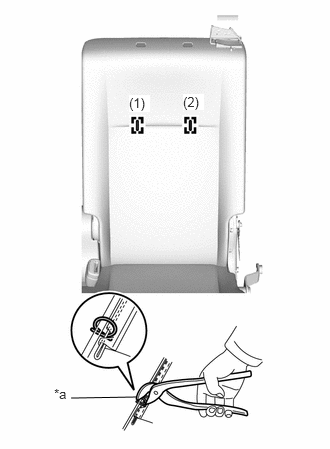

Using hog ring pliers, install the 2 new hog rings in the order indicated in the illustration.

NOTICE:
·

Be careful not to damage the No. 1 seatback cover sub-assembly LH.

·

Be sure to securely install the hog rings as shown in the illustration while preventing wrinkles from forming on the No. 1 seatback cover sub-assembly LH.





e.
B536737

Insert No. 1 seatback cover sub-assembly LH under the rear seat shoulder belt hole cover LH.


f.

Attach the hook.


g.
B540423

Attach the hook.


h.
B540422

Close the 2 fasteners.


i.

Insert the 2 fasteners.

B540428


j.
B540429C04
0.813,3.063 1.438,3.125 false 1.333,1.333 1.542,1.51 0.208,0.177 10 true (1) 1.958,1.333 2.177,1.51 0.219,0.177 10 true (2) 0.604,2.938 0.792,3.156 0.188,0.219 10 false *a
*a Hog Ring Pliers


Using hog ring pliers, install the No. 1 seatback cover sub-assembly LH with the 2 new hog rings in the order indicated in the illustration.

NOTICE:
·

Be careful not to damage the No. 1 seatback cover sub-assembly LH.

·

Be sure to securely install the hog rings as shown in the illustration while preventing wrinkles from forming on the No. 1 seatback cover sub-assembly LH.




k.
B536735C01
0,0 0,0 false
V113147

Install in this Direction


Attach the guide as shown in the illustration.


l.
B540440C01
0,0 0,0 false
V113147

Install in this Direction


Attach the claw and install the 2 rear seat headrest supports as shown in the illustration.


m.
B536728C02
1.458,1.292 1.125,0.792 1.125,0.792 1.875,1.052 true 0.927,0.635 1.135,0.813 0.208,0.177 10 true *a
*a Protruding Part

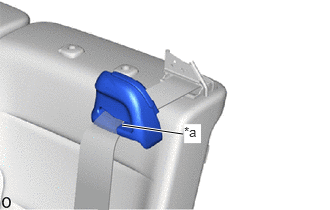

Install the anchor of the rear seat outer 3 point type belt assembly LH with the bolt.

Torque:
42 N*m (428 kgf*cm, 31 ft.*lbf)

NOTICE:

Do not allow the anchor of the rear seat outer 3 point type belt assembly LH to overlap the protruding part.



n.

Check that the ELR locks.

i.

With the rear seat outer 3 point type belt assembly LH installed to the vehicle, check that the belt locks when it is pulled out quickly.



Hide 79013D 27.INSTALL NO. 1 SEATBACK COVER SUB-ASSEMBLY RH (w/ Seatback Board)

HINT:

Use the same procedure described for the LH side.


Hide 79014B 28.INSTALL NO. 1 SEATBACK COVER SUB-ASSEMBLY LH (w/o Seatback Board)

HINT:

When installing a No. 1 seatback cover sub-assembly LH, refer to the Precaution section in order to prevent wrinkles from forming.

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Separate Seat Type)>PRECAUTION


a.

for Type A:

i.
B540747C01
0.74,4.104 1.438,4.104 false 0.563,3.969 0.875,4.125 0.313,0.156 10 false *a 1.313,0.583 1.531,0.781 0.219,0.198 10 true (1) 1.938,0.573 2.167,0.802 0.229,0.229 10 true (2) 1.313,1.188 1.521,1.385 0.208,0.198 10 true (3) 1.948,1.188 2.208,1.375 0.26,0.188 10 true (4) 0.792,1.49 1.021,1.667 0.229,0.177 10 true (5) 0.802,1.896 1.021,2.094 0.219,0.198 10 true (6) 2.438,1.5 2.688,1.688 0.25,0.188 10 true (7) 2.438,1.906 2.677,2.115 0.24,0.208 10 true (8)
*a Hog Ring Pliers

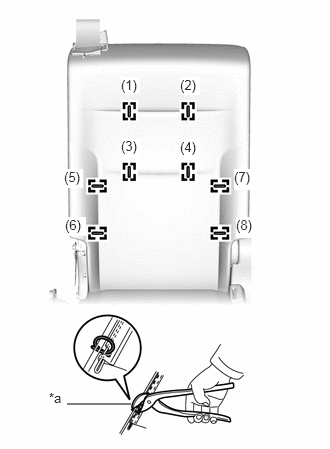

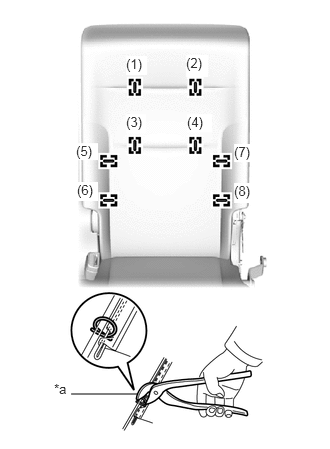

Using hog ring pliers, install the 8 new hog rings in the order indicated in the illustration.

NOTICE:
·

Be careful not to damage the No. 1 seatback cover sub-assembly LH.

·

Be sure to securely install the hog rings as shown in the illustration while preventing wrinkles from forming on the No. 1 seatback cover sub-assembly LH.





b.

for Type B:

i.
B540748C01
0.813,4.125 1.406,4.115 false 0.604,3.99 0.917,4.146 0.313,0.156 10 false *a 1.375,0.938 1.604,1.146 0.229,0.208 10 true (1) 1.896,0.938 2.104,1.125 0.208,0.188 10 true (2)
*a Hog Ring Pliers

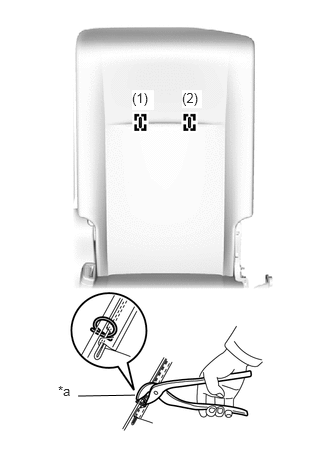

Using hog ring pliers, install the 2 new hog rings in the order indicated in the illustration.

NOTICE:
·

Be careful not to damage the No. 1 seatback cover sub-assembly LH.

·

Be sure to securely install the hog rings as shown in the illustration while preventing wrinkles from forming on the No. 1 seatback cover sub-assembly LH.





c.

w/ Seatback fastener:

i.
B540749

Close the 2 fasteners.


ii.

Insert the 2 fasteners.

B540750



d.
B539058C01
0,0 0,0 false
V113147

Install in this Direction

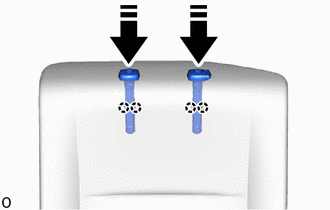

Attach the claw and install the 2 rear seat headrest supports as shown in the illustration.


e.
B540751C01
1.792,2.875 2.031,2.49 false 2.052,2.313 2.365,2.469 0.313,0.156 10 false *a 1.625,1.094 1.854,1.302 0.229,0.208 10 true (1) 0.927,1.094 1.177,1.302 0.25,0.208 10 true (2) 2.438,1.083 2.667,1.271 0.229,0.188 10 true (3)
*a Hog Ring Pliers


Using hog ring pliers, install the No. 1 seatback cover sub-assembly LH with the 3 new hog rings in the order indicated in the illustration.

NOTICE:
·

Be careful not to damage the No. 1 seatback cover sub-assembly LH.

·

Be sure to securely install the hog rings as shown in the illustration while preventing wrinkles from forming on the No. 1 seatback cover sub-assembly LH.




f.
B540752C01
0,0 0,0 false
V100155

Fastening tape

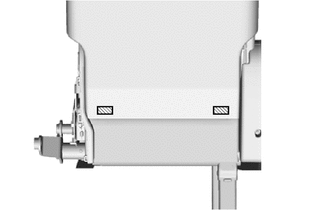

Attach the fastening tape.


Hide 79013D 29.INSTALL NO. 1 SEATBACK COVER SUB-ASSEMBLY RH (w/o Seatback Board)

HINT:

When installing a No. 1 seatback cover sub-assembly RH, refer to the Precaution section in order to prevent wrinkles from forming.

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Separate Seat Type)>PRECAUTION


a.

Pass the rear center seat lap type belt assembly through the hole of the No. 1 seatback cover sub-assembly RH.


b.
B536703

Attach the guide.


c.

for Type A:

i.
B540756C01
0.698,4.208 1.365,4.208 false 1.26,0.802 1.458,0.979 0.198,0.177 10 true (1) 1.875,0.802 2.083,0.99 0.208,0.188 10 true (2) 1.26,1.438 1.469,1.635 0.208,0.198 10 true (3) 1.875,1.448 2.083,1.656 0.208,0.208 10 true (4) 0.667,1.76 0.865,1.958 0.198,0.198 10 true (5) 0.677,2.26 0.896,2.458 0.219,0.198 10 true (6) 2.458,2.26 2.656,2.479 0.198,0.219 10 true (8) 2.438,1.76 2.656,1.979 0.219,0.219 10 true (7) 0.51,4.063 0.667,4.24 0.156,0.177 10 true *a
*a Hog Ring Pliers


Using hog ring pliers, install the 8 new hog rings in the order indicated in the illustration.



d.

for Type B:

i.
B540755C03
1.833,4.094 1.979,3.469 1.979,3.469 2.156,3.469 false 1.323,1.115 1.594,1.302 0.271,0.188 10 true (1) 1.948,1.104 2.219,1.281 0.271,0.177 10 true (2) 2.177,3.365 2.49,3.521 0.313,0.156 10 false *a
*a Hog Ring Pliers

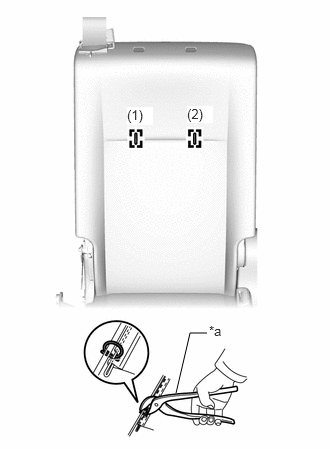

Install the 2 new hog rings in the order indicated in the illustration.



e.
B536709C01
0,0 0,0 false
V113147

Install in this Direction


Attach the guide as shown in the illustration.


f.
B540433C01
0,0 0,0 false
V113147

Install in this Direction


Attach the claw and install the 2 rear seat headrest supports as shown in the illustration.


g.

w/ Seatback fastener:

i.
B540434

Close the 2 fasteners.


ii.

Insert the 2 fasteners.

B540435



h.
B540436

Insert No. 1 seatback cover sub-assembly RH under the rear seat shoulder belt hole cover RH.


i.
B540437C01
1.583,2.917 1.75,2.5 1.75,2.5 2,2.5 false 2.094,1.094 2.323,1.302 0.229,0.208 10 true (1) 2.802,1.083 3.052,1.281 0.25,0.198 10 true (3) 1.229,1.083 1.448,1.281 0.219,0.198 10 true (2) 2.031,2.354 2.25,2.552 0.219,0.198 10 true *a
*a Hog Ring Pliers


Install the No. 1 seatback cover sub-assembly RH with the 3 new hog rings in the order indicated in the illustration.


j.
B536715C01
0,0 0,0 false
V100155

Fastening tape


Attach the fastening tape.


k.
B536054C04
1.563,1 2.365,0.635 2.365,0.635 1.948,1.26 true 2.354,0.5 2.542,0.688 0.188,0.188 10 true *a
*a Protruding Part


Install the anchor of the rear center seat lap type belt assembly with the bolt.

Torque:
42 N*m (428 kgf*cm, 31 ft.*lbf)

NOTICE:

Do not allow the anchor of the rear center seat lap type belt assembly to overlap the protruding part.



l.

Check that the ELR locks.

i.

With the rear center seat lap type belt assembly installed to the vehicle, check that the belt locks when it is pulled out quickly.



Hide 73318 30.INSTALL REAR SEAT BELT CAP LH (w/ Seatback Board)

a.
B536702

Attach the claw and guide and install the rear seat belt cap LH.


Hide 73317 31.INSTALL REAR SEAT BELT CAP RH

HINT:

Use the same procedure described for the LH side.


Hide 73375Y 32.INSTALL REAR NO. 2 SEAT SHOULDER BELT COVER LH (w/ Seatback Board)

a.
B536701C02
1.271,1.302 1.906,1.396 true 1.917,1.292 2.094,1.49 0.177,0.198 10 true *a
*a slit


Pass the rear seat outer 3 point type belt assembly LH through the slit.


b.
B536700C01
0,0 0,0 false
V113147

Install in this Direction

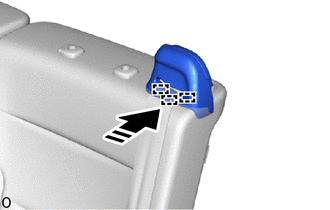

Attach the guide and install the rear No. 2 seat shoulder belt cover LH as shown in the illustration.


c.
B536698

Install the 2 screws.


Hide 73C73E 33.INSTALL REAR NO. 2 SEAT SHOULDER BELT COVER RH

HINT:

Use the same procedure described for the LH side.


Hide 73375X 34.INSTALL REAR NO. 1 SEAT SHOULDER BELT COVER LH (w/ Seatback Board)

a.
B536697C01
0,0 0,0 false
V113147

Install in this Direction


Attach the claw and install the rear No. 1 seat shoulder belt cover LH as shown in the illustration.


Hide 73C73D 35.INSTALL REAR NO. 1 SEAT SHOULDER BELT COVER RH

HINT:

Use the same procedure described for the LH side.


Hide 71702D 36.INSTALL REAR SEATBACK BOARD SUB-ASSEMBLY LH (w/ Seatback Board)

HINT:

Use the same procedure for the other side.


a.

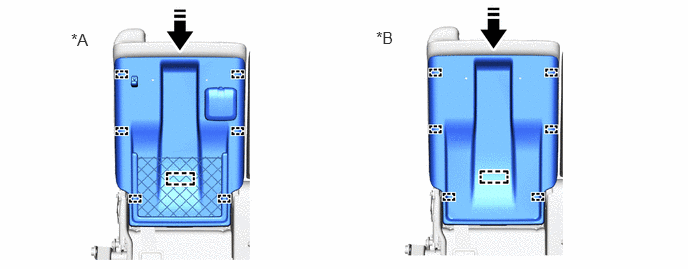

Attach the guide and install the rear seatback board sub-assembly LH as shown in the illustration.

B542837C01
0.74,0.313 1.052,0.469 0.313,0.156 12 false *A 3.917,0.292 4.229,0.448 0.313,0.156 12 false *B
*A for Type A *B for Type B
V113147

Install in this Direction - -



Hide 74690A 37.INSTALL REAR SEAT ASSIST GRIP ASSEMBLY (w/ Seatback Board)

HINT:

Use the same procedure for the other side.


a.
B536691

Install the rear seat assist grip assembly with the 2 screws.


b.
B536690C01
0,0 0,0 false
V113147

Close in this Direction

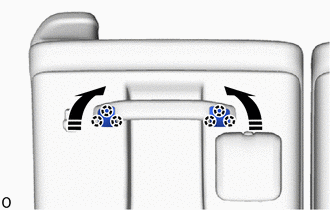

Attach the claw and close the cover as shown in the illustration.


Hide 72830U 38.INSTALL REAR SEAT ARMREST ASSEMBLY RH (w/ Armrest)

a.

Attach the guide.


b.
B536688

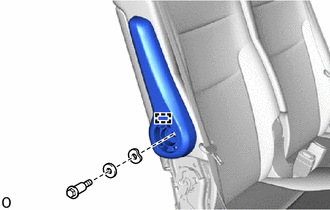

Install the rear seat armrest assembly RH with the 2 washers and bolt.

Torque:
33 N*m (337 kgf*cm, 24 ft.*lbf)


Hide 72848J 39.INSTALL NO. 1 SEAT ARMREST CAP (w/ Armrest)

a.
B536687C01
0,0 0,0 false
V113147

Install in this Direction

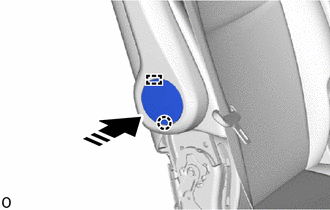

Attach the guide and claw and install the No. 1 seat armrest cap as shown in the illustration.


Hide 79959F 40.INSTALL NO. 1 SEAT LEG COVER LH (w/ Cover)

a.
B536685

Attach the guide.


b.

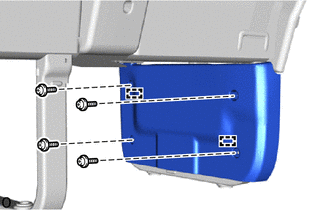

Install the No. 1 seat leg cover LH with the 4 screws.


Hide 71834N 41.INSTALL LH SEAT REAR NO. 2 SEAT RECLINING COVER LH

a.

w/ Seatback Board:

i.
B536669C01
0,0 0,0 false
V113147

Install in this Direction

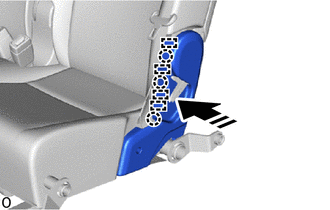

Attach the guide and claw as shown in the illustration.


ii.
B536667C01
0,0 0,0 false
V113147

Install in this Direction


Attach the guide and claw and install the LH seat rear No. 2 seat reclining cover LH as shown in the illustration.


iii.
B536665

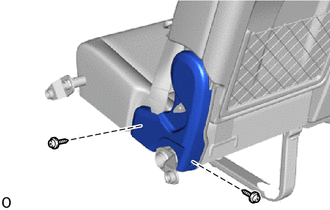

Install the 2 screws.



b.

w/o Seatback Board:

i.
B536674C01
0,0 0,0 false
V113147

Install in this Direction


Attach the guide and claw as shown in the illustration.


ii.
B536672C01
0,0 0,0 false
V113147

Install in this Direction

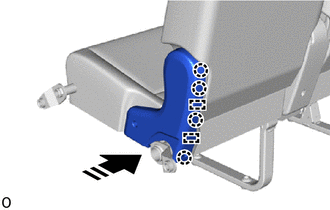

Attach the guide and claw and install the LH seat rear No. 2 seat reclining cover LH as shown in the illustration.


iii.
B536670

Install the 2 screws.



Hide 71833N 42.INSTALL LH SEAT REAR NO. 2 SEAT RECLINING COVER RH

a.

w/ Seatback Board:

i.
B536679C01
0,0 0,0 false
V113147

Install in this Direction


Attach the guide and claw as shown in the illustration.


ii.
B536677C01
0,0 0,0 false
V113147

Install in this Direction

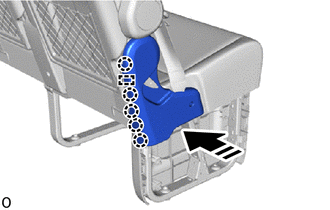

Attach the guide and claw and install the LH seat rear No. 2 seat reclining cover RH as shown in the illustration.


iii.
B536675

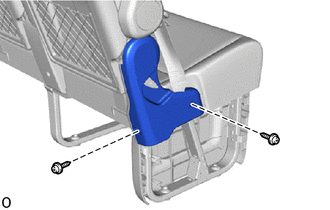

Install the 2 screws.



b.

w/o Seatback Board:

i.
B536684C01
0,0 0,0 false
V113147

Install in this Direction


Attach the guide and claw as shown in the illustration.


ii.
B536682C01
0,0 0,0 false
V113147

Install in this Direction


Attach the guide and claw and install the LH seat rear No. 2 seat reclining cover RH as shown in the illustration.


iii.
B536680

Install the 2 screws.



Hide 72526J 43.INSTALL NO. 1 SEAT RECLINING ADJUSTER RELEASE HANDLE LH (w/ Seatback Board)

a.
B536664C01
0,0 0,0 false
V113147

Lift in this Direction
V113148

Install in this Direction

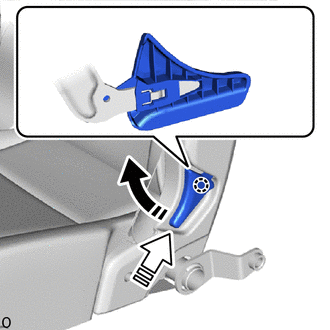

Attach the claw and install the No. 1 seat reclining adjuster release handle LH while lifting it up as shown in the illustration.


Hide 72525N 44.INSTALL NO. 1 SEAT RECLINING ADJUSTER RELEASE HANDLE RH (w/ Seatback Board)

HINT:

Use the same procedure described for the LH side.


Hide 79967X 45.INSTALL REAR NO. 1 SEAT NO. 5 LEG SIDE COVER

a.
B536662C01
0,0 0,0 false
V113147

Install in this Direction

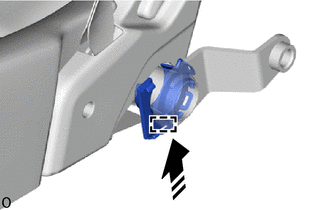

Attach the hook as shown in the illustration.


b.

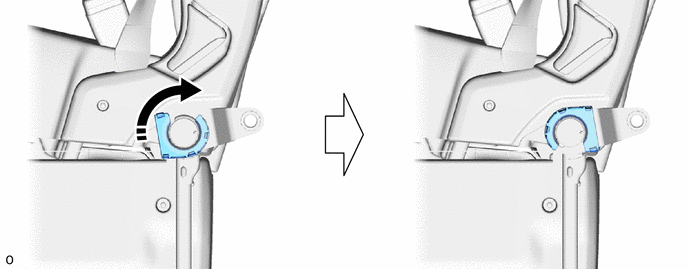

Rotate the rear No. 1 seat No. 5 leg side cover as shown in the illustration.

B536660C01
0,0 0,0 false
V113147

Rotate in this Direction - -



c.
B536658

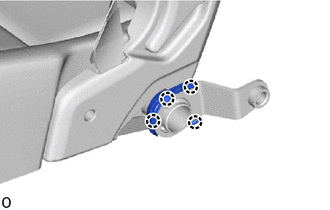

Attach the claw and install the rear No. 1 seat No. 5 leg side cover.


Hide 79967W 46.INSTALL REAR NO. 1 SEAT NO. 4 LEG SIDE COVER

a.
B536657C01
0,0 0,0 false
V113147

Install in this Direction

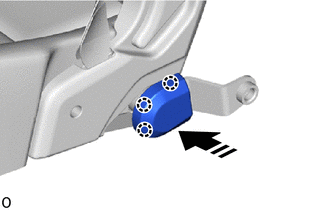

Attach the claw and install the rear No. 1 seat No. 4 leg side cover as shown in the illustration.


Hide 79967U 47.INSTALL REAR NO. 1 SEAT NO. 2 LEG SIDE COVER

a.
B535090C02
0,0 0,0 false
V113147

Install in this Direction

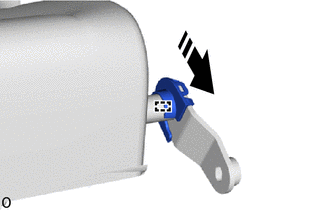

Attach the hook as shown in the illustration.


b.
B535088

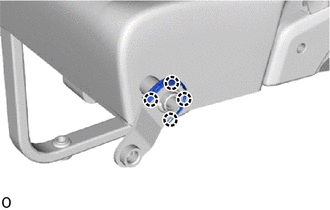

Attach the claw and install the rear No. 1 seat No. 2 leg side cover.


Hide 79967T 48.INSTALL REAR NO. 1 SEAT NO. 1 LEG SIDE COVER

a.
B535087C01
0,0 0,0 false
V113147

Install in this Direction

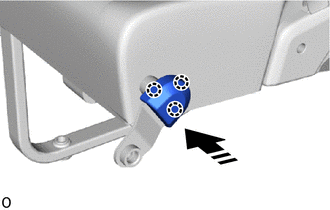

Attach the claw and install the rear No. 1 seat No. 1 leg side cover as shown in the illustration.


Hide 79967V 49.INSTALL REAR NO. 1 SEAT NO. 3 LEG SIDE COVER

a.
B535085C01
0,0 0,0 false
V113147

Install in this Direction

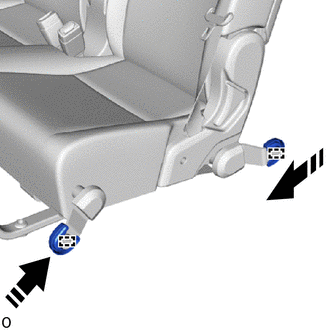

Attach the hook and install the 2 rear No. 1 seat No. 3 leg side covers as shown in the illustration.
