RM35X0E _58 Vehicle Interior _078601 SEAT _0381335 REAR SEAT ASSEMBLY(for Commuter, 2-Passenger Seat with 3-Point Type Seat Belt) A

SEAT  REAR SEAT ASSEMBLY(for Commuter, 2-Passenger Seat with 3-Point Type Seat Belt)  DISASSEMBLY


CAUTION / NOTICE / HINT

CAUTION:
·

Wear protective gloves. Sharp areas on the parts may injure your hands.

·

There is risk of injury.



HINT:
·

Use the same procedure for RHD and LHD vehicles.

·

The procedure listed below is for LHD vehicles.

·

The procedure listed below is a representative example.

·

Use the same procedure for all rows, unless otherwise specified.



PROCEDURE

Hide 79967V 1.REMOVE REAR NO. 1 SEAT NO. 3 LEG SIDE COVER

a.

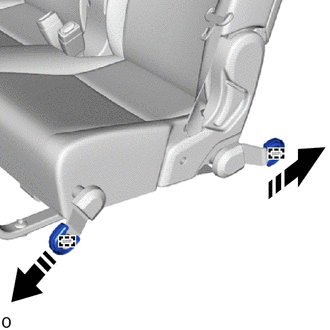

B535084C01
0,0 0,0 false
V113147

Remove in this Direction


Detach the hook and remove the 2 rear No. 1 seat No. 3 leg side covers as shown in the illustration.


Hide 79967T 2.REMOVE REAR NO. 1 SEAT NO. 1 LEG SIDE COVER

a.

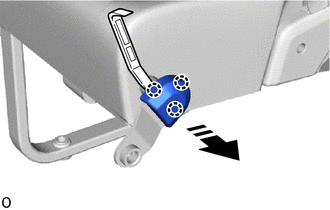

B535086C01
0,0 0,0 false
V113147

Remove in this Direction


Using moulding remover A, detach the claw and remove the rear No. 1 seat No. 1 leg side cover as shown in the illustration.


Hide 79967U 3.REMOVE REAR NO. 1 SEAT NO. 2 LEG SIDE COVER

a.
B535088

Detach the claw.


b.

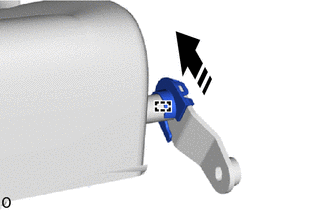

B535089C01
0,0 0,0 false
V113147

Remove in this Direction


Detach the hook and remove the rear No. 1 seat No. 2 leg side cover as shown in the illustration.


Hide 79967W 4.REMOVE REAR NO. 1 SEAT NO. 4 LEG SIDE COVER

a.

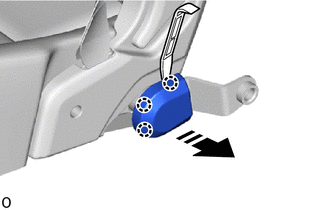

B536656C01
0,0 0,0 false
V113147

Remove in this Direction


Using moulding remover A, detach the claw and remove the rear No. 1 seat No. 4 leg side cover as shown in the illustration.


Hide 79967X 5.REMOVE REAR NO. 1 SEAT NO. 5 LEG SIDE COVER

a.
B536658

Detach the claw.


b.

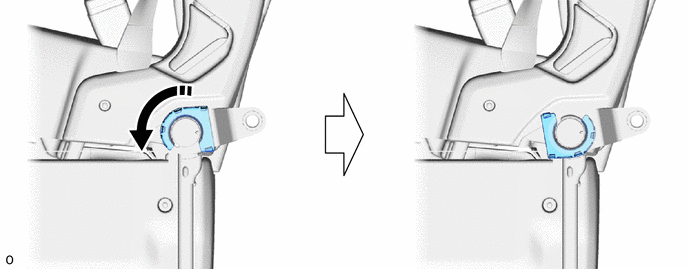

Rotate the rear No. 1 seat No. 5 leg side cover as shown in the illustration.

B536659C01
0,0 0,0 false
V113147

Rotate in this Direction - -



c.

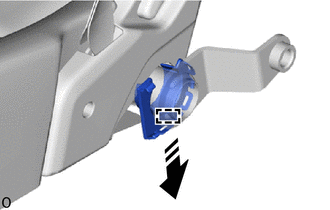

B536661C01
0,0 0,0 false
V113147

Remove in this Direction


Detach the hook and remove the rear No. 1 seat No. 5 leg side cover as shown in the illustration.


Hide 72526J 6.REMOVE NO. 1 SEAT RECLINING ADJUSTER RELEASE HANDLE LH (w/ Seatback Board)

a.

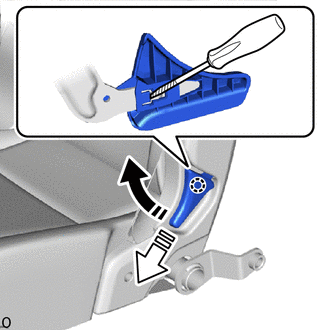

B536663C01
0,0 0,0 false
V113147

Lift in this Direction
V113148

Remove in this Direction
V100155

Protective Tape


Using a thin-bladed screwdriver, detach the claw and remove the No. 1 seat reclining adjuster release handle LH while lifting it up.

HINT:

Tape the thin-bladed screwdriver tip before use.



Hide 72525N 7.REMOVE NO. 1 SEAT RECLINING ADJUSTER RELEASE HANDLE RH (w/ Seatback Board)

HINT:

Use the same procedure described for the LH side.


Hide 71834N 8.REMOVE LH SEAT REAR NO. 2 SEAT RECLINING COVER LH

a.

w/ Seatback Board:

i.
B536665

Remove the 2 screws.


ii.

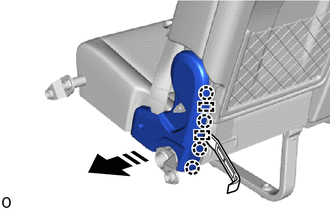

B536666C01
0,0 0,0 false
V113147

Remove in this Direction


Using moulding remover A, detach the guide and claw as shown in the illustration.


iii.

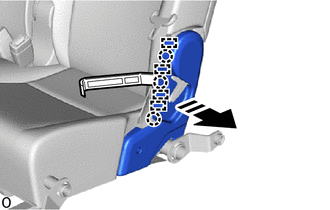

B536668C01
0,0 0,0 false
V113147

Remove in this Direction


Using moulding remover A, detach the guide and claw and remove the LH seat rear No. 2 seat reclining cover LH as shown in the illustration.



b.

w/o Seatback Board:

i.
B536670

Remove the 2 screws.


ii.

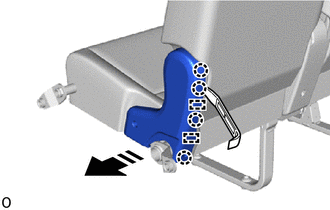

B536671C01
0,0 0,0 false
V113147

Remove in this Direction


Using moulding remover A, detach the guide and claw as shown in the illustration.


iii.

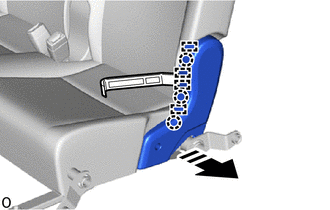

B536673C01
0,0 0,0 false
V113147

Remove in this Direction


Using moulding remover A, detach the guide and claw and remove the LH seat rear No. 2 seat reclining cover LH as shown in the illustration.



Hide 71833N 9.REMOVE LH SEAT REAR NO. 2 SEAT RECLINING COVER RH

a.

w/ Seatback Board:

i.
B536675

Remove the 2 screws.


ii.

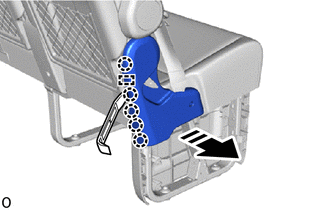

B536676C01
0,0 0,0 false
V113147

Remove in this Direction


Using moulding remover A, detach the guide and claw as shown in the illustration.


iii.

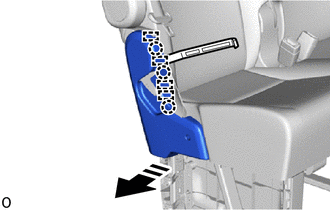

B536678C01
0,0 0,0 false
V113147

Remove in this Direction


Using moulding remover A, detach the guide and claw and remove the LH seat rear No. 2 seat reclining cover RH as shown in the illustration.



b.

w/o Seatback Board:

i.
B536680

Remove the 2 screws.


ii.

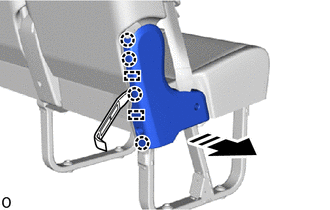

B536681C01
0,0 0,0 false
V113147

Remove in this Direction


Using moulding remover A, detach the guide and claw as shown in the illustration.


iii.

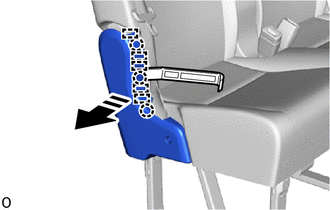

B536683C01
0,0 0,0 false
V113147

Remove in this Direction


Using moulding remover A, detach the guide and claw and remove the LH seat rear No. 2 seat reclining cover RH as shown in the illustration.



Hide 79959F 10.REMOVE NO. 1 SEAT LEG COVER LH (w/ Cover)

a.
B536685

Remove the 4 screws.


b.

Detach the guide and remove the No. 1 seat leg cover LH.


Hide 72848J 11.REMOVE NO. 1 SEAT ARMREST CAP (w/ Armrest)

a.

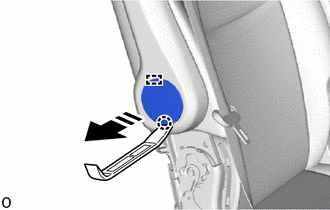

B536686C01
0,0 0,0 false
V113147

Remove in this Direction


Using moulding remover A, detach the claw and guide and remove the No. 1 seat armrest cap as shown in the illustration.


Hide 72830U 12.REMOVE REAR SEAT ARMREST ASSEMBLY RH (w/ Armrest)

a.
B536688

Remove the bolt, 2 washers and rear seat armrest assembly RH.


Hide 74690A 13.REMOVE REAR SEAT ASSIST GRIP ASSEMBLY (w/ Seatback Board)

HINT:

Use the same procedure for the other side.


a.

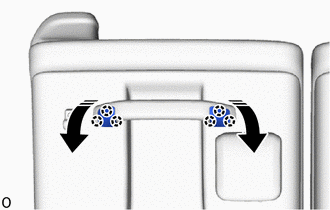

B536689C01
0,0 0,0 false
V113147

Open in this Direction


Using moulding remover A, detach the claw and open the cover as shown in the illustration.


b.
B536691

Remove the 2 screws and rear seat assist grip assembly.


Hide 71702D 14.REMOVE REAR SEATBACK BOARD SUB-ASSEMBLY LH (w/ Seatback Board)

HINT:

Use the same procedure for the other side.


a.

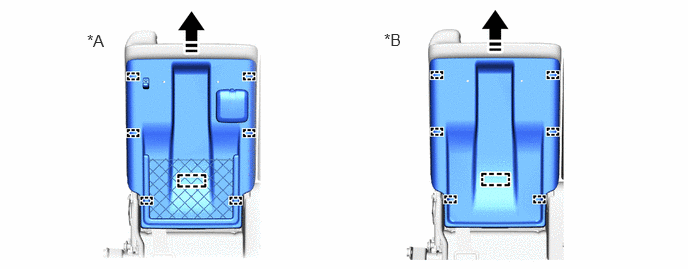

Detach the guide and remove the rear seatback board sub-assembly LH as shown in the illustration.

B542836C01
0.906,0.323 1.219,0.479 0.313,0.156 12 false *A 4,0.313 4.313,0.469 0.313,0.156 12 false *B
*A for Type A *B for Type B
V113147

Remove in this Direction - -



Hide 73375X 15.REMOVE REAR NO. 1 SEAT SHOULDER BELT COVER LH (w/ Seatback Board)

a.

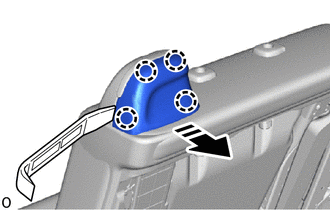

B536696C01
0,0 0,0 false
V113147

Remove in this Direction


Using moulding remover A, detach the claw and remove the rear No. 1 seat shoulder belt cover LH as shown in the illustration.


Hide 73C73D 16.REMOVE REAR NO. 1 SEAT SHOULDER BELT COVER RH

HINT:

Use the same procedure described for the LH side.


Hide 73375Y 17.REMOVE REAR NO. 2 SEAT SHOULDER BELT COVER LH (w/ Seatback Board)

a.
B536698

Remove the 2 screws.


b.

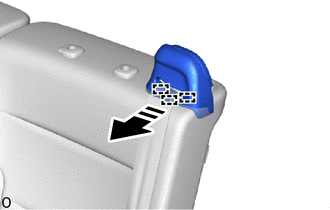

B536699C01
0,0 0,0 false
V113147

Remove in this Direction


Detach the guide as shown in the illustration.


c.

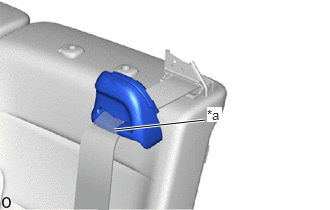

B536701C01
2.135,1.25 1.188,1.354 true 2.156,1.115 2.313,1.271 0.156,0.156 10 true *a
*a Slit


Pass the rear seat outer 3 point type belt assembly LH through the slit and remove the rear No. 2 seat shoulder belt cover LH as shown in the illustration.


Hide 73C73E 18.REMOVE REAR NO. 2 SEAT SHOULDER BELT COVER RH

HINT:

Use the same procedure described for the LH side.


Hide 73318 19.REMOVE REAR SEAT BELT CAP LH (w/ Seatback Board)

a.
B536702

Detach the claw and guide and remove the rear seat belt cap LH.


Hide 73317 20.REMOVE REAR SEAT BELT CAP RH

HINT:

Use the same procedure described for the LH side.


Hide 79014B 21.REMOVE NO. 1 SEATBACK COVER SUB-ASSEMBLY LH (w/ Seatback Board)

a.
B536727

Remove the bolt and anchor of the rear seat outer 3 point type belt assembly LH.


b.
B540426

Remove the 2 hog rings.


c.

Pull out the 2 fasteners.

B540421


d.
B540422

Open the 2 fasteners.


e.
B540423

Detach the hook.


f.
B539377

Detach the hook.


g.
B536732C01
0,0 0,0 false
V113147

Remove in this Direction


Detach the claw and remove the 2 rear seat headrest supports.


h.
B536734C01
0,0 0,0 false
V113147

Remove in this Direction


Detach the guide.


i.

for Type A:

i.
B536738

Remove the 8 hog rings.

NOTICE:

Be careful not to damage the No. 1 seatback cover sub-assembly LH.




j.

for Type B:

i.
B536740

Remove the 2 hog rings.

NOTICE:

Be careful not to damage the No. 1 seatback cover sub-assembly LH.




k.
B536742

Detach the guide.


l.

Pass the rear seat outer 3 point type belt assembly LH through the hole of the No. 1 seatback cover sub-assembly LH.


m.

Remove the No. 1 seatback cover sub-assembly LH.

NOTICE:

Be careful not to damage the No. 1 seatback cover sub-assembly LH.



Hide 79013D 22.REMOVE NO. 1 SEATBACK COVER SUB-ASSEMBLY RH (w/ Seatback Board)

HINT:

Use the same procedure described for the LH side.


Hide 79014B 23.REMOVE NO. 1 SEATBACK COVER SUB-ASSEMBLY LH (w/o Seatback Board)

a.

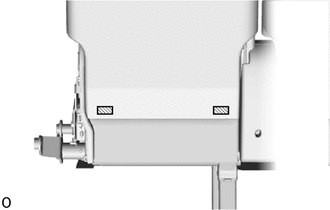

B536724C01
0,0 0,0 false
V100155

Fastening Tape


Detach the fastening tape.


b.
B536725

Remove the 3 hog rings.


c.

w/ Seatback fastener:

i.

Pull out the 2 fasteners.

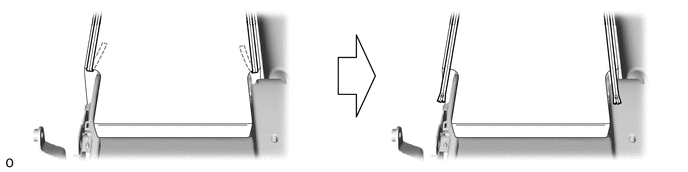

B539062


ii.
B536723

Open the 2 fasteners.



d.

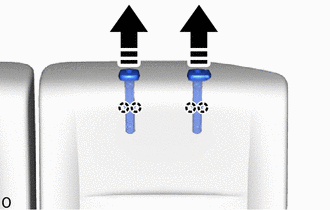

B536721C01
0,0 0,0 false
V113147

Remove in this Direction


Detach the claw and remove the 2 rear seat headrest supports.


e.

for Type A:

i.

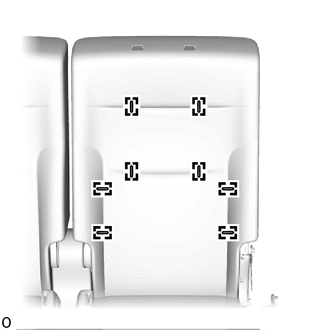

B536719

Remove the 8 hog rings and No. 1 seatback cover sub-assembly LH.

NOTICE:

Be careful not to damage the No. 1 seatback cover sub-assembly LH.




f.

for Type B:

i.

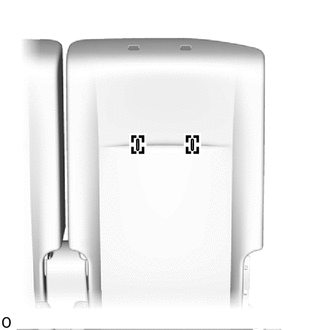

B536717

Remove the 2 hog rings and No. 1 seatback cover sub-assembly LH.

NOTICE:

Be careful not to damage the No. 1 seatback cover sub-assembly LH.




Hide 79013D 24.REMOVE NO. 1 SEATBACK COVER SUB-ASSEMBLY RH (w/o Seatback Board)

a.
B536716

Remove the bolt and anchor of the rear center seat lap type belt assembly.


b.

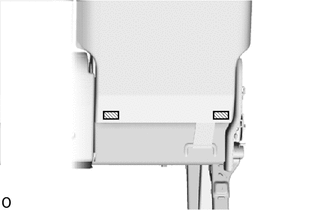

B536715C03
0,0 0,0 false
V100155

Fastening Tape


Detach the fastening tape.


c.
B538325

Remove the 3 hog rings.


d.

w/ Seatback Fastener:

i.

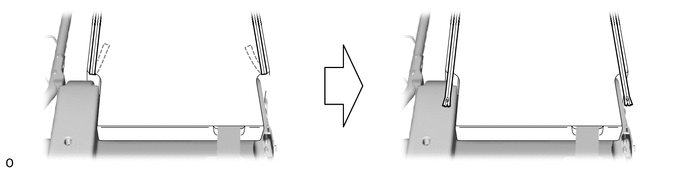

Pull out the 2 fasteners.

B539064


ii.

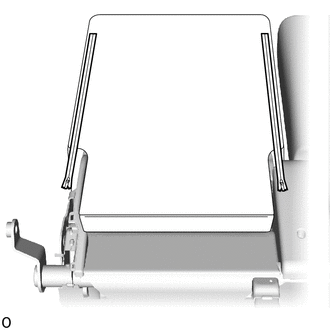

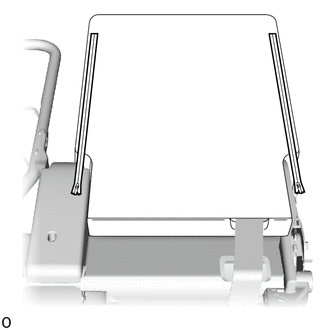

B536712

Open the 2 fasteners.



e.

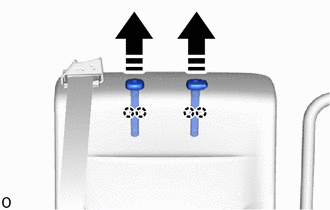

B536710C01
0,0 0,0 false
V113147

Remove in this Direction


Detach the claw and remove the 2 rear seat headrest supports.


f.
B536708C01
0,0 0,0 false
V113147

Remove in this Direction


Detach the guide.


g.

for Type A:

i.

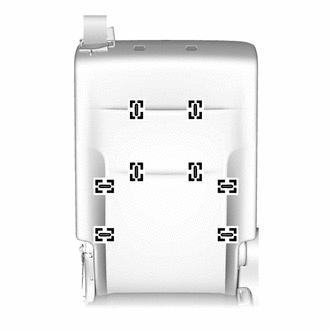

B540753

Remove the 8 hog rings.

NOTICE:

Be careful not to damage the No. 1 seatback cover sub-assembly RH.




h.

for Type B:

i.

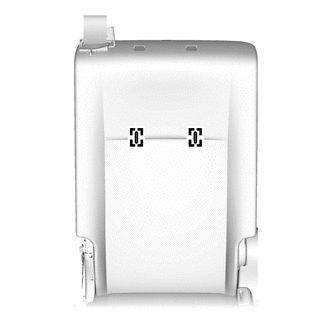

B540754

Remove the 2 hog rings.

NOTICE:

Be careful not to damage the No. 1 seatback cover sub-assembly RH.




i.
B536703

Detach the guide.


j.

Pass the rear center seat lap type belt assembly through the hole of the No. 1 seatback cover sub-assembly RH.


k.

Remove the No. 1 seatback cover sub-assembly RH.

NOTICE:

Be careful not to damage the No. 1 seatback cover sub-assembly RH.



Hide 25.REMOVE SEAT COVER WIRE (for LH Side)

a.

Remove the seat cover wire.

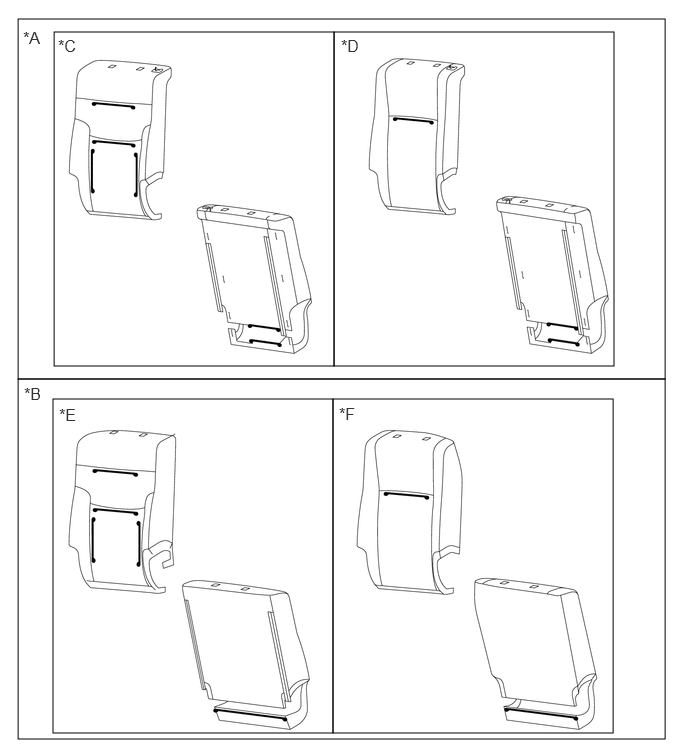

B543318C02
0.188,0.198 6.927,3.948 6.74,3.75 0.188,3.948 6.927,7.698 6.74,3.75 0.552,4.156 3.469,7.635 2.917,3.479 3.469,4.156 6.385,7.635 2.917,3.479 3.479,0.333 6.396,3.813 2.917,3.479 0.563,0.333 3.479,3.813 2.917,3.479 0.24,0.292 0.552,0.448 0.313,0.156 12 false *A 0.25,4 0.563,4.156 0.313,0.156 12 false *B 0.604,0.375 0.917,0.531 0.313,0.156 12 false *C 3.552,0.375 3.865,0.531 0.313,0.156 12 false *D 0.615,4.219 0.927,4.375 0.313,0.156 12 false *E 3.531,4.208 3.844,4.365 0.313,0.156 12 false *F
*A w/ Seatback Board *B w/o Seatback Board
*C for Type A *D for Type B
*E w/ Seatback Fastener *F w/o Seatback Fastener

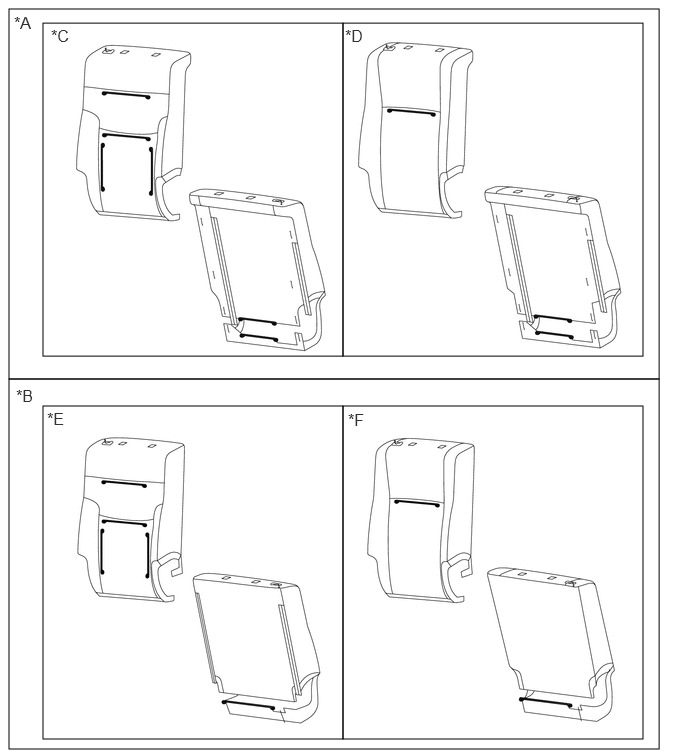

Hide 26.REMOVE SEAT COVER WIRE (for RH Side)

a.

Remove the seat cover wire.

B543319C01
0.094,0.094 6.865,3.948 6.771,3.854 0.094,3.948 6.865,7.802 6.771,3.854 0.448,4.229 3.573,7.698 3.125,3.469 3.573,4.229 6.698,7.698 3.125,3.469 3.573,0.24 6.698,3.708 3.125,3.469 0.448,0.24 3.573,3.708 3.125,3.469 0.146,0.135 0.458,0.292 0.313,0.156 12 false *A 0.167,4.021 0.479,4.177 0.313,0.156 12 false *B 0.531,0.271 0.844,0.427 0.313,0.156 12 false *C 3.594,0.271 3.906,0.427 0.313,0.156 12 false *D 0.49,4.26 0.802,4.417 0.313,0.156 12 false *E 3.625,4.271 3.938,4.427 0.313,0.156 12 false *F
*A w/ Seatback Board *B w/o Seatback Board
*C for Type A *D for Type B
*E w/ Seatback Fastener *F w/ Seatback Fastener



Hide 79185A 27.REMOVE NO. 1 SEATBACK PAD LH

a.

w/ Seatback Board:

i.
B539379

Detach the guide.


ii.

Pass the rear seat outer 3 point type belt assembly LH through the hole of the No. 1 seatback pad LH.



b.

remove the No. 1 seatback pad LH.


Hide 79175F 28.REMOVE NO. 1 SEATBACK PAD RH

a.
B536744

Detach the guide.


b.

Pass the rear center seat lap type belt assembly through the hole of the No. 1 seatback pad RH.


c.

Remove the No. 1 seatback pad RH.


Hide 73375Z 29.REMOVE REAR NO. 3 SEAT SHOULDER BELT COVER LH (w/ Seatback Board)

a.
B536970

Detach the claw.


b.

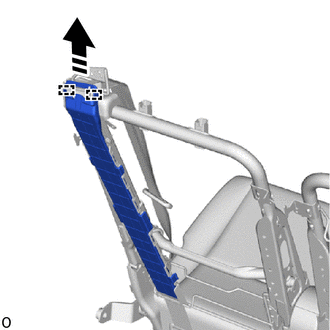

B536971C01
0,0 0,0 false
V113147

Remove in this Direction


Detach the guide and remove the rear No. 3 seat shoulder belt cover LH as shown in the illustration.


Hide 73C73F 30.REMOVE REAR NO. 3 SEAT SHOULDER BELT COVER RH

HINT:

Use the same procedure described for the LH side.


Hide 73C75A 31.REMOVE REAR SEAT SHOULDER BELT HOLE COVER LH (w/ Seatback Board)

a.

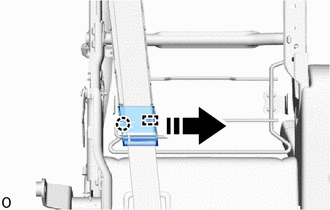

B536973C01
0,0 0,0 false
V113147

Remove in this Direction


Detach the claw and guide as shown in the illustration.


b.

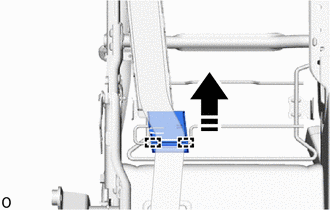

B536975C01
0,0 0,0 false
V113147

Remove in this Direction


Detach the guide as shown in the illustration.


c.

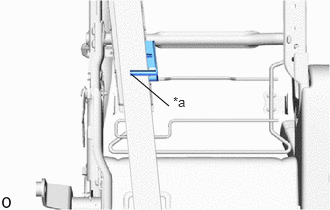

B536977C01
1.365,0.771 1.76,1.104 false 1.802,0.979 2.115,1.135 0.313,0.156 10 false *a
*a Slit


Pass the rear seat outer 3 point type belt assembly LH through the slit and remove the rear seat shoulder belt hole cover LH.


Hide 73C73H 32.REMOVE REAR SEAT SHOULDER BELT HOLE COVER RH

HINT:

Use the same procedure described for the LH side.


Hide 73350 34.REMOVE REAR CENTER SEAT LAP TYPE BELT ASSEMBLY

HINT:

Use the same procedure described for the LH side.


Hide 73C75 35.REMOVE REAR NO. 4 SEAT SHOULDER BELT COVER LH (w/ Seatback Board)

a.
B536978

Using clip remover, remove the clip.


b.

Detach the claw and guide and remove the rear No. 4 seat shoulder belt cover LH.


Hide 73C73G 36.REMOVE REAR NO. 4 SEAT SHOULDER BELT COVER RH

HINT:

Use the same procedure described for the LH side.


Hide 73343 37.REMOVE REAR SEAT SHOULDER BELT GUIDE RH

HINT:

Use the same procedure for the other side.


a.
B536979

Remove the 2 screws.


b.

Detach the guide and remove the rear seat shoulder belt guide RH.


Hide 38.REMOVE REAR SEAT CUSHION COVER WITH PAD

a.

Detach the fastening tape.

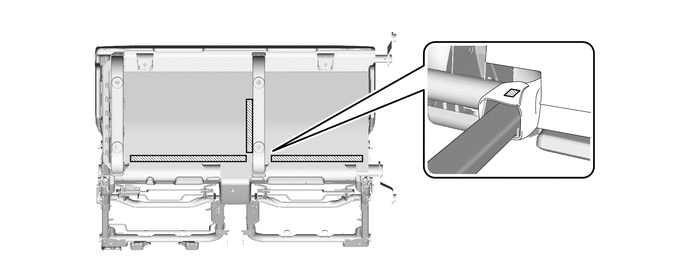

B539378C02
0,0 0,0 false
V100155

Fastening Tape - -



b.

Detach the hook and remove the rear seat cushion cover with pad.

B536981


Hide 79012A 39.REMOVE NO. 1 SEAT CUSHION COVER SUB-ASSEMBLY LH

a.

Detach the fastening tape.

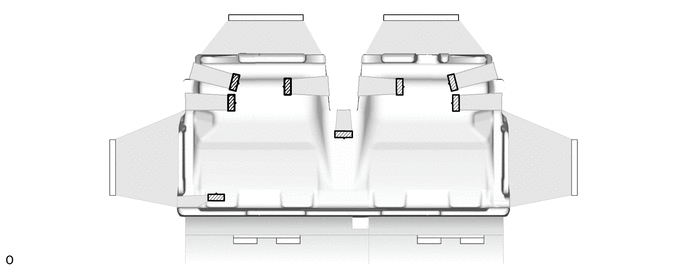

B536982C01
0,0 0,0 false
V100155

Fastening tape - -



b.

Remove the 16 hog rings and remove the No. 1 seat cushion cover sub-assembly LH from the No. 1 seat cushion pad LH as shown in the illustration.

B536983

NOTICE:

Be careful not to damage the No. 1 seat cushion cover sub-assembly LH.



Hide 40.REMOVE SEAT COVER WIRE

a.

Remove the seat cover wire.

B536985


Hide 72552P 41.REMOVE LH SEAT RECLINING HINGE COVER LH

a.

w/ Seatback Board:

i.
B536986

Remove the screw and LH seat reclining hinge cover LH.



b.

w/o Seatback Board:

i.
B536987

Detach the guide and remove the LH seat reclining hinge cover LH.



Hide 72551S 42.REMOVE LH SEAT RECLINING HINGE COVER RH

a.

w/ Seatback Board:

i.
B536988

Remove the screw and LH seat reclining hinge cover RH.



b.

w/o Seatback Board:

i.
B536989

Remove the screw and LH seat reclining hinge cover RH.



Hide 71874X 43.REMOVE REAR SEAT LOWER CUSHION SHIELD LH

a.

Remove the screw.


b.

Detach the claw and remove the rear seat lower cushion shield LH.

B536990


Hide 71873Y 44.REMOVE REAR SEAT LOWER CUSHION SHIELD

a.

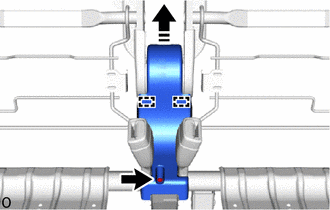

B536991C01
0,0 0,0 false
V113147

Remove in this Direction


Remove the screw.


b.

Detach the guide and remove the rear seat lower cushion shield as shown in the illustration.


Hide 71T75 45.REMOVE RECLINING ADJUSTER INSIDE COVER RH (w/ Seatback Board)

a.

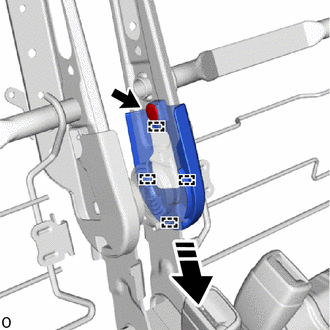

B536994C01
0,0 0,0 false
V113147

Remove in this Direction


Using clip remover, remove the clip.


b.

Detach the guide and remove the reclining adjuster inside cover RH as shown in the illustration.


Hide 71T76B 46.REMOVE RECLINING ADJUSTER INSIDE COVER LH (w/ Seatback Board)

HINT:

Use the same procedure described for the reclining adjuster inside cover RH.


Hide 72345Q 47.REMOVE NO. 1 SEAT STAND FRAME CAP LH

a.
B536993

Remove the No. 1 seat stand frame cap LH.


Hide 79290C 48.REMOVE NO. 1 SEATBACK SPRING ASSEMBLY LH

a.
B540035C01
0,0 0,0 false
V100155

Fastening Tape


Detach the fastening tape.


b.

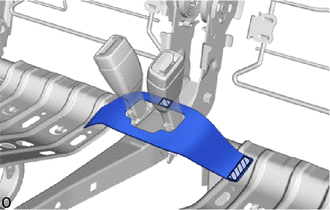

B540031C01
0,0 0,0 false
V100155

Fastening Tape


Detach the fastening tape and remove the rear seat cushion cover.


c.

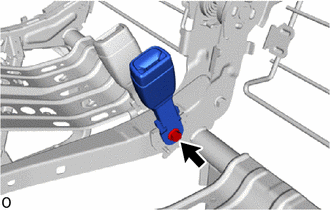

B539083

Remove the bolt and rear seat inner belt assembly.


d.

w/ Seatback Board:

i.

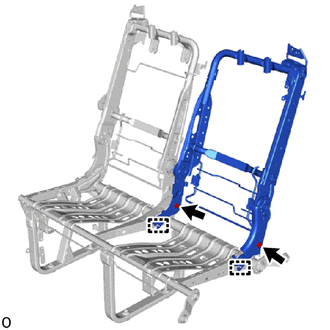

B539086

Remove the 2 bolts.


ii.

Detach the guide and remove the No. 1 seatback spring assembly LH.



e.

w/o Seatback Board:

i.

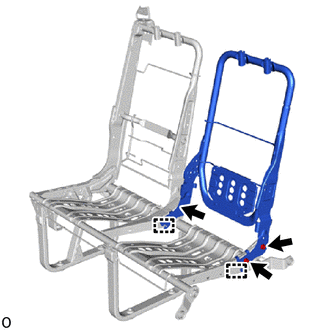

B539085

Remove the 3 bolts.


ii.

Detach the guide and remove the No. 1 seatback spring assembly LH.



Hide 79280B 49.REMOVE NO. 1 SEATBACK SPRING ASSEMBLY RH

a.

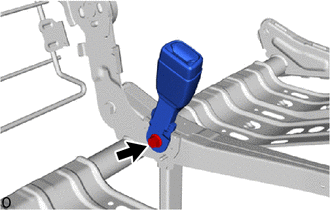

B539088

Remove the bolt and rear seat inner belt assembly.


b.

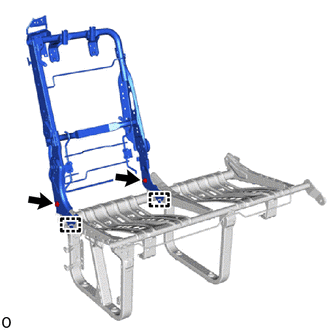

B539087

Remove the 2 bolts.


c.

Detach the guide and remove the No. 1 seatback spring assembly RH.
