SEAT  REAR SEAT ASSEMBLY(for Commuter, Single-Passenger Seat with 3-Point Type Seat Belt)  DISASSEMBLY

for Type A:

i.

0,0 0,0 false

Remove in this Direction

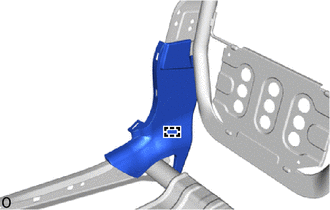

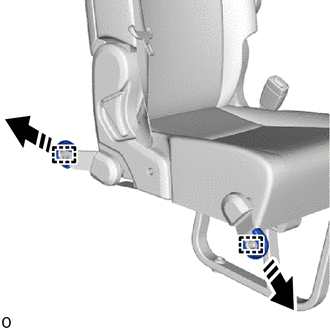

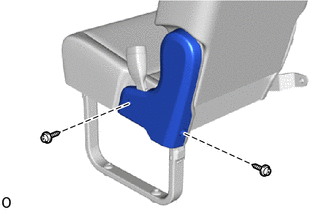

Detach the hook and remove the 2 rear No. 1 seat No. 3 leg side covers as shown in the illustration.

for Type B:

i.

0,0 0,0 false

Remove in this Direction

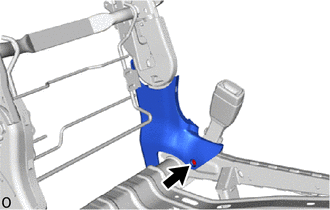

Detach the hook and remove the rear No. 1 seat No. 3 leg side cover as shown in the illustration.

0,0 0,0 false

Remove in this Direction

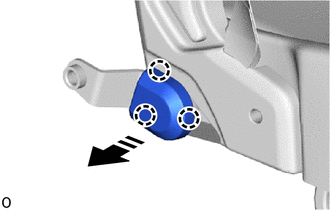

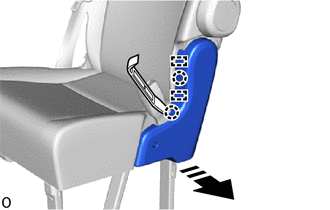

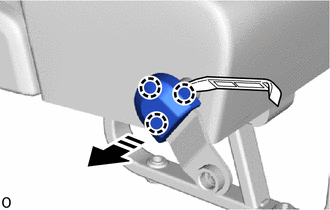

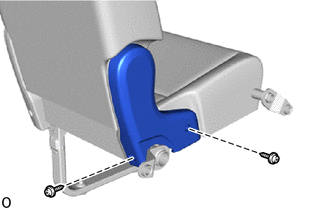

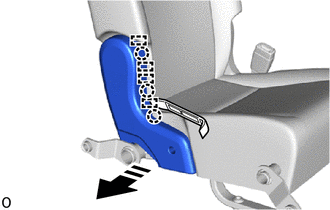

Using moulding remover A, detach the claw and remove the rear No. 1 seat No. 1 leg side cover as shown in the illustration.

Detach the claw.

0,0 0,0 false

Remove in this Direction

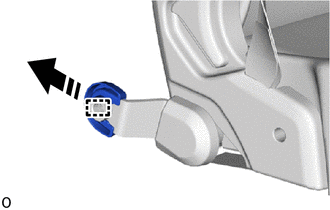

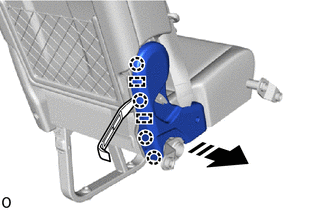

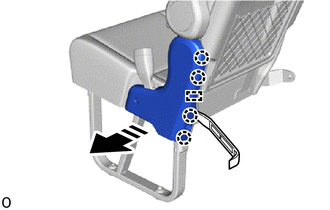

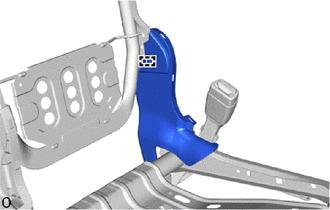

Detach hook and remove the rear No. 1 seat No. 2 leg side cover as shown in the illustration.

0,0 0,0 false

Remove in this Direction

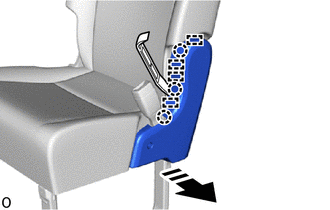

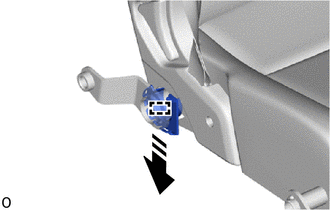

Using moulding remover A, detach the claw and remove the rear No. 1 seat No. 4 leg side cover as shown in the illustration.

Detach the claw.

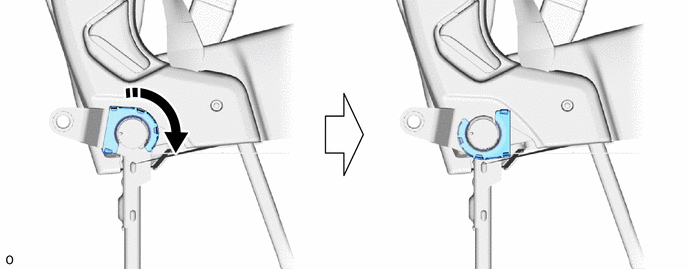

Rotate the rear No. 1 seat No. 5 leg side cover as shown in the illustration.

0,0 0,0 false

Rotate in this Direction

-

-

0,0 0,0 false

Remove in this Direction

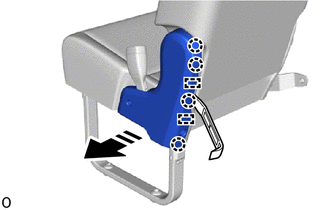

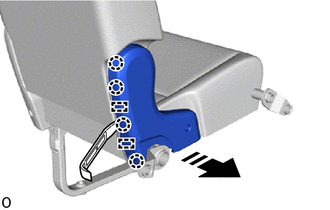

Detach the hook and remove the rear No. 1 seat No. 5 leg side cover as shown in the illustration.

0,0 0,0 false

	Lift in this Direction
	Remove in this Direction
	Protective Tape

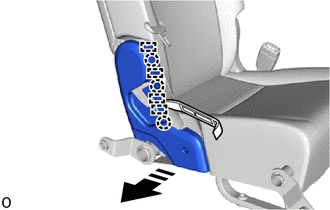

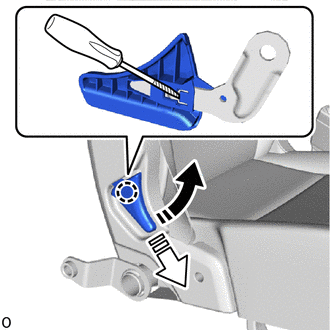

Using a thin-bladed screwdriver, detach the claw and remove the reclining adjuster release handle RH while lifting it up as shown in the illustration.

HINT:

Tape the thin-bladed screwdriver tip before use.

w/ Seatback Board:

i.

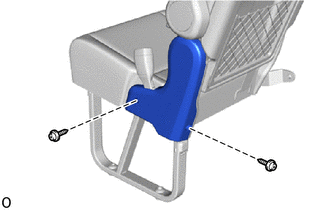

Remove the 2 screws.

ii.

0,0 0,0 false

Remove in this Direction

Using moulding remover A, detach the guide and claw as shown in the illustration.

iii.

0,0 0,0 false

Remove in this Direction

Using moulding remover A, detach the guide and claw and remove the RH seat rear No. 2 seat reclining cover RH as shown in the illustration.

w/o Seatback Board:

i.

Remove the 2 screws.

ii.

0,0 0,0 false

Remove in this Direction

Using moulding remover A, detach the guide and claw as shown in the illustration.

iii.

0,0 0,0 false

Remove in this Direction

Using moulding remover A, detach the guide and claw and remove the RH seat rear No. 2 seat reclining cover RH as shown in the illustration.

w/ Seatback Board:

i.

Remove the 2 screws.

ii.

0,0 0,0 false

Remove in this Direction

Using moulding remover A, detach the guide and claw as shown in the illustration.

iii.

0,0 0,0 false

Remove in this Direction

Using moulding remover A, detach the guide and claw and remove the RH seat rear No. 2 seat reclining cover LH as shown in the illustration.

w/o Seatback Board:

i.

Remove the 2 screws.

ii.

0,0 0,0 false

Remove in this Direction

Using moulding remover A, detach the guide and claw as shown in the illustration.

iii.

0,0 0,0 false

Remove in this Direction

Using moulding remover A, detach the guide and claw and remove the RH seat rear No. 2 seat reclining cover LH as shown in the illustration.

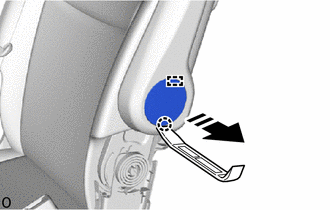

0,0 0,0 false

Remove in this Direction

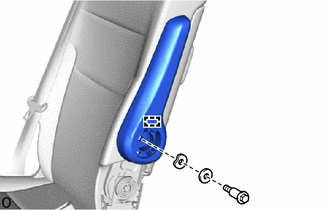

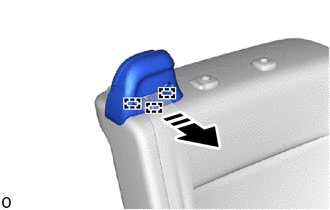

Using moulding remover A, detach the claw and guide and remove the No. 1 seat armrest cap as shown in the illustration.

Remove the bolt and 2 washers.

0,0 0,0 false

Open in this Direction

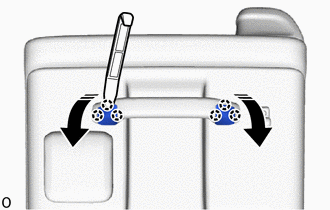

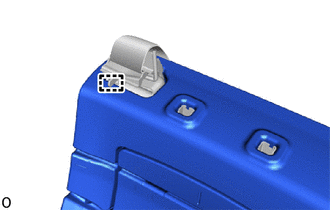

Using moulding remover A,detach the claw and open the 2 covers as shown in the illustration.

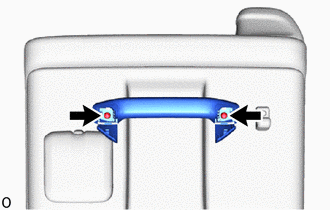

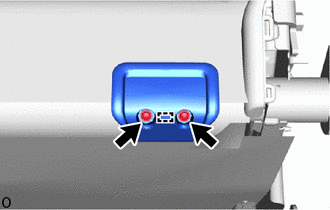

Remove the 2 screws and rear seat assist grip assembly.

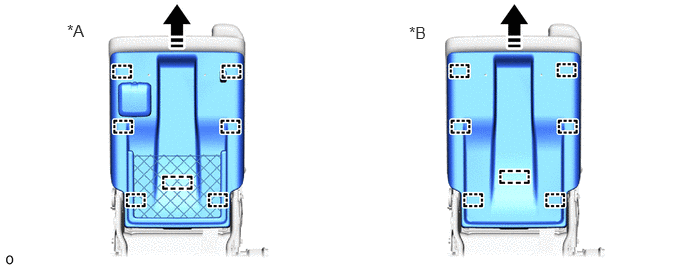

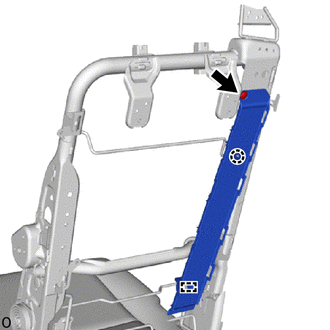

Detach the guide and remove the rear seatback board sub-assembly RH as shown in the illustration.

0.698,0.219 1.01,0.375 0.313,0.156 12 false *A 4.26,0.24 4.573,0.396 0.313,0.156 12 false *B

*A	Type A	*B	Type B
	Remove in this Direction	-	-

0,0 0,0 false

Remove in this Direction

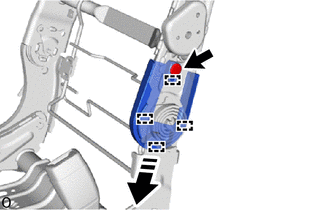

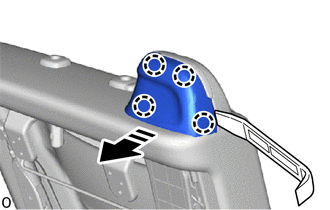

Using moulding remover A, detach the claw and remove the rear No. 1 seat shoulder belt cover RH as shown in the illustration.

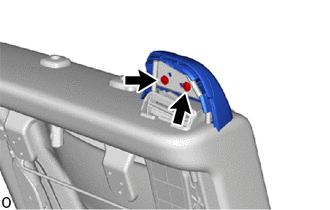

Remove the 2 screws.

0,0 0,0 false

Remove in this Direction

Detach the guide as shown in the illustration.

0.833,1.167 1.833,1.167 true 0.635,1.031 0.792,1.177 0.156,0.146 10 false *a

*a

Slit

Pass the rear seat outer 3 point type belt assembly RH through the slit and remove the rear No. 2 seat shoulder belt cover RH.

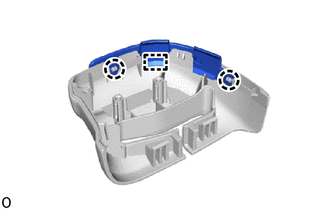

Detach the claw and guide and remove the rear seat belt cap RH.

Remove the bolt and anchor of the rear seat outer 3 point type belt assembly RH.

Remove the 2 hog rings.

Pull out the 2 fasteners.

Open the 2 fasteners.

Detach the hook.

Detach the hook.

0,0 0,0 false

Remove in this Direction

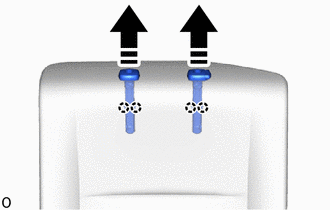

Detach the claw and remove the 2 rear seat headrest supports as shown in the illustration.

0,0 0,0 false

Remove in this Direction

Detach the guide as shown in the illustration.

for Type A:

i.

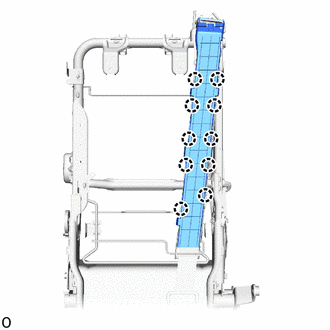

Remove the 8 hog rings.

NOTICE:

Be careful not to damage the No. 1 seatback cover sub-assembly RH.

for Type B:

i.

Remove the 2 hog rings.

NOTICE:

Be careful not to damage the No. 1 seatback cover sub-assembly RH.

Detach the guide.

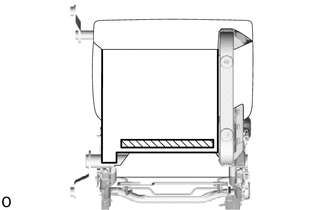

0,0 0,0 false

Fastening Tape

Detach the fastening tape.

Remove the 3 hog rings.

w/ Seatback Fastener:

i.

Pull out the 2 fasteners.

ii.

Open the 2 fasteners.

0,0 0,0 false

Remove in this Direction

Detach the claw and remove the 2 rear seat headrest supports as shown in the illustration.

for Type A:

i.

Remove the 8 hog rings and No. 1 seatback cover sub-assembly RH.

NOTICE:

Be careful not to damage the No. 1 seatback cover sub-assembly RH.

for Type B:

i.

Remove the 2 hog rings and No. 1 seatback cover sub-assembly RH.

NOTICE:

Be careful not to damage the No. 1 seatback cover sub-assembly RH.

Remove the seat cover wire.

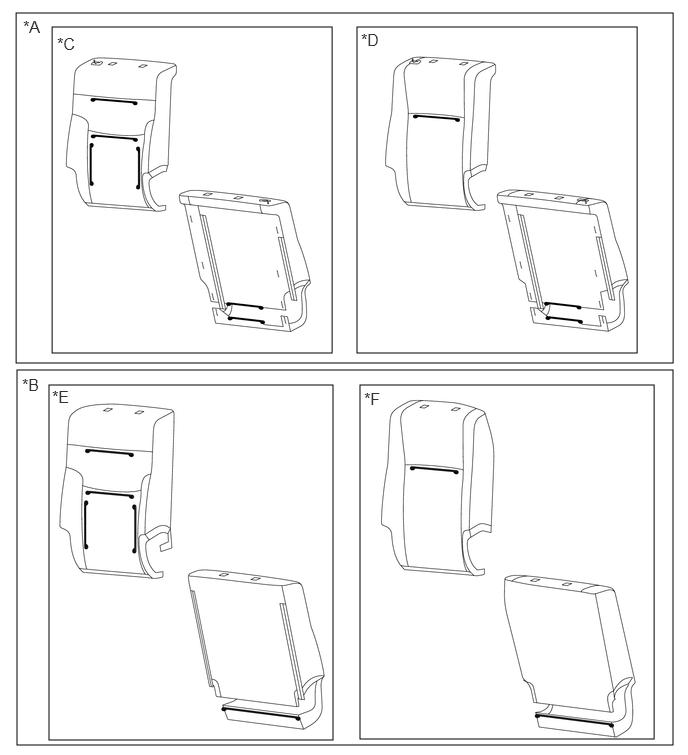

0.167,0.135 7.01,3.781 6.844,3.646 0.177,3.854 7.01,7.76 6.833,3.906 0.51,4.01 3.469,7.708 2.958,3.698 3.75,4.01 6.813,7.698 3.063,3.688 0.542,0.281 3.458,3.677 2.917,3.396 3.719,0.281 6.635,3.677 2.917,3.396 0.24,0.177 0.552,0.333 0.313,0.156 12 false *A 0.229,3.906 0.542,4.063 0.313,0.156 12 false *B 0.594,0.354 0.906,0.51 0.313,0.156 12 false *C 3.76,0.313 4.073,0.469 0.313,0.156 12 false *D 0.542,4.031 0.854,4.188 0.313,0.156 12 false *E 3.792,4.052 4.104,4.208 0.313,0.156 12 false *F

*A	w/ Seatback Board	*B	w/o Seatback Board
*C	for Type A	*D	for Type B
*E	w/ Seatback Fastener	*F	w/o Seatback Fastener

w/ Seatback Board:

i.

Detach the guide.

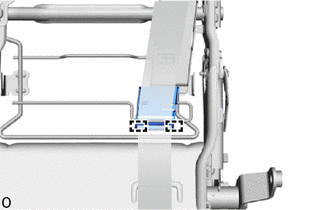

Detach the claw.

0,0 0,0 false

Remove in this Direction

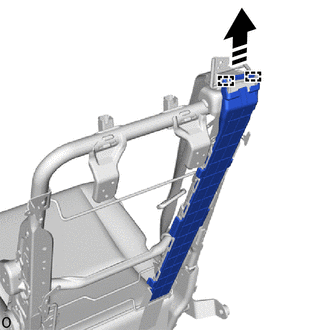

Detach the guide and remove the rear No. 3 seat shoulder belt cover RH as shown in the illustration.

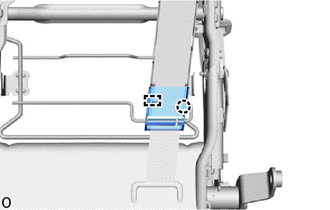

Detach the claw and guide.

Detach the guide.

1.823,1.229 2.208,1.521 true 2.26,1.427 2.427,1.583 0.167,0.156 10 true *a

*a

Slit

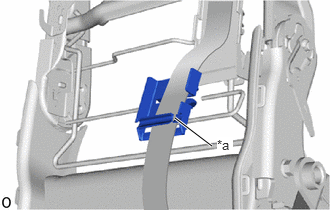

Pass the rear seat outer 3 point type belt assembly RH through the slit of the rear seat shoulder belt hole cover RH.

Using clip remover, remove the clip.

Remove the 2 screws.

0,0 0,0 false

Fastening tape

Detach the fastening tape.

Detach the hook and remove the seat cushion cover with pad.

0,0 0,0 false

Fastening tape

Detach the fastening tape.

Remove the 10 hog rings and remove the No. 1 seat cushion cover sub-assembly from the No. 1 seat cushion pad as shown in the illustration.

NOTICE:

Be careful not to damage the No. 1 seat cushion cover sub-assembly.

Remove the seat cover wire.

w/ Seatback Board:

i.

Remove the screw and RH seat reclining hinge cover LH.

w/o Seatback Board:

i.

Detach the guide and remove the RH seat reclining hinge cover LH.

w/ Seatback Board:

i.

Remove the screw and RH seat reclining hinge cover RH.

w/o Seatback Board:

i.

Detach the guide and remove the RH seat reclining hinge cover RH.

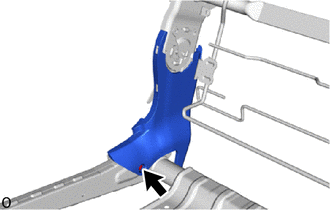

0,0 0,0 false

Remove in this Direction

Using clip remover, remove the clip.

for Type A:

i.

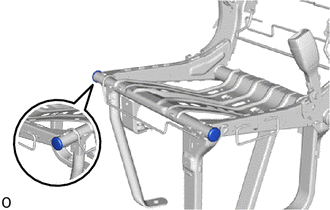

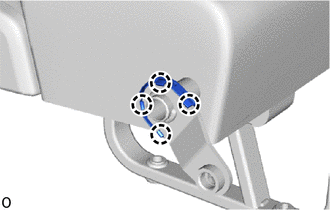

Remove the No. 1 seat stand frame cap RH.

for Type B:

i.

Remove the 2 No. 1 seat stand frame caps RH.

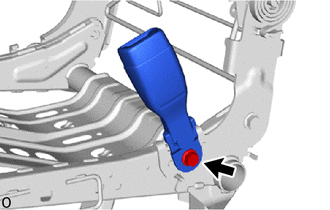

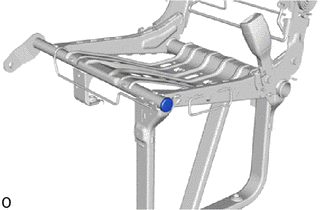

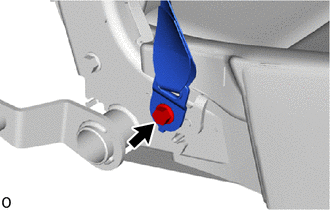

Remove the bolt and rear 1 person seat belt assembly.

w/ Seatback Board:

i.

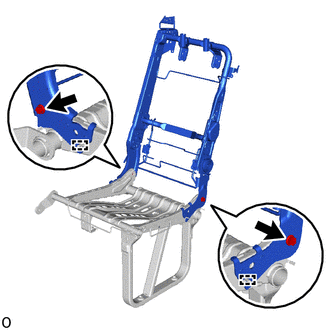

Remove the 2 bolts.

w/o Seatback Board:

i.

Remove the 3 bolts.
