RM35X0E _58 Vehicle Interior _078601 SEAT _0381333 REAR SEAT ASSEMBLY(for Commuter, 4-Passenger Seat) A

SEAT  REAR SEAT ASSEMBLY(for Commuter, 4-Passenger Seat)  REASSEMBLY


CAUTION / NOTICE / HINT

CAUTION:
·

Wear protective gloves. Sharp areas on the parts may injure your hands.

·

There is risk of injury.



HINT:
·

Use the same procedure for RHD and LHD vehicles.

·

The procedure listed below is for LHD vehicles.



PROCEDURE

Hide 79190 1.INSTALL NO. 1 SEATBACK SPRING ASSEMBLY LH

a.

Attach the guide.

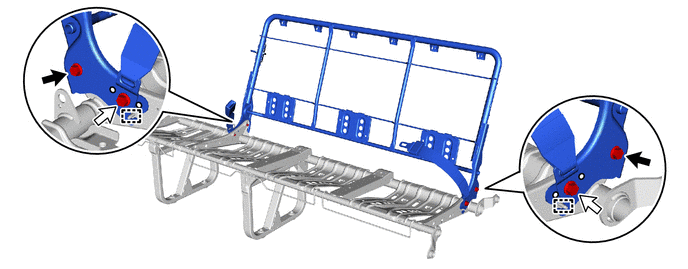

B538035
1.188,0.917 2.115,0.271 2.115,0.271 1.458,1.063 true 5.792,2 6.063,0.594 6.063,0.594 6.042,1.813 true 2.167,0.083 2.479,0.24 0.313,0.156 10 false *a 6.01,0.354 6.323,0.51 0.313,0.156 10 false *a
*a Protruding Part - -
V100135

Bolt A
V100136

Bolt B



b.

Temporarily install the No. 1 seatback spring assembly LH with the 2 bolts A.


c.

Temporarily install the rear seat lap type belt assembly LH and rear seat inner belt assembly LH with the 2 bolts B.

NOTICE:

Do not allow the anchor part of the rear seat lap type belt assembly LH and rear seat inner belt assembly LH to overlap the protruding part.



d.

Tighten the 4 bolts.

Torque:
42 N*m (428 kgf*cm, 31 ft.*lbf)


Hide 79185A 2.INSTALL NO. 1 SEATBACK PAD LH

a.

Install the No. 1 seatback pad LH.


Hide 3.INSTALL SEAT COVER WIRE

a.

Install the seat cover wire.

HINT:
·

Wire 1000 mm (3.28 ft.) or longer and shaped wire are available as supplied parts.

·

For wire 1000 mm (3.28 ft.) or less in length, cut or shape 1000 mm (3.28 ft.) wire into the dimensions shown in the illustration.



B538033N01
2.427,0.677 1.542,1.49 1.542,1.49 3.594,0.677 true 5.615,1.5 4.75,0.677 true 1.365,1.438 1.521,1.635 0.156,0.198 10 false A 5.729,1.438 5.885,1.635 0.156,0.198 10 false A

Dimensions:
A 210 mm (8.27 in.) - -


HINT:
B376752

The dimension shown in the illustration is the length.



Hide 79014B 4.INSTALL NO. 1 SEATBACK COVER SUB-ASSEMBLY LH

HINT:

When installing a No. 1 seatback cover sub-assembly LH, refer to the Precaution section in order to prevent wrinkles from forming.

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Separate Seat Type)>PRECAUTION


a.

Using hog ring pliers, install the No. 1 seatback cover sub-assembly LH with 6 new hog rings in the order indicated in the illustration.

NOTICE:
·

Be careful not to damage the No. 1 seatback cover sub-assembly LH.

·

Be sure to securely install the hog rings as shown in the illustration while preventing wrinkles from forming on the No. 1 seatback cover sub-assembly LH.

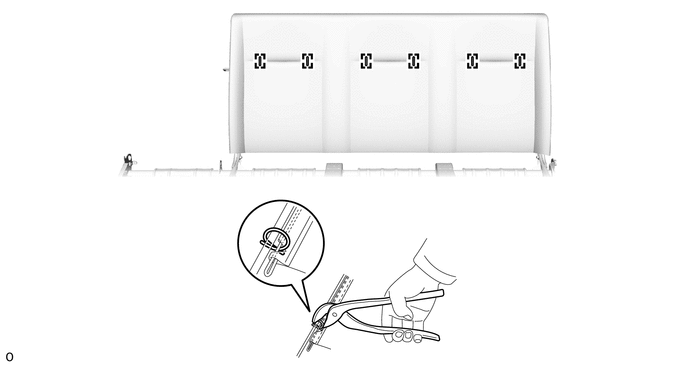

B538032
3.813,3.115 4.094,2.313 false 4.052,2.083 4.375,2.25 0.323,0.167 10 false *a 3.74,0.771 3.938,0.99 0.198,0.219 10 true (1) 4.229,0.771 4.427,0.99 0.198,0.219 10 true (2) 3.125,0.771 3.323,0.99 0.198,0.219 10 true (3) 2.635,0.771 2.833,0.99 0.198,0.219 10 true (4) 4.844,0.771 5.042,0.99 0.198,0.219 10 true (5) 5.344,0.771 5.542,0.99 0.198,0.219 10 true (6)
*a Hog Ring Pliers - -



b.

Attach the hook.

B538078


c.

Close the 2 fasteners.

B538076


d.

Insert the 2 fasteners.

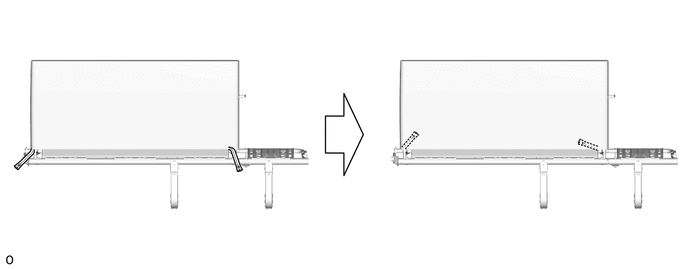

B538075


Hide 74610W 5.INSTALL ASSIST GRIP ASSEMBLY

HINT:

Use the same procedure for all assist grip assemblies.


a.
B538030

Install the assist grip assembly with the 2 screws.


Hide 74F17 6.INSTALL ASSIST GRIP PLUG

HINT:

Use the same procedure for all assist grip plugs.


a.
B538029

Attach the claw and install the assist grip plug.


Hide 79180B 7.INSTALL NO. 1 SEATBACK SPRING ASSEMBLY RH

a.
B538027

Install the 2 bushes.


b.

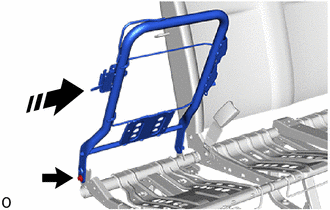

B538026
0,0 0,0 false
V113147

Install in this Direction


Install the No. 1 seatback spring assembly RH with the bolt as shown in the illustration.

Torque:
29 N*m (296 kgf*cm, 21 ft.*lbf)


c.
B538024

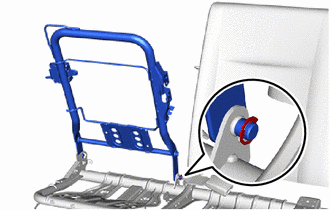

Install a new E-ring.


d.
B538022

Install the rear seatback lock assembly with the 2 bolts.

Torque:
33 N*m (337 kgf*cm, 24 ft.*lbf)


e.
B538021
0,0 0,0 false
V113147

Install in this Direction

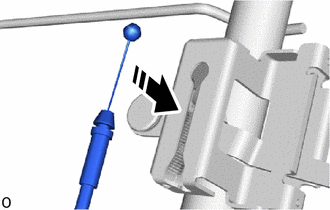

Connect the cable end as shown in the illustration.


f.

Attach the cable clamp.

B538019
0,0 0,0 false
V100135

Wiring harness clamp - -



g.

Install the wiring harness clamp.


Hide 79175F 8.INSTALL NO. 1 SEATBACK PAD RH

a.

Install the No. 1 seatback pad RH.


Hide 72665H 9.INSTALL REAR SEATBACK LOCK COVER

a.
B538015

Attach the guide.


b.

Install the rear seatback lock cover with the 2 screws.


Hide 10.INSTALL SEAT COVER WIRE

a.
B538018
1.719,0.854 2.688,1.521 true 2.813,1.458 2.969,1.656 0.156,0.198 10 false A

Install the seat cover wire.

HINT:
·

Wire 1000 mm (3.28 ft.) or longer and shaped wire are available as supplied parts.

·

For wire 1000 mm (3.28 ft.) or less in length, cut or shape 1000 mm (3.28 ft.) wire into the dimensions shown in the illustration.



Dimensions:
A 210 mm (8.27 in.)


HINT:
B376752

The dimension shown in the illustration is the length.



Hide 79013D 11.INSTALL NO. 1 SEATBACK COVER SUB-ASSEMBLY RH

HINT:

When installing a No. 1 seatback cover sub-assembly RH, refer to the Precaution section in order to prevent wrinkles from forming.

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Separate Seat Type)>PRECAUTION


a.
B538017
1.969,3.813 2.333,2.802 false 2.281,2.594 2.594,2.75 0.313,0.156 10 false *a 1.375,0.927 1.573,1.167 0.198,0.24 10 true (1) 1.906,0.927 2.104,1.167 0.198,0.24 10 true (2)
*a Hog Ring Pliers

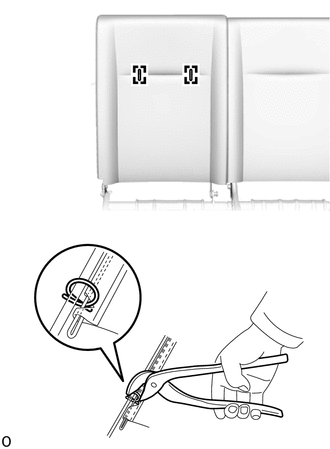

Using hog ring pliers, install the No. 1 seatback cover sub-assembly RH with 2 new hog rings in the order indicated in the illustration.

NOTICE:
·

Be careful not to damage the No. 1 seatback cover sub-assembly RH.

·

Be sure to securely install the hog rings as shown in the illustration while preventing wrinkles from forming on the No. 1 seatback cover sub-assembly RH.




b.
B538077

Attach the hook.


c.

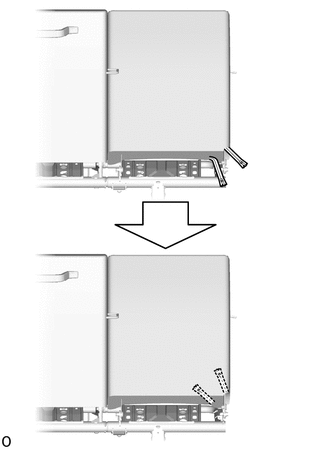

B538073

Close the 2 fasteners.


d.
B538072

Insert the 2 fasteners.


Hide 72679C 12.INSTALL REAR SEATBACK LOCK CONTROL BEZEL

a.
B538063
0,0 0,0 false
V113147

Install in this Direction

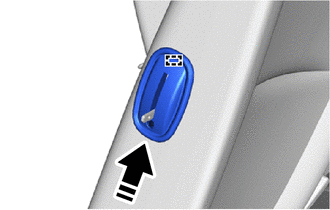

Attach the guide as shown in the illustration.


b.
B538061

Install the rear seatback lock control bezel with the screw.


Hide 72593D 13.INSTALL RECLINING REMOTE CONTROL LEVER KNOB

a.
B538012
0.052,0.063 0.313,0.281 0.26,0.219 12 true *A 0.052,2.406 0.313,2.625 0.26,0.219 12 true *B
*A for LHD
*B for RHD


Attach the guide.


b.

Install the reclining remote control lever knob with the screw.


c.

Return the seatback to its original position.


Hide 73470A 15.INSTALL REAR CENTER SEAT INNER BELT ASSEMBLY RH

HINT:

Use the same procedure described for the rear center seat inner belt assembly LH.


Hide 17.INSTALL SEAT COVER WIRE

a.

Install the seat cover wire.

HINT:
·

Wire 1000 mm (3.28 ft.) or longer and shaped wire are available as supplied parts.

·

For wire 1000 mm (3.28 ft.) or less in length, cut or shape 1000 mm (3.28 ft.) wire into the dimensions shown in the illustration.



B510412
0.677,0.26 1.156,0.469 true 5.99,0.479 6.458,0.26 true 3.375,0.74 3.583,1.01 3.583,1.01 3.76,0.74 true 4.677,0.74 4.885,1.01 4.885,1.01 5.063,0.74 true 4.198,0.802 4.365,1.208 true 5.542,0.802 5.708,1.208 true 2.073,0.594 2.281,0.458 true 2.917,0.802 2.75,1.198 true 1.625,0.802 1.458,1.198 true 2.073,0.99 2.271,1.094 true 0.5,0.167 0.656,0.365 0.156,0.198 10 false A 6.542,0.167 6.698,0.365 0.156,0.198 10 false A 3.542,1.104 3.698,1.302 0.156,0.198 10 true A 4.854,1.104 5.01,1.302 0.156,0.198 10 true A 2.354,0.354 2.51,0.552 0.156,0.198 10 true D 2.354,1.042 2.51,1.24 0.156,0.198 10 true C 4.375,1.281 4.531,1.479 0.156,0.198 10 true B 5.729,1.281 5.885,1.479 0.156,0.198 10 true B 2.615,1.281 2.771,1.479 0.156,0.198 10 true B 1.333,1.281 1.49,1.479 0.156,0.198 10 true B

Dimensions:
A 120 mm (4.72 in.) B 210 mm (8.27 in.)
C 160 mm (6.29 in.) D 60 mm (2.36 in.)


HINT:
B376752

The dimension shown in the illustration is the length.



Hide 79012A 18.INSTALL NO. 1 SEAT CUSHION COVER SUB-ASSEMBLY LH

HINT:

When installing a No. 1 seat cushion cover sub-assembly LH, refer to the Precaution section in order to prevent wrinkles from forming.

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Separate Seat Type)>PRECAUTION


a.

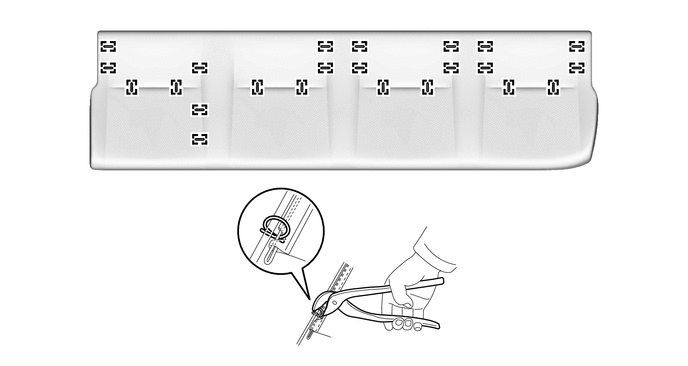

Using hog ring pliers, install the No. 1 seat cushion cover sub-assembly LH with 23 new hog rings in the order indicated in the illustration.

NOTICE:
·

Be careful not to damage the No. 1 seat cushion cover sub-assembly LH.

·

Be sure to securely install the hog rings as shown in the illustration while preventing wrinkles from forming on the No. 1 seat cushion cover sub-assembly LH.



B510411
3.802,2.99 4.052,2.302 false 4.031,2.073 4.344,2.229 0.313,0.156 10 false *a 3.094,0.604 3.292,0.813 0.198,0.208 10 true (1) 3.094,0.385 3.292,0.594 0.198,0.208 10 true (2) 3.875,0.604 4.073,0.813 0.198,0.208 10 true (3) 3.875,0.375 4.073,0.583 0.198,0.208 10 true (4) 3.063,1.031 3.26,1.24 0.198,0.208 10 true (5) 2.604,1.031 2.802,1.24 0.198,0.208 10 true (6) 3.917,1.031 4.115,1.24 0.198,0.208 10 true (7) 4.375,1.031 4.573,1.24 0.198,0.208 10 true (8) 4.396,0.594 4.594,0.802 0.198,0.208 10 true (9) 4.323,0.375 4.594,0.573 0.271,0.198 10 true (10) 5.208,0.375 5.479,0.573 0.271,0.198 10 true (12) 5.208,0.604 5.479,0.802 0.271,0.198 10 true (11) 5.177,1.031 5.448,1.229 0.271,0.198 10 true (13) 5.646,1.042 5.917,1.24 0.271,0.198 10 true (14) 6.135,0.615 6.406,0.813 0.271,0.198 10 true (15) 2.208,0.604 2.479,0.802 0.271,0.198 10 true (17) 6.135,0.375 6.406,0.573 0.271,0.198 10 true (16) 2.208,1.042 2.479,1.24 0.271,0.198 10 true (18) 2.208,1.365 2.479,1.563 0.271,0.198 10 true (19) 1.708,1.031 1.979,1.229 0.271,0.198 10 true (20) 0.76,0.615 1.031,0.813 0.271,0.198 10 true (22) 1.25,1.031 1.521,1.229 0.271,0.198 10 true (21) 0.76,0.385 1.031,0.583 0.271,0.198 10 true (23)
*a Hog Ring Pliers - -



b.

Attach the fastening tape.

B538079
0,0 0,0 false
V100155

Fastening Tape - -



Hide 19.INSTALL SEAT CUSHION COVER WITH PAD

a.

Attach the hook.

B538070


b.

Close the cover and attach the fastening tape.

B538069
0,0 0,0 false
V100155

Fastening Tape - -



c.

Insert the cover between the No. 1 seat cushion pad and No. 1 seat leg sub-assembly LH.


d.

Attach the hook and fastening tape and install the seat cushion cover with pad.

B538068
0,0 0,0 false
V100155

Fastening Tape - -



Hide 71868T 20.INSTALL REAR SEAT INNER NO. 1 CUSHION SHIELD LH

a.

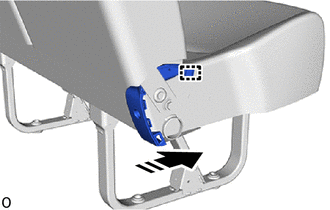

B538060
0,0 0,0 false
V113147

Install in this Direction


Attach the guide as shown in the illustration.


b.
B538058

Install the rear seat inner No. 1 cushion shield LH with the screw.


Hide 71833K 22.INSTALL NO. 1 SEAT OUTER NO. 1 RECLINING COVER RH

a.

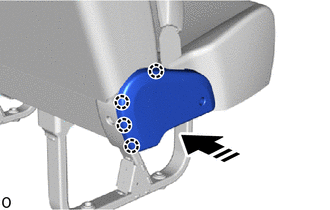

B510405
0,0 0,0 false
V113147

Install in this Direction


Attach the claw as shown in the illustration.


b.
B510403

Install the No. 1 seat outer No. 1 reclining cover RH with the screw.


Hide 71834J 23.INSTALL NO. 1 SEAT OUTER NO. 1 RECLINING COVER LH

a.
B510400

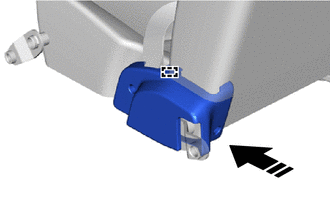

0,0 0,0 false
V113147

Install in this Direction


Attach the guide as shown in the illustration.


b.
B510398

Install the No. 1 seat outer No. 1 reclining cover LH with the 2 screws.


Hide 79967U 24.INSTALL REAR NO. 1 SEAT NO. 2 LEG SIDE COVER

a.
B510397C02
0,0 0,0 false
V113147

Install in this Direction


Attach the hook as shown in the illustration.


b.
B510395

Attach the claw and install the rear No. 1 seat No. 2 leg side cover.


Hide 79967T 25.INSTALL REAR NO. 1 SEAT NO. 1 LEG SIDE COVER

a.
B510394
0,0 0,0 false
V113147

Install in this Direction


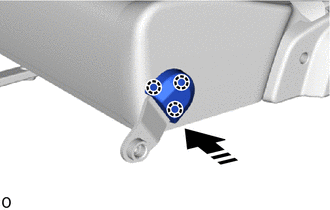

Attach the claw and install the rear No. 1 seat No. 1 leg side cover as shown in the illustration.


Hide 79967V 26.INSTALL REAR NO. 1 SEAT NO. 3 LEG SIDE COVER

a.
B510392
0,0 0,0 false
V113147

Install in this Direction

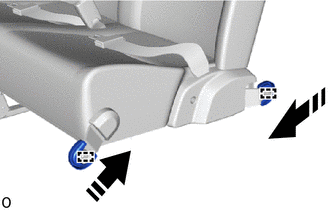

Attach the hook and install the 2 rear No. 1 seat No. 3 leg side covers as shown in the illustration.
