RM35X0E _58 Vehicle Interior _078601 SEAT _0381333 REAR SEAT ASSEMBLY(for Commuter, 4-Passenger Seat) A

SEAT  REAR SEAT ASSEMBLY(for Commuter, 4-Passenger Seat)  DISASSEMBLY


CAUTION / NOTICE / HINT

CAUTION:
·

Wear protective gloves. Sharp areas on the parts may injure your hands.

·

There is risk of injury.



HINT:
·

Use the same procedure for RHD and LHD vehicles.

·

The procedure listed below is for LHD vehicles.



PROCEDURE

Hide 79967V 1.REMOVE REAR NO. 1 SEAT NO. 3 LEG SIDE COVER

a.

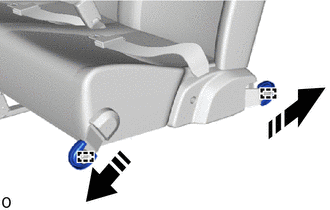

B510391
0,0 0,0 false
V113147

Remove in this Direction


Detach the hook and remove the 2 rear No. 1 seat No. 3 leg side covers as shown in the illustration.


Hide 79967T 2.REMOVE REAR NO. 1 SEAT NO. 1 LEG SIDE COVER

a.

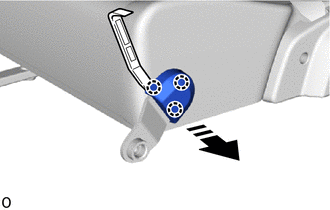

B510393
0,0 0,0 false
V113147

Remove in this Direction


Using moulding remover A, detach the claw and remove the rear No. 1 seat No. 1 leg side cover as shown in the illustration.


Hide 79967U 3.REMOVE REAR NO. 1 SEAT NO. 2 LEG SIDE COVER

a.

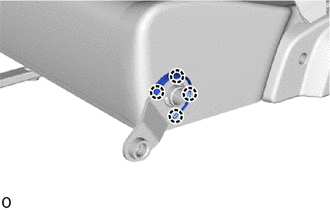

B510395

Detach the claw.


b.
B510396C01
0,0 0,0 false
V113147

Remove in this Direction


Detach the hook and remove the rear No. 1 seat No. 2 leg side cover as shown in the illustration.


Hide 71834J 4.REMOVE NO. 1 SEAT OUTER NO. 1 RECLINING COVER LH

a.

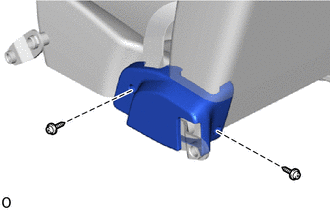

B510398

Remove the 2 screws.


b.

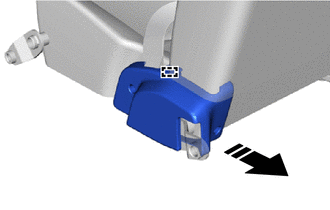

B510399
0,0 0,0 false
V113147

Remove in this Direction


Detach the guide and remove the No. 1 seat outer No. 1 reclining cover LH as shown in the illustration.


Hide 71833K 6.REMOVE NO. 1 SEAT OUTER NO. 1 RECLINING COVER RH

a.

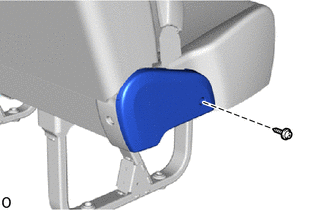

B510403

Remove the screw.


b.

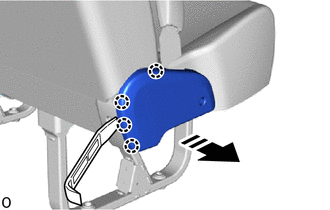

B510404
0,0 0,0 false
V113147

Remove in this Direction


Using moulding remover A, detach the claw and remove the No. 1 seat outer No. 1 reclining cover RH as shown in the illustration.


Hide 71868T 8.REMOVE REAR SEAT INNER NO. 1 CUSHION SHIELD LH

a.

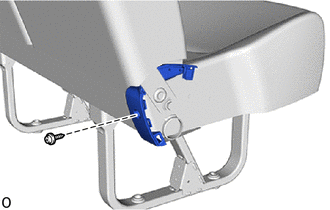

B538058

Remove the screw.


b.

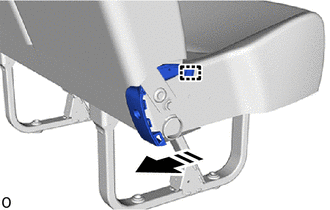

B538059
0,0 0,0 false
V113147

Remove in this Direction


Detach the guide and remove the rear seat inner No. 1 cushion shield LH as shown in the illustration.


Hide 9.REMOVE SEAT CUSHION COVER WITH PAD

a.

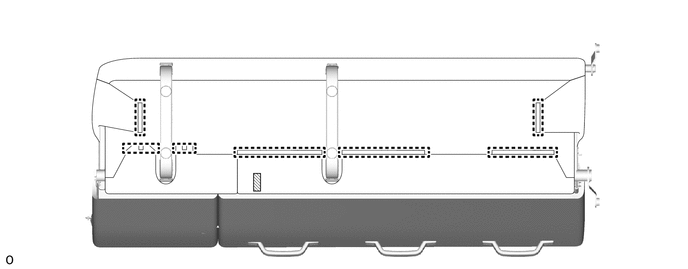

Detach the hook and fastening tape.

B538068
0,0 0,0 false
V100155

Fastening Tape - -

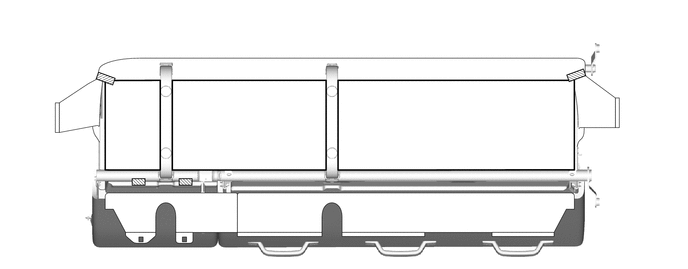

b.

Detach the fastening tape and open the cover.

B538069
0,0 0,0 false
V100155

Fastening Tape - -



c.

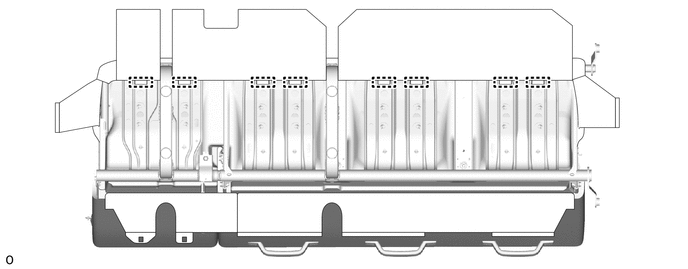

Detach the hook and remove the seat cushion cover with pad.

B538070


Hide 79012A 10.REMOVE NO. 1 SEAT CUSHION COVER SUB-ASSEMBLY LH

a.

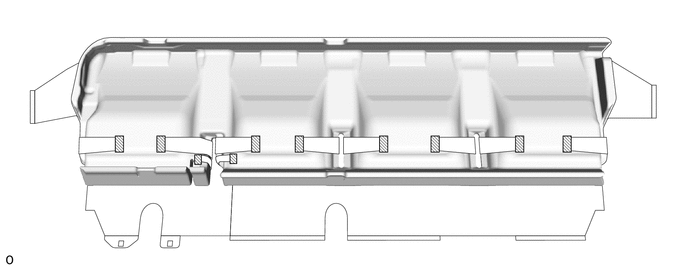

Detach the fastening tape.

B538079
0,0 0,0 false
V100155

Fastening Tape - -



b.

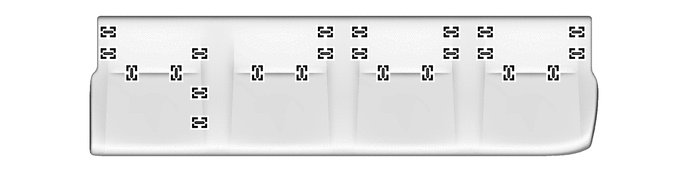

Remove the 23 hog rings and No. 1 seat cushion cover sub-assembly LH.

B510410

NOTICE:

Be careful not to dirty or damage the No. 1 seat cushion cover sub-assembly LH.



Hide 11.REMOVE SEAT COVER WIRE

a.

Remove the seat cover wire.

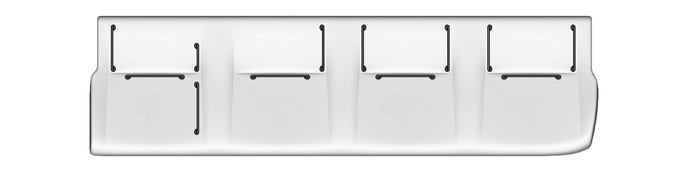

B510412


Hide 73470A 13.REMOVE REAR CENTER SEAT INNER BELT ASSEMBLY RH

HINT:

Use the same procedure described for the rear center seat inner belt assembly LH.


Hide 72593D 16.REMOVE RECLINING REMOTE CONTROL LEVER KNOB

a.

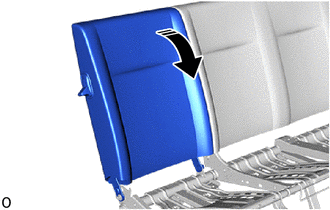

B538011
0,0 0,0 false
V113147

Move in this Direction


Operate the reclining remote control lever knob and move the seatback as shown in the illustration.


b.

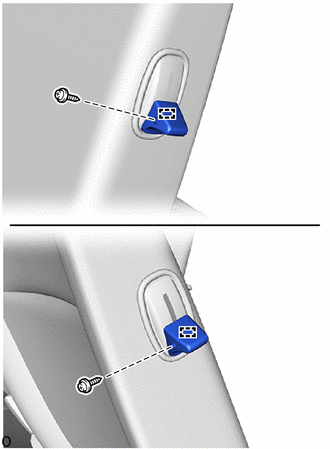

B538012
0.052,0.063 0.313,0.281 0.26,0.219 12 true *A 0.052,2.406 0.313,2.625 0.26,0.219 12 true *B
*A for LHD
*B for RHD


Remove the screw.


c.

Detach the guide and remove the reclining remote control lever knob.


Hide 72679C 17.REMOVE REAR SEATBACK LOCK CONTROL BEZEL

a.

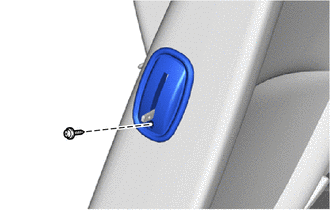

B538061

Remove the screw.


b.

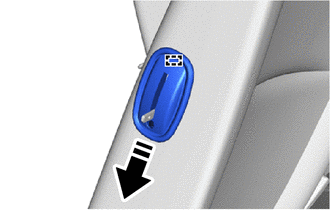

B538062
0,0 0,0 false
V113147

Remove in this Direction


Detach the guide and remove the rear seatback lock control bezel as shown in the illustration.


Hide 79013D 18.REMOVE NO. 1 SEATBACK COVER SUB-ASSEMBLY RH

a.

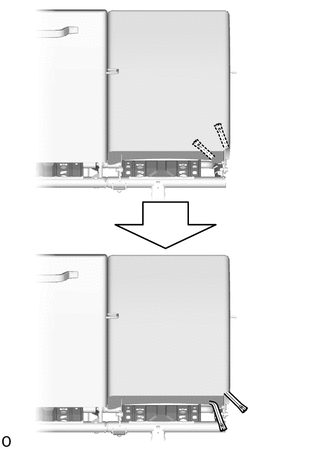

B538071

Pull out the 2 fasteners.


b.
B538073

Open the 2 fasteners.


c.
B538077

Detach the hook.


d.

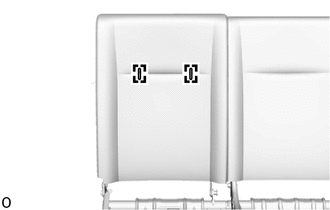

B538016

Remove the 2 hog rings and No. 1 seatback cover sub-assembly RH.

NOTICE:

Be careful not to dirty or damage the No. 1 seatback cover sub-assembly RH.



Hide 19.REMOVE SEAT COVER WIRE

a.
B538018

Remove the seat cover wire.


Hide 72665H 20.REMOVE REAR SEATBACK LOCK COVER

a.

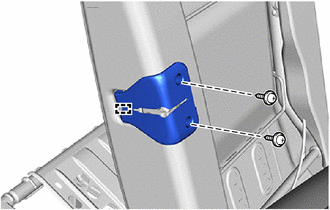

B538015

Remove the 2 screws.


b.

Detach the guide and remove the rear seatback lock cover.


Hide 79175F 21.REMOVE NO. 1 SEATBACK PAD RH

a.

Remove the No. 1 seatback pad RH.


Hide 79180B 22.REMOVE NO. 1 SEATBACK SPRING ASSEMBLY RH

a.

Detach the cable clamp.

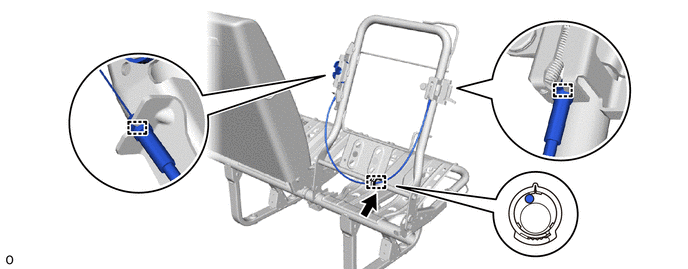

B538019
0,0 0,0 false
V100135

Wiring harness clamp - -



b.

Remove the wiring harness clamp.


c.

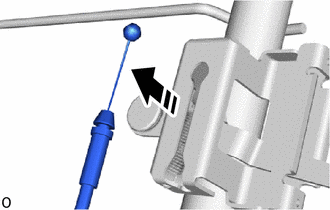

B538020
0,0 0,0 false
V113147

Remove in this Direction


Disconnect the cable end as shown in the illustration.


d.

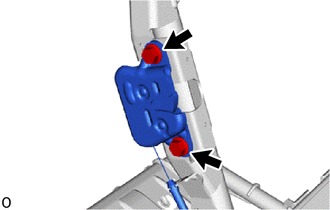

B538022

Remove the 2 bolts and rear seatback lock assembly.


e.

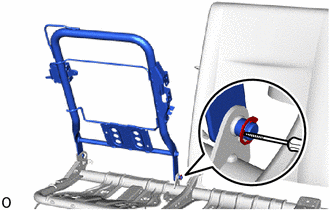

B538023
0,0 0,0 false
V100155

Protective Tape


Using a thin-bladed screwdriver, remove the E-ring.

NOTICE:

Do not reuse the removed E-ring.


HINT:

Tape the thin-bladed screwdriver tip before use.



f.

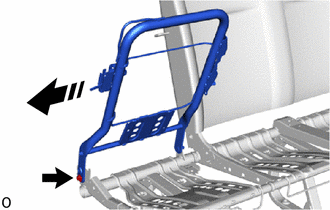

B538025
0,0 0,0 false
V113147

Remove in this Direction


Remove the bolt and No. 1 seatback spring assembly RH as shown in the illustration.


g.
B538027

Remove the 2 bushes.


Hide 74F17 23.REMOVE ASSIST GRIP PLUG

HINT:

Use the same procedure for all assist grip plugs.


a.
B538028C01
0,0 0,0 false
V100155

Protective Tape


Using a thin-bladed screwdriver, detach the claw and remove the assist grip plug.

HINT:

Tape the thin-bladed screwdriver tip before use.



Hide 74610W 24.REMOVE ASSIST GRIP ASSEMBLY

HINT:

Use the same procedure for all assist grip assemblies.


a.
B538030

Remove the 2 screws and assist grip assembly.


Hide 79014B 25.REMOVE NO. 1 SEATBACK COVER SUB-ASSEMBLY LH

a.

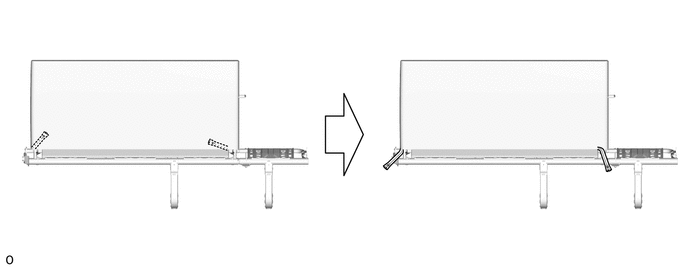

Pull out the 2 fasteners.

B538074


b.

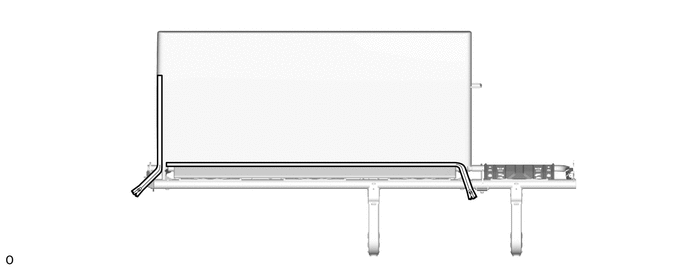

Open the 2 fasteners.

B538076


c.

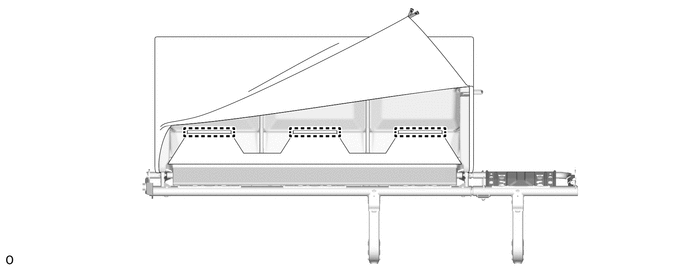

Detach the hook.

B538078


d.

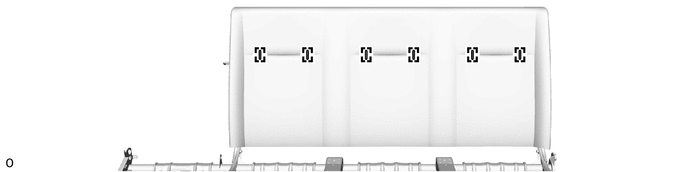

Remove the 6 hog rings and No. 1 seatback cover sub-assembly LH.

B538031

NOTICE:

Be careful not to dirty or damage the No. 1 seatback cover sub-assembly LH.



Hide 26.REMOVE SEAT COVER WIRE

a.

Remove the seat cover wire.

B538033


Hide 79185A 27.REMOVE NO. 1 SEATBACK PAD LH

a.

Remove the No. 1 seatback pad LH.


Hide 79190 28.REMOVE NO. 1 SEATBACK SPRING ASSEMBLY LH

a.

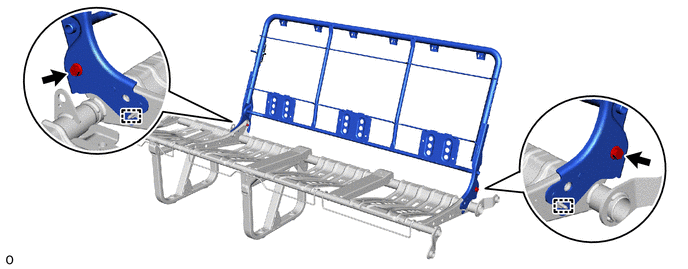

Remove the 2 bolts.

B538034


b.

Detach the guide and remove the No. 1 seatback spring assembly LH.
