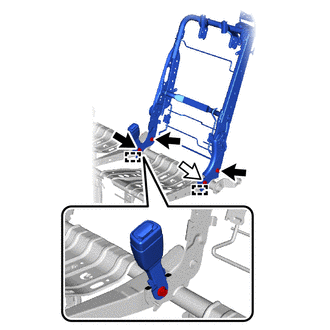

SEAT  REAR SEAT ASSEMBLY(for Commuter, 3-Passenger Seat with 3-Point Type Seat Belt)  REASSEMBLY

1.521,2.958 1.146,2.656 1.146,2.656 1.719,2.833 true 0.917,2.479 1.104,2.635 0.188,0.156 10 true *a

*a	Protruding Part
	Bolt A
	Bolt B

Attach the guide.

Attach the guide.

1.313,1.156 1.646,0.573 1.646,0.573 1.563,1.01 true 1.573,0.333 1.792,0.531 0.219,0.198 10 true *a

*a	Protruding Part	-	-
	Bolt A		Bolt B

0,0 0,0 false

Fastening Tape

Attach the fastening tape.

1.646,2.896 2.302,2.75 2.302,2.75 1.854,2.99 true 2.333,2.594 2.479,2.76 0.146,0.167 10 true *a

*a	Protruding Part
	Bolt A
	Bolt B

Attach the guide.

0,0 0,0 false

Fastening Tape

Attach the fastening tape.

0,0 0,0 false

Fastening Tape

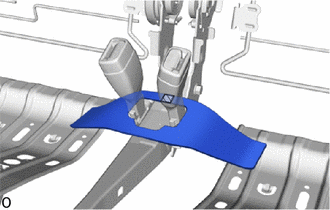

Attach the fastening tape and install the rear seat cushion cover.

Install the No. 1 seat stand frame cap LH.

0,0 0,0 false

Install in this Direction

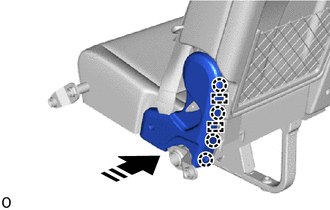

Attach the guide and install the reclining adjuster inside cover RH as shown in the illustration.

Install the rear seat reclining cover LH with the screw.

Attach the claw.

0,0 0,0 false

Install in this Direction

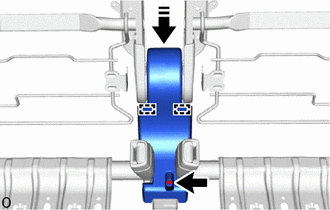

Attach the guide and install the rear seat lower cushion shield with the screw as shown in the illustration.

Attach the claw.

Install the LH seat reclining hinge cover LH with the screw.

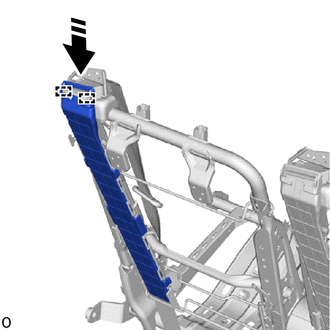

Attach the guide and claw and install the rear No. 4 seat shoulder belt cover LH.

0.667,1.417 1.167,1.417 1.167,1.417 1.521,0.854 true 0.5,1.271 0.646,1.469 0.146,0.198 10 false *a

*a

Slit

Pass the rear seat outer 3 point type belt assembly LH through the slit of the rear seat shoulder belt hole cover LH.

0,0 0,0 false

Install in this Direction

Attach the guide as shown in the illustration.

0,0 0,0 false

Install in this Direction

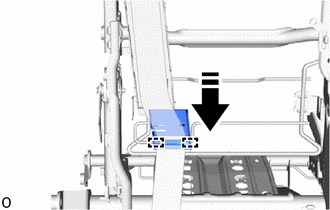

Attach the guide and claw and install the rear seat shoulder belt hole cover LH as shown in the illustration.

0,0 0,0 false

Install in this Direction

Attach the guide as shown in the illustration.

Attach the claw and install the rear No. 3 seat shoulder belt cover LH.

Attach the guide and install the No. 1 seatback pad LH.

for Type A:

i.

Install the seat cover wire.

HINT:

·

Wire 1000 mm (3.28 ft.) or longer and shaped wire are available as supplied parts.

·

For wire 1000 mm (3.28 ft.) or less in length, cut or shape 1000 mm (3.28 ft.) wire into the dimensions shown in the illustration.

·

Make sure to read the precautions before preparing the wire.

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Separate Seat Type)>PRECAUTION201902,999999,_58,_078601,_0381328,RM100000001G566,

1.917,1.417 1.083,1.083 1.083,1.083 1.917,0.917 false 2.25,1.74 1.917,2.417 1.917,2.417 1.667,1.74 false 4.417,2.5 4.833,2.5 4.833,2.5 4.917,2.167 false 4.969,1.948 5.802,1.198 false 0.958,0.927 1.104,1.104 0.146,0.177 9 false A 5.833,1.01 5.979,1.188 0.146,0.177 9 false B 1.854,2.417 2,2.594 0.146,0.177 9 false C 4.281,2.354 4.427,2.531 0.146,0.177 9 false B

Dimensions:

A	210 mm (8.27 in.)	B	160 mm (6.29 in.)
C	260 mm (10.2 in.)	-	-

HINT:

The dimensions shown in the illustration are the length.

for Type B:

i.

Install the seat cover wire.

HINT:

·

Wire 1000 mm (3.28 ft.) or longer and shaped wire are available as supplied parts.

·

For wire 1000 mm (3.28 ft.) or less in length, cut or shape 1000 mm (3.28 ft.) wire into the dimensions shown in the illustration.

·

Make sure to read the precautions before preparing the wire.

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Separate Seat Type)>PRECAUTION201902,999999,_58,_078601,_0381328,RM100000001G566,

1.833,1.167 2.917,0.833 false 5.052,2.271 4.667,2.583 4.667,2.583 4.167,2.583 false 5.042,2.021 6,1.417 false 2.979,0.677 3.135,0.875 0.156,0.198 10 false A 4.01,2.438 4.167,2.635 0.156,0.198 10 false B 6.031,1.26 6.188,1.458 0.156,0.198 10 false B

Dimensions:

A

210 mm (8.27 in.)

B

160 mm (6.29 in.)

HINT:

The dimensions shown in the illustration are the length.

Attach the guide.

0.833,4.104 1.417,4.104 false 0.656,3.958 0.969,4.115 0.313,0.156 10 false *a 1.313,0.688 1.552,0.885 0.24,0.198 10 true (1) 1.833,0.677 2.073,0.875 0.24,0.198 10 true (2) 1.313,1.26 1.552,1.458 0.24,0.198 10 true (3) 1.875,1.271 2.115,1.469 0.24,0.198 10 true (4) 0.781,1.573 1.021,1.771 0.24,0.198 10 true (5) 0.781,2.01 1.021,2.208 0.24,0.198 10 true (6) 2.396,1.542 2.635,1.74 0.24,0.198 10 true (7) 2.406,2.021 2.646,2.219 0.24,0.198 10 true (8)

*a	Hog Ring Pliers

for Type A:

for Type B:

i.

0.75,4.115 1.417,4.115 false 0.573,3.979 0.885,4.135 0.313,0.156 10 false *a 1.344,0.938 1.594,1.135 0.25,0.198 10 true (1) 1.896,0.948 2.146,1.146 0.25,0.198 10 true (2)

*a	Hog Ring Pliers

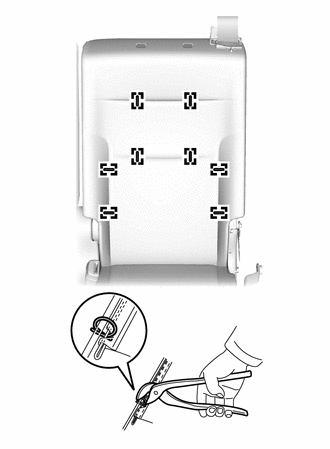

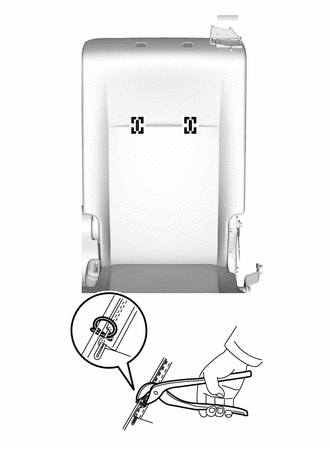

Using hog ring pliers, install the new 2 hog rings in the order indicated in the illustration.

NOTICE:

·

Be careful not to damage the No. 1 seatback cover sub-assembly LH.

·

Be sure to securely install the hog rings as shown in the illustration while preventing wrinkles from forming on the No. 1 seatback cover sub-assembly LH.

Insert the No. 1 seatback cover sub-assembly LH under the rear seat shoulder belt hole cover LH.

Attach the hook.

Close the 2 fasteners.

Insert the 2 fasteners.

0.917,3.167 1.417,3.167 false 0.74,3.042 1.052,3.198 0.313,0.156 10 false *a 1.542,1.594 1.74,1.771 0.198,0.177 10 true (1) 1.771,1.594 1.969,1.771 0.198,0.177 10 true (2)

*a	Hog Ring Pliers

Using hog ring pliers, install the No. 1 seatback cover sub-assembly LH with the 2 new hog rings in the order indicated in the illustration.

NOTICE:

Be careful not to damage the No. 1 seatback cover sub-assembly LH.

0,0 0,0 false

Install in this Direction

Attach the guide.

0,0 0,0 false

Install in this Direction

Attach the claw and install the 2 rear seat headrest supports as shown in the illustration.

1.49,1.313 1.083,0.76 1.083,0.76 1.885,1.083 true 0.854,0.552 1.063,0.729 0.208,0.177 10 true *a

*a	Protruding Part

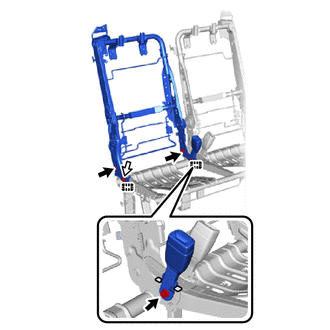

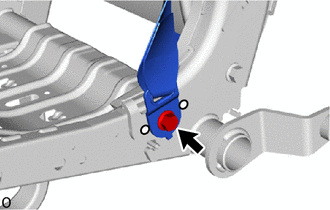

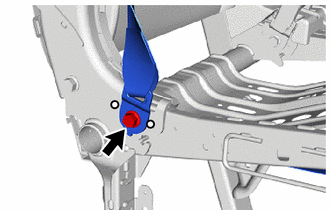

Install the anchor of the rear seat outer 3 point type belt assembly LH with the bolt.

Torque:

42 N*m (428 kgf*cm, 31 ft.*lbf)

NOTICE:

Do not allow the anchor of the rear seat outer 3 point type belt assembly LH to overlap the protruding part.

1.271,0.875 2.333,0.583 2.333,0.583 1.74,1.125 true 2.396,0.365 2.625,0.563 0.229,0.198 10 true *a

*a	Protruding Part

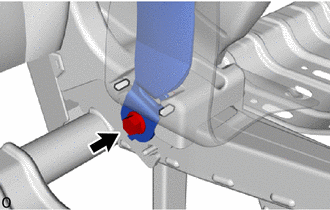

Install the anchor of the rear center seat lap type belt assembly with the bolt.

Torque:

42 N*m (428 kgf*cm, 31 ft.*lbf)

NOTICE:

Do not allow the anchor of the rear center seat lap type belt assembly to overlap the protruding part.

1.229,1.052 2.052,0.854 2.052,0.854 1.573,1.271 true 2.104,0.677 2.313,0.854 0.208,0.177 10 true *a

*a	Protruding Part

Install the anchor of the rear seat outer 3 point type belt assembly RH with the bolt.

Torque:

42 N*m (428 kgf*cm, 31 ft.*lbf)

NOTICE:

Do not allow the anchor of the rear seat outer 3 point type belt assembly RH to overlap the protruding part.

0,0 0,0 false

Fastening Tape

Attach the fastening tape and install the rear seat cushion cover.

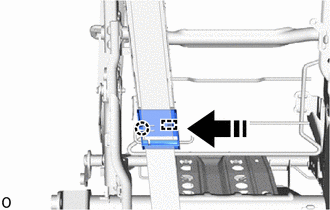

Attach the claw and guide and install the rear seat belt cap LH.

1.625,1.49 2,1.917 2,1.917 2.583,1.917 true 2.615,1.771 2.771,1.958 0.156,0.188 10 true *a

*a

slit

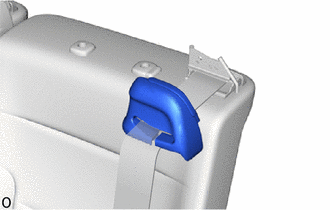

Pass the rear seat outer 3 point type belt assembly LH through the slit of the rear No. 2 seat shoulder belt cover LH.

0,0 0,0 false

Install in this Direction

Attach the guide and install the rear No. 2 seat shoulder belt cover LH as shown in the illustration.

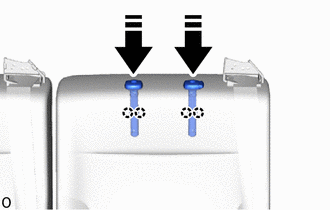

Install the 2 screws.

0,0 0,0 false

Install in this Direction

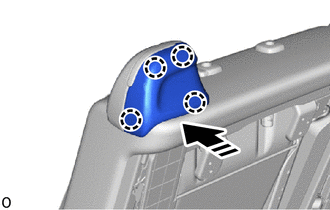

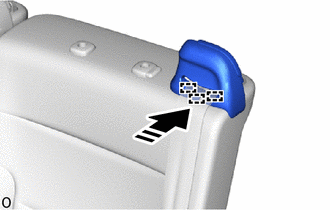

Attach the claw and install the rear No. 1 seat shoulder belt cover LH as shown in the illustration.

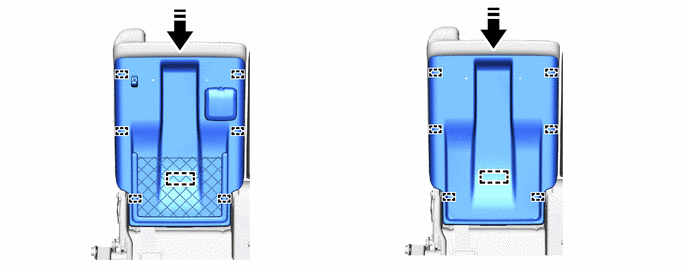

Attach the guide and install the rear seatback board as shown in the illustration.

0.74,0.313 1.052,0.469 0.313,0.156 12 false *A 3.917,0.292 4.229,0.448 0.313,0.156 12 false *B

*A	for Type A	*B	for Type B
	Install in this Direction	-	-

Install the rear seat assist grip assembly with the 2 screws.

0,0 0,0 false

Close in this Direction

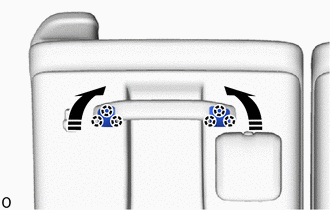

Attach the claw and close the cover as shown in the illustration.

Install the seat cover wire.

1.271,0.917 2.146,0.479 2.146,0.479 3.042,0.917 true 3.01,1.688 3.594,2.333 3.594,2.333 4.167,1.688 true 1.25,1.667 1.802,2.313 1.802,2.313 2.406,1.677 true 4.146,0.917 5.021,0.49 5.021,0.49 5.917,0.917 true 4.771,1.667 5.385,2.333 5.385,2.333 5.917,1.667 true 5.385,1.208 5.073,0.875 false 3.583,1.208 3.583,0.917 false 1.833,1.188 2.167,0.885 false 2.094,0.26 2.229,0.396 0.135,0.135 10 true A 3.552,2.354 3.708,2.552 0.156,0.198 10 true B 4.979,0.292 5.115,0.448 0.135,0.156 10 true A 5.344,2.344 5.5,2.542 0.156,0.198 10 true B 1.771,2.333 1.927,2.531 0.156,0.198 10 true B 2.219,0.677 2.375,0.875 0.156,0.198 10 true B 4.958,0.688 5.115,0.885 0.156,0.198 10 true B 3.542,0.729 3.698,0.927 0.156,0.198 10 true B

Dimensions:

A

120 mm (4.72 in.)

B

210 mm (8.27 in.)

HINT:

·

Wire 1000 mm (3.28 ft.) or longer and shaped wire are available as supplied parts.

·

For wire 1000 mm (3.28 ft.) or less in length, cut or shape 1000 mm (3.28 ft.) wire into the dimensions shown in the illustration.

·

Make sure to read the precautions before preparing the wire.

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Separate Seat Type)>PRECAUTION201902,999999,_58,_078601,_0381328,RM100000001G566,

HINT:

The dimensions shown in the illustration are the length.

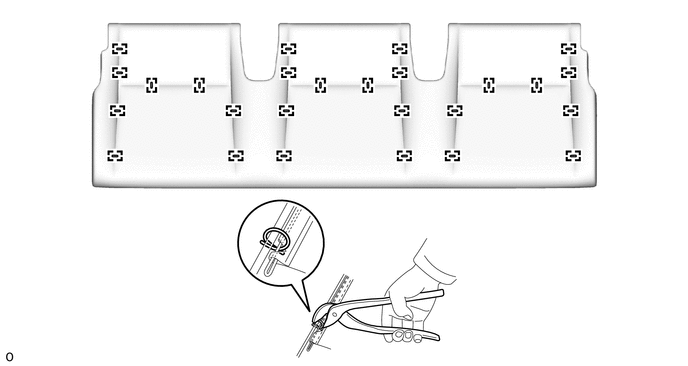

Using hog ring pliers, install the No. 1 seat cushion cover sub-assembly LH to the No. 1 seat cushion pad LH with 26 new hog rings in the order indicated in the illustration.

2.688,3.333 3.24,3.344 false 2.5,3.219 2.813,3.375 0.313,0.156 10 false *a 3.25,0.542 3.469,0.74 0.219,0.198 10 true (1) 2.677,0.615 2.927,0.854 0.25,0.24 10 true (3) 2.667,0.344 2.896,0.552 0.229,0.208 10 true (4) 4.281,0.344 4.542,0.542 0.26,0.198 10 true (6) 3.74,0.542 3.979,0.74 0.24,0.198 10 true (2) 4.281,0.625 4.51,0.833 0.229,0.208 10 true (5) 3.094,0.99 3.323,1.198 0.229,0.208 10 true (7) 3.073,1.438 3.313,1.646 0.24,0.208 10 true (8) 3.823,1 4.083,1.198 0.26,0.198 10 true (9) 3.802,1.448 4.125,1.656 0.323,0.208 10 true (10) 4.844,0.99 5.188,1.219 0.344,0.229 10 true (19) 4.823,1.458 5.177,1.656 0.354,0.198 10 true (20) 4.979,0.563 5.271,0.75 0.292,0.188 10 true (21) 6.042,0.344 6.333,0.594 0.292,0.25 10 true (26) 6.042,0.604 6.365,0.802 0.323,0.198 10 true (25) 6.052,0.99 6.375,1.219 0.323,0.229 10 true (23) 6.094,1.438 6.406,1.646 0.313,0.208 10 true (24) 5.469,0.552 5.781,0.771 0.313,0.219 10 true (22) 2.021,1 2.313,1.25 0.292,0.25 10 true (11) 2.031,1.448 2.354,1.656 0.323,0.208 10 true (12) 1.958,0.5 2.24,0.719 0.281,0.219 10 true (13) 1.458,0.5 1.74,0.75 0.281,0.25 10 true (14) 0.875,0.333 1.146,0.542 0.271,0.208 10 true (18) 0.854,0.594 1.135,0.813 0.281,0.219 10 true (17) 0.823,0.99 1.115,1.208 0.292,0.219 10 true (15) 0.781,1.448 1.083,1.667 0.302,0.219 10 true (16)

*a

Hog Ring Pliers

-

-

NOTICE:

·

Be careful not to damage No. 1 seat cushion cover sub-assembly LH.

·

Be sure to securely install the hog rings as shown in the illustration while preventing wrinkles from forming on the No. 1 seat cushion cover sub-assembly LH.

Attach the fastening tape.

0,0 0,0 false

Fastening Tape

-

-

Remove the 3 bolts.

Attach the hook and install the rear seat cushion cover with pad as shown in the illustration.

Attach the fastening tape.

0,0 0,0 false

Fastening Tape

-

-

Attach the guide.

Attach the guide and install the rear seat shoulder belt guide RH with the 2 screws.

0,0 0,0 false

Install in this Direction

Attach the guide and claw as shown in the illustration.

0,0 0,0 false

Install in this Direction

Attach the guide and claw and install the rear No. 1 seat reclining cover LH as shown in the illustration.

Install the 2 screws.

0,0 0,0 false

	Lift in this Direction
	Install in this Direction

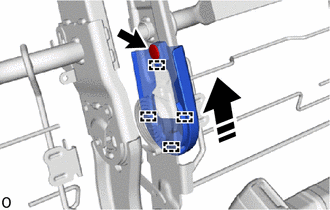

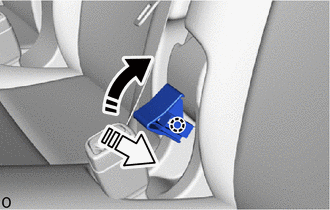

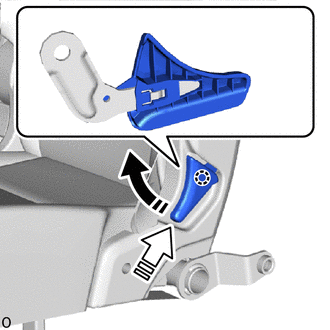

Attach the claw and install the No. 1 seat reclining adjuster release handle LH while lifting it up as shown in the illustration.

0,0 0,0 false

	Lift in this Direction
	Install in this Direction

Attach the claw and install the center No. 1 seat reclining adjuster release handle while lifting it up as shown in the illustration.

Attach the guide and install the No.1 seat leg cover LH.

0,0 0,0 false

Install in this Direction

Attach the hook as shown in the illustration.

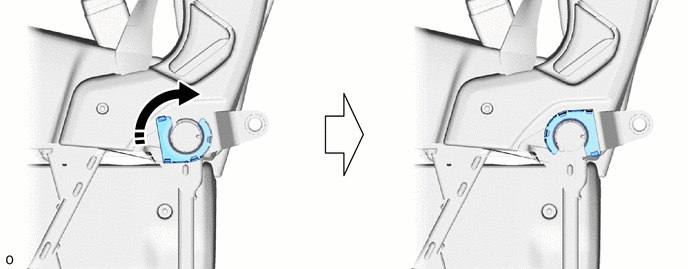

Rotate the rear No. 1 seat No. 5 leg side cover as shown in the illustration.

0,0 0,0 false

Rotate in this Direction

-

-

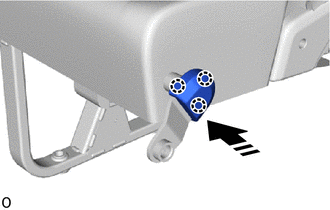

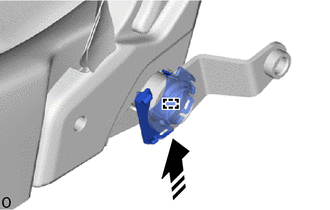

Attach the claw and install the rear No. 1 seat No. 5 leg side cover.

0,0 0,0 false

Install in this Direction

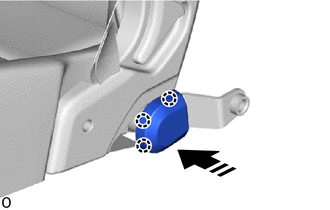

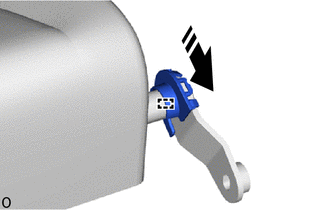

Attach the claw and install the rear No. 1 seat No. 4 leg side cover as shown in the illustration.

0,0 0,0 false

Install in this Direction

Attach the hook as shown in the illustration.

Attach the claw and install the rear No. 1 seat No. 2 leg side cover.

0,0 0,0 false

Install in this Direction

Attach the claw and install the rear No. 1 seat No. 1 leg side cover as shown in the illustration.

0,0 0,0 false

Install in this Direction

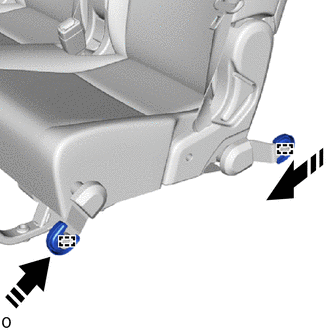

Attach the hook and install the 2 rear No. 1 seat No. 3 leg side covers as shown in the illustration.
