RM35X0E _58 Vehicle Interior _078601 SEAT _0381332 REAR SEAT ASSEMBLY(for Commuter, 3-Passenger Seat with 3-Point Type Seat Belt) A

SEAT  REAR SEAT ASSEMBLY(for Commuter, 3-Passenger Seat with 3-Point Type Seat Belt)  DISASSEMBLY


CAUTION / NOTICE / HINT

CAUTION:
·

Wear protective gloves. Sharp areas on the parts may injure your hands.

·

There is risk of injury.



HINT:
·

Use the same procedure for RHD and LHD vehicles.

·

The procedure listed below is for LHD vehicles.

·

The procedure listed below is a representative example.

·

Use the same procedure for all rows, unless otherwise specified.



PROCEDURE

Hide 79967V 1.REMOVE REAR NO. 1 SEAT NO. 3 LEG SIDE COVER

a.

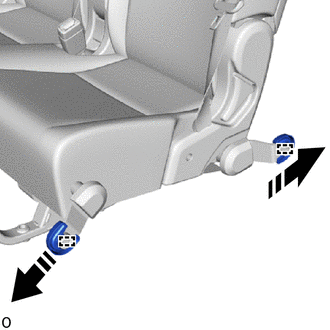

B537006
0,0 0,0 false
V113147

Remove in this Direction


Detach the hook and remove the 2 rear No. 1 seat No. 3 leg side covers as shown in the illustration.


Hide 79967T 2.REMOVE REAR NO. 1 SEAT NO. 1 LEG SIDE COVER

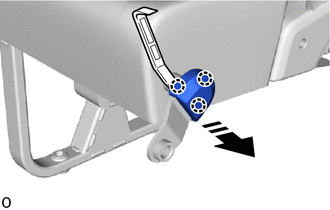

a.
B537008
0,0 0,0 false
V113147

Remove in this Direction


Using moulding remover A, detach the claw and remove the rear No. 1 seat No. 1 leg side cover as shown in the illustration.


Hide 79967U 3.REMOVE REAR NO. 1 SEAT NO. 2 LEG SIDE COVER

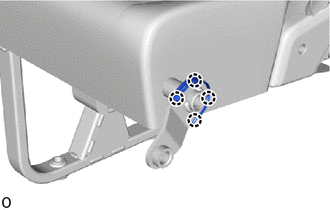

a.
B537010

Detach the claw.


b.

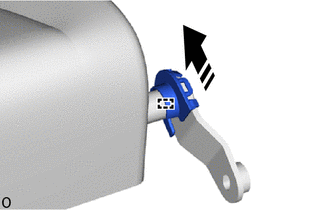

B537011
0,0 0,0 false
V113147

Remove in this Direction


Detach the hook and remove the rear No. 1 seat No. 2 leg side cover as shown in the illustration.


Hide 79967W 4.REMOVE REAR NO. 1 SEAT NO. 4 LEG SIDE COVER

a.

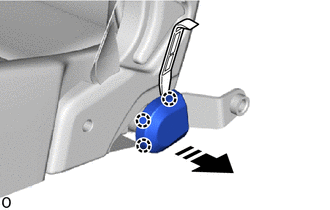

B537013
0,0 0,0 false
V113147

Remove in this Direction


Using moulding remover A, detach the claw and remove the rear No. 1 seat No. 4 leg side cover as shown in the illustration.


Hide 79967X 5.REMOVE REAR NO. 1 SEAT NO. 5 LEG SIDE COVER

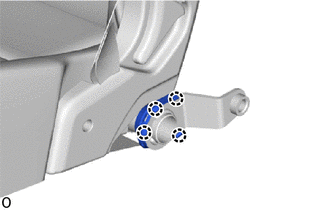

a.
B537015

Detach the claw.


b.

Rotate the rear No. 1 seat No. 5 leg side cover as shown in the illustration.

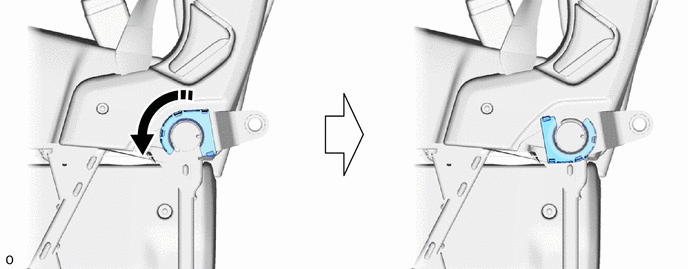

B537016
0,0 0,0 false
V113147

Rotate in this Direction - -



c.

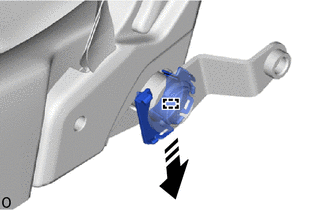

B537018
0,0 0,0 false
V113147

Remove in this Direction


Detach the hook and remove the rear No. 1 seat No. 5 leg side cover as shown in the illustration.


Hide 79959F 6.REMOVE NO. 1 SEAT LEG COVER LH (w/ Cover)

a.

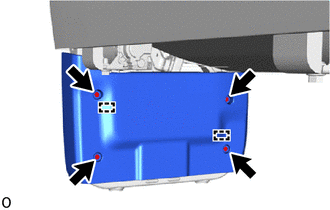

B537020

Remove the 4 screws.


b.

Detach the guide and remove the No. 1 seat leg cover LH.


Hide 72526J 7.REMOVE NO. 1 SEAT RECLINING ADJUSTER RELEASE HANDLE LH

a.

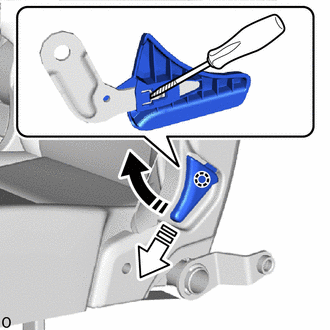

B537021
0,0 0,0 false
V113147

Lift in this Direction
V113148

Remove in this Direction
V100155

Protective Tape


Using a thin-bladed screwdriver, detach the claw and remove the No. 1 seat reclining adjuster release handle LH while lifting it up as shown in the illustration.

HINT:

Tape the thin-bladed screwdriver tip before use.



Hide 72525N 8.REMOVE NO. 1 SEAT RECLINING ADJUSTER RELEASE HANDLE RH

HINT:

Use the same procedure described for the LH side.


Hide 72525S 9.REMOVE CENTER NO. 1 SEAT RECLINING ADJUSTER RELEASE HANDLE

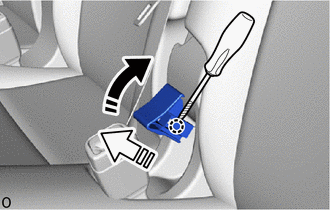

a.
B537023
0,0 0,0 false
V113147

Lift in this Direction
V113148

Remove in this Direction
V100155

Protective Tape


Using a thin-bladed screwdriver, detach the claw and remove the center No. 1 seat reclining adjuster release handle while lifting it up as shown in the illustration.

HINT:

Tape the thin-bladed screwdriver tip before use.



Hide 71834S 10.REMOVE REAR NO. 1 SEAT RECLINING COVER LH

a.

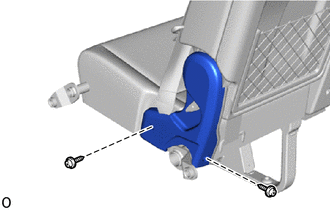

B537025

Remove the 2 screws.


b.

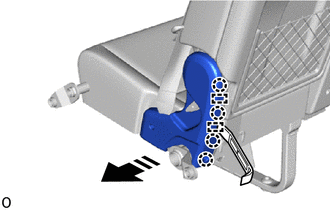

B537026
0,0 0,0 false
V113147

Remove in this Direction


Using moulding remover A, detach the guide and claw as shown in the illustration.


c.

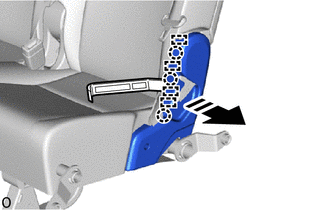

B537028
0,0 0,0 false
V113147

Remove in this Direction


Using moulding remover A, detach the guide and claw and remove the rear No. 1 seat reclining cover LH as shown in the illustration.


Hide 71833S 11.REMOVE REAR NO. 1 SEAT RECLINING COVER RH

HINT:

Use the same procedure described for the LH side.


Hide 73343 12.REMOVE REAR SEAT SHOULDER BELT GUIDE RH

HINT:

Use the same procedure for all rear seat shoulder belt guides RH.


a.

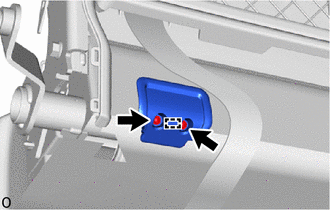

B537035

Remove the 2 screws.


b.

Detach the guide and remove the rear seat shoulder belt guide RH.


Hide 13.REMOVE REAR SEAT CUSHION COVER WITH PAD

a.

Remove the 3 bolts.

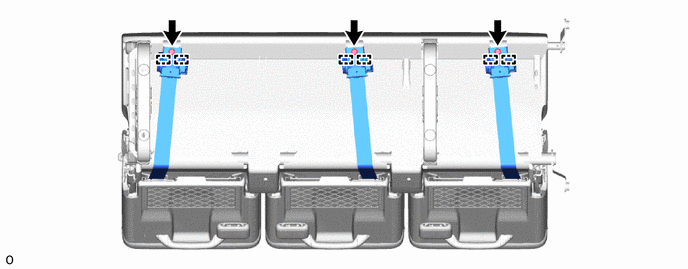

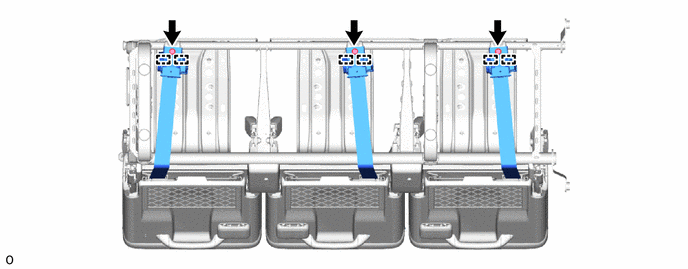

B542847


b.

Detach the guide and remove the 3 retractors.


c.

Detach the fastening tape.

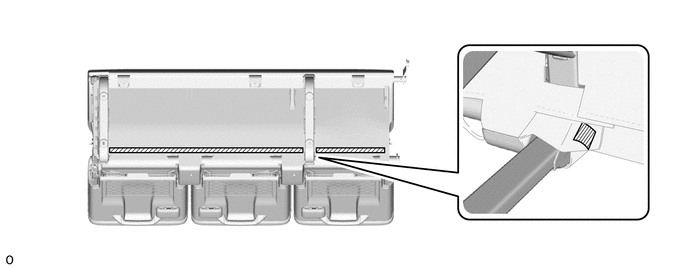

B539070
0,0 0,0 false
V100155

Fastening tape - -

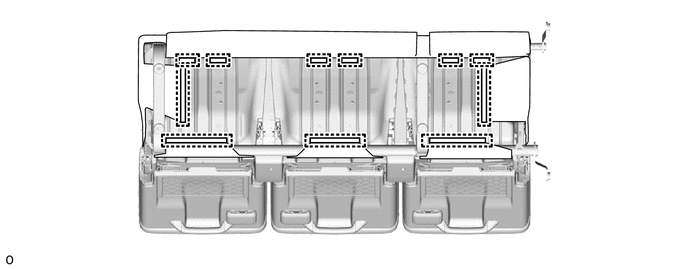

d.

Detach the hook and remove the rear seat cushion cover with pad.

B539071


e.

Attach the guide.

B542846


f.

Temporarily install the 3 retractors with the 3 bolts.


Hide 79012A 14.REMOVE NO. 1 SEAT CUSHION COVER SUB-ASSEMBLY LH

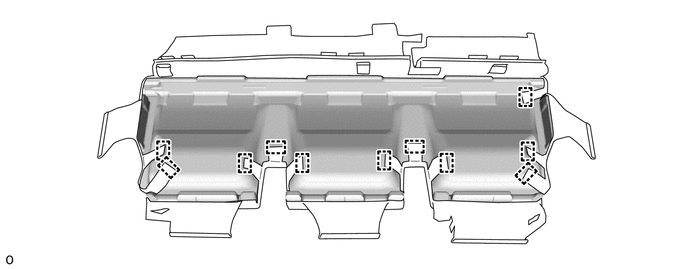

a.

Detach the fastening tape.

B539072C01
0,0 0,0 false
V100155

Fastening tape - -



b.

Remove the 26 hog rings and remove the No. 1 seat cushion cover sub-assembly LH from the No. 1 seat cushion pad LH as shown in the illustration.

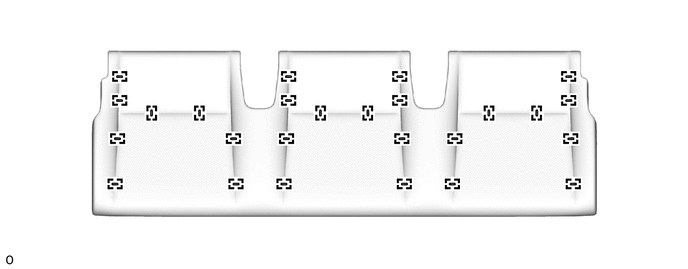

B537037

NOTICE:

Be careful not to damage the No. 1 seat cushion cover sub-assembly LH.



Hide 15.REMOVE SEAT COVER WIRE

a.

Remove the seat cover wire.

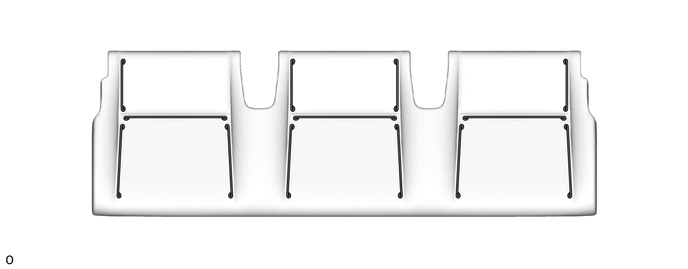

B537039


Hide 74690A 16.REMOVE REAR SEAT ASSIST GRIP ASSEMBLY

HINT:

Use the same procedure for all rear seat assist grip assemblies.

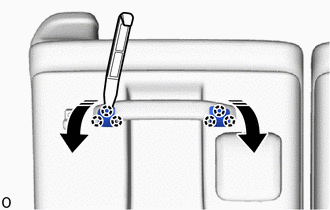

a.
B536689
0,0 0,0 false
V113147

Open in this Direction


Using moulding remover A, detach the claw and open the cover as shown in the illustration.


b.

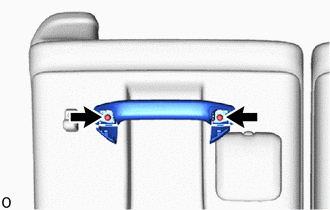

B536691

Remove the 2 screws and rear seat assist grip assembly.


Hide 17.REMOVE REAR SEATBACK BOARD

HINT:

Use the same procedure for all rear seatback boards.

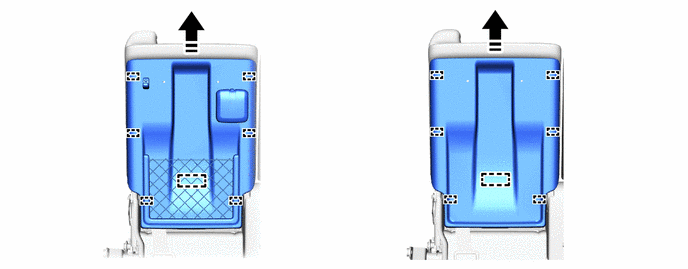

a.

Detach the guide and remove the rear seatback board as shown in the illustration.

B542836
0.906,0.323 1.219,0.479 0.313,0.156 12 false *A 4,0.313 4.313,0.469 0.313,0.156 12 false *B
*A for Type A *B for Type B
V113147

Remove in this Direction - -



Hide 73375X 18.REMOVE REAR NO. 1 SEAT SHOULDER BELT COVER LH

HINT:

Use the same procedure for the center seat.

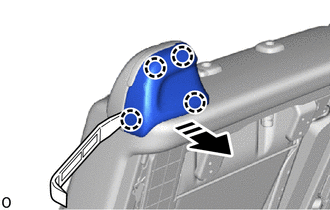

a.
B537041
0,0 0,0 false
V113147

Remove in this Direction


Using moulding remover A, detach the claw and remove the rear No. 1 seat shoulder belt cover LH as shown in the illustration.


Hide 73C73D 19.REMOVE REAR NO. 1 SEAT SHOULDER BELT COVER RH

HINT:

Use the same procedure described for the LH side.


Hide 73375Y 20.REMOVE REAR NO. 2 SEAT SHOULDER BELT COVER LH

HINT:

Use the same procedure for the center seat.

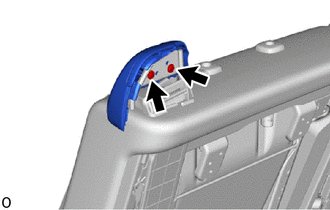

a.
B537043

Remove the 2 screws.


b.

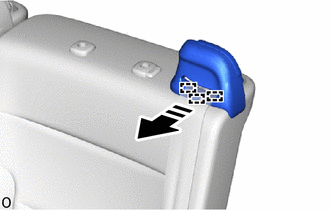

B537044
0,0 0,0 false
V113147

Remove in this Direction


Detach the guide as shown in the illustration.


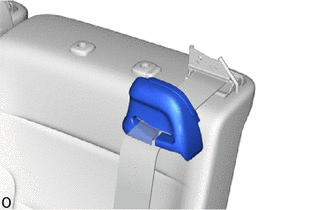

c.
B537046
1.646,1.458 1.917,2 1.917,2 2.167,2 true 2.219,1.844 2.375,2.021 0.156,0.177 10 true *a
*a Slit


Pass the rear seat outer 3 point type belt assembly LH through the slit and remove the rear No. 2 seat shoulder belt cover LH.


Hide 73C73E 21.REMOVE REAR NO. 2 SEAT SHOULDER BELT COVER RH

HINT:

Use the same procedure described for the LH side.


Hide 73318 22.REMOVE REAR SEAT BELT CAP LH

HINT:

Use the same procedure for the center seat.

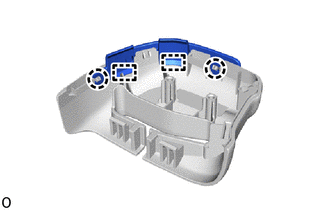

a.
B536702

Detach the claw and guide and remove the rear seat belt cap LH.


Hide 73317 23.REMOVE REAR SEAT BELT CAP RH

HINT:

Use the same procedure described for the LH side.


Hide 73370 24.REMOVE REAR SEAT OUTER 3 POINT TYPE BELT ASSEMBLY LH (ANCHOR)

a.

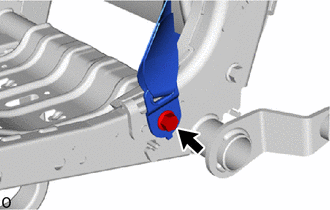

B537048

Remove the bolt and anchor of the rear seat outer 3 point type belt assembly LH.

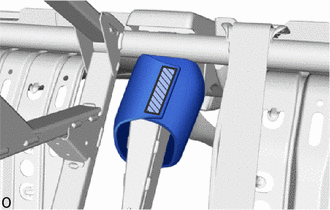

Hide 73350 25.REMOVE REAR CENTER SEAT LAP TYPE BELT ASSEMBLY (ANCHOR)

a.
B540036
0,0 0,0 false
V100155

Fastening Tape


Detach the fastening tape.


b.
B540034

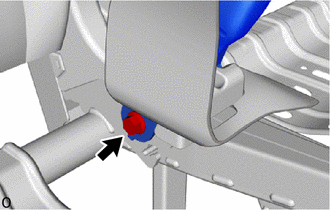

Remove the bolt and anchor of the rear center seat lap type belt assembly.


Hide 73360 26.REMOVE REAR SEAT OUTER 3 POINT TYPE BELT ASSEMBLY RH (ANCHOR)

a.

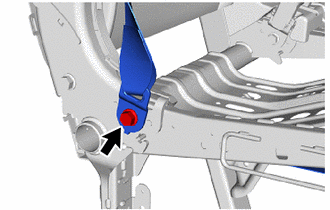

B542824

Remove the bolt and anchor of the rear seat outer 3 point type belt assembly RH.


Hide 79014B 27.REMOVE NO. 1 SEATBACK COVER SUB-ASSEMBLY LH

HINT:

Use the same procedure for the center seat.


a.
B540426

Remove the 2 hog rings.


b.

Pull out the 2 fasteners.

B540421


c.
B540422

Open the 2 fasteners.


d.
B540423

Detach the hook.


e.
B539377

Detach the hook.


f.

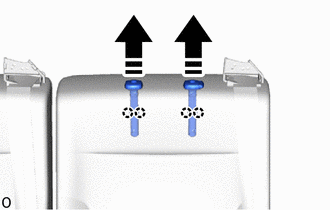

B537050
0,0 0,0 false
V113147

Remove in this Direction


Detach the claw and remove the 2 rear seat headrest supports as shown in the illustration.


g.
B536734
0,0 0,0 false
V113147

Remove in this Direction


Detach the guide.


h.

for Type A:

i.

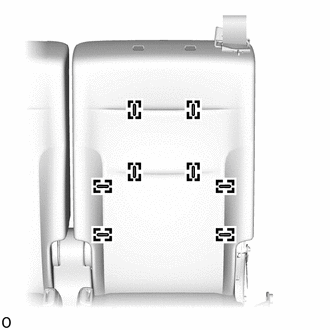

B536738

Remove the 8 hog rings.

NOTICE:

Be careful not to damage the No. 1 seatback cover sub-assembly LH.




i.

for Type B:

i.

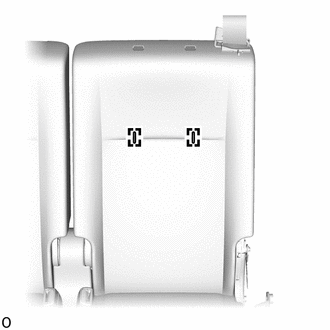

B536740

Remove the 2 hog rings.

NOTICE:

Be careful not to damage the No. 1 seatback cover sub-assembly LH.




j.
B536742

Detach the guide.


k.

Pass the rear seat outer 3 point type belt assembly LH through the hole of the No. 1 seatback cover sub-assembly LH.


l.

Remove the No. 1 seatback cover sub-assembly LH.

NOTICE:

Be careful not to damage the No. 1 seatback cover sub-assembly LH.



Hide 79013D 28.REMOVE NO. 1 SEATBACK COVER SUB-ASSEMBLY RH

HINT:

Use the same procedure described for the LH side.


Hide 29.REMOVE SEAT COVER WIRE

a.

for Type A:

i.

Remove the seat cover wire.

B542606



b.

for Type B:

i.

Remove the seat cover wire.

B542607



Hide 79185A 30.REMOVE NO. 1 SEATBACK PAD LH

HINT:

Use the same procedure for the center seat.


a.

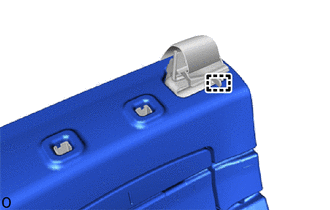

B539379

Detach the guide.


b.

Pass the rear seat outer 3 point type belt assembly LH through the hole of the No. 1 seatback pad LH.


c.

Remove the No. 1 seatback pad LH.


Hide 79175F 31.REMOVE NO. 1 SEATBACK PAD RH

HINT:

Use the same procedure described for the LH side.


Hide 73375Z 32.REMOVE REAR NO. 3 SEAT SHOULDER BELT COVER LH

HINT:

Use the same procedure for the other side.


a.

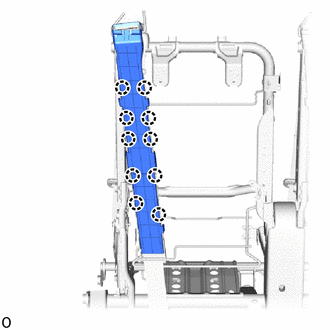

B537052

Detach the claw.

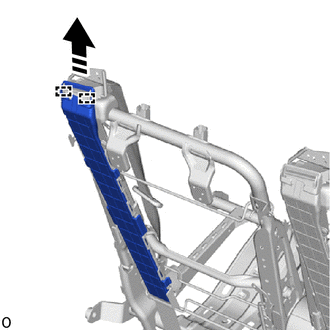

b.
B537053
0,0 0,0 false
V113147

Remove in this Direction


Detach the guide and remove the rear No. 3 seat shoulder belt cover LH as shown in the illustration.


Hide 73C73F 33.REMOVE REAR NO. 3 SEAT SHOULDER BELT COVER RH

HINT:

Use the same procedure described for the LH side.


Hide 73C75A 34.REMOVE REAR SEAT SHOULDER BELT HOLE COVER LH

HINT:

Use the same procedure for the other side.


a.

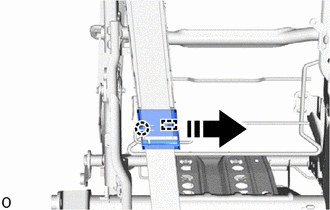

B537055
0,0 0,0 false
V113147

Remove in this Direction


Detach the claw and guide as shown in the illustration.


b.

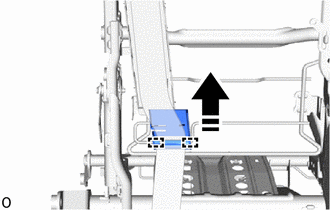

B537057
0,0 0,0 false
V113147

Remove in this Direction


Detach the guide as shown in the illustration.


c.

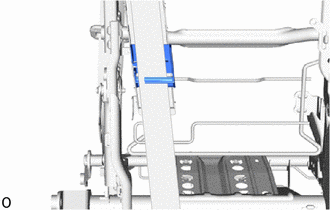

B537059
0.75,1.417 1.333,1.417 1.333,1.417 1.521,0.844 true 0.563,1.271 0.708,1.458 0.146,0.188 10 false *a
*a Slit


Pass the rear seat outer 3 point type belt assembly LH through the slit and remove the rear seat shoulder belt hole cover LH.


Hide 73C73H 35.REMOVE REAR SEAT SHOULDER BELT HOLE COVER RH

HINT:

Use the same procedure described for the LH side.


Hide 73350 37.REMOVE REAR CENTER SEAT LAP TYPE BELT ASSEMBLY

HINT:

Use the same procedure described for the LH side.


Hide 73360 38.REMOVE REAR SEAT OUTER 3 POINT TYPE BELT ASSEMBLY RH

HINT:

Use the same procedure described for the LH side.


Hide 73C75 39.REMOVE REAR NO. 4 SEAT SHOULDER BELT COVER LH

HINT:

Use the same procedure for the center seat.


a.

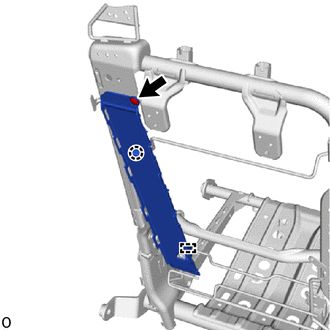

B537060

Using clip remover, remove the clip.


b.

Detach the claw and guide and remove the rear No. 4 seat shoulder belt cover LH.


Hide 73C73G 40.REMOVE REAR NO. 4 SEAT SHOULDER BELT COVER RH

HINT:

Use the same procedure described for the LH side.


Hide 72552P 41.REMOVE LH SEAT RECLINING HINGE COVER LH

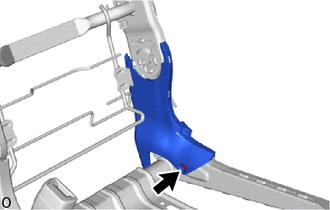

a.
B537061

Remove the screw and LH seat reclining hinge cover LH.


Hide 72551S 42.REMOVE LH SEAT RECLINING HINGE COVER RH

HINT:

Use the same procedure described for the LH side.


Hide 71874X 43.REMOVE REAR SEAT LOWER CUSHION SHIELD LH

a.

Remove the screw.


b.

Detach the claw and remove the rear seat lower cushion shield LH.

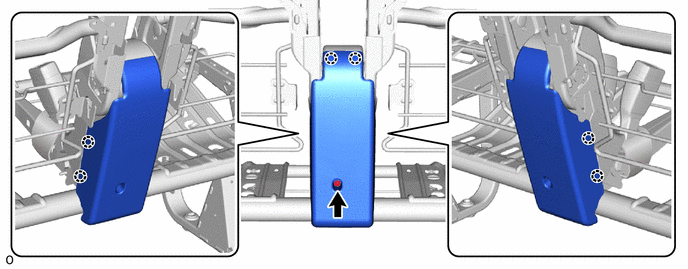

B537063


Hide 71873Y 44.REMOVE REAR SEAT LOWER CUSHION SHIELD

a.

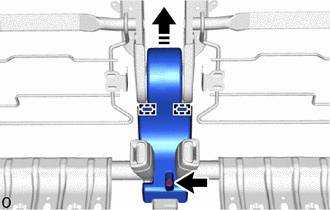

B537064
0,0 0,0 false
V113147

Remove in this Direction


Remove the screw.


b.

Detach the guide and remove the rear seat lower cushion shield as shown in the illustration.


Hide 71844J 45.REMOVE REAR NO. 1 SEAT NO. 2 RECLINING COVER LH

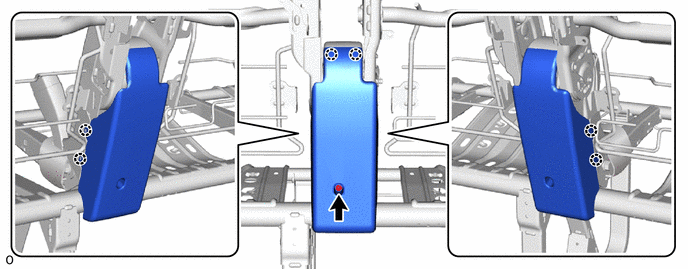

a.

Remove the screw.


b.

Detach the claw and remove the rear No. 1 seat No. 2 reclining cover LH.

B537475


Hide 71834R 46.REMOVE REAR SEAT RECLINING COVER LH

a.

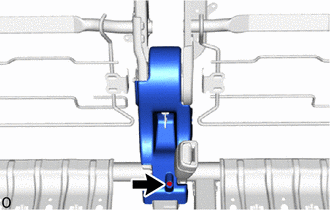

B537476

Remove the screw and rear seat reclining cover LH.


Hide 71T75 47.REMOVE RECLINING ADJUSTER INSIDE COVER RH

HINT:

Use the same procedure for the center seat.

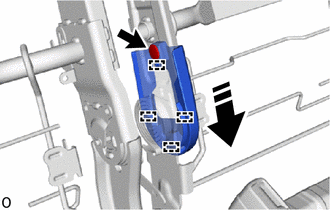

a.
B537477
0,0 0,0 false
V113147

Remove in this Direction


Using clip remover, remove the clip.


b.

Detach the guide and remove the reclining adjuster inside cover RH as shown in the illustration.


Hide 71T76B 48.REMOVE RECLINING ADJUSTER INSIDE COVER LH

HINT:

Use the same procedure described for the reclining adjuster inside cover RH.


Hide 72345Q 49.REMOVE NO. 1 SEAT STAND FRAME CAP LH

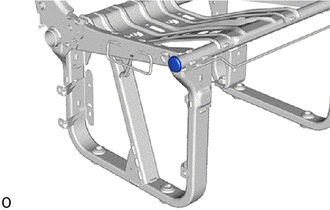

a.
B536993

Remove the No. 1 seat stand frame cap LH.

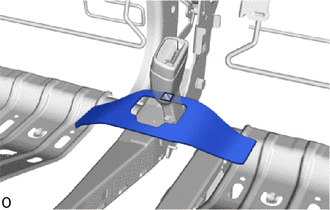

Hide 79290C 50.REMOVE NO. 1 SEATBACK SPRING ASSEMBLY LH

a.
B540032
0,0 0,0 false
V100155

Fastening Tape


Detach the fastening tape and remove the rear seat cushion cover.

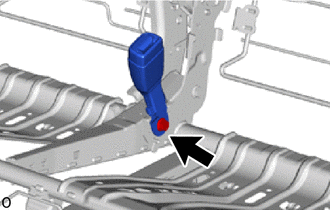

b.
B542581

Remove the bolt and rear seat inner belt assembly.


c.
B542845

Remove the 2 bolts.


d.

Detach the guide and remove the No. 1 seatback spring assembly LH.

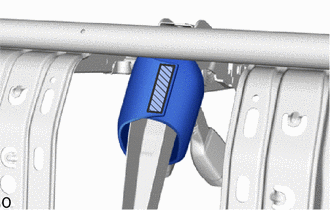

Hide 79290D 51.REMOVE CENTER NO. 1 SEATBACK SPRING ASSEMBLY LH

a.
B540037
0,0 0,0 false
V100155

Fastening Tape


Detach the fastening tape.

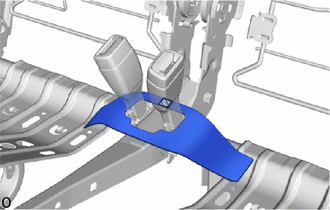

b.
B540031
0,0 0,0 false
V100155

Fastening Tape


Detach the fastening tape and remove the rear seat cushion cover.

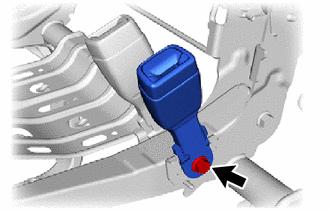

c.
B542580

Remove the bolt and rear seat inner belt assembly.

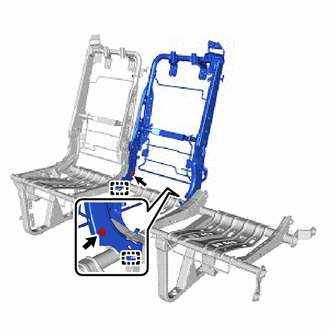

d.
B542075

Remove the 2 bolts.


e.

Detach the guide and remove the center No. 1 seatback spring assembly LH.


Hide 79280B 52.REMOVE NO. 1 SEATBACK SPRING ASSEMBLY RH

a.
B542079

Remove the bolt and rear seat inner belt assembly.

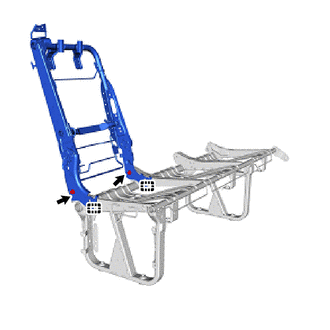

b.
B542077

Remove the 2 bolts.


c.

Detach the guide and remove the No. 1 seatback spring assembly RH.
