SEAT  REAR SEAT ASSEMBLY(for Van)  DISASSEMBLY

72329G 1.REMOVE REAR NO. 2 SEAT ADJUSTER BOLT COVER

a.

0,0 0,0 false

	Remove in this Direction
	Protective Tape

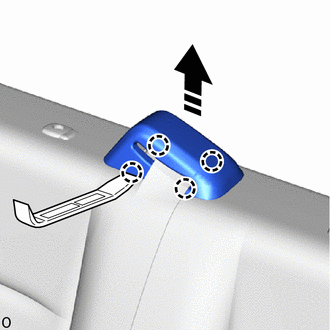

Using a thin-bladed screwdriver, detach the claw and remove the rear No. 2 seat adjuster bolt cover as shown in the illustration.

HINT:

Tape the thin-bladed screwdriver tip before use.

72329F 2.REMOVE REAR SEAT ADJUSTER BOLT COVER

72526L 3.REMOVE RECLINING ADJUSTER RELEASE HANDLE LH

a.

Remove the screw.

b.

Detach the guide and remove the reclining adjuster release handle LH.

72525N 4.REMOVE NO. 1 SEAT RECLINING ADJUSTER RELEASE HANDLE RH

71834J 5.REMOVE NO. 1 SEAT OUTER NO. 1 RECLINING COVER LH

a.

0,0 0,0 false

Remove in this Direction

Remove the screw.

b.

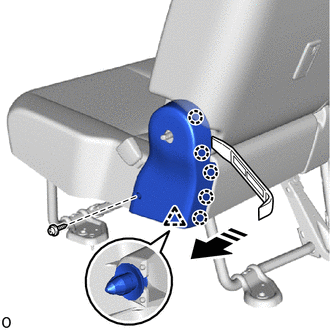

Using moulding remover A, detach the claw as shown in the illustration.

c.

Detach the clip.

d.

0,0 0,0 false

Remove in this Direction

Using moulding remover A, detach the claw and remove the No. 1 seat outer No. 1 reclining cover LH as shown in the illustration.

71833K 6.REMOVE NO. 1 SEAT OUTER NO. 1 RECLINING COVER RH

73340 7.REMOVE REAR SEAT LAP TYPE BELT ASSEMBLY LH

73330 8.REMOVE REAR SEAT LAP TYPE BELT ASSEMBLY RH

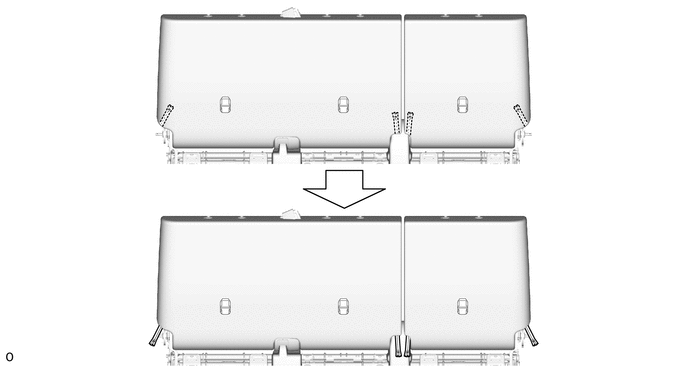

9.REMOVE SEAT CUSHION COVER WITH PAD

a.

Detach the hook and fastening tape.

0,0 0,0 false

Fastening Tape

-

-

b.

Detach the hook.

c.

w/ Seat Belt Warning System:

i.

Disconnect the 3 connectors.

ii.

0,0 0,0 false

Protective Tape

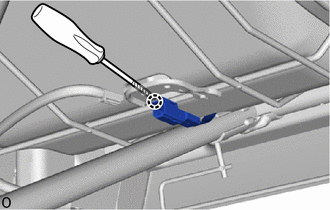

Using a thin-bladed screwdriver, detach the claw and remove the connector of occupant detection sensor.

HINT:

·

Tape the thin-bladed screwdriver tip before use.

·

Use the same procedure for the other sides.

d.

Remove the seat cushion cover with pad.

79011E 10.REMOVE NO. 1 SEAT CUSHION COVER SUB-ASSEMBLY

a.

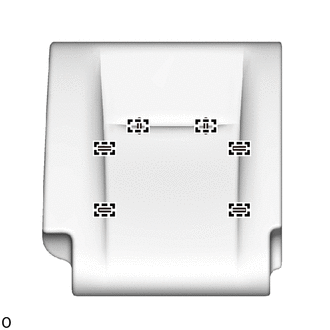

Remove the 6 hog rings.

NOTICE:

Be careful not to damage the No. 1 seat cushion cover sub-assembly.

b.

Remove the 28 hog rings and No. 1 seat cushion cover sub-assembly.

NOTICE:

Be careful not to damage the No. 1 seat cushion cover sub-assembly.

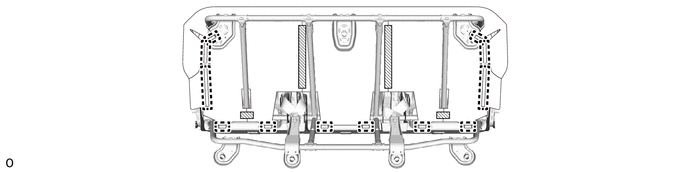

11.REMOVE SEAT COVER WIRE

a.

Remove the seat cover wire.

73380D 12.REMOVE REAR SEAT INNER BELT ASSEMBLY (for LH Side)

73380A 13.REMOVE REAR CENTER SEAT INNER BELT ASSEMBLY

73380D 14.REMOVE REAR SEAT INNER BELT ASSEMBLY (for RH Side)

72996J 15.REMOVE NO. 2 REAR SEATBACK COVER

HINT:

Use the same procedure for the RH side.

a.

0,0 0,0 false

Open in this Direction

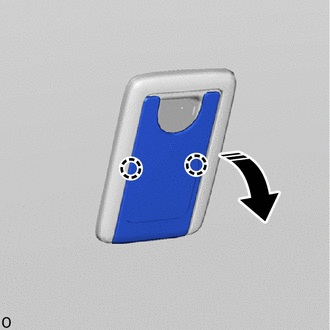

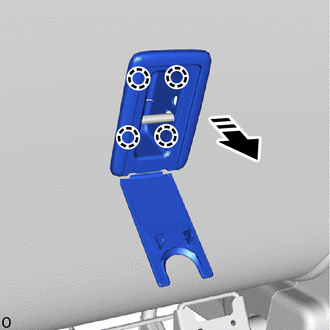

Detach the claw and open the cover as shown in the illustration.

b.

0,0 0,0 false

Remove in this Direction

Detach the claw and remove the No. 2 rear seatback cover as shown in the illustration.

72996H 16.REMOVE REAR SEATBACK COVER (w/ Center Bracket)

73375 17.REMOVE REAR SEAT SHOULDER BELT COVER LH

a.

0,0 0,0 false

Remove in this Direction

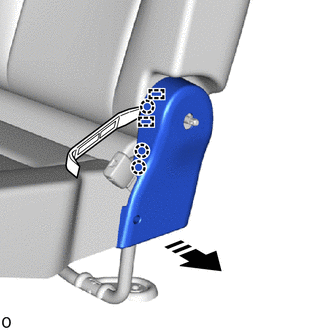

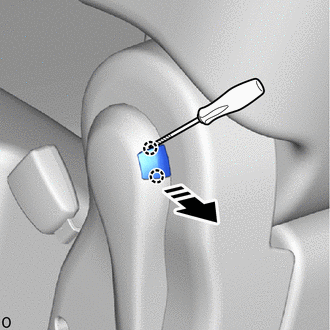

Using moulding remover A, detach the claw as shown in the illustration.

b.

1.479,1.958 0.698,2.313 true 0.49,2.25 0.667,2.469 0.177,0.219 10 false *a

*a

Slit

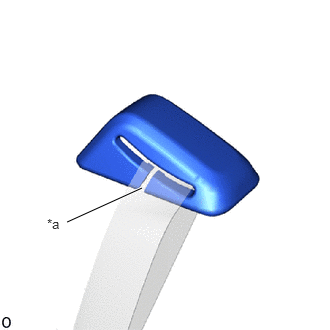

Pass the belt through the slit and remove the rear seat shoulder belt cover LH.

71930Q 18.REMOVE REAR SEAT HEADREST SUPPORT ASSEMBLY

a.

Detach the hook.

b.

Pull out the 4 fasteners.

c.

Open the 4 fasteners.

d.

Detach the claw and remove the 6 rear seat headrest support assemblies.

19.REMOVE REAR SEATBACK COVER WITH PAD LH

20.REMOVE REAR SEATBACK COVER WITH PAD RH

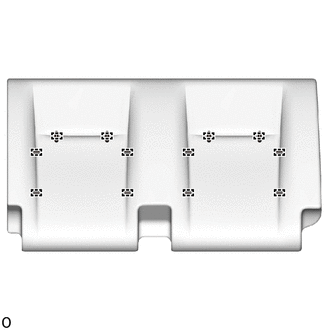

79014B 21.REMOVE NO. 1 SEATBACK COVER SUB-ASSEMBLY LH

a.

Remove the 12 hog rings and No. 1 seatback cover sub-assembly LH.

22.REMOVE SEAT COVER WIRE

a.

Remove the seat cover wire.

79013D 23.REMOVE NO. 1 SEATBACK COVER SUB-ASSEMBLY RH

a.

Remove the 6 hog rings and No. 1 seatback cover sub-assembly RH.

24.REMOVE SEAT COVER WIRE

a.

Remove the seat cover wire.

71499M 25.REMOVE NO. 1 SEATBACK SPRING DAMPER LH

a.

Remove the 2 nuts and No. 1 seatback spring damper LH.

71499L 26.REMOVE NO. 1 SEATBACK SPRING DAMPER RH

71H76M 27.REMOVE RH SEAT RECLINING ADJUSTER INSIDE COVER

HINT:

Use the same procedure for all RH seat reclining adjuster inside covers.

a.

0,0 0,0 false

Remove in this Direction

Remove the clip.

b.

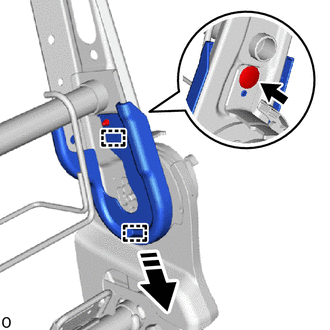

Detach the guide and remove the RH seat reclining adjuster inside cover as shown in the illustration.

71H76L 28.REMOVE RECLINING ADJUSTER INSIDE COVER

HINT:

Use the same procedure for the other side.

a.

Detach the guide and remove the reclining adjuster inside cover.

71802C 29.REMOVE RECLINING ADJUSTER COVER SUB-ASSEMBLY LH

a.

0,0 0,0 false

Remove in this Direction

Remove the 4 screws.

b.

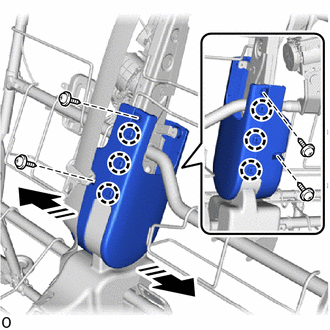

Detach the claw and remove the side parts of reclining adjuster cover sub-assembly LH as shown in the illustration.

73320A 30.REMOVE NO. 1 SEAT 3 POINT TYPE BELT ASSEMBLY LH

73373X 31.REMOVE NO. 1 SEAT NO. 1 SHOULDER BELT COVER LH

a.

0,0 0,0 false

	Remove in this Direction (1)
	Remove in this Direction (2)

Detach the claw in the removal direction (1) shown in the illustration.

b.

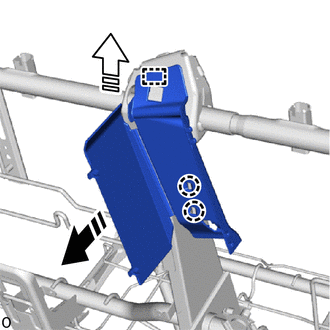

Detach the guide in the removal direction (2) shown in the illustration and remove the No. 1 seat No. 1 shoulder belt cover LH.

71874X 32.REMOVE REAR SEAT LOWER CUSHION SHIELD LH

a.

0,0 0,0 false

Remove in this Direction

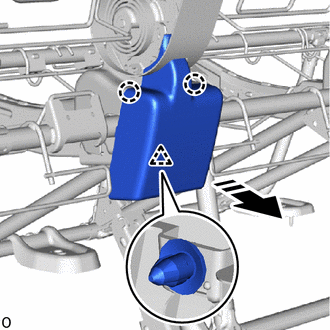

Detach the claw and clip and remove the rear seat lower cushion shield LH as shown in the illustration.

71873Y 33.REMOVE REAR SEAT LOWER CUSHION SHIELD

a.

Remove the clip and rear seat lower cushion shield.

71879H 34.REMOVE REAR SEAT INNER RECLINING COVER LH

a.

0,0 0,0 false

Remove in this Direction

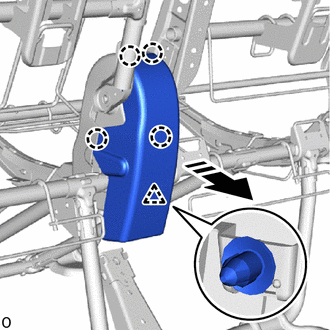

Detach the claw and clip and remove the rear seat inner reclining cover LH as shown in the illustration.

71878H 35.REMOVE REAR SEAT INNER RECLINING COVER RH

a.

2.073,2.458 2.229,2.656 0.156,0.198 10 true A 2.01,0.594 2.167,0.792 0.156,0.198 10 true B

Remove the clip A.

b.

Detach the clip B and remove the rear seat inner reclining cover RH.

72570E 36.REMOVE NO. 1 SEAT RECLINING ADJUSTING CABLE ASSEMBLY RH

a.

Remove the 3 wiring harness clamps.

0,0 0,0 false

Wiring Harness Clamp

Rotate in this Direction

b.

Detach the cable clamp.

c.

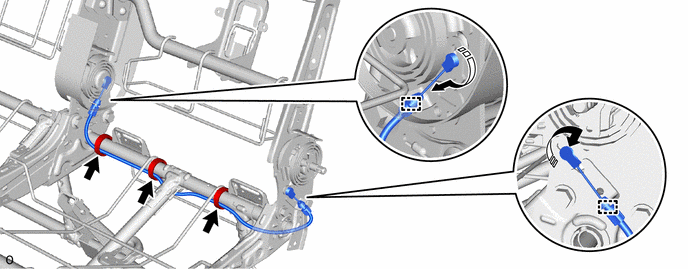

Rotate the cable end as shown in the illustration and remove the No. 1 seat reclining adjusting cable assembly RH.

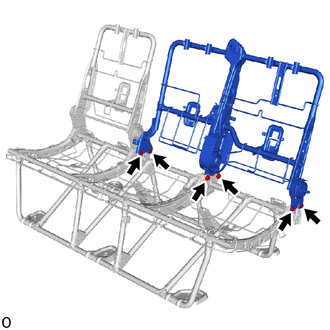

79190 37.REMOVE NO. 1 SEATBACK SPRING ASSEMBLY LH

a.

Remove the 6 bolts and No. 1 seatback spring assembly LH.

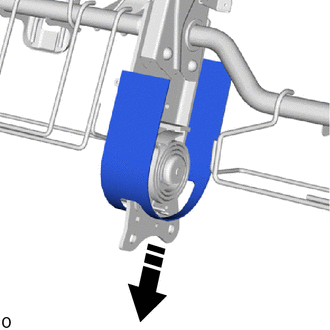

71802C 38.REMOVE RECLINING ADJUSTER COVER SUB-ASSEMBLY LH

a.

0,0 0,0 false

Remove in this Direction

Remove the center part of reclining adjuster cover sub-assembly LH as shown in the illustration.

72569B 39.REMOVE SEATBACK STOPPER PLATE

a.

Remove the bolt, seatback stopper plate and bush.

79180B 40.REMOVE NO. 1 SEATBACK SPRING ASSEMBLY RH

a.

Remove the 4 bolts and No. 1 seatback spring assembly RH.
