SEAT  FRONT SEAT ASSEMBLY(for Fixed Bench Seat Type)  REASSEMBLY

0,0 0,0 false

Install in this Direction

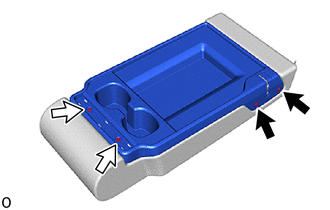

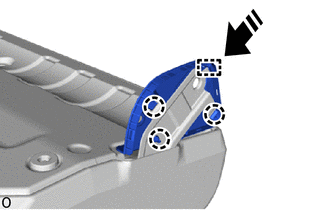

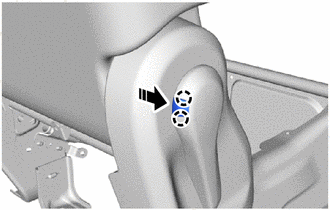

Attach the guide as shown in the illustration.

0,0 0,0 false

Install in this Direction

Attach the guide as shown in the illustration.

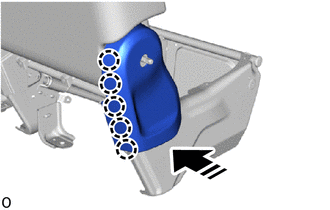

Attach the guide.

0,0 0,0 false

Install in this Direction

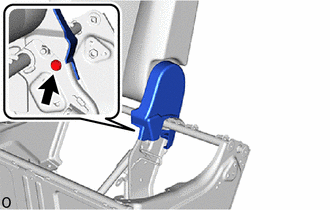

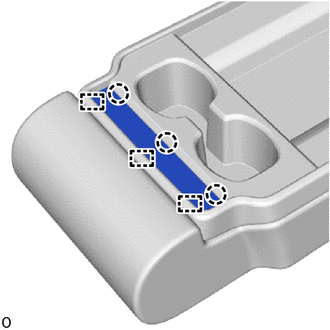

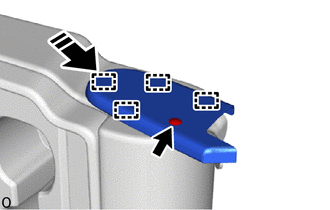

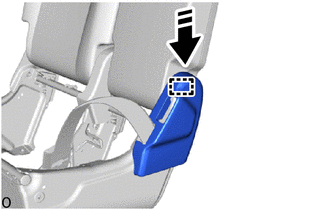

Attach the guide and install the seatback cover plate RH as shown in the illustration.

1.656,1.115 1.656,0.75 true 1.615,1.167 1.802,1.385 0.188,0.219 10 true A

Install the seat cover wire.

HINT:

·

Wire 1000 mm (3.28 ft.) or longer and shaped wire are available as supplied parts.

·

For wire 1000 mm (3.28 ft.) or less in length, cut or shape 1000 mm (3.28 ft.) wire into the dimensions shown in the illustration.

·

Make sure to read the Precaution section before preparing the wire.

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Separate Seat Type)>PRECAUTION201902,999999,_58,_078601,_0381328,RM100000001G566,

Dimensions:

A	250 mm (9.84 in.)

HINT:

The dimensions shown in the illustration are the length.

1.635,3.833 1.875,2.948 1.875,2.948 2.083,2.948 false 2.125,2.885 2.438,3.083 0.313,0.198 10 false *a 1.563,0.813 1.792,1.021 0.229,0.208 10 true (1) 1.938,0.813 2.167,1.021 0.229,0.208 10 true (2) 1.177,0.813 1.406,1.021 0.229,0.208 10 true (3)

*a	Hog Ring Pliers

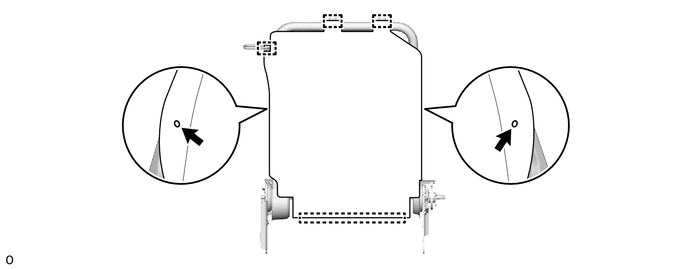

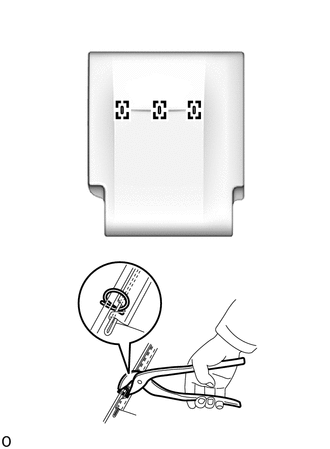

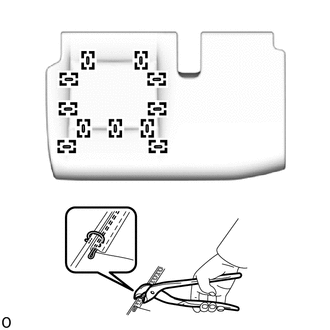

Using hog ring pliers, install the front seatback cover sub-assembly RH with 3 new hog rings in the order indicated in the illustration.

NOTICE:

·

Be careful not to damage the front seatback cover sub-assembly RH.

·

Be sure to securely install the hog rings as shown in the illustration while preventing wrinkles from forming on the front seatback cover sub-assembly RH.

0,0 0,0 false

Install in this Direction

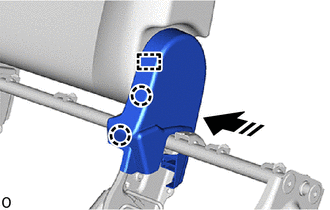

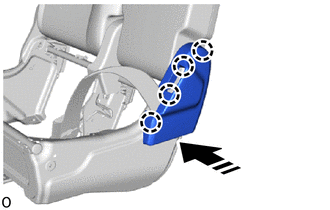

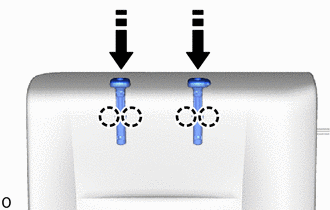

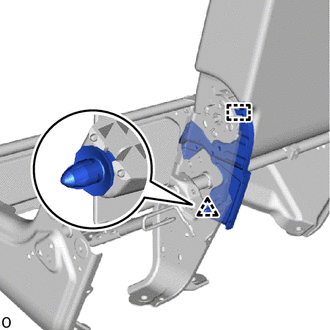

Attach the claw and install the 2 front seat headrest support assemblies RH as shown in the illustration.

Close the fastener.

Insert the fastener.

Attach the hook.

0,0 0,0 false

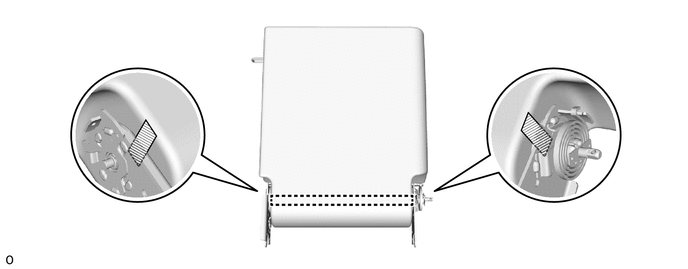

Fastening Tape

-

-

Attach the guide.

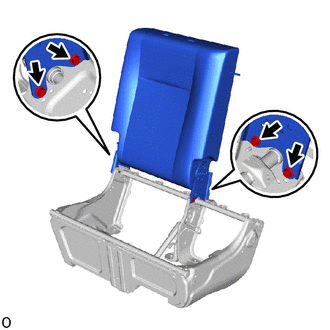

Install the front seatback assembly RH with the 4 bolts.

Torque:

42 N*m (428 kgf*cm, 31 ft.*lbf)

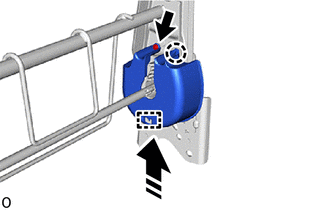

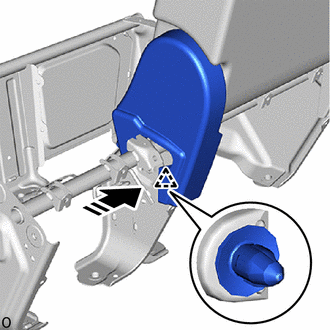

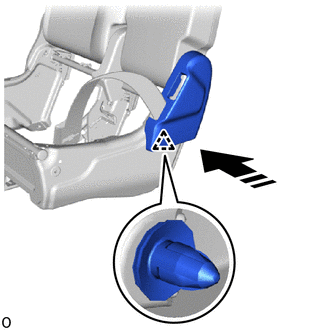

Attach the guide and clip and install the RH seat reclining adjuster inside cover RH.

Attach the guide and clip and install the RH seat reclining adjuster inside cover LH.

0,0 0,0 false

Install in this Direction

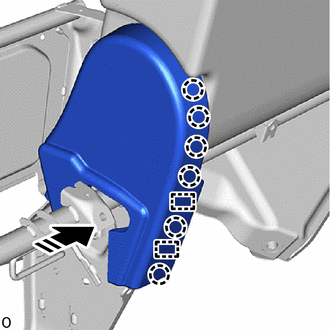

Attach the claw and guide as shown in the illustration.

0,0 0,0 false

Install in this Direction

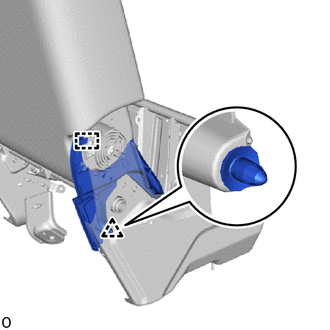

Attach the clip as shown in the illustration.

0,0 0,0 false

Install in this Direction

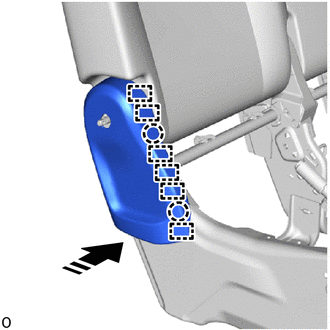

Attach the claw and guide as shown in the illustration.

Install the front seat inner cushion shield RH with the clip.

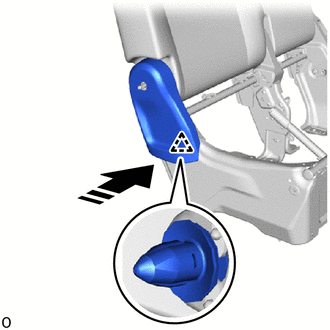

Attach the clip and install the RH seat reclining adjuster inside cover.

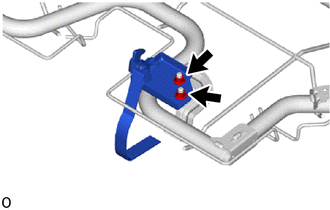

Install the front seatback lock band assembly RH.

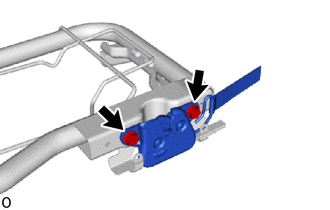

Install the front seatback lock assembly RH with the 2 bolts.

Torque:

21 N*m (214 kgf*cm, 15 ft.*lbf)

0.75,0.885 1.552,1.073 true 0.542,0.76 0.854,0.917 0.313,0.156 10 false *a

*a

Hole

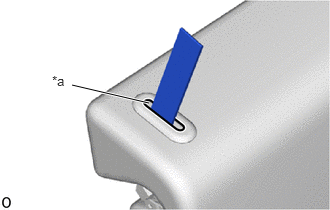

Pass the front seatback lock band assembly RH through the hole of the center seatback cover with pad.

Attach the hook.

Attach the hook and install the center seatback cover with pad.

0,0 0,0 false

Install in this Direction

Attach the guide as shown in the illustration.

0,0 0,0 false

	Clip
	Screw

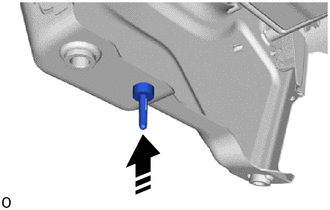

Install the 2 clips.

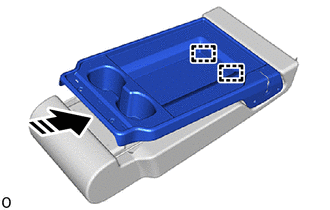

Attach the guide and claw and install the front seatback board cap.

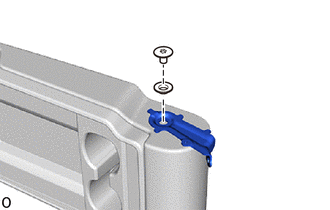

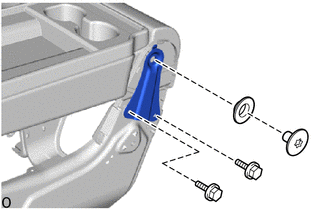

Using a T45 "TORX" socket wrench, install the lower reclining adjuster arm RH with the front seat reclining spacer RH and "TORX" screw.

Torque:

21 N*m (214 kgf*cm, 15 ft.*lbf)

0,0 0,0 false

Install in this Direction

Attach the guide as shown in the illustration.

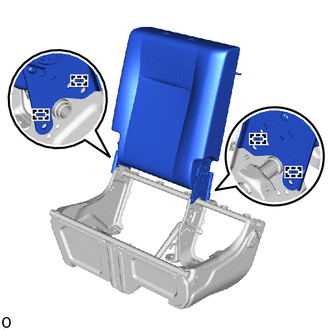

Install the center seatback assembly with the bolt.

Torque:

21 N*m (214 kgf*cm, 15 ft.*lbf)

Install the 2 bolts.

Torque:

42 N*m (428 kgf*cm, 31 ft.*lbf)

0,0 0,0 false

Lift in this Direction

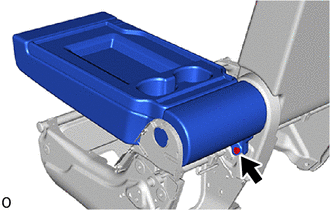

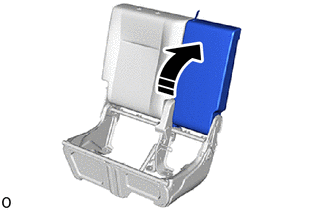

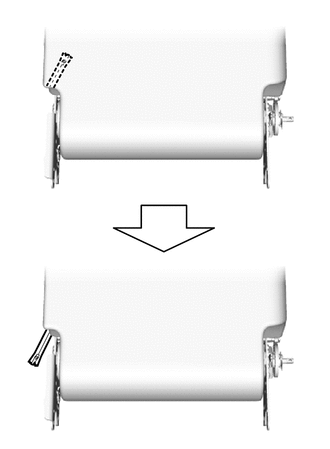

Lift up the center seatback assembly as shown in the illustration.

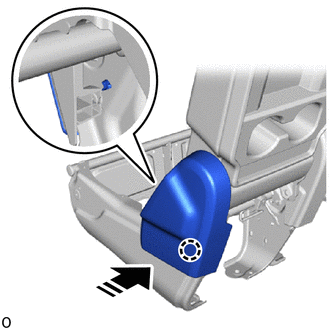

Install the 2 seat stand frame caps RH.

0,0 0,0 false

Install in this Direction

Attach the guide as shown in the illustration.

0,0 0,0 false

Install in this Direction

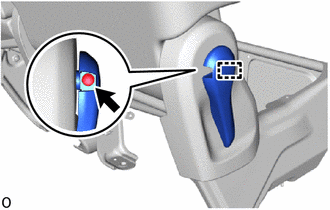

Attach the claw and guide as shown in the illustration.

0,0 0,0 false

Install in this Direction

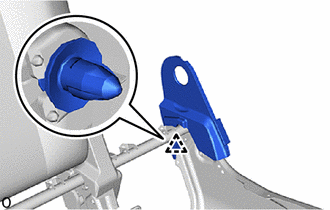

Attach the clip as shown in the illustration.

0,0 0,0 false

Install in this Direction

Attach the claw as shown in the illustration.

0,0 0,0 false

Install in this Direction

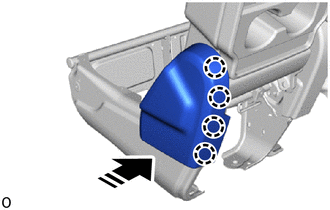

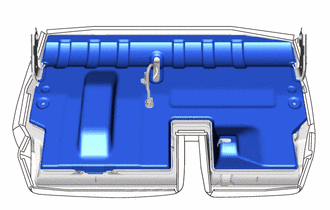

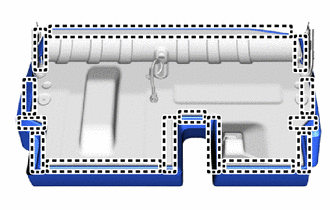

Attach the claw and install the bench type front seat cushion shield as shown in the illustration.

0,0 0,0 false

Install in this Direction

Attach the guide as shown in the illustration.

0,0 0,0 false

Install in this Direction

Attach the claw as shown in the illustration.

0,0 0,0 false

Install in this Direction

Attach the clip as shown in the illustration.

0,0 0,0 false

Install in this Direction

Attach the claw as shown in the illustration.

0,0 0,0 false

Install in this Direction

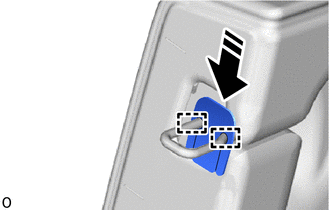

Attach the claw and install the front seat cushion shield sub-assembly RH as shown in the illustration.

Attach the guide.

0,0 0,0 false

Install in this Direction

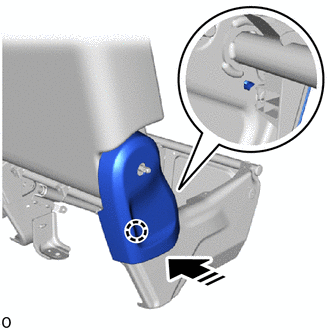

Attach the claw and install the seat adjuster bolt cover RH as shown in the illustration.

Install the front seat cushion lock band assembly RH.

Install the front seat cushion lock assembly RH with the 2 nuts.

Torque:

21 N*m (214 kgf*cm, 15 ft.*lbf)

1.198,0.625 1.198,0.26 true 0.719,1.063 0.333,1.063 true 2.021,1.063 1.635,1.063 true 1.188,1.844 1.188,1.333 true 1.156,0.063 1.313,0.26 0.156,0.198 10 false A 1.146,1.885 1.302,2.083 0.156,0.198 10 false B 2.073,0.99 2.229,1.188 0.156,0.198 10 true C 0.188,0.979 0.344,1.188 0.156,0.208 10 false C

Install the seat cover wire.

HINT:

·

Wire 1000 mm (3.28 ft.) or longer and shaped wire are available as supplied parts.

·

For wire 1000 mm (3.28 ft.) or less in length, cut or shape 1000 mm (3.28 ft.) wire into the dimensions shown in the illustration.

·

Make sure to read the Precaution section before preparing the wire.

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Separate Seat Type)>PRECAUTION201902,999999,_58,_078601,_0381328,RM100000001G566,

Dimensions:

A	280 mm (11.02 in.)
B	300 mm (11.8 in.)
C	350 mm (1.15 ft.)

HINT:

The dimensions shown in the illustration are the length.

1.781,2.938 1.885,2.448 1.885,2.448 2.01,2.448 false 2.042,2.354 2.354,2.51 0.313,0.156 10 false *a 1.365,0.281 1.563,0.5 0.198,0.219 10 true (1) 0.833,0.271 1.031,0.49 0.198,0.219 10 true (2) 1.333,1 1.521,1.219 0.188,0.219 10 true (3) 1.104,1 1.302,1.219 0.198,0.219 10 true (4) 0.854,1 1.052,1.219 0.198,0.219 10 true (5) 1.75,0.719 1.948,0.938 0.198,0.219 10 true (6) 1.75,1.021 1.948,1.24 0.198,0.219 10 true (7) 1.76,1.417 1.958,1.635 0.198,0.219 10 true (8) 0.396,0.698 0.594,0.917 0.198,0.219 10 true (9) 0.323,1.021 0.583,1.24 0.26,0.219 10 true (10) 0.302,1.385 0.563,1.604 0.26,0.219 10 true (11)

*a	Hog Ring Pliers

Using hog ring pliers, install the front seat cushion cover sub-assembly RH with the 11 new hog rings in the order indicated in the illustration.

NOTICE:

·

Be careful not to damage the front seat cushion cover sub-assembly RH.

·

Be sure to securely install the hog rings as shown in the illustration while preventing wrinkles from forming on the front seat cushion cover sub-assembly RH.

2.323,1.771 1.896,1.417 true 2.365,1.75 2.677,1.906 0.313,0.156 10 false *a

*a

Hole

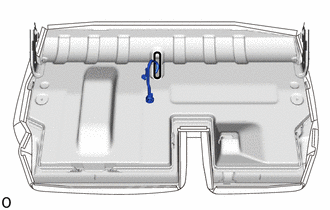

Pass the front seat cushion lock band assembly RH through the hole of the front seat cushion cover with pad.

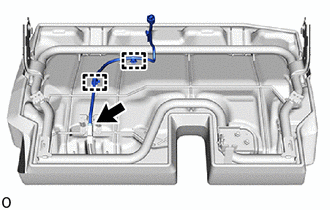

w/ Seat Belt Warning System:

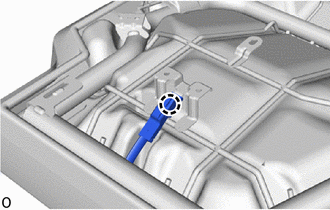

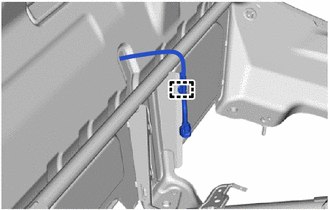

Attach the clamp and install the front seat wire RH.

w/ Seat Belt Warning System:

i.

1.635,0.781 2.104,1 true 2.146,0.927 2.344,1.125 0.198,0.198 10 true *a

*a

Hole

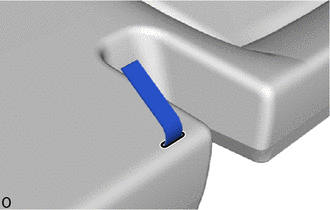

Pass the wire harness through the hole of the front seat cushion under cover RH.

Install the front seat cushion under cover RH.

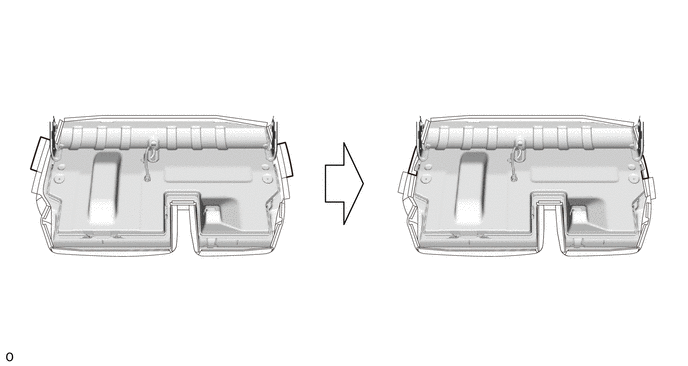

Insert the bracket of the front seat cushion cover sub-assembly RH.

Attach the hook.

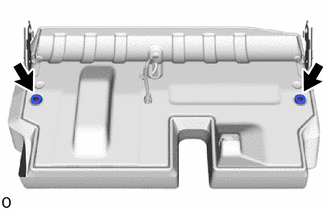

Install the 2 front seat rear support cushions RH with the 2 screws.

0,0 0,0 false

Install in this Direction

Attach the guide as shown in the illustration.

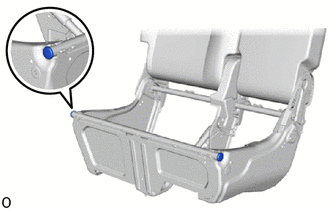

Install the front seat cushion assembly with the 2 rear seatback hinge spacers and 2 bolts.

Torque:

21 N*m (214 kgf*cm, 15 ft.*lbf)

w/ Seat Belt Warning System:

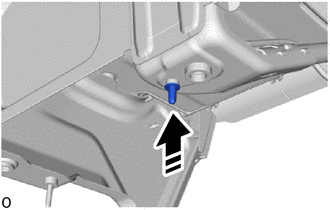

Attach the claw.

0,0 0,0 false

Install in this Direction

Install the front seat No. 1 adjuster cover cap RH as shown in the illustration.

0,0 0,0 false

Install in this Direction

Install the front seat No. 2 adjuster cover cap RH as shown in the illustration.
