RM35X0E _58 Vehicle Interior _078601 SEAT _0381330 FRONT SEAT ASSEMBLY(for Fixed Bench Seat Type) A

SEAT  FRONT SEAT ASSEMBLY(for Fixed Bench Seat Type)  DISASSEMBLY


CAUTION / NOTICE / HINT

CAUTION:
·

Wear protective gloves. Sharp areas on the parts may injure your hands.

·

There is risk of injury.



HINT:
·

Use the same procedure for RHD and LHD vehicles.

·

The procedure listed below is for LHD vehicles.



PROCEDURE

Hide 71848P 1.REMOVE FRONT SEAT NO. 2 ADJUSTER COVER CAP RH

a.

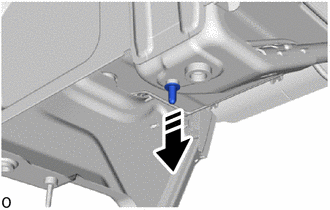

B532237C01
0,0 0,0 false
V113147

Remove in this Direction


Remove the front seat No. 2 adjuster cover cap RH as shown in the illustration.


Hide 71848N 2.REMOVE FRONT SEAT NO. 1 ADJUSTER COVER CAP RH

a.

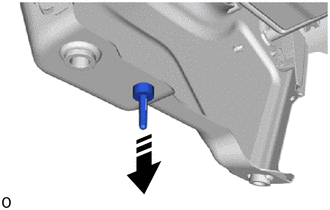

B532239C01
0,0 0,0 false
V113147

Remove in this Direction


Remove the front seat No. 1 adjuster cover cap RH as shown in the illustration.


Hide 71832F 4.REMOVE RH SEAT FRONT SEAT HINGE COVER LH

a.
B532242

Remove the screw.


b.

Detach the claw and remove the RH seat front seat hinge cover LH.


Hide 71831C 5.REMOVE RH SEAT FRONT SEAT HINGE COVER RH

HINT:

Use the same procedure described for the LH side.


Hide 6.REMOVE FRONT SEAT CUSHION ASSEMBLY

a.
B532250

w/ Seat Belt Warning System:

i.

Detach the clamp.



b.
B532252

Remove the 2 bolts and 2 rear seatback hinge spacers and front seat cushion assembly.


Hide 71868P 7.REMOVE RH SEAT FRONT SEAT CUSHION SHIELD LH

a.

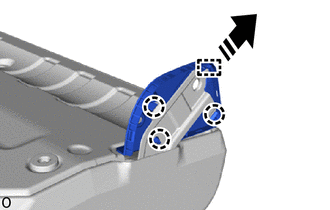

B532253C01
0,0 0,0 false
V113147

Remove in this Direction


Detach the claw.


b.

Detach the guide and remove the RH seat front seat cushion shield LH as shown in the illustration.


Hide 71867Y 8.REMOVE RH SEAT FRONT SEAT CUSHION SHIELD RH

HINT:

Use the same procedure described for the LH side.


Hide 71396H 9.REMOVE FRONT SEAT REAR SUPPORT CUSHION RH

a.
B532255

Remove the 2 screws and 2 front seat rear support cushions RH.


Hide 72927E 10.REMOVE FRONT SEAT CUSHION UNDER COVER RH

a.

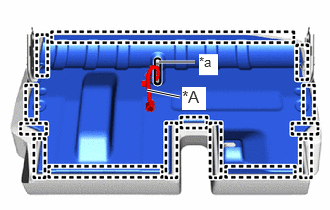

B536576C01
1.531,0.938 1.875,1.01 true 1.656,0.646 2.031,0.646 true 1.896,0.906 2.146,1.146 0.25,0.24 12 true *A 2.073,0.563 2.271,0.781 0.198,0.219 10 true *a
*A w/ Seat Belt Warning System
*a Hole


Detach the hook.


b.

w/ Seat Belt Warning System:

i.

Pass the front seat wire RH through the hole of the front seat cushion under cover RH.



c.

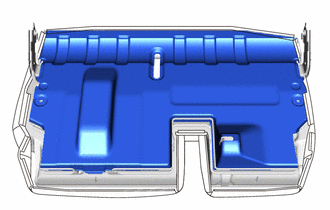

B541895

Remove the front seat cushion under cover RH.


Hide 82191 11.REMOVE FRONT SEAT WIRE RH (w/ Seat Belt Warning System)

a.
B536587

Disconnect the connector.


b.

Detach the clamp and remove the front seat wire RH.


Hide 12.REMOVE FRONT SEAT CUSHION COVER WITH PAD

a.

w/ Seat Belt Warning System:

i.

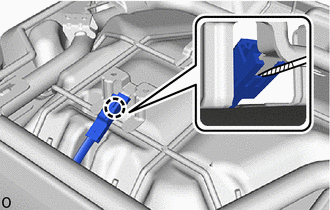

B536588C01
0,0 0,0 false
V100155

Protective Tape


Using a thin-bladed screwdriver, detach the claw.

HINT:

Tape the thin-bladed screwdriver tip before use.




b.

Remove the front seat cushion cover with pad.


Hide 71071 13.REMOVE FRONT SEAT CUSHION COVER SUB-ASSEMBLY RH

a.
B532258

Remove the 11 hog rings and front seat cushion cover sub-assembly RH.


Hide 14.REMOVE SEAT COVER WIRE

a.
B532260

Remove the seat cover wire.


Hide 72250E 15.REMOVE FRONT SEAT CUSHION LOCK ASSEMBLY RH

a.
B532261

Remove the 2 nuts and front seat cushion lock assembly RH.


Hide 78970F 16.REMOVE FRONT SEAT CUSHION LOCK BAND ASSEMBLY RH

a.
B532262

Remove the front seat cushion lock band assembly RH.


Hide 72329D 17.REMOVE SEAT ADJUSTER BOLT COVER RH

a.

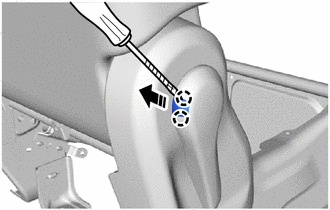

B532263C01
0,0 0,0 false
V113147

Remove in this Direction
V100155

Protective Tape


Using a thin-bladed screwdriver, detach the claw and remove the seat adjuster bolt cover RH as shown in the illustration.

HINT:

Tape the thin-bladed screwdriver tip before use.



Hide 72525M 18.REMOVE RECLINING ADJUSTER RELEASE HANDLE RH

a.
B532265

Remove the screw.


b.

Detach the guide and remove the reclining adjuster release handle RH.


Hide 71805A 19.REMOVE FRONT SEAT CUSHION SHIELD SUB-ASSEMBLY RH

a.

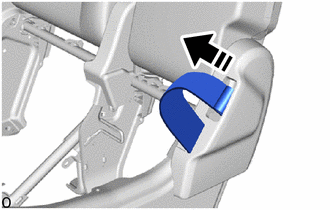

B532266C01
0,0 0,0 false
V113147

Remove in this Direction


Pull out the front center seat lap type belt assembly from the front seat cushion shield sub-assembly RH as shown in the illustration.


b.

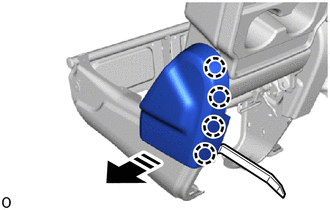

B532268C01
0,0 0,0 false
V113147

Remove in this Direction


Using moulding remover A, detach the claw as shown in the illustration.


c.

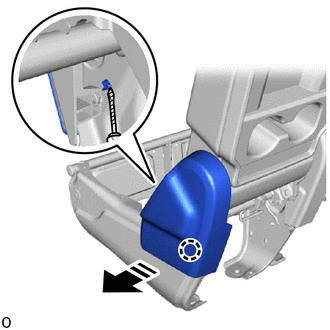

B532270C01
0,0 0,0 false
V113147

Remove in this Direction
V100155

Protective Tape


Using a thin-bladed screwdriver, detach the claw as shown in the illustration.

HINT:

Tape the thin-bladed screwdriver tip before use.



d.

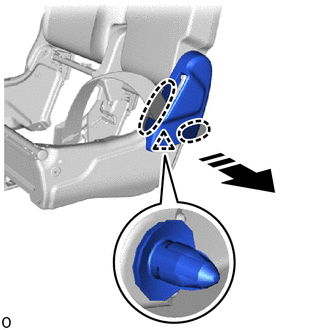

B532274C01
0,0 0,0 false
V113146

Place Hands Here
V113147

Remove in this Direction


Place your hands at the position shown in the illustration and pull in the removal direction and detach the clip.


e.

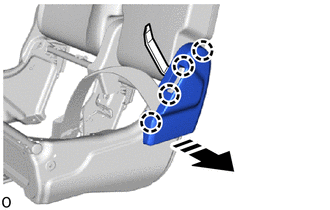

B532272C01
0,0 0,0 false
V113147

Remove in this Direction


Using moulding remover A, detach the claw as shown in the illustration.


f.

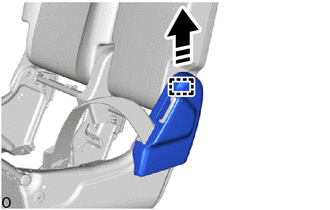

B533297C01
0,0 0,0 false
V113147

Remove in this Direction


Detach the guide and remove the front seat cushion shield sub-assembly RH as shown in the illustration.


Hide 71811U 21.REMOVE BENCH TYPE FRONT SEAT CUSHION SHIELD

a.

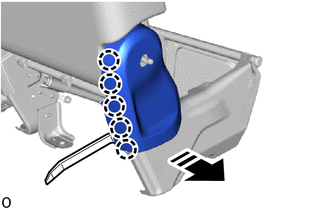

B533299C01
0,0 0,0 false
V113147

Remove in this Direction


Using moulding remover A, detach the claw as shown in the illustration.


b.

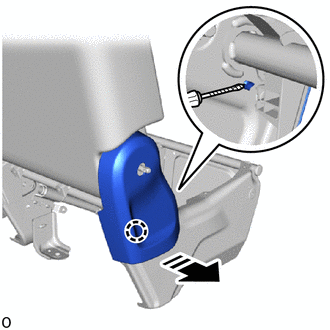

B533301C01
0,0 0,0 false
V113147

Remove in this Direction
V100155

Protective Tape


Using a thin-bladed screwdriver, detach the claw as shown in the illustration.

HINT:

Tape the thin-bladed screwdriver tip before use.



c.

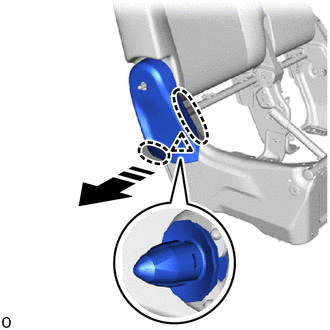

B533305C01
0,0 0,0 false
V113146

Place Hands Here
V113147

Remove in this Direction


Place your hands at the position shown in the illustration and pull in the removal direction and detach the clip.


d.

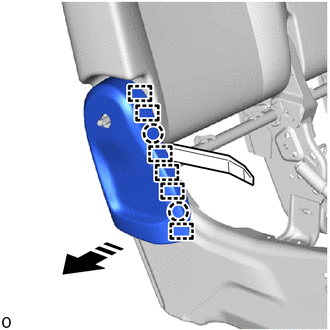

B533303C01
0,0 0,0 false
V113147

Remove in this Direction


Using moulding remover A, detach the claw and guide as shown in the illustration.


e.

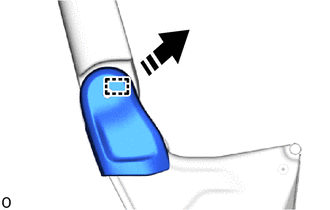

B548408C01
0,0 0,0 false
V113147

Remove in this Direction


Detach the guide and remove the bench type front seat cushion shield as shown in the illustration.


Hide 72345J 22.REMOVE SEAT STAND FRAME CAP RH

a.
B532241

Remove the 2 seat stand frame caps RH.


Hide 71387A 23.REMOVE CENTER SEAT LOWER HINGE ARM RH

a.

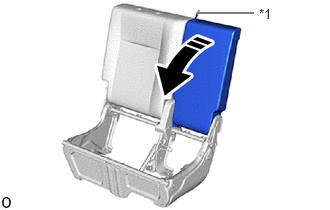

B533311C01
2.052,0.135 2.646,0.135 true 2.698,0.063 3.01,0.26 0.313,0.198 10 false *1
*1 Front Seatback Lock Band Assembly RH
V113147

Fold in this Direction


Pull the front seatback lock band assembly RH and fold the center seatback assembly forward.


b.
B533313

Using a T45 "TORX" socket wrench, remove the "TORX" screw and front seat reclining spacer LH.


c.

Remove the 2 bolts and center seat lower hinge arm RH.


Hide 24.REMOVE CENTER SEATBACK ASSEMBLY

a.
B533314

Remove the bolt and center seatback assembly.


Hide 71397F 25.REMOVE CENTER SEAT UPPER HINGE COVER RH

a.
B548429C01
0,0 0,0 false
V113147

Remove in this Direction


Using a clip remover, remove the clip.


b.

Detach the guide and remove the center seat upper hinge cover RH as shown in the illustration.


Hide 72521 26.REMOVE LOWER RECLINING ADJUSTER ARM RH

a.
B533317

Using a T45 "TORX" socket wrench, remove the "TORX" screw and front seat reclining spacer RH and lower reclining adjuster arm RH.


Hide 71784A 27.REMOVE FRONT SEATBACK BOARD CAP

a.

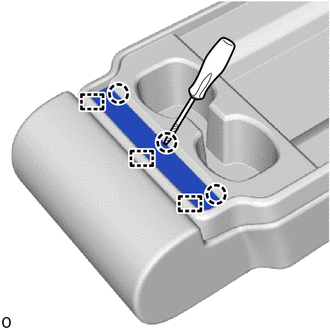

B548409C01
0,0 0,0 false
V100155

Protective Tape


Using a thin-bladed screwdriver, detach the claw and guide and remove the front seatback board cap.

HINT:

Tape the thin-bladed screwdriver tip before use.



Hide 71705F 28.REMOVE FRONT SEATBACK BOARD SUB-ASSEMBLY RH

a.

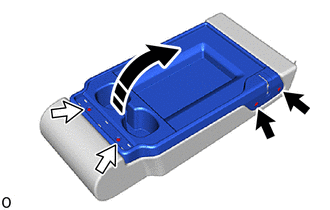

B533320C01
0,0 0,0 false
V100135

Clip
V100136

Screw
V113147

Lift in this Direction


Using a clip remover, remove the 2 clips.


b.

Remove the 2 screws.


c.

Lift up the front seatback board sub-assembly RH as shown in the illustration.


d.

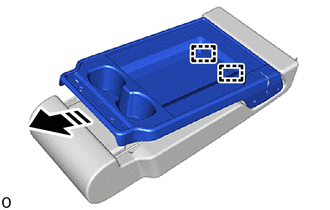

B533322C01
0,0 0,0 false
V113147

Remove in this Direction


Pull in the removal direction shown in the illustration and detach the guide and remove the front seatback board sub-assembly RH.


Hide 29.REMOVE CENTER SEATBACK COVER WITH PAD

a.
B548432

Detach the hook.


b.
B544959

Detach the hook and remove the center seatback cover with pad.


Hide 71095 30.REMOVE CENTER SEATBACK COVER SUB-ASSEMBLY

a.

Remove the center seatback cover sub-assembly.


Hide 72510H 31.REMOVE FRONT SEATBACK LOCK ASSEMBLY RH

a.
B548431

Remove the 2 bolts and front seatback lock assembly RH.


Hide 78970G 32.REMOVE FRONT SEATBACK LOCK BAND ASSEMBLY RH

a.
B548411

Remove the front seatback lock band assembly RH.


Hide 71H75A 33.REMOVE RH SEAT RECLINING ADJUSTER INSIDE COVER

a.
B533315

Detach the clip and remove the RH seat reclining adjuster inside cover.


Hide 71861K 34.REMOVE FRONT SEAT INNER CUSHION SHIELD RH

a.
B533324

Remove the clip.


b.

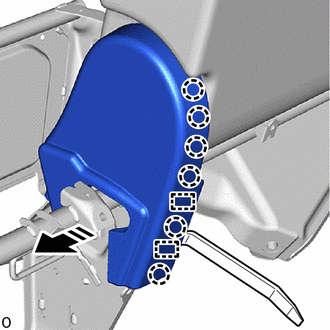

B533325C01
0,0 0,0 false
V113147

Remove in this Direction


Using moulding remover A, detach the claw and guide as shown in the illustration.


c.

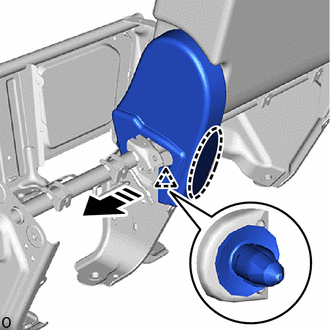

B533327C01
0,0 0,0 false
V113146

Place Hand Here
V113147

Remove in this Direction


Place your hand at the position shown in the illustration and detach the clip.


d.
B533329C01
0,0 0,0 false
V113147

Remove in this Direction


Using moulding remover A, detach the claw and guide and remove the front seat inner cushion shield RH as shown in the illustration.


Hide 71H76 35.REMOVE RH SEAT RECLINING ADJUSTER INSIDE COVER LH

a.
B536539

Detach the clip and guide and remove the RH seat reclining adjuster inside cover LH.


Hide 71H75 36.REMOVE RH SEAT RECLINING ADJUSTER INSIDE COVER RH

a.
B536540

Detach the clip and guide and remove the RH seat reclining adjuster inside cover RH.


Hide 37.REMOVE FRONT SEATBACK ASSEMBLY RH

a.
B533335

Remove the 4 bolts.


b.

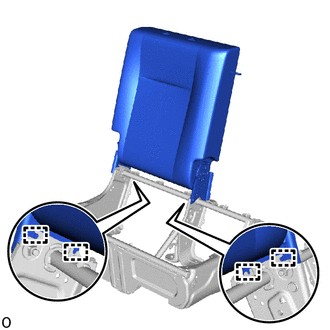

B548452

Detach the guide and remove the front seatback assembly RH.


Hide 71073A 38.REMOVE FRONT SEATBACK COVER SUB-ASSEMBLY RH

a.

Detach the fastening tape.

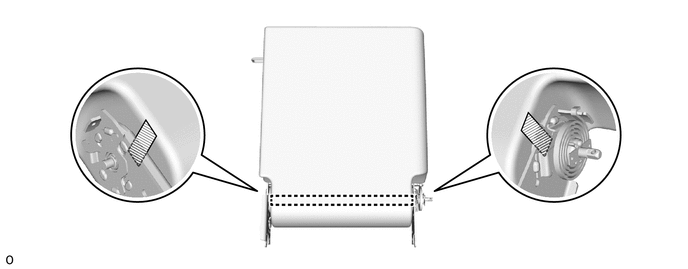

B536542C01
0,0 0,0 false
V100155

Fastening Tape - -



b.

Detach the hook.


c.
B536543

Pull out the fastener.


d.
B536545

Open the fastener.


e.

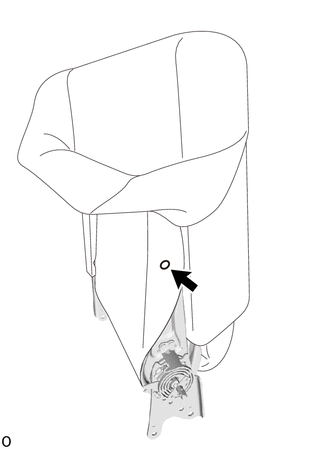

B536548

Using a clip remover, remove the clip.


f.

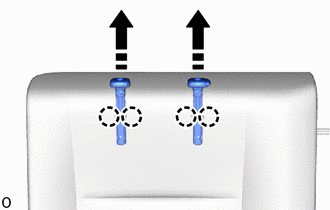

B533336C01
0,0 0,0 false
V113147

Remove in this Direction


Detach the claw and remove the 2 front seat headrest support assemblies RH as shown in the illustration.


g.
B533338

Remove the 3 hog rings and front seatback cover sub-assembly RH.


Hide 39.REMOVE SEAT COVER WIRE

a.
B533340

Remove the seat cover wire.


Hide 79158 40.REMOVE SEATBACK COVER PLATE RH

a.

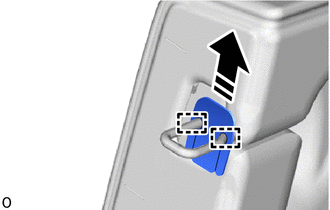

B536572C01
0,0 0,0 false
V113147

Remove in this Direction


Detach the guide and seatback cover plate RH as shown in the illustration.


Hide 71551A 41.REMOVE FRONT SEATBACK PAD RH

a.

Remove the front seatback pad RH.


Hide 74810L 42.REMOVE FRONT PROTECTOR ASSEMBLY RH

a.
B536549

Using a clip remover, remove the clip.


b.

Detach the guide and remove the front protector assembly RH.


Hide 71H76A 43.REMOVE RH SEATBACK FRAME RECLINING ADJUSTER INSIDE COVER LH

a.

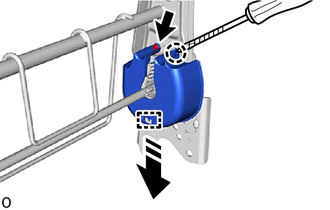

B533341C01
0,0 0,0 false
V113147

Remove in this Direction
V100155

Protective Tape


Remove the screw.


b.

Using a thin-bladed screwdriver, detach the claw.

HINT:

Tape the thin-bladed screwdriver tip before use.



c.

Detach the guide and remove the RH seatback frame reclining adjuster inside cover LH as shown in the illustration.


Hide 71H75B 44.REMOVE RH SEATBACK FRAME RECLINING ADJUSTER INSIDE COVER RH

a.

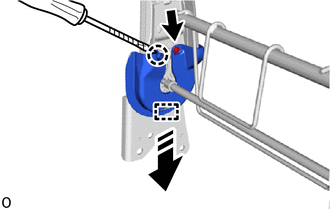

B533343C01
0,0 0,0 false
V113147

Remove in this Direction
V100155

Protective Tape


Remove the screw.


b.

Using a thin-bladed screwdriver, detach the claw.

HINT:

Tape the thin-bladed screwdriver tip before use.



c.

Detach the guide and remove the RH seatback frame reclining adjuster inside cover RH as shown in the illustration.
