LIGHTING (INT)  MAP LIGHT BULB  REPLACEMENT


PROCEDURE

Hide 81260A 1.REMOVE MAP LIGHT ASSEMBLY (w/o Overhead Console)

a.
B539579

Using moulding remover D, detach the claw as shown in the illustration.


b.

Disconnect the connector and remove the map light assembly.


Hide 81260A 2.REMOVE MAP LIGHT ASSEMBLY (w/ Overhead Console, for Standard Roof)

a.
B539580C01
0,0 0,0 false
V113147

Remove in this Direction


Using moulding remover D, detach the clip as shown in the illustration.


b.
B539582C01
0,0 0,0 false
V113147

Remove in this Direction


Using moulding remover D, detach the clip as shown in the illustration.


c.
B539584C01
0,0 0,0 false
V113147

Remove in this Direction


Using moulding remover D, detach the clip as shown in the illustration.


d.
E409979C01
0,0 0,0 false
V113147

Remove in this Direction


Detach the guide and remove the map light assembly as shown in the illustration.


e.
E409984C01
0.052,1.917 0.344,2.156 0.292,0.24 12 true *A
*A w/ Microphone


Detach the clamp and disconnect the connector.


f.

w/ Microphone:

Disconnect the connector.


Hide 81260A 3.REMOVE MAP LIGHT ASSEMBLY (w/ Overhead Console, for High Roof)

a.
E409993C01
0,0 0,0 false
V100155

Protective Tape


Apply protective tape at the position shown in the illustration.


b.
E409994C01
0,0 0,0 false
V113147

Remove in this Direction


Using moulding remover D, detach the clip as shown in the illustration.


c.
E409995C01
0,0 0,0 false
V113147

Remove in this Direction


Using moulding remover D, detach the clip as shown in the illustration.


d.
E409996C01
0,0 0,0 false
V113147

Remove in this Direction


Using moulding remover D, detach the clip as shown in the illustration.


e.
E409998C01
0,0 0,0 false
V113147

Remove in this Direction


Detach the guide and remove the map light assembly as shown in the illustration.


f.

Detach the clamp and disconnect the connector.


g.
E409999C02
0.115,1.885 0.49,2.125 0.375,0.24 12 true *A
*A w/ Microphone


w/ Microphone:

Disconnect the connector.


Hide 81208 4.REMOVE MAP LIGHT SUB-ASSEMBLY

a.

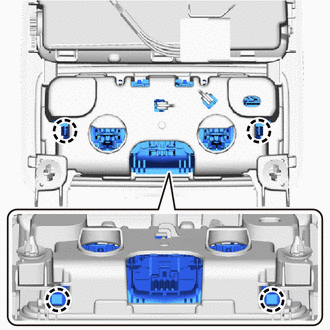

E409991

Detach the claw and remove the map light sub-assembly.


Hide 81261 5.REMOVE MAP LIGHT LENS AND COVER

a.

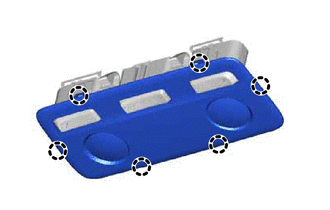

E409978

Detach the claw and remove the map light lens and cover.


Hide 81260C 6.REMOVE MAP LIGHT BULB

a.

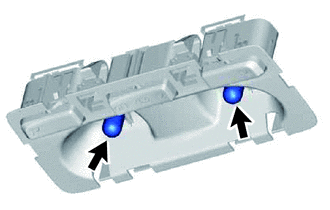

E222175

Remove the 2 map light bulbs.


Hide 81260C 7.INSTALL MAP LIGHT BULB

a.
E222175

Install the 2 map light bulbs.


Hide 81261 8.INSTALL MAP LIGHT LENS AND COVER

a.
E409978

Attach the claw to install the map light lens and cover.


Hide 81208 9.INSTALL MAP LIGHT SUB-ASSEMBLY

a.
E409991

Attach the claw to install the map light sub-assembly.


Hide 81260A 10.INSTALL MAP LIGHT ASSEMBLY (w/o Overhead Console)

a.

Connect the connector.


b.

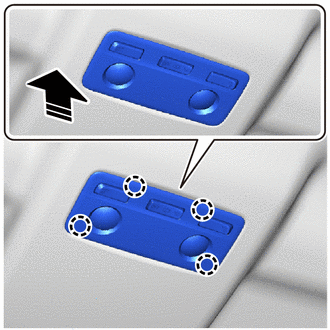

E409990C01
0,0 0,0 false
V113147

Install in this Direction


Attach the claw to install the map light assembly as shown in the illustration.


Hide 81260A 11.INSTALL MAP LIGHT ASSEMBLY (w/ Overhead Console, for High Roof)

a.

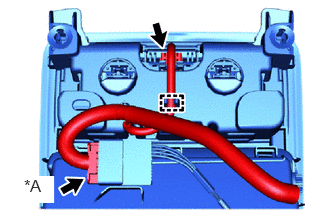

E409999C01
0.25,1.833 0.563,2.115 0.313,0.281 12 true *A
*A w/ Microphone


Connect the connector and attach the clamp.


b.

w/ Microphone:

Connect the connector.


c.
E410001C01
0,0 0,0 false
V113147

Install in this Direction

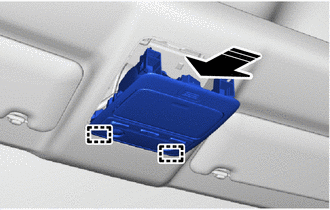

Attach the guide as shown in the illustration.


d.
E410003C01
0,0 0,0 false
V113147

Install in this Direction

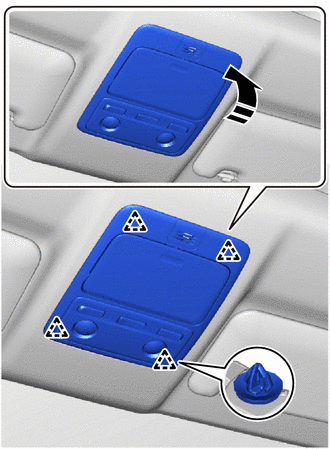

Attach the clip to install the map light assembly as shown in the illustration.


Hide 81260A 12.INSTALL MAP LIGHT ASSEMBLY (w/ Overhead Console, for Standard Roof)

a.

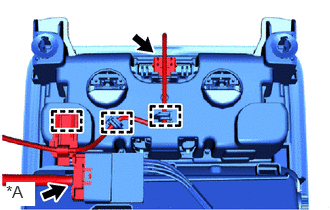

E409984C02
0.063,1.896 0.365,2.146 0.302,0.25 12 true *A
*A w/ Microphone


Connect the connector and attach the clamp.


b.

w/ Microphone:

Connect the connector.


c.

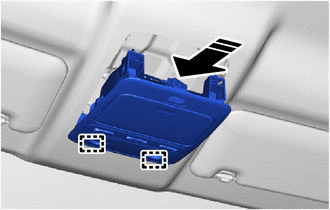

E409986C01
0,0 0,0 false
V113147

Install in this Direction


Attach the guide as shown in the illustration.


d.

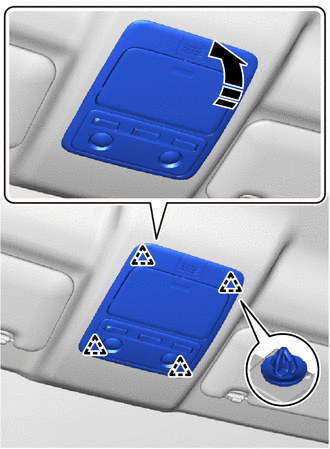

E409988C01
0,0 0,0 false
V113147

Install in this Direction


Attach the clip to install the map light assembly as shown in the illustration.
