RM35X0E _58 Vehicle Interior _078381 LIGHTING (INT) _0381238 ROOM LIGHT BULB A

LIGHTING (INT)  ROOM LIGHT BULB  REPLACEMENT


PROCEDURE

Hide 81240B 1.REMOVE NO. 1 ROOM LIGHT BULB

HINT:

Use the same procedure for all No. 1 room light bulbs.


a.

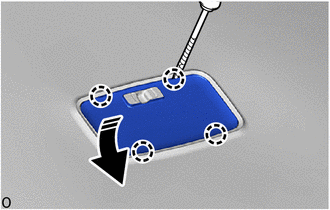

E357261C05
0,0 0,0 false
V113147

Remove in this Direction
V100155

Protective Tape


Using a screwdriver with its tip wrapped in protective tape, detach the claw and remove the No. 1 room light lens as shown in the illustration.


b.

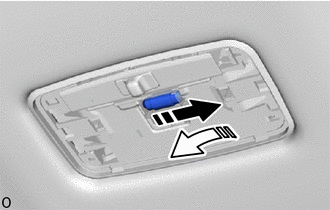

E404851C01
0,0 0,0 false
V113147

Remove in this Direction (1)
V113148

Remove in this Direction (2)


Remove the No. 1 room light bulb as shown in the illustration.


Hide 81240B 2.INSTALL NO. 1 ROOM LIGHT BULB

HINT:

Use the same procedure for all No. 1 room light bulbs.


a.

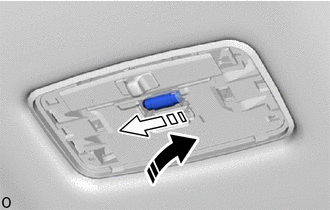

E404852C01
0,0 0,0 false
V113147

Install in this Direction (1)
V113148

Install in this Direction (2)


Install the No. 1 room light bulb as shown in the illustration.


b.
E357262C01
0,0 0,0 false
V113147

Install in this Direction


Attach the claw to install the No. 1 room light lens as shown in the illustration.
