LIGHTING (INT)  IGNITION KEY CYLINDER LIGHT  INSTALLATION


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for RHD and LHD vehicles.

·

The procedure listed below is for LHD vehicles.



PROCEDURE

Hide 81870E 1.INSTALL KEY CYLINDER LIGHT BULB (w/o Engine Immobilizer System)

a.
E415107C01
0,0 0,0 false
V113147

Install in this Direction (1)
V113148

Install in this Direction (2)

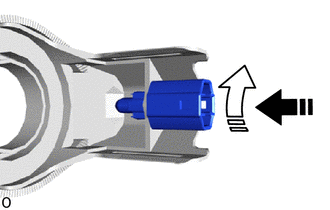

Insert in the direction indicated by the arrow (1) shown in the illustration.


b.

Turn in the direction indicated by the arrow (2) shown in the illustration to install the key cylinder light bulb.


Hide 81870D 2.INSTALL KEY CYLINDER LIGHT ASSEMBLY (w/o Engine Immobilizer System)

a.
E412000

Connect the connector.


b.
E415109C01
0,0 0,0 false
V113147

Install in this Direction

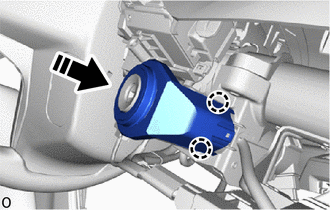

Attach the claw to install the key cylinder light assembly as shown in the illustration.


Hide 89782 3.INSTALL TRANSPONDER KEY COIL (w/ Engine Immobilizer System)

a.
E406798

Connect the connector.

NOTICE:

Do not reuse parts if dropped or subjected to any strong impact.



b.
E415108C01
0,0 0,0 false
V113147

Install in this Direction

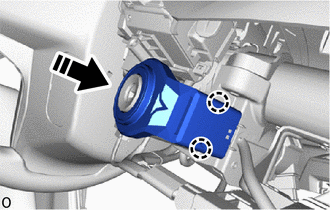

Attach the claw to install the transponder key coil as shown in the illustration.
