RM35X0E _58 Vehicle Interior _078381 LIGHTING (INT) _0381239 IGNITION KEY CYLINDER LIGHT A

LIGHTING (INT)  IGNITION KEY CYLINDER LIGHT  REMOVAL


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for RHD and LHD vehicles.

·

The procedure listed below is for LHD vehicles.



PROCEDURE

Hide 89782 2.REMOVE TRANSPONDER KEY COIL (w/ Engine Immobilizer System)

a.
E411998C01
0,0 0,0 false
V113147

Remove in this Direction

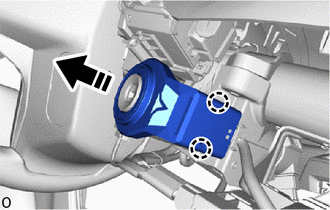

Detach the claw and remove the transponder key coil as shown in the illustration.

NOTICE:

Do not reuse parts if dropped or subjected to any strong impact.



b.
E406798

Disconnect the connector.


Hide 81870D 3.REMOVE KEY CYLINDER LIGHT ASSEMBLY (w/o Engine Immobilizer System)

a.
E411999C01
0,0 0,0 false
V113147

Remove in this Direction

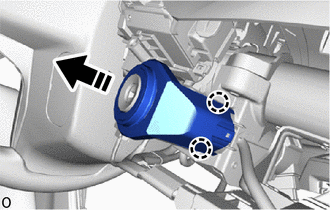

Detach the claw and remove the key cylinder light assembly as shown in the illustration.


b.
E412000

Disconnect the connector.


Hide 81870E 4.REMOVE KEY CYLINDER LIGHT BULB (w/o Engine Immobilizer System)

a.
E415106C01
0,0 0,0 false
V113147

Remove in this Direction (1)
V113148

Remove in this Direction (2)

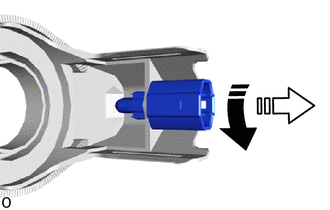

Turn in the direction indicated by the arrow (1) shown in the illustration.


b.

Pull in the direction indicated by the arrow (2) shown in the illustration and remove the key cylinder light bulb.
