INTERIOR PANELS / TRIM  ROOF HEADLINING(for Full-trim)  REASSEMBLY

0,0 0,0 false

	Install in this Direction (1)
	Install in this Direction (2)

Attach the claw in the order shown in the illustration and install the No. 1 air outlet register assembly.

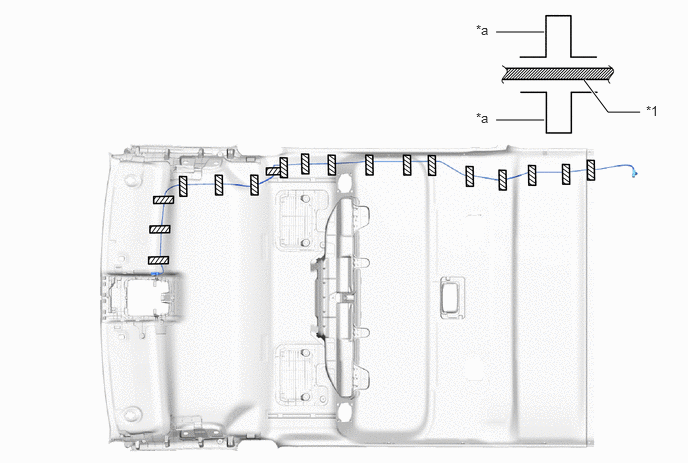

Fix the mirror camera wire in place with tape as shown in the illustration.

HINT:

Align the tape with the markings when attaching it.

5.167,0.333 5.667,0.333 false 5.167,1.25 5.667,1.25 false 6.083,0.833 6.333,1.167 6.333,1.167 6.667,1.167 true 4.958,0.229 5.271,0.427 0.313,0.198 10 false *a 4.958,1.146 5.271,1.344 0.313,0.198 10 false *a 6.729,1.073 7.042,1.271 0.313,0.198 10 false *1

*1	Mirror Camera Wire	-	-
*a	Marking	-	-
	Tape	-	-

w/ Rear Wiper or w/ Digital Inner Mirror:

i.

Attach the clamp to install the No. 2 roof wire to the washer hose.

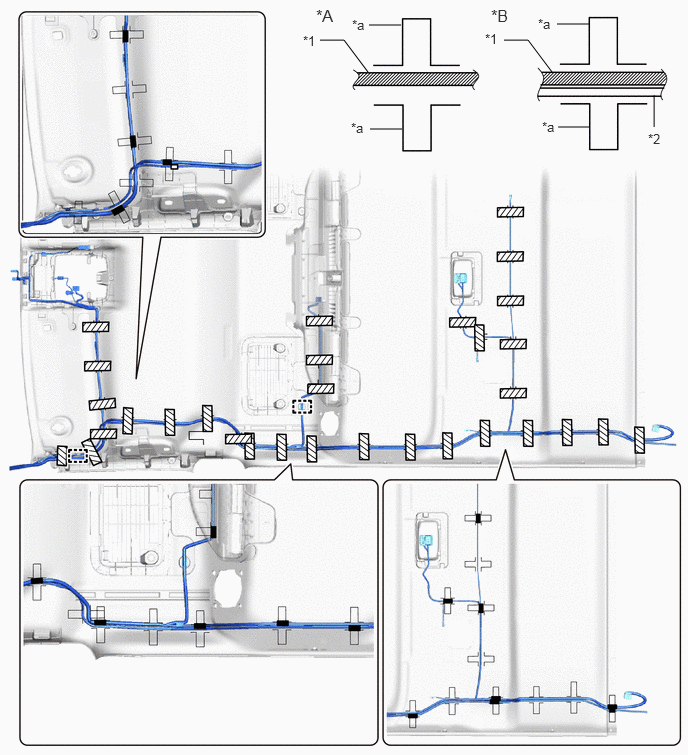

Fix the No. 2 roof wire in place with tape as shown in the illustration.

HINT:

·

Align the tape with the markings when attaching it.

·

Align the No. 2 roof wire positioning tape and washer hose positioning tape with the position shown in the illustration.

3.833,0.75 3.583,0.417 3.583,0.417 3.333,0.417 false 5.75,0.75 5.5,0.417 5.5,0.417 5.25,0.417 false 5.802,0.25 6.135,0.25 false 3.844,0.26 4.177,0.26 false 3.854,1.344 4.188,1.344 false 5.813,1.323 6.146,1.323 false 6.813,1.323 6.813,0.99 false 3.667,0.177 3.979,0.375 0.313,0.198 10 false *a 3.656,1.25 3.969,1.448 0.313,0.198 10 false *a 5.646,1.24 5.958,1.438 0.313,0.198 10 false *a 5.604,0.167 5.917,0.365 0.313,0.198 10 false *a 5.052,0.323 5.365,0.521 0.313,0.198 10 false *1 3.156,0.344 3.469,0.542 0.313,0.198 10 false *1 3.292,0.063 3.667,0.302 0.375,0.24 12 false *A 5.115,0.063 5.49,0.302 0.375,0.24 12 false *B 6.75,1.365 7.063,1.563 0.313,0.198 10 false *2

*A	w/o Rear Wiper or w/o Digital Inner Mirror:	*B	w/ Rear Wiper or w/ Digital Inner Mirror:
*1	No. 2 Roof Wire	*2	Washer Hose
*a	Marking	-	-
	No. 2 Roof Wire Positioning Tape		Washer Hose Positioning Tape
	Tape	-	-

w/ Digital Inner Mirror:

i.

Connect the connector.

0,0 0,0 false

Install in this Direction

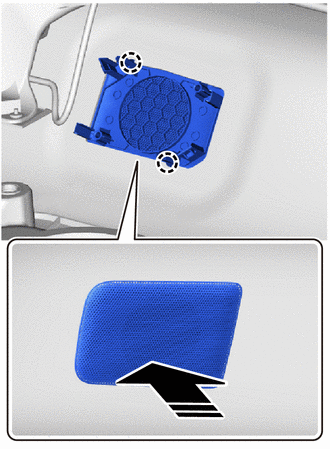

Attach the claw to install the roof speaker grille LH as shown in the illustration.

Attach the claw to install the roof speaker grille LH with the 4 new spring nuts.

Install a new No. 2 roof silencer pad to the position shown in the figure with double-sided tape.

Install a new No. 2 roof silencer pad to the position shown in the figure with double-sided tape.

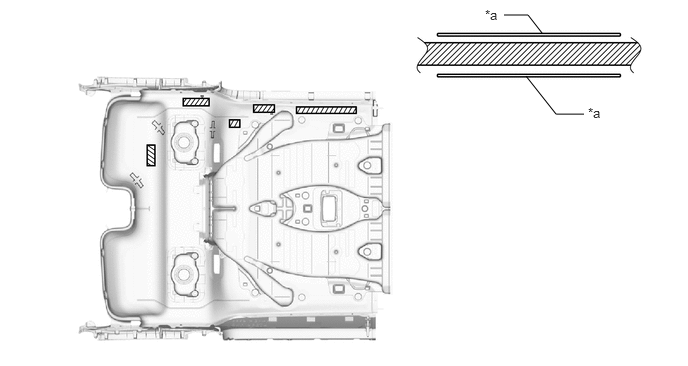

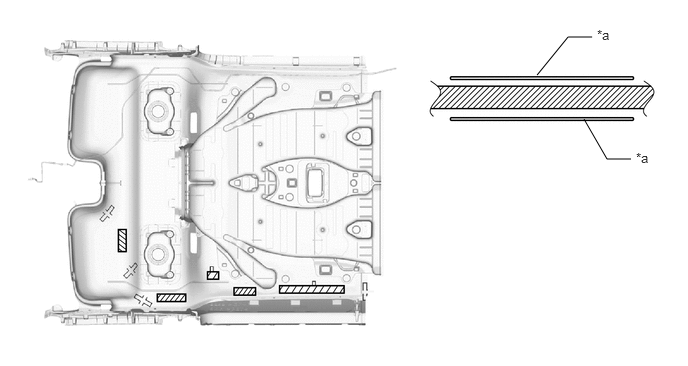

Apply butyl tape as shown in the illustration.

HINT:

Place the tape securely so that it is not misaligned or peeling.

5.25,0.156 5.5,0.156 5.5,0.156 5.646,0.344 false 6.083,1.188 5.792,1.188 5.792,1.188 5.479,0.792 false 5.052,0.073 5.365,0.271 0.313,0.198 10 false *a 6.125,1.094 6.438,1.292 0.313,0.198 10 false *a

*a	Marking	-	-
	Butyl Tape	-	-

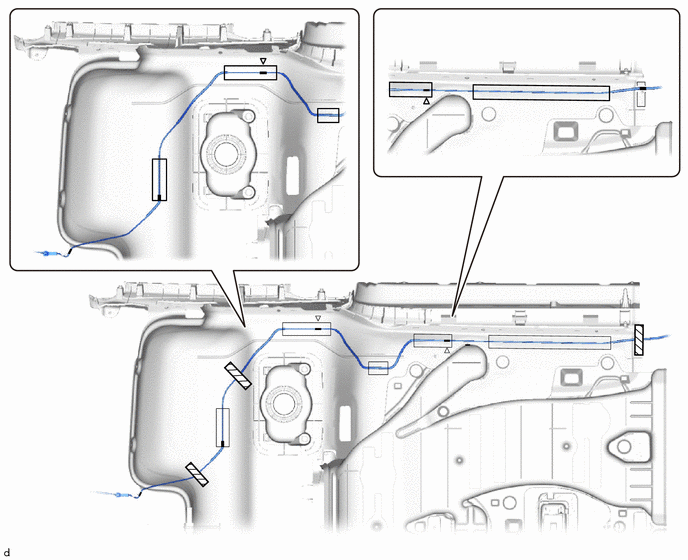

Install the mirror camera wire to the butyl tape, and then secure the mirror camera wire with the 3 pieces of tape.

HINT:

·

Align the mirror camera wire positioning tape the position shown in the illustration.

·

Make sure that the mirror camera wire is securely attached to the roof headlining along its entire length and not twisted.

0,0 0,0 false

Positioning Tape

Tape

Apply butyl tape as shown in the illustration.

HINT:

Place the tape securely so that it is not misaligned or peeling.

5.594,0.781 5.917,0.385 5.917,0.385 6.167,0.385 false 6.083,1.24 6.323,1.656 6.323,1.656 6.573,1.656 false 6.219,0.281 6.531,0.479 0.313,0.198 10 false *a 6.625,1.563 6.938,1.76 0.313,0.198 10 false *a

*a	Marking	-	-
	Butyl Tape	-	-

w/ Rear Wiper or w/ Digital Inner Mirror:

ii.

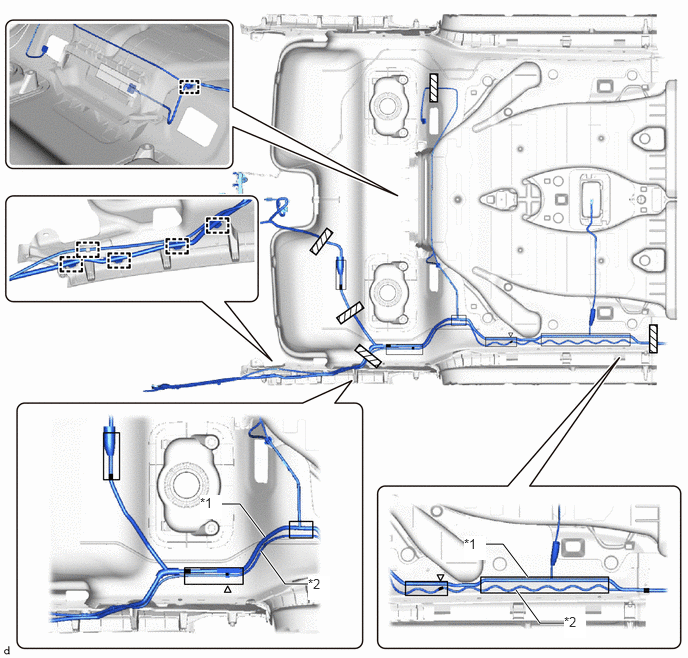

Install the No. 2 roof wire to the butyl tape, and then secure the No. 2 roof wire with 5 pieces of tape.

HINT:

·

Align the No. 2 roof wire positioning tape and washer hose positioning tape together with the position shown in the illustration.

·

Make sure that the No. 2 roof wire is securely attached to the roof headlining along its entire length and not twisted.

2.25,5.25 2.5,5.25 2.5,5.25 2.76,5.594 true 2.719,5.74 2.969,6.083 2.969,6.083 3.229,6.083 true 4.99,5.667 5.24,5.667 5.24,5.667 5.5,6.01 true 5.375,6.146 5.625,6.49 5.625,6.49 5.885,6.49 true 2.083,5.156 2.313,5.406 0.229,0.25 10 true *1 3.208,6 3.438,6.25 0.229,0.25 10 true *2 5.875,6.396 6.104,6.646 0.229,0.25 10 true *2 4.833,5.583 5.063,5.833 0.229,0.25 10 true *1

*1	No. 2 Roof Wire	*2	Washer Hose
	Positioning Tape		Tape

iii.

Attach the clamp to install the No. 2 roof wire to the washer hose.

w/o Rear Wiper or w/o Digital Inner Mirror:

ii.

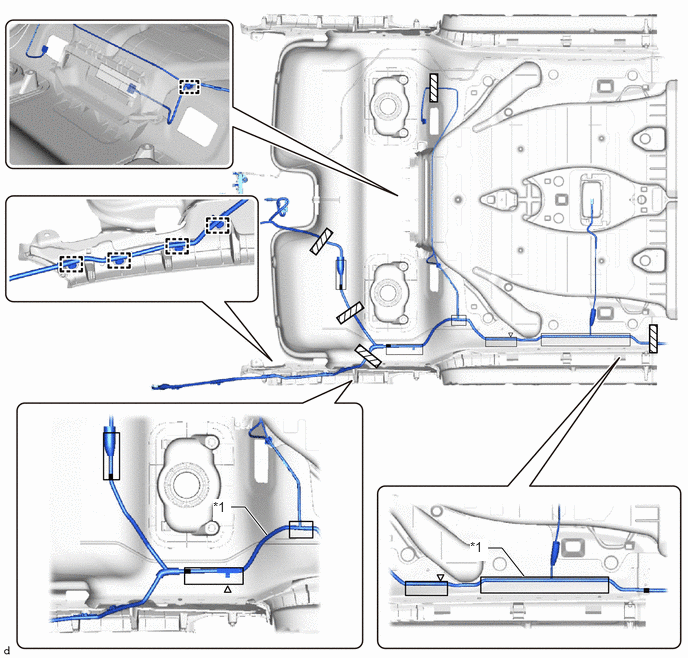

Install the No. 2 roof wire to the butyl tape, and then secure the No. 2 roof wire with 5 pieces of tape.

HINT:

·

Align the No. 2 roof wire positioning tape and washer hose positioning tape together with the position shown in the illustration.

·

Make sure that the No. 2 roof wire is securely attached to the roof headlining along its entire length and not twisted.

2.781,5.573 2.552,5.281 2.552,5.281 2.354,5.281 true 5.458,6 5.229,5.708 5.229,5.708 5.031,5.708 true 2.219,5.198 2.406,5.427 0.188,0.229 10 true *1 4.896,5.615 5.083,5.844 0.188,0.229 10 true *1

*1	No. 2 Roof Wire	-	-
	Positioning Tape		Tape

w/ Digital Inner Mirror:

i.

Attach the guide.

0,0 0,0 false

Install in this Direction

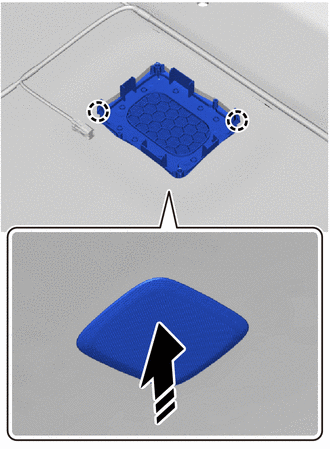

Attach the claw to install the roof speaker grille LH.

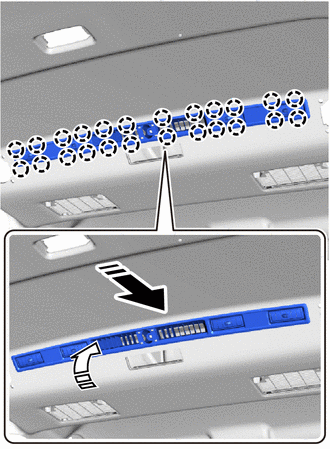

Attach the claw to install the No. 1 air outlet register assembly.

0,0 0,0 false

Install in this Direction

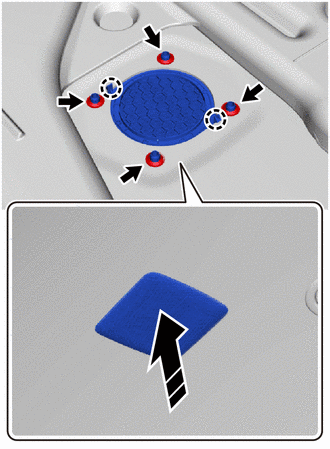

Attach the claw to install the center roof speaker grille with the 4 new spring nuts.
