INTERIOR PANELS / TRIM  ROOF HEADLINING(for Full-trim)  DISASSEMBLY

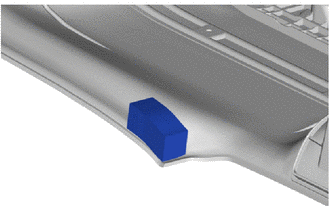

63342 1.REMOVE NO. 2 ROOF SILENCER PAD (for Standard Roof, LH Side)

a.

Remove the No. 2 roof silencer pad.

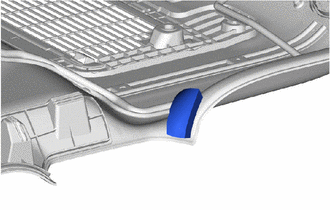

63342 2.REMOVE NO. 2 ROOF SILENCER PAD (for Standard Roof, RH Side)

a.

Remove the No. 2 roof silencer pad.

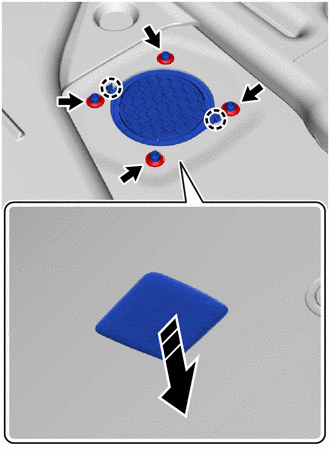

63416B 3.REMOVE ROOF SPEAKER GRILLE LH (for Standard Roof, Front Side)

a.

Remove the 4 spring nuts.

b.

Detach the claw and remove the roof speaker grille LH.

63415B 4.REMOVE ROOF SPEAKER GRILLE RH (for Standard Roof, Front Side)

86160Q 5.REMOVE ROOF SPEAKER ASSEMBLY (for Standard Roof)

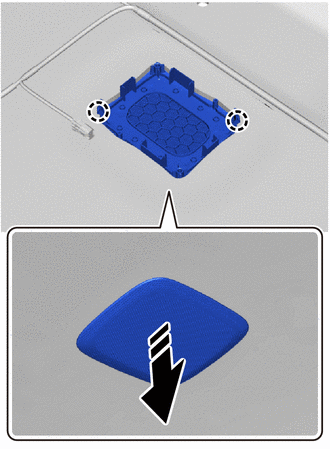

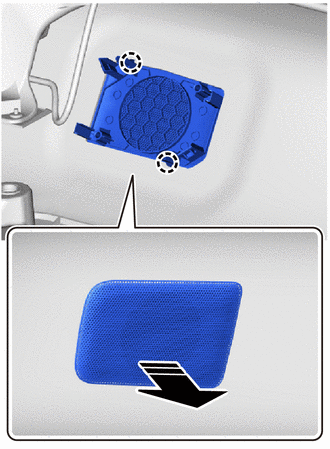

63416B 6.REMOVE ROOF SPEAKER GRILLE LH (for Standard Roof, Rear Side)

a.

0,0 0,0 false

Remove in this Direction

Detach the claw and remove the roof speaker grille LH.

63415B 7.REMOVE ROOF SPEAKER GRILLE RH (for Standard Roof, Rear Side)

82172 8.REMOVE NO. 2 ROOF WIRE (for Standard Roof)

a.

Detach each clamp.

b.

w/ Digital Inner Mirror:

i.

Disconnect the connector.

c.

Remove each piece of tape and No. 2 roof wire from the roof headlining.

6.302,3.906 5.979,3.906 5.979,3.906 5.604,3.313 false 0.188,1.177 0.563,1.417 0.375,0.24 12 false *A 6.333,3.823 6.646,4.021 0.313,0.198 10 false *1

*A	w/ Digital Inner Mirror	-	-
*1	No. 2 Roof Wire	-	-
	Tape	-	-

d.

w/ Rear Wiper or w/ Digital Inner Mirror:

i.

Detach the clamp and remove the No. 2 roof wire from the washer hose.

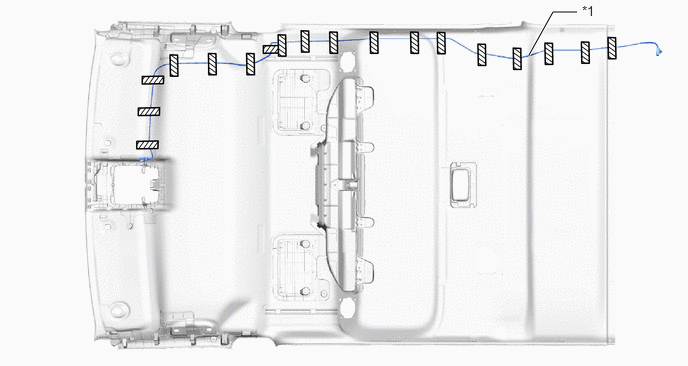

867C1 9.REMOVE MIRROR CAMERA WIRE (for Standard Roof, w/ Digital Inner Mirror)

a.

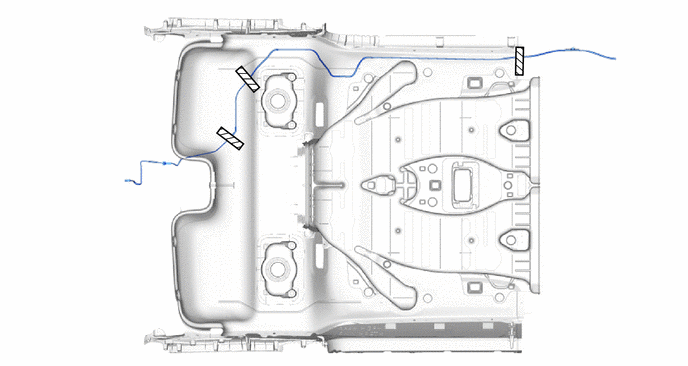

Remove each piece of tape and mirror camera wire from the roof headlining.

5.51,0.573 5.76,0.125 5.76,0.125 6.01,0.125 true 6.063,0.031 6.375,0.229 0.313,0.198 10 false *1

*1	Mirror Camera Wire	-	-
	Tape	-	-

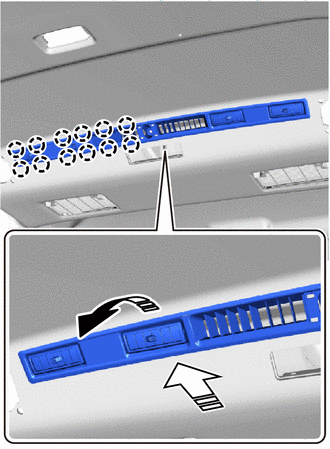

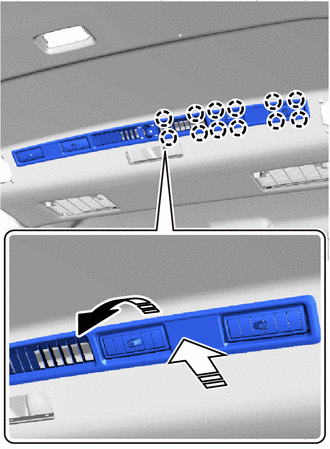

63610C 10.REMOVE NO. 1 AIR OUTLET REGISTER ASSEMBLY (for Standard Roof)

a.

0,0 0,0 false

	Remove in this Direction (1)
	Remove in this Direction (2)

Detach the claw as shown in the illustration.

b.

0,0 0,0 false

	Remove in this Direction (1)
	Remove in this Direction (2)

Detach the claw and remove the No. 1 air outlet register assembly as shown in the illustration.

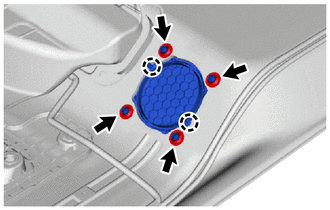

63415D 11.REMOVE CENTER ROOF SPEAKER GRILLE (for High Roof)

HINT:

Use the same procedure for both center roof speaker grilles.

a.

0,0 0,0 false

Remove in this Direction

Remove the 4 spring nuts.

b.

Detach the claw and remove the center roof speaker grille.

63610C 12.REMOVE NO. 1 AIR OUTLET REGISTER ASSEMBLY (for High Roof)

HINT:

Use the same procedure for all No. 1 air outlet register assemblies.

a.

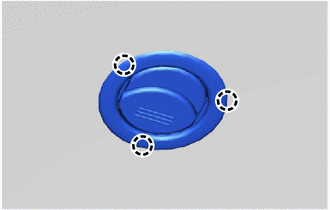

Detach the claw and remove the No. 1 air outlet register assembly.

13.REMOVE ROOF SPEAKER WITH BRACKET (for High Roof)

63416B 14.REMOVE ROOF SPEAKER GRILLE LH (for High Roof)

a.

0,0 0,0 false

Remove in this Direction

Detach the claw and remove the roof speaker grille LH.

63415B 15.REMOVE ROOF SPEAKER GRILLE RH (for High Roof)

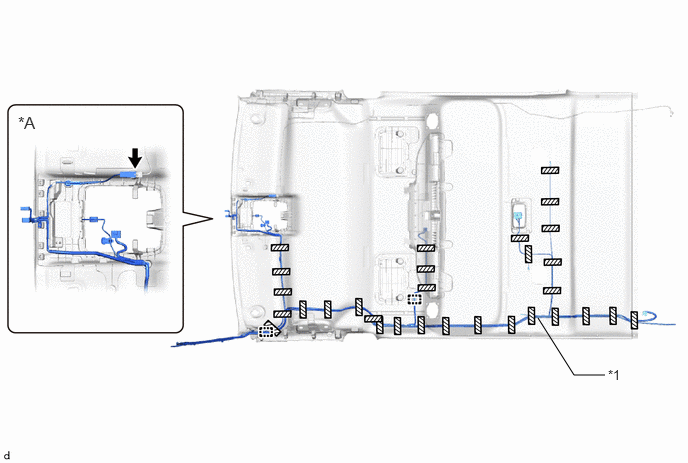

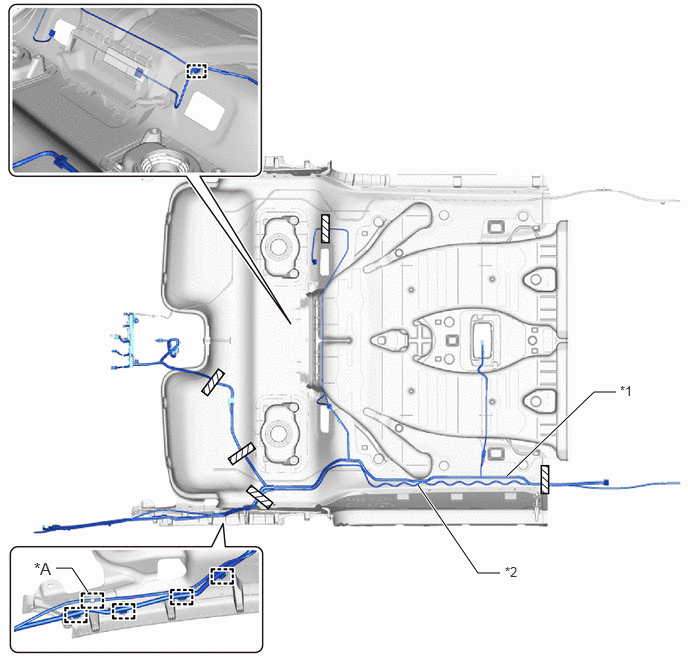

82172 16.REMOVE NO. 2 ROOF WIRE (for High Roof)

a.

Detach the clamp.

b.

Remove each piece of tape and No. 2 roof wire together with the washer hose from the roof headlining.

0.917,6.167 0.75,5.917 0.75,5.917 0.583,5.917 true 5.281,4.958 6.188,4.083 6.188,4.083 6.417,4.083 true 4.354,5.052 4.979,5.969 4.979,5.969 5.208,5.969 true 0.354,5.823 0.729,6.063 0.375,0.24 12 false *A 6.458,3.99 6.771,4.188 0.313,0.198 10 false *1 5.26,5.875 5.573,6.073 0.313,0.198 10 false *2

*A	w/ Rear Wiper or w/ Digital Inner Mirror	-	-
*1	No. 2 Roof Wire	*2	Washer Hose
	Tape	-	-

c.

w/ Digital Inner Mirror:

i.

Detach the guide.

d.

w/ Rear Wiper or w/ Digital Inner Mirror:

i.

Detach the clamp and remove the No. 2 roof wire from the washer hose.

867C1 17.REMOVE MIRROR CAMERA WIRE (for High Roof, w/ Digital Inner Mirror)

a.

Remove the 3 pieces of tape and mirror camera wire from the roof headlining.

0,0 0,0 false

Tape

-

-

84010A 18.REMOVE INTEGRATION CONTROL AND PANEL ASSEMBLY (w/ Integration Control Panel)
