RM35X0E _58 Vehicle Interior _078375 INTERIOR PANELS / TRIM _0380060 ROOF HEADLINING(for Semi-trim) A

INTERIOR PANELS / TRIM  ROOF HEADLINING(for Semi-trim)  DISASSEMBLY


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for RHD and LHD vehicles.

·

The procedure listed below is for LHD vehicles.



PROCEDURE

Hide 63342 1.REMOVE NO. 2 ROOF SILENCER PAD (for Standard Roof, LH Side)

a.

for 4 Door:

i.
B542294C01
0.094,0.094 0.354,0.333 0.26,0.24 12 true *A 0.115,2.427 0.375,2.667 0.26,0.24 12 true *B
*A w/o Rear Air Duct
*B w/ Rear Air Duct


Remove the No. 2 roof silencer pad.



b.

for 5 Door:

i.
B542293C01
0.104,0.073 0.365,0.302 0.26,0.229 12 true *A 0.104,2.396 0.365,2.625 0.26,0.229 12 true *B
*A w/o Rear Air Duct
*B w/ Rear Air Duct


Remove the 3 No. 2 roof silencer pads.



Hide 63342 2.REMOVE NO. 2 ROOF SILENCER PAD (for Standard Roof, RH Side)

a.

for 4 Door:

i.
B542291C01
0.094,0.094 0.354,0.333 0.26,0.24 12 true *A 0.115,2.427 0.375,2.667 0.26,0.24 12 true *B
*A w/o Rear Air Duct
*B w/ Rear Air Duct


Remove the No. 2 roof silencer pad.



b.

for 5 Door:

i.
B542292C01
0.104,0.073 0.365,0.302 0.26,0.229 12 true *A 0.104,2.396 0.365,2.625 0.26,0.229 12 true *B
*A w/o Rear Air Duct
*B w/ Rear Air Duct


Remove the 3 No. 2 roof silencer pads.



Hide 63415B 4.REMOVE ROOF SPEAKER GRILLE RH (for Standard Roof, 4 Speakers)

HINT:

Use the same procedure described for the LH side.


Hide 82172 5.REMOVE NO. 2 ROOF WIRE (for Standard Roof)

a.

Detach each clamp.


b.

w/ Digital Inner Mirror:

i.

Disconnect the connector.



c.

Remove each piece of tape and No. 2 roof wire from the roof headlining.

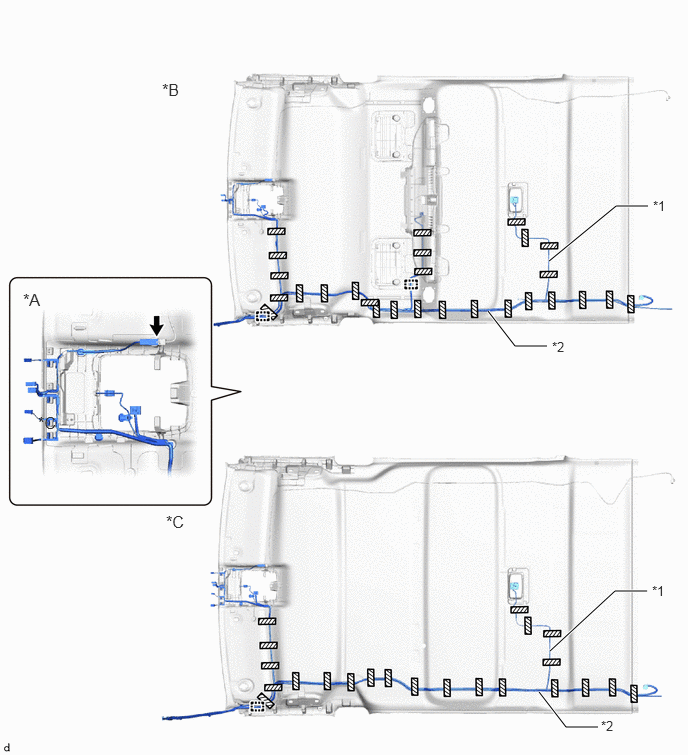

B553134C01
5.719,2.719 6.417,2.146 6.417,2.146 6.75,2.146 true 5.729,6.781 6.406,6.156 6.406,6.156 6.74,6.156 true 5.615,7.208 5.896,7.573 5.896,7.573 6.229,7.573 true 5.083,3.24 5.365,3.604 5.365,3.604 5.698,3.604 true 0.396,4.302 0.771,4.542 0.375,0.24 12 false *C 6.802,2.063 7.115,2.26 0.313,0.198 10 false *1 6.792,6.073 7.104,6.271 0.313,0.198 10 false *1 1.688,0.833 2.063,1.073 0.375,0.24 12 false *B 1.729,5.333 2.104,5.573 0.375,0.24 12 false *C 6.26,7.479 6.573,7.677 0.313,0.198 10 false *2 5.75,3.531 6.063,3.729 0.313,0.198 10 false *2 0.24,3.021 0.615,3.26 0.375,0.24 12 false *A
*A w/ Digital Inner Mirror *B w/ Rear Air Duct
*C w/o Rear Air Duct - -
*1 No. 2 Roof Wire *2 Washer Hose
V100155

Tape - -



d.

w/ Rear Wiper or w/ Digital Inner Mirror:

i.
B542304

Detach the clamp and remove the No. 2 roof wire from the washer hose.



Hide 867C1 6.REMOVE MIRROR CAMERA WIRE (for Standard Roof, w/ Digital Inner Mirror)

a.

w/o Rear Air Duct:

Remove each piece of tape and mirror camera wire from the roof headlining.

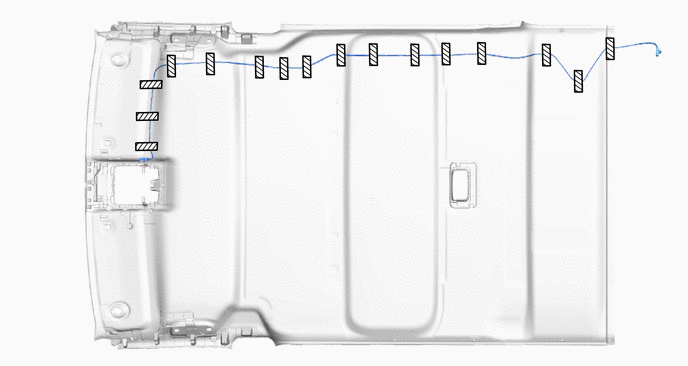

B553135C01
0,0 0,0 false
V100155

Tape - -



b.

w/ Rear Air Duct:

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>DISASSEMBLY


Hide 63610C 7.REMOVE NO. 1 AIR OUTLET REGISTER ASSEMBLY (for Standard Roof, w/ Rear Air Duct)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>DISASSEMBLY

Hide 63610C 9.REMOVE NO. 1 AIR OUTLET REGISTER ASSEMBLY (for High Roof, w/ Rear Air Duct)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>DISASSEMBLY

Hide 63342 10.REMOVE NO. 2 ROOF SILENCER PAD (for High Roof)

a.

w/o Rear Air Duct, except Slide Door Side:

i.
B543163

Remove the No. 2 roof silencer pads.



b.

for Slide Door Side:

i.
B543105

Remove the 3 No. 2 roof silencer pads.



c.

w/o Rear Air Duct, for 5 Door:

i.
B543105

Remove the 3 No. 2 roof silencer pads.

HINT:

Use the same procedure for the opposite side.




Hide 63341D 11.REMOVE FRONT ROOF SILENCER PAD (for High Roof, w/ Silencer Pad)

a.
E416940

Remove the front roof silencer pad.


Hide 63341G 12.REMOVE ROOF SILENCER PAD (for High Roof)

a.

for Commuter, w/o Rear Air Duct:

i.

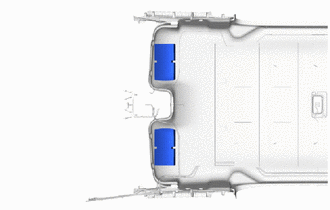

B543106

Remove the 2 roof silencer pads.



b.

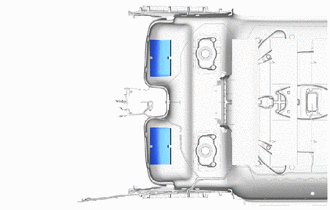

w/ Rear Air Duct:

i.
B543118

Remove the 2 roof silencer pads.



Hide 63341H 13.REMOVE ROOF SILENCER PAD (for High Roof)

a.

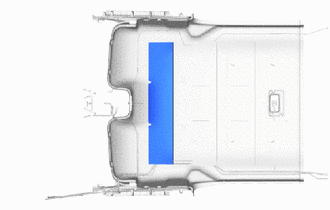

for Commuter, w/o Rear Air Duct:

i.
B543108

Remove the roof silencer pad.



b.

w/ Rear Air Duct:

i.
B543120

Remove the roof silencer pad.



Hide 63341 14.REMOVE NO. 1 ROOF SILENCER PAD (for High Roof)

a.

for Van:

i.
E416941

Remove the No. 1 roof silencer pad.



b.

for Commuter, w/o Rear Air Duct:

i.

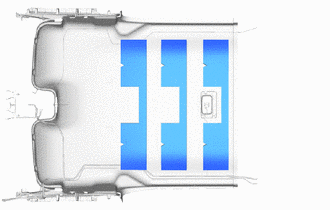

B543110

Remove the 3 No. 1 roof silencer pads.



c.

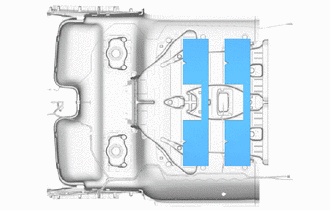

for Commuter, w/ Rear Air Duct:

i.
B543122

w/o Roof Window Glass:

Remove the 2 No. 1 roof silencer pads.


ii.

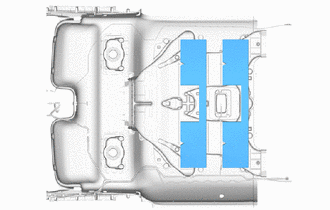

B543123

w/ Roof Window Glass:

Remove the 2 No. 1 roof silencer pads.



Hide 82172 15.REMOVE NO. 2 ROOF WIRE (for High Roof)

a.

w/o Rear Air Duct:

i.

Detach the clamp.


ii.

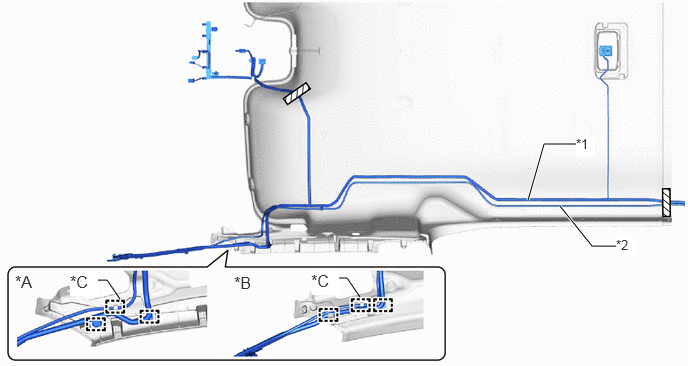

Remove each piece of tape and No. 2 roof wire together with the washer hose from the roof headlining.

B543112C01
3.75,3.094 3.615,2.896 3.615,2.896 3.448,2.896 false 1.25,3.115 1.115,2.917 1.115,2.917 0.948,2.917 false 5.5,2.083 5.667,1.5 5.667,1.5 6,1.5 true 5.833,2.146 6.167,2.563 6.167,2.563 6.5,2.563 true 0.156,2.833 0.531,3.073 0.375,0.24 12 false *A 2.438,2.844 2.813,3.083 0.375,0.24 12 false *B 3.24,2.823 3.531,3.073 0.292,0.25 12 true *C 0.729,2.833 1.021,3.083 0.292,0.25 12 true *C 6,1.417 6.198,1.615 0.198,0.198 10 true *1 6.417,2.469 6.615,2.667 0.198,0.198 10 true *2
*A for Commuter *B for Van
*C w/ Rear Wiper or w/ Digital Inner Mirror - -
*1 No. 2 Roof Wire *2 Washer Hose
V100155

Tape - -



iii.
B543115

w/ Rear Wiper or w/ Digital Inner Mirror:

Detach the clamp and remove the No. 2 roof wire from the washer hose.



b.

w/ Rear Air Duct:

i.

Detach the clamp.


ii.

Remove each piece of tape and No. 2 roof wire together with the washer hose from the roof headlining.

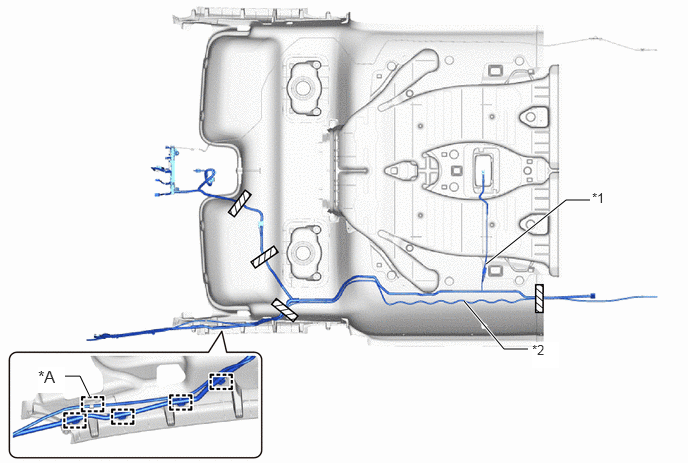

B543127C02
0.938,4.135 0.833,3.917 0.833,3.917 0.667,3.917 true 5.5,3.635 5.25,3.635 5.25,3.635 4.833,3.135 true 6.146,2.083 5.896,2.083 5.896,2.083 5.063,2.75 true 0.396,3.823 0.677,4.094 0.281,0.271 12 true *A 6.167,1.979 6.448,2.25 0.281,0.271 10 false *1 5.542,3.563 5.823,3.833 0.281,0.271 10 true *2
*A w/ Rear Wiper or w/ Digital Inner Mirror - -
*1 No. 2 Roof Wire *2 Washer Hose
V100155

Tape - -



iii.
B543140

w/ Rear Wiper or w/ Digital Inner Mirror:

Detach the clamp and remove the No. 2 roof wire from the washer hose.



c.

w/ Digital Inner Mirror:

i.
B543113

Detach the guide.



d.

Remove the butyl tape remaining on the roof headlining.


Hide 867C1 16.REMOVE MIRROR CAMERA WIRE (for High Roof, w/ Digital Inner Mirror)

a.

w/o Rear Air Duct:

i.

Remove the 2 pieces of tape and mirror camera wire from the roof headlining.

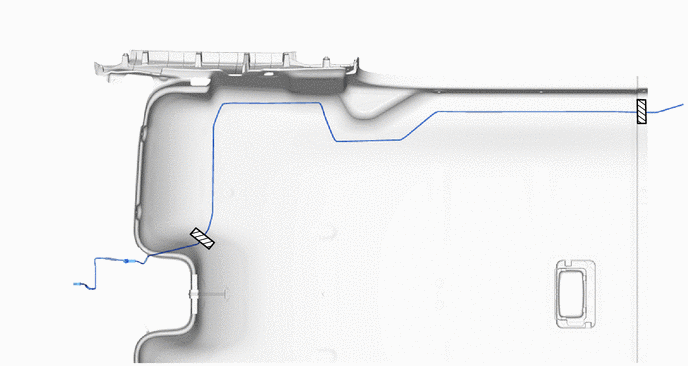

B543114C01
0,0 0,0 false
V100155

Tape - -



ii.

Remove the butyl tape remaining on the roof headlining.



b.

w/ Rear Air Duct:

i.

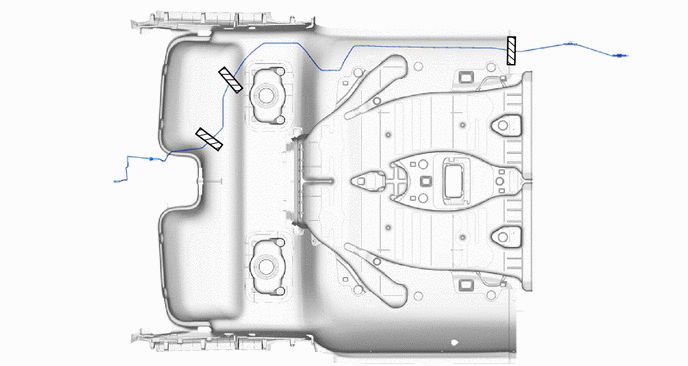

Remove the 3 pieces of tape and mirror camera wire from the roof headlining.

B543128C02
0,0 0,0 false
V100155

Tape - -



ii.

Remove the butyl tape remaining on the roof headlining.



Hide 63344 17.REMOVE NO. 4 ROOF SILENCER PAD (for High Roof)

a.

w/o Rear Air Duct:

i.

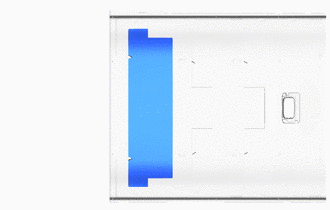

B542311

for Front Side:

Remove the No. 4 roof silencer pad.


ii.

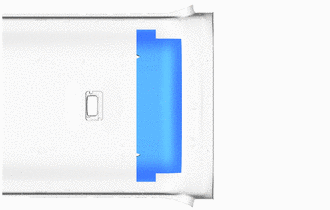

B542317

for Rear Side:

Remove the No. 4 roof silencer pad.



b.

w/ Rear Air Duct:

i.

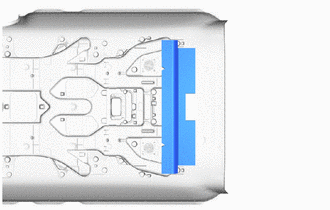

B543080

for Front Side:

Remove the No. 4 roof silencer pad.


ii.
B543085

for Rear Side:

Remove the No. 4 roof silencer pad.



Hide 63343 18.REMOVE NO. 3 ROOF SILENCER PAD (for High Roof)

a.

w/o Rear Air Duct:

i.

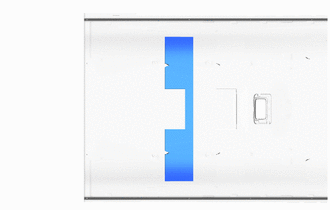

B542313

for Front Side:

Remove the No. 3 roof silencer pad.


ii.
B542315

for Rear Side:

Remove the No. 3 roof silencer pad.



b.

w/ Rear Air Duct:

i.

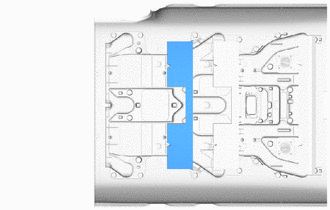

B543082

for Front Side:

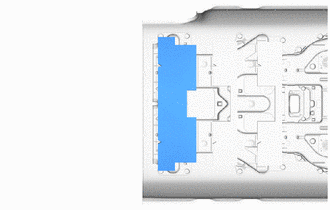

Remove the No. 3 roof silencer pad.


ii.

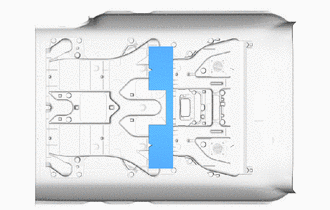

B543083

for Rear Side:

Remove the No. 3 roof silencer pad.
