RM35X0E
_58
Vehicle Interior
_078381
LIGHTING (INT)
_0381162
SCUFF PLATE LIGHT
A
LIGHTING (INT) SCUFF PLATE LIGHT INSTALLATION
CAUTION / NOTICE / HINT
- HINT:
- ·
Use the same procedure for the RH and LH sides.
·The procedure listed below is for the RH side.
PROCEDURE
81250B

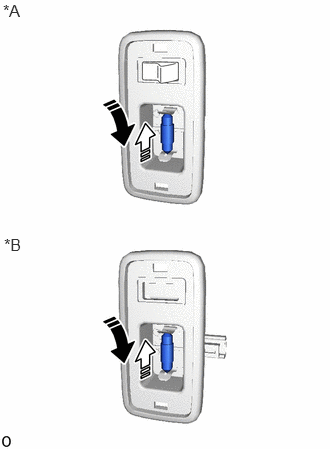

1.INSTALL NO. 2 ROOM LIGHT BULB
a.
0.031,0.01 0.302,0.208
0.271,0.198
12
false
*A
0.042,2.448 0.292,2.656
0.25,0.208
12
false
*B
| *A | for Type A |
| *B | for Type B |
|
Install in this Direction (1) |
|
Install in this Direction (2) |
Install the No. 2 room light bulb as shown in the illustration.
81251

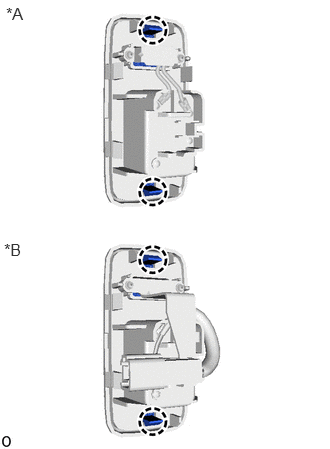

2.INSTALL NO. 2 ROOM LIGHT LENS
a.
0.063,0.042 0.313,0.25
0.25,0.208
12
false
*A
0.042,2.5 0.313,2.698
0.271,0.198
12
false
*B
| *A | for Type A |
| *B | for Type B |
Attach the claw to install the No. 2 room light lens.
81250

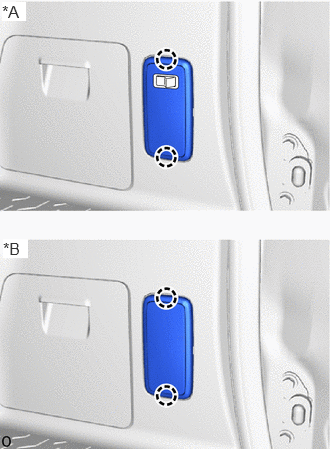

3.INSTALL NO. 2 ROOM LIGHT ASSEMBLY
a.
0.021,0.021 0.281,0.25
0.26,0.229
12
true
*A
0.021,2.542 0.292,2.76
0.271,0.219
12
true
*B
| *A | for Type A |
| *B | for Type B |

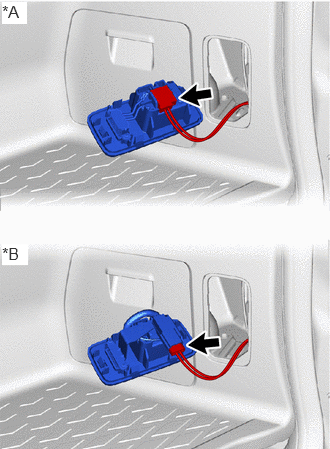

Connect the connector.
b.
0.021,0.021 0.271,0.219
0.25,0.198
12
true
*A
0.031,2.49 0.292,2.688
0.26,0.198
12
true
*B
| *A | for Type A |
| *B | for Type B |
Attach the claw to install the No. 2 room light assembly.
