LIGHTING (INT) SCUFF PLATE LIGHT REMOVAL
CAUTION / NOTICE / HINT
- HINT:
- ·
Use the same procedure for the RH and LH sides.
·The procedure listed below is for the RH side.
PROCEDURE
81250
1.REMOVE NO. 2 ROOM LIGHT ASSEMBLY
a.
0.021,0.021 0.271,0.219
0.25,0.198
12
true
*A
0.031,2.49 0.292,2.688
0.26,0.198
12
true
*B
| *A | for Type A |
| *B | for Type B |
Detach the claw and remove the No. 2 room light assembly.
b.
0.021,0.021 0.281,0.25
0.26,0.229
12
true
*A
0.021,2.542 0.292,2.76
0.271,0.219
12
true
*B
| *A | for Type A |
| *B | for Type B |
Disconnect the connector.
81251
2.REMOVE NO. 2 ROOM LIGHT LENS
a.
0.063,0.042 0.313,0.25
0.25,0.208
12
false
*A
0.042,2.5 0.313,2.698
0.271,0.198
12
false
*B
| *A | for Type A |
| *B | for Type B |
Detach the claw and remove the No. 2 room light lens.
81250B
3.REMOVE NO. 2 ROOM LIGHT BULB
a.
0.052,0.073 0.323,0.323
0.271,0.25
12
false
*A
0.063,2.594 0.333,2.802
0.271,0.208
12
false
*B
| *A | for Type A |
| *B | for Type B |
|
Remove in this Direction (1) |
|
Remove in this Direction (2) |

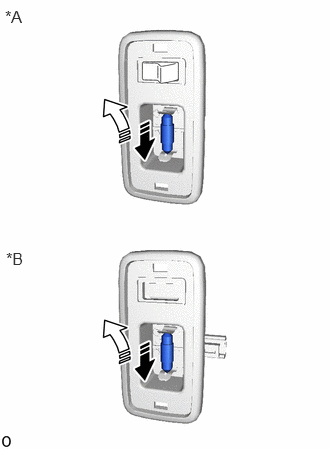

Remove the No. 2 room light bulb as shown in the illustration.
