LIGHTING (INT) SPOT LIGHT(for Rear Door) INSTALLATION
CAUTION / NOTICE / HINT
- HINT:
- ·
Use the same procedure for the RHD and LHD vehicles.
·The procedure listed below is for the LHD vehicles.
PROCEDURE
1.INSTALL ROOM LIGHT WIRE
a.
2.479,1.792 2.688,1.219
true
2.969,1.094 2.823,0.406
true
3.052,1.906 3.198,1.531
true
1.438,1.031 1.76,0.406
1.76,0.406 2.021,1.031
true
0.552,0.885 0.844,0.375
0.844,0.375 1.125,0.885
true
0.75,0.167 0.99,0.333
0.24,0.167
10
false
*a
2.948,1.906 3.167,2.104
0.219,0.198
10
false
*b
2.677,0.156 2.917,0.354
0.24,0.198
10
false
*c
1.667,0.146 1.927,0.323
0.26,0.177
10
false
*a
2.375,1.854 2.635,2.042
0.26,0.188
10
false
*a
| *a | Wire Harness Clamp |
| *b | Clamp |
| *c | Guide |

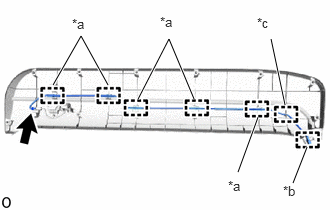

Attach the guide, clamp and wire harness clamp to install the room light wire.
b.

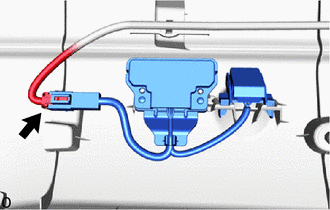

Connect the connector.
81360T
2.INSTALL SPOT LIGHT ASSEMBLY
a.
0.313,1.729 0.458,1.729
0.458,1.729 0.656,1.135
true
1.49,0.823 1.74,0.302
1.74,0.302 2.063,0.813
true
0.073,1.635 0.281,1.833
0.208,0.198
10
true
*a
1.625,0.083 1.854,0.313
0.229,0.229
10
true
*b
| *a | Clamp |
| *b | Guide |
Attach the guide to temporarily install the spot light assembly.
b.
Attach the clamp and claw.
c.
Install the 2 screws.
d.
Connect the connector.
67692B
3.INSTALL SLIDE DOOR UPPER TRIM COVER RH
67667A
4.INSTALL SLIDE DOOR WINDOW GARNISH RH
